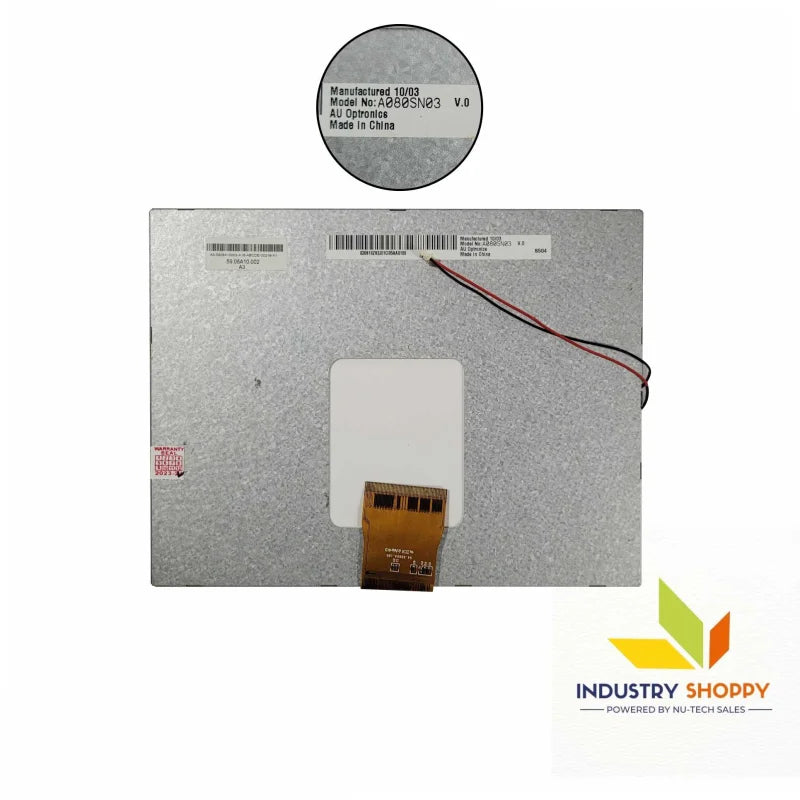

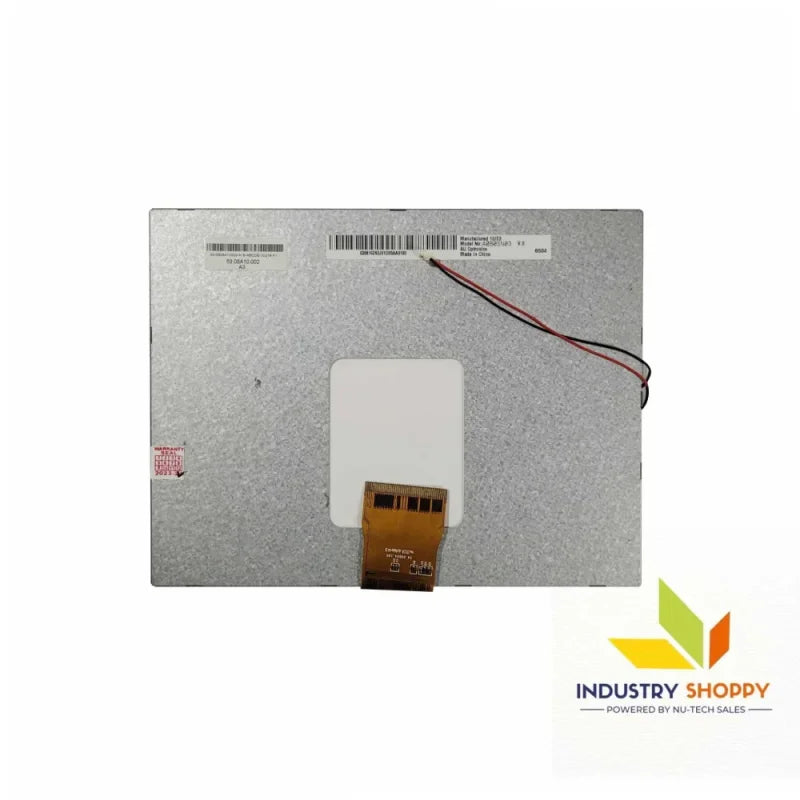

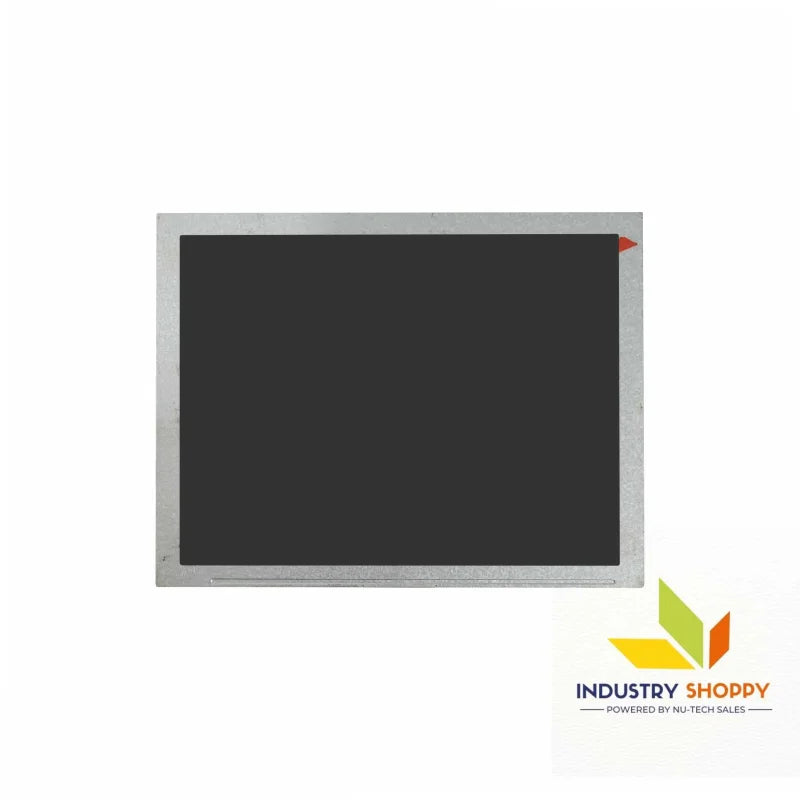

AUO A080SN03-V.0 LCD Module

AUO A080SN03-V.0 LCD Module

The AUO A080SN03-V.0 is an 8.0-inch a-Si TFT-LCD module designed to deliver excellent display quality for various applications. Featuring a resolution of 800x600 (SVGA) and a pixel density of 100 PPI, this display offers clear and sharp visuals with vibrant color reproduction. It is particularly well-suited for industrial control panels, medical devices, and portable applications that require a compact and reliable display.

With a brightness of 400 cd/m² and a contrast ratio of 500:1, the A080SN03-V.0 ensures excellent visibility even in environments with high ambient light. The wide viewing angles of 80°/80°/80°/80° (L/R/U/D) ensure consistent image clarity, providing users with clear visuals from multiple viewing positions.

Equipped with an LED backlight, this module offers energy efficiency and a long lifespan, reducing the need for frequent maintenance. The antiglare surface treatment minimizes reflections and enhances the display's readability in bright environments.

Key Features:

• Brand: AUO
• Model: A080SN03-V.0
• Diagonal Size: 8.0 inches
• Resolution: 800×600 (SVGA), 100 PPI
• Pixel Format: RGB Vertical Stripe for accurate color reproduction
• Active Area: 174.4(W) × 130.8(H) mm
• Bezel Opening: 177.5(W) × 133.5(H) mm
• Outline Dimensions: 186.3(W) × 141.1(H) × 6.8(D) mm
• Surface Treatment: Antiglare to improve readability in high ambient light
• Brightness: 400 cd/m² (Typical), ensuring good visibility in bright environments
• Contrast Ratio: 500:1 (Typical), providing vibrant, high-contrast visuals
• Viewing Angle: 80°/80°/80°/80° (L/R/U/D), ensuring clear visuals from various angles
• Backlight Type: LED for energy efficiency and extended use
• Display Mode: Normally White, Transmissive
• Response Time: 20 ms (Typical, Tr/Td) for smooth and responsive visuals

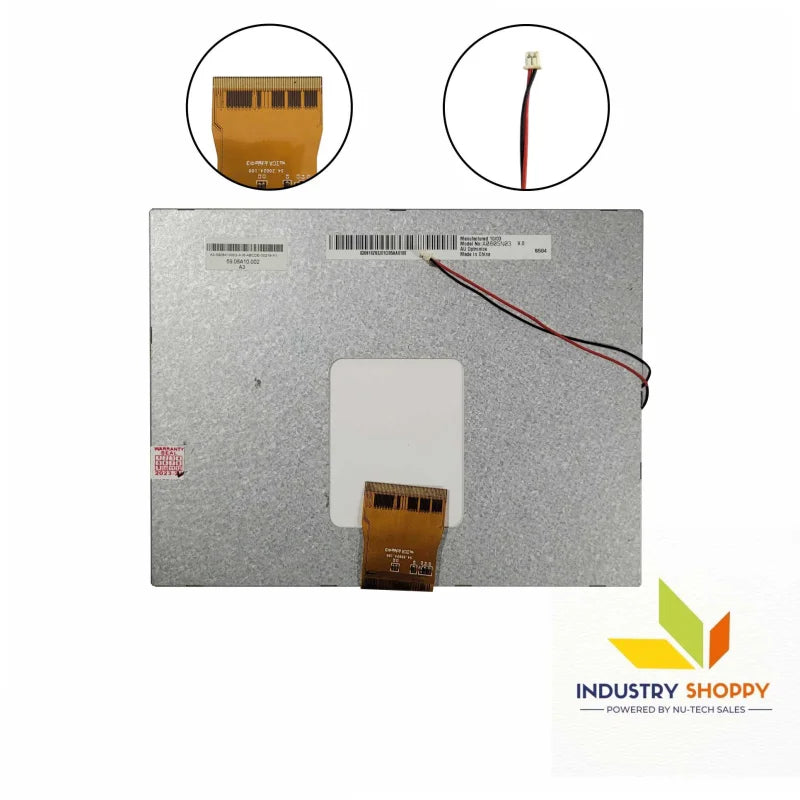

• Signal Interface: LVDS, 30-pin FPC connector
• Input Voltage: 3.3V (Typical for VCC)
• Operating Temperature: -20°C to 70°C, suitable for a wide range of environments
• Storage Temperature: -30°C to 80°C, adaptable to various storage conditions

Applications:

• Industrial Control Panels: Ideal for industrial systems requiring compact, reliable, and clear displays
• Medical Devices: Suitable for medical equipment that requires precise visual output
• Point-of-Sale (POS) Systems: Reliable for retail systems needing vibrant and clear displays
• Portable Devices: Ideal for handheld or portable applications where space is limited

Technical Precautions:

• Handling: Handle with care to avoid damage to the surface or internal components
• ESD Protection: Use electrostatic discharge (ESD) precautions during installation
• Temperature Limits: Ensure the module operates within the recommended temperature range (-20°C to 70°C) for optimal longevity
• Installation Guidelines: Avoid excessive pressure on connectors to maintain reliability
• Backlight Maintenance: Regularly inspect the backlight to ensure continued performance

Note : All tax and custom duty should be pay by buyer only.

Note: All trademarks and trade names used are the property of their respective owners.
