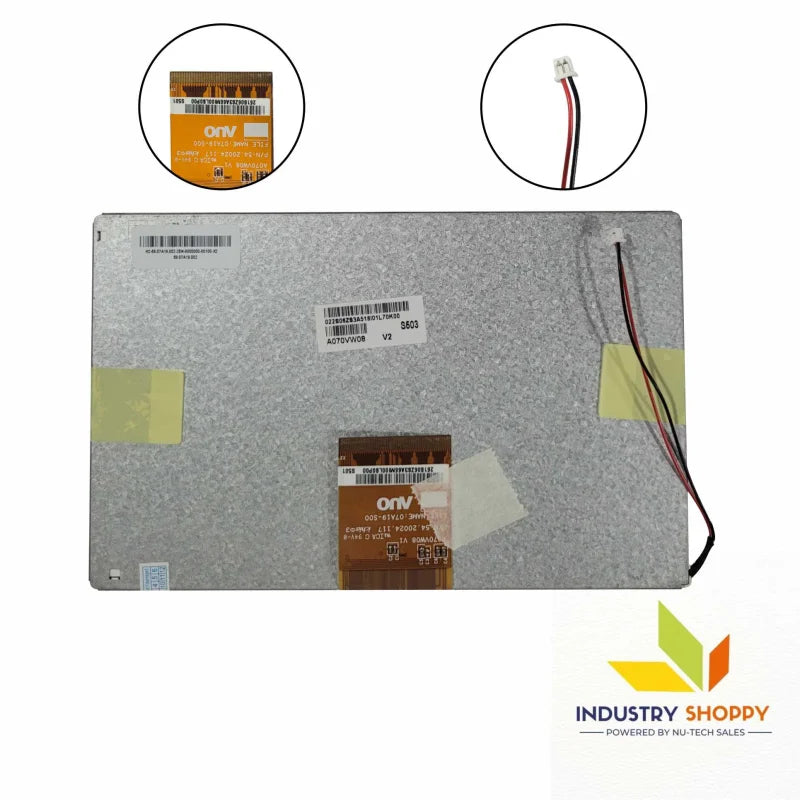

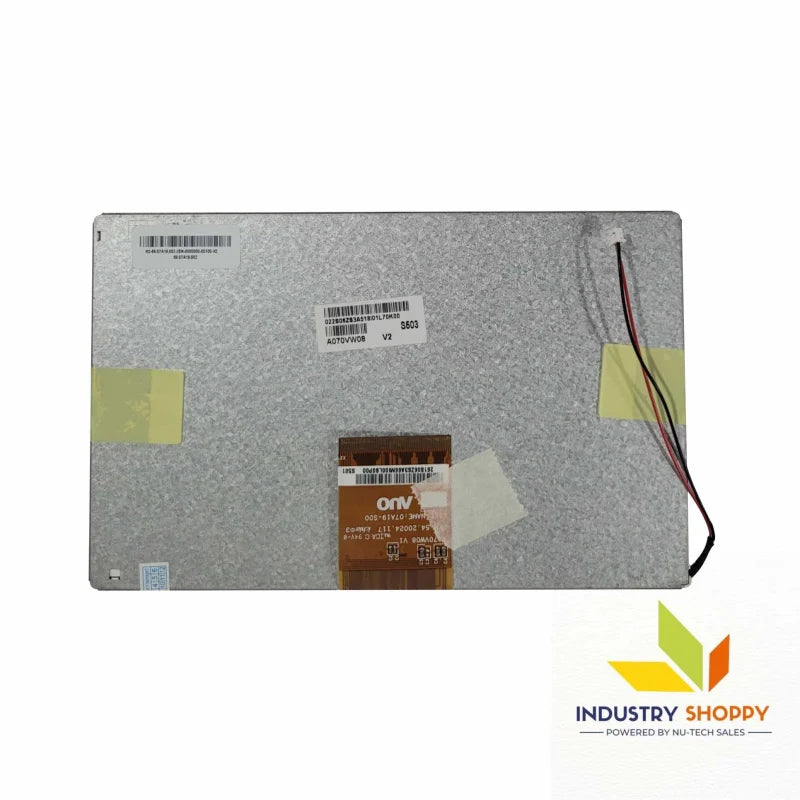

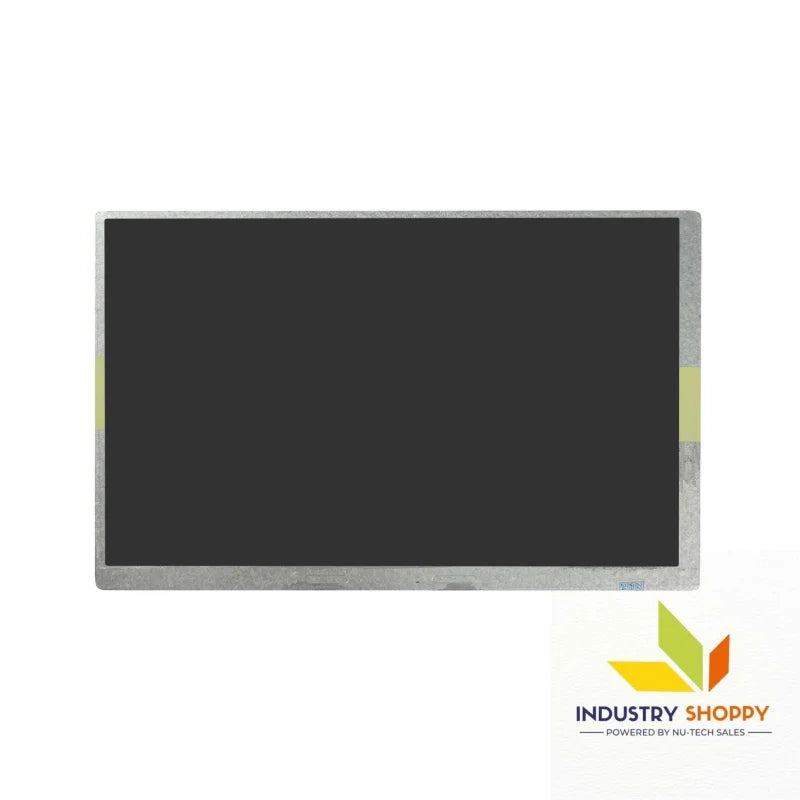

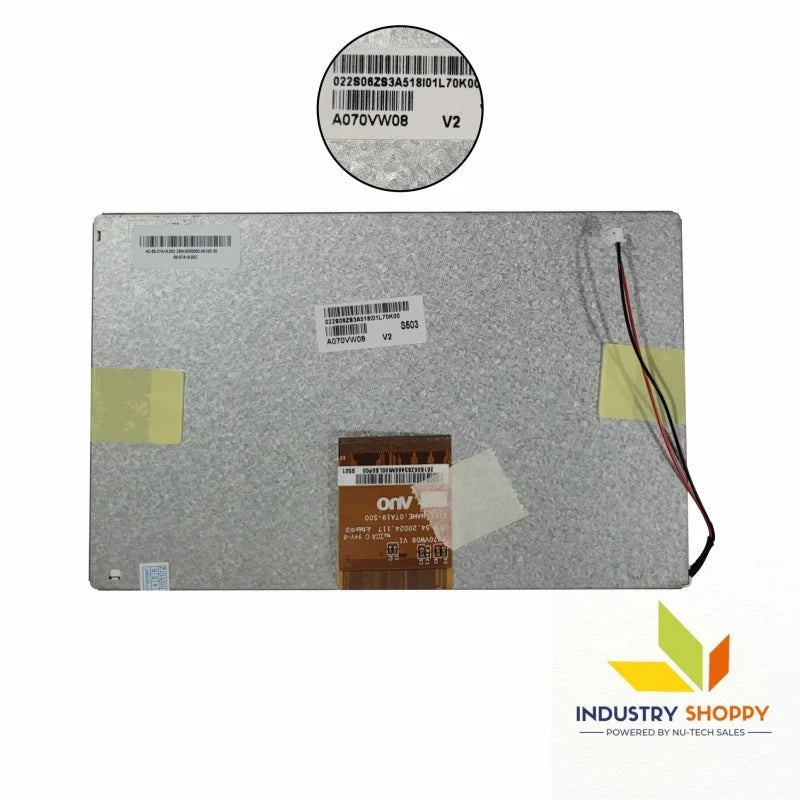

AUO A070VW08-V.2 LCD Module

AUO A070VW08-V.2 LCD Module

The AUO A070VW08-V.2 LCD Module is a high-performance 7.0" a-Si TFT-LCD display, engineered for industrial and automotive applications. It boasts a resolution of 800×480 (WVGA) and a brightness of 500 cd/m², ensuring exceptional visibility in various lighting conditions. With an anti-glare surface treatment and a compact design, it delivers clear visuals even in challenging environments. The module features an RGB Horizontal Stripe pixel format, providing vibrant color reproduction and a wide viewing angle of 65°/65°/50°/60°. It operates within a temperature range of -20°C to 70°C, making it reliable for demanding conditions. Ideal for industrial displays, automotive dashboards, and public information systems, this LCD module offers both durability and clarity, perfect for any application.

Key Features:

• Brand: AUO
• Model: A070VW08 V.2
• Diagonal Size: 7.0 inches
• Resolution: 800×480 (WVGA), 133 PPI for detailed image quality
• Pixel Format: RGB Horizontal Stripe for accurate color reproduction
• Active Area: 152.4(W) × 91.44(H) mm
• Bezel Opening: 154.40(W) × 93.44(H) mm
• Outline Dimensions: 165(W) × 104(H) × 5.4(D) mm
• Surface Treatment: Anti-glare with Hard Coating (3H) for enhanced durability and readability
• Brightness: 500 cd/m² (Typical) ensuring visibility in diverse lighting conditions
• Contrast Ratio: 500:1 (Typical) for vivid image clarity
• Viewing Angle: 65°/65°/50°/60° (L/R/U/D) optimized for a 6 o'clock viewing direction
• Display Mode: TN, Normally White, Transmissive
• Response Time: 12/18 ms (Typical) for smooth visual transitions
• Display Colors: 16.7 million colors with 50% NTSC coverage
• Backlight: WLED, with a lifespan of 10,000 hours (Driver not included)
• Refresh Rate Options: 60Hz Standard
• Touch Screen: Not included
• Interface: TTL (1 channel, 8-bit) + SPI, 60-pin FPC connector
• Input Voltage: 3.3/5/-5/14/-14V (Typical)
• Operating Temperature: -20°C to 70°C, built to perform in extreme conditions
• Storage Temperature: -30°C to 80°C, for safe long-term storage

Applications:

The AUO A070VW08-V.2 LCD Module is ideal for:

• Industrial Displays: Reliable performance in control systems and manufacturing environments.
• Automotive Displays: Perfect for dashboards, navigation, and information screens in vehicles.
• Public Information Displays: Effective in automated kiosks, point-of-sale terminals, and more.

With its durability and brightness, this display is well-suited for environments demanding clear visuals and reliability.

Technical Precautions:

• Proper Handling: Handle the panel by its edges to avoid damaging the screen's surface or leaving fingerprints.
• Electrostatic Discharge (ESD): Use ESD precautions during installation to prevent damage to sensitive components.
• Temperature Management: Store the display between -30°C and 80°C and operate between -20°C and 70°C to ensure optimal longevity.
• Installation Care: Avoid exerting excessive force during installation to protect connectors and internal components.
• Power Safety: Power off all equipment before connecting or disconnecting the panel to prevent electrical damage.
• Ventilation: Ensure adequate cooling in high-temperature environments to avoid overheating and ensure stable performance.
