SICK RZT7-03ZWS-KWB Magnetic Sensor

SICK RZT7-03ZWS-KWB Magnetic Sensor :

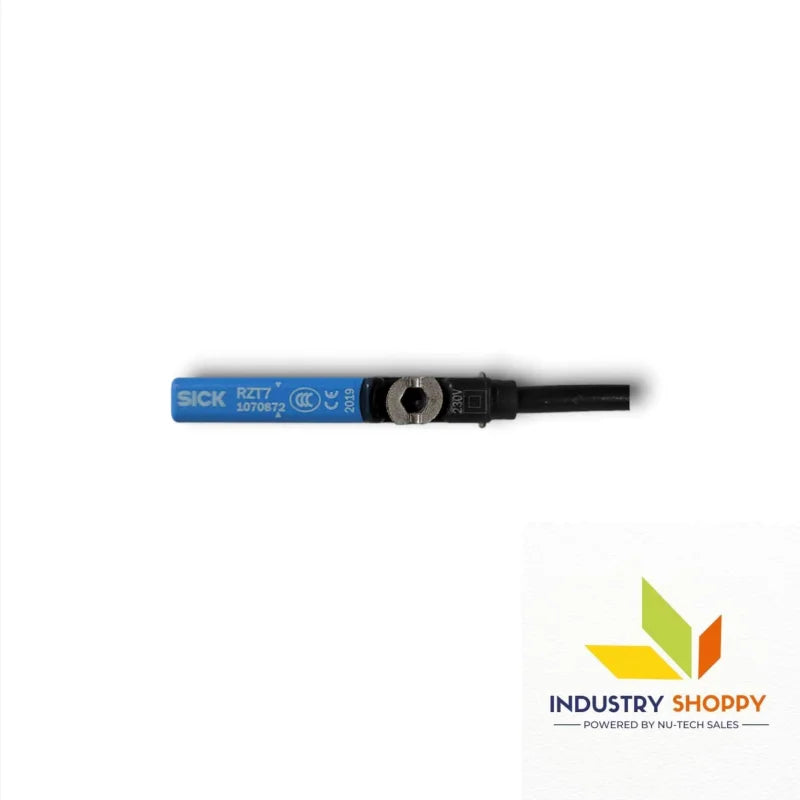

SICK RZT7-03ZWS-KWB Magnetic Sensor is a robust and highly reliable sensor designed for precise position and motion detection in various industrial applications. Using magnetic field technology, this sensor ensures accurate measurement of position changes, making it ideal for non-contact sensing in harsh environments. The sensor’s compact design (22.5 mm × 32 mm × 15 mm) makes it easy to integrate into tight spaces, while its resistant housing ensures durability under demanding industrial conditions.

The RZT7-03ZWS-KWB operates within a voltage range of 10-30 VDC and features NPN or PNP outputs, allowing flexible integration into various control systems. With a high switching frequency and a fast response time, the sensor is perfect for use in high-speed processes. Its IP67-rated housing offers excellent protection against dust, water, and other environmental factors, making it ideal for tough industrial applications.

The teach-in function allows for easy configuration and calibration, reducing setup time and ensuring quick adaptation to various tasks.

Key features :-

Product Number	RZT7-03ZWS-KWB
Part Number	1070872
Functional principle	Magnetic Cylinder Sensor
Cylinder type	T-slot
Cylinder types with adapter	Profile cylinder Tie rod cylinder Round body cylinder Dovetail groove cylinder SMC rail CDQ2 SMC rail ECDQ2
Housing length	32.5 mm
Switching output	Reed
Switching frequency	400 Hz
Output function	NO
Electrical wiring	AC/DC 2-wire
Enclosure rating	IP65  IP67
Supply voltage	5 V AC/DC ... 230 V AC/DC
Rated insulation voltage	Ui 230 V
Rated impulse withstand voltage Uimp	4 kV
Voltage drop	≤ 3.5 V
Continuous current Ia	≤ 100 mA
Switching capacity	≤ 6 W
Protection class	II
Response sensitivity, typ.	3 mT
Overrun distance, typ.	10 mm
Reproducibility	≤ 0.1 mT
Status indicator LED
Ambient operating temperature	–30 °C ... +70 °C
Shock and vibration resistance	30 g, 11 ms / 10 ... 55 Hz, 1 mm
EMC	According to EN 60947-5-2

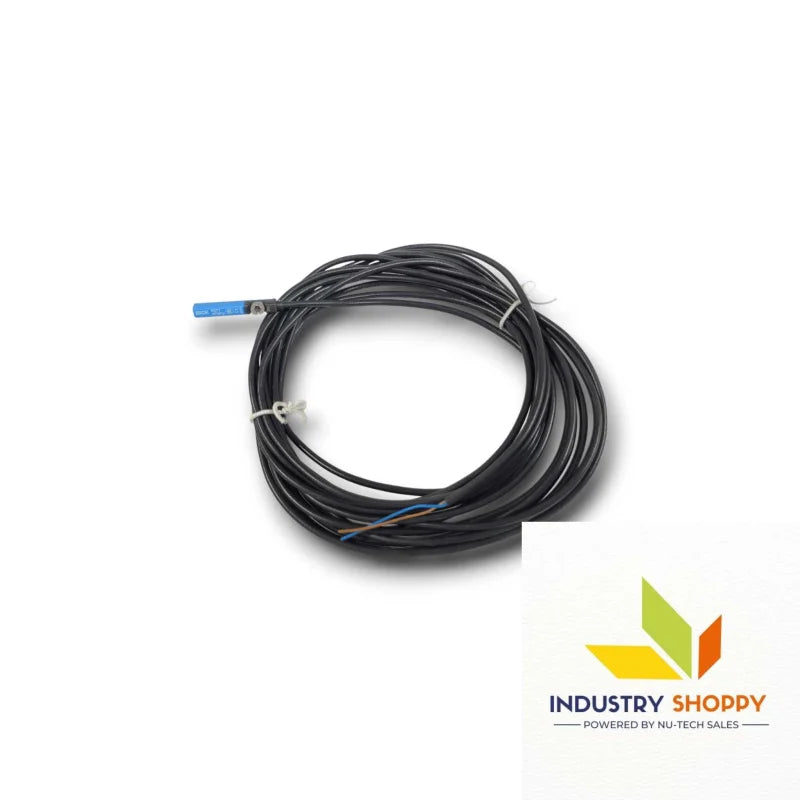

Connection type	Cable, 2-wire, 5 m
Conductor cross-section	0.12 mm²
Cable diameter	Ø 2.9 mm
Bending radius With fixed installation	> 10 x cable diameter For flexible use > 15 x cable diameter
Cable outlet	Axial
Housing	Plastic
Cable	PVC

Applications :-

• Position Detection: Ideal for detecting the position of moving parts in machinery, conveyor systems, or automated assembly lines.
• Motion Monitoring: Used to monitor the motion of components in robotics, material handling, and industrial automation systems.
• Switching Applications: Applied in systems that require precise switching based on the movement or position of mechanical parts.
• Machine Safety: Integrated into safety systems to detect the position of safety doors, guards, or barriers, ensuring protection in industrial environments.
• Quality Control: Applied in manufacturing lines for ensuring correct part placement, alignment, and tracking during production processes.
• Automated Systems: Frequently used in automated systems to ensure accurate detection of positions and movements for optimized control in manufacturing processes.

Precautions:

• Ensure Correct Wiring: Incorrect connections can cause sensor failure
• Avoid Overvoltage: Operating within 10-30V DC prevents damage
• Protect from Extreme Heat: Avoid installing near high-temperature sources
• Regular Cleaning: Keep the optical lens free from dust and debris for optimal performance
