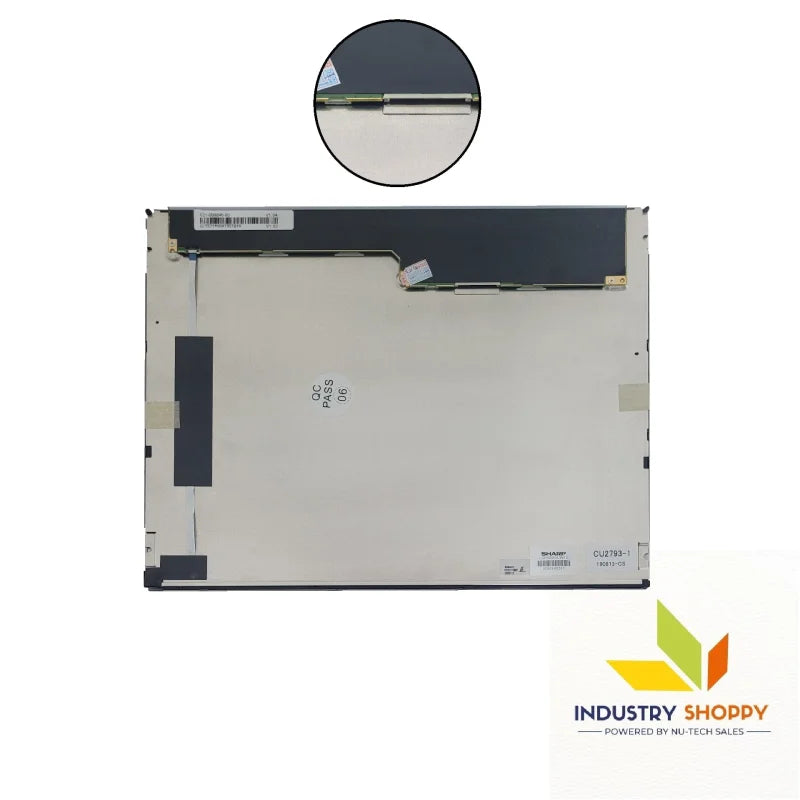

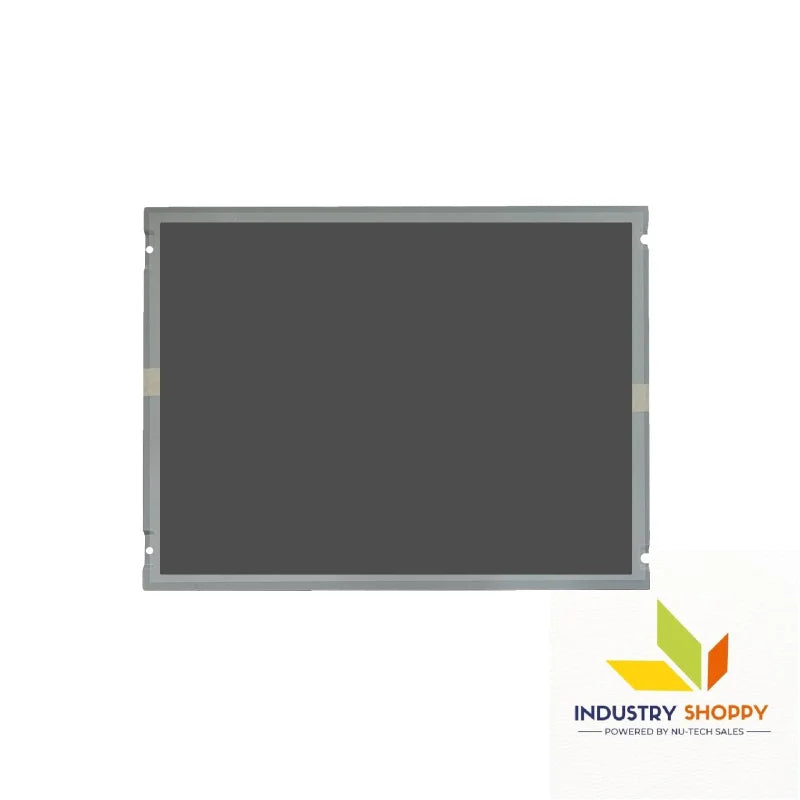

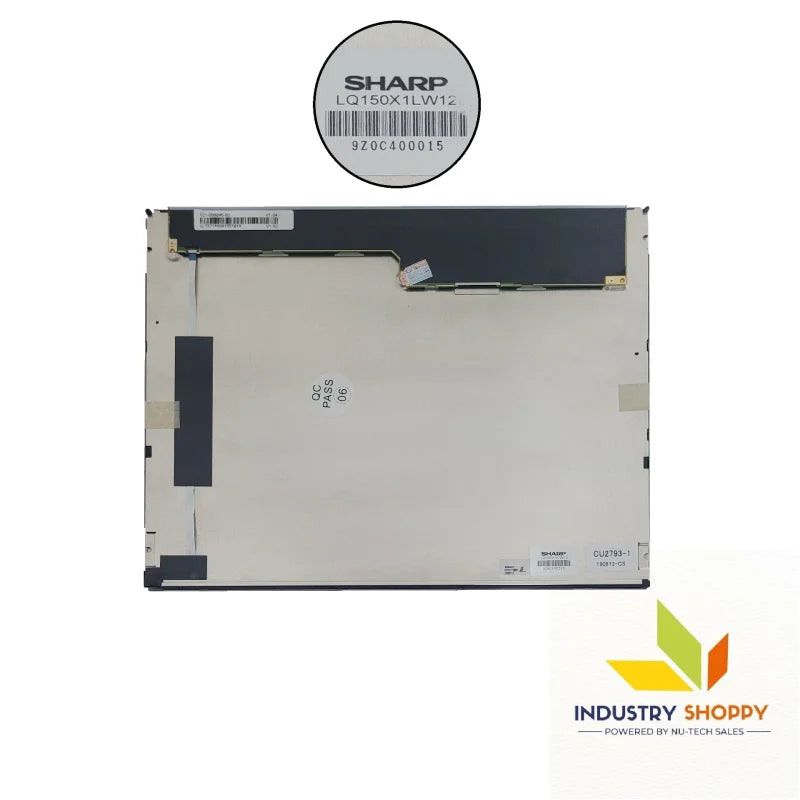

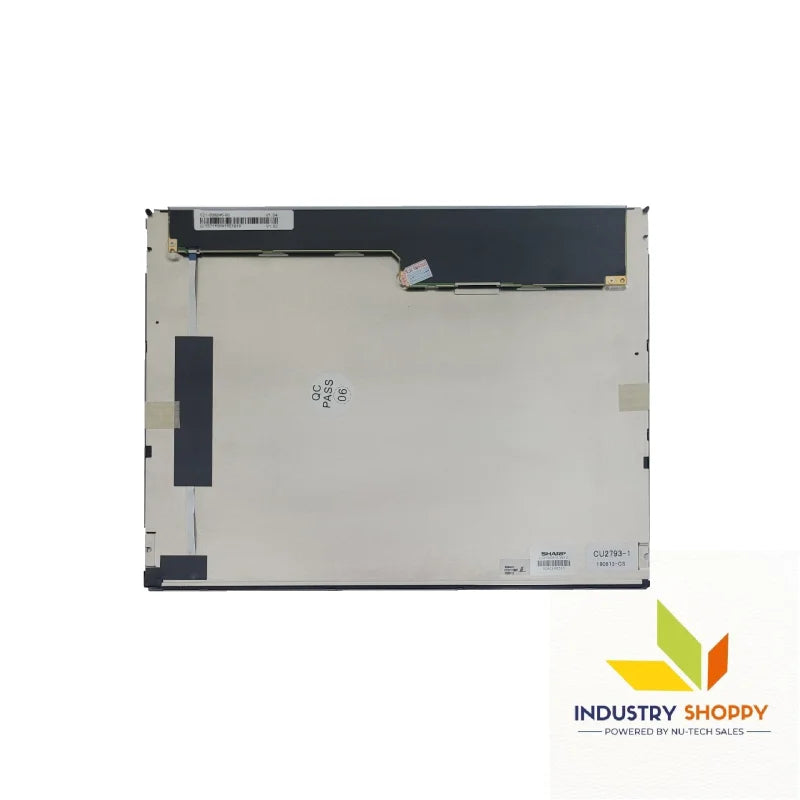

Sharp LQ150X1LW12 LCD Module

Sharp LQ150X1LW12 LCD Module

The Sharp LQ150X1LW12 LCD Display is a 15-inch a-Si TFT-LCD module specifically crafted for industrial and healthcare environments. With XGA resolution, impressive contrast, and wide viewing angles, this module ensures vibrant and consistent visual performance, making it ideal for demanding applications.

Key Features:

• Brand: Sharp
• Model: LQ150X1LW12
• Diagonal Size: 15 inches
• Resolution: 1024×768 (XGA), 85 PPI
• Pixel Format: RGB Vertical Stripe for sharp image clarity
• Active Area: 304.128(W) × 228.096(H) mm
• Bezel Opening: 307.2(W) × 231.1(H) mm
• Outline Dimensions: 331.6(W) × 254.7(H) × 9.8(D) mm
• Surface Treatment: Antiglare with 3H Hard Coating to reduce reflections and enhance durability
• Brightness: 350 cd/m² (Typical), ensuring clear visibility in well-lit conditions
• Contrast Ratio: 1000:1 (Typical), delivering deep blacks and high contrast for detailed visuals
• Viewing Angle: 85°/85°/85°/85° (Left/Right/Up/Down), providing a symmetrical and wide viewing range
• Display Mode: ASV, Normally Black, Transmissive, suitable for a variety of lighting conditions
• Response Time: 30 ms (Typical, Tr+Td) for smooth visuals with reduced blur
• Display Colors: 262K/16.2M (72% NTSC) for a vivid and accurate color representation
• Backlight Type: WLED with a lifespan of 70,000 hours, integrated with an LED Driver
• Refresh Rate: Standard 60Hz with embedded MEMC Circuit for optional 120Hz and 240Hz modes
• Signal Interface: LVDS (1 channel, 6/8-bit), 20-pin Connector, supporting reliable data transmission
• Input Voltage: 3.3V (Typical)
• Operating Temperature: 0°C to 65°C, suitable for controlled indoor environments
• Storage Temperature: -25°C to 65°C, allowing for secure storage in diverse conditions

Applications:

The Sharp LQ150X1LW12 LCD Module is designed for:

• Industrial Monitoring Systems: Perfect for displaying critical information in manufacturing facilities and control rooms.
• Healthcare Displays: Reliable for medical diagnostic equipment and patient monitoring devices.
• Automated Equipment: Suitable for machine interfaces in industrial automation settings.
• Navigation and Public Display Systems: Ideal for kiosks and information systems with excellent visibility.

Technical Precautions:

• Handling: Handle with care to avoid damage to the antiglare surface and internal components.
• Electrostatic Safety: Use proper ESD (Electrostatic Discharge) precautions during installation and maintenance.
• Temperature Compliance: Operate within the recommended temperature range (0°C to 65°C) for consistent performance.
• Connection Guidelines: Ensure that the display is powered down before making any connections to prevent electrical damage.
• Mounting Recommendations: Use manufacturer-approved fixtures for secure mounting, particularly in industrial environments.
• Ventilation: Maintain adequate airflow around the module to prevent overheating.
