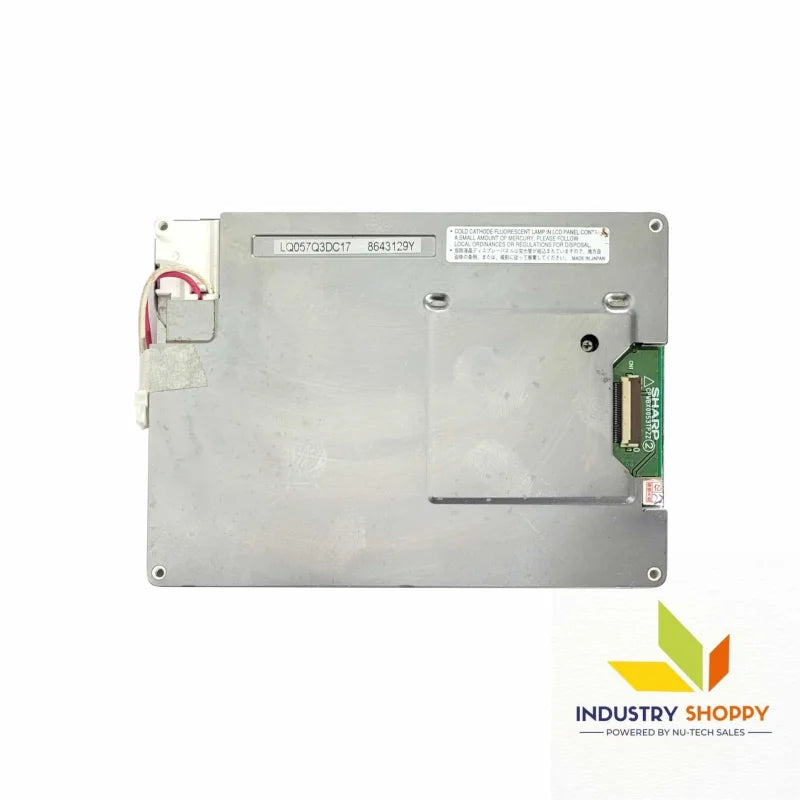

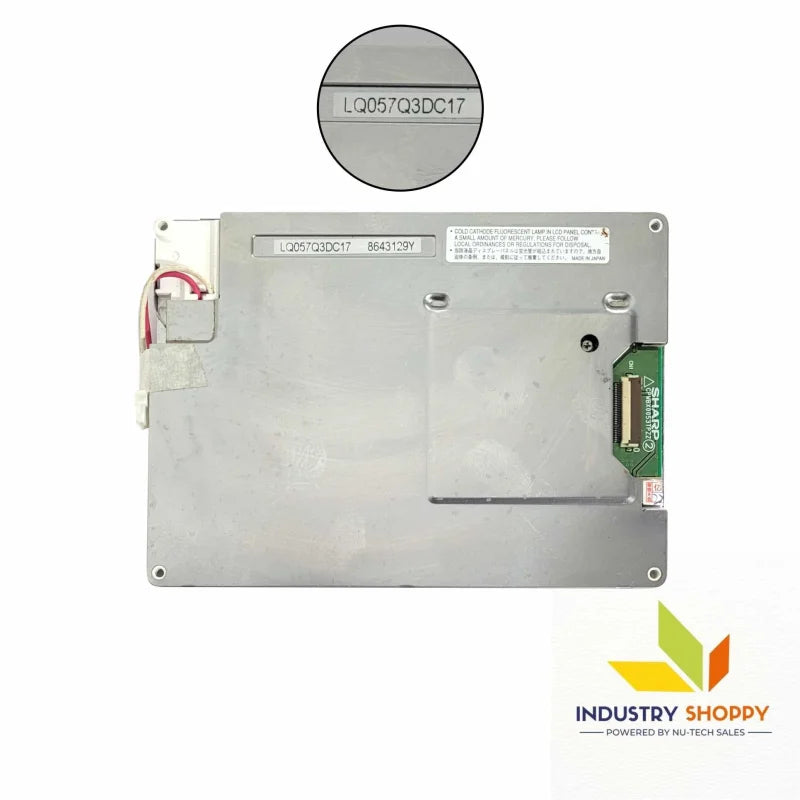

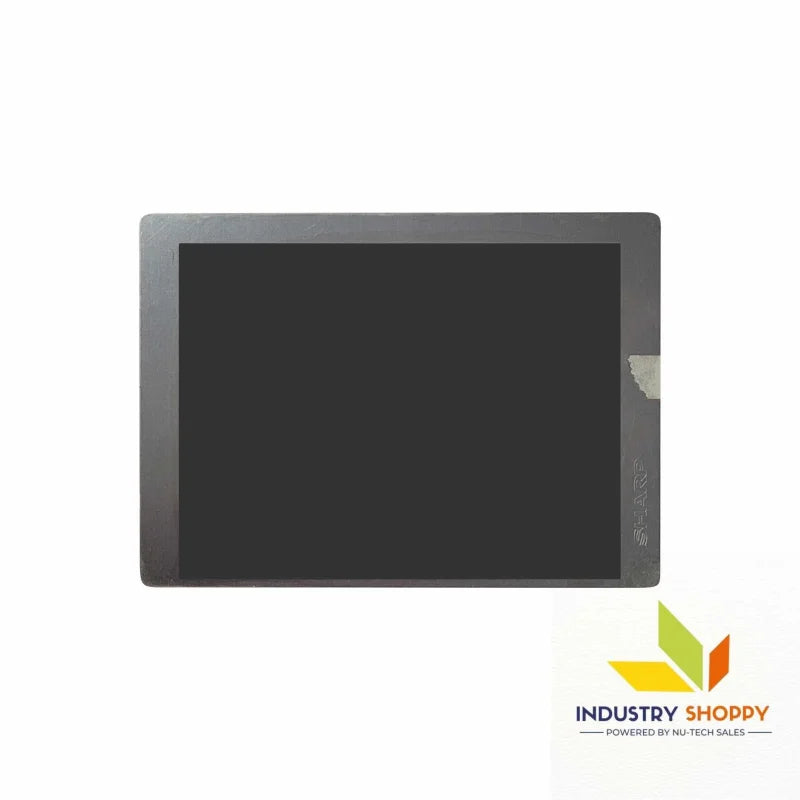

The Sharp LQ057Q3DC17 LCD Module is a compact and dependable 5.7-inch display engineered for industrial systems requiring clear, bright visuals in space-conscious designs. With a resolution of 320×240 pixels, it delivers sharp and reliable image reproduction for both text and graphics.

A strong 500 cd/m² luminance paired with a 300:1 contrast ratio ensures images stay clear and readable, even in varying light conditions, making it ideal for control panels, HMI devices, and diagnostic equipment. This model utilizes a-Si TFT-LCD technology for consistent visual quality and durability in tough environments.

The Parallel RGB (1-channel, 6-bit) interface ensures smooth data transmission and compatibility with a wide range of embedded systems. Featuring a CCFL backlight, this module offers a balance between brightness and long service life, supporting sustained industrial use.

Designed to handle wide temperature conditions, the LQ057Q3DC17 can operate from 30°C to 80°C, making it a strong fit for various challenging applications where reliability and clarity are a must.

Key features :-

• Brand: Sharp
• Model: LQ057Q3DC17
• Diagonal Size: 5.7"
• Resolution: 320×240
• Active Area: 115.2(W)×86.4(H) mm
• Outline Dimension: 115.2(W)×86.4(H) mm
• Luminance: 500 cd/m² (Typical)
• Contrast Ratio: 300:1 (Typical)
• Panel Type: a-Si TFT-LCD, LCM
• Support Color: Color

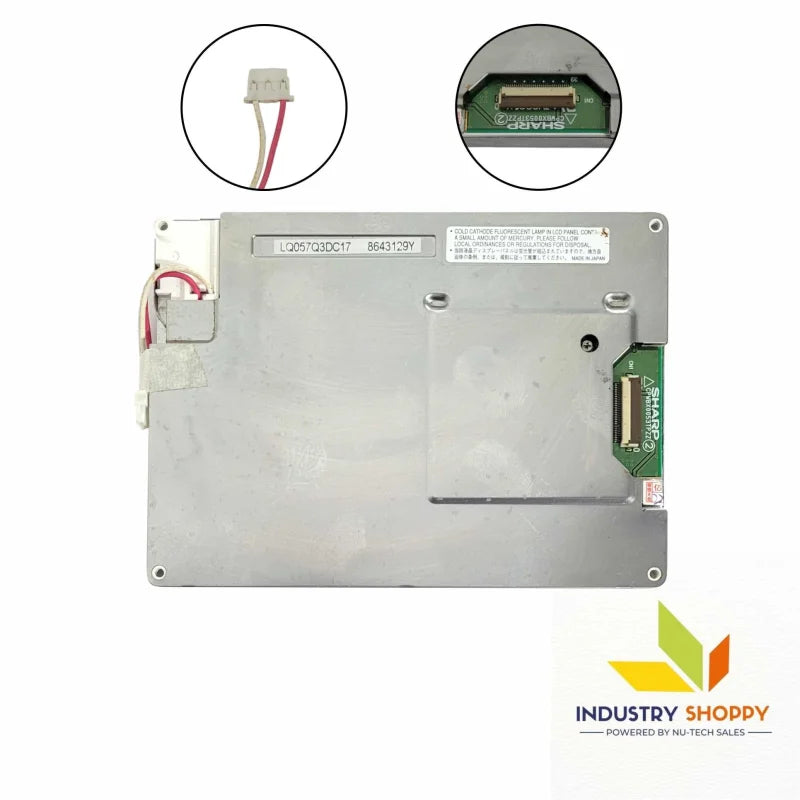

• Signal Interface Type: Parallel RGB (1 ch, 6-bit), 33 pins Connector
• Power Supply: 3.3V
• Backlight: CCFL
• Operating Temperature: 30°C to 80°C

Technical Precautions:

• Handling Care: Handle carefully to protect the hard-coated surface from damage
• Connection Instructions: Always power off the display before connecting
• Temperature Limits: Maintain operating temperatures between -10°C to 50°C for optimal performance
• Mounting Guidelines: Use appropriate fittings for secure installation, especially in industrial settings
• Backlight Maintenance: Ensure regular inspections as the backlight has a lifespan of 20,000 hours
