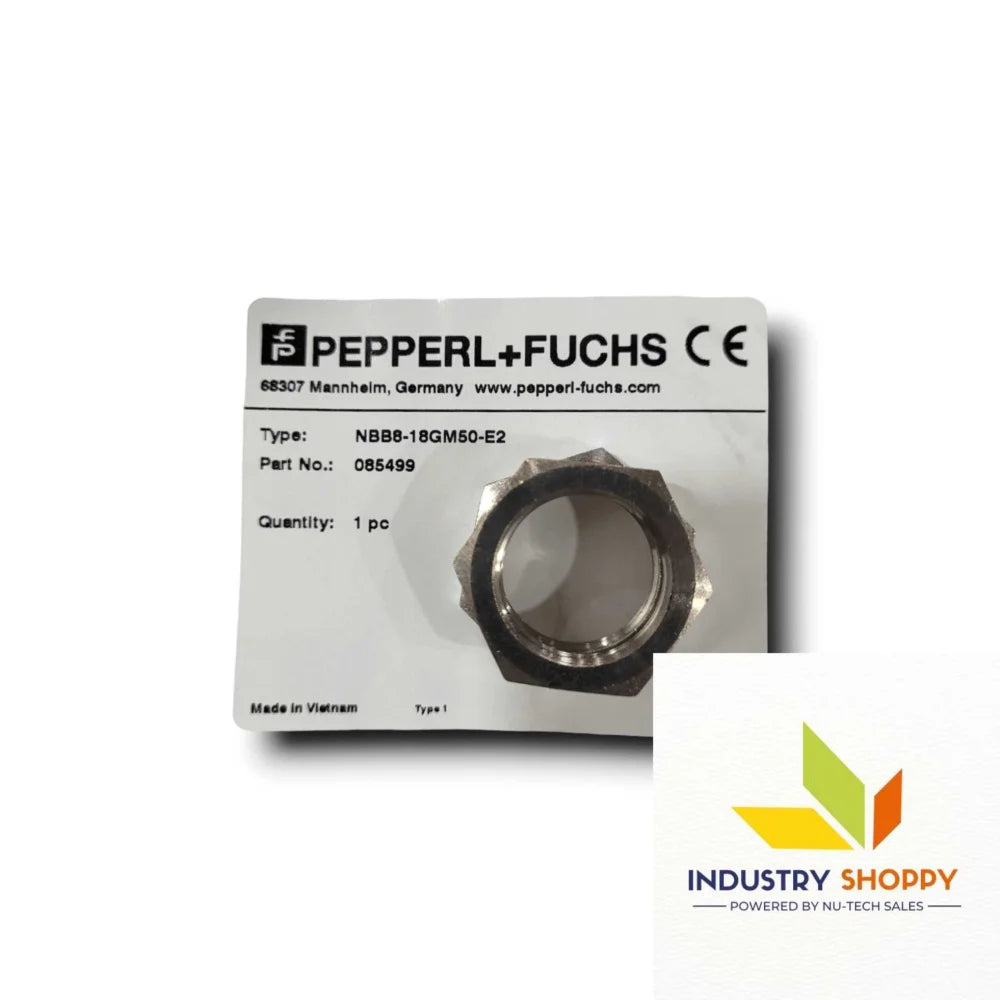

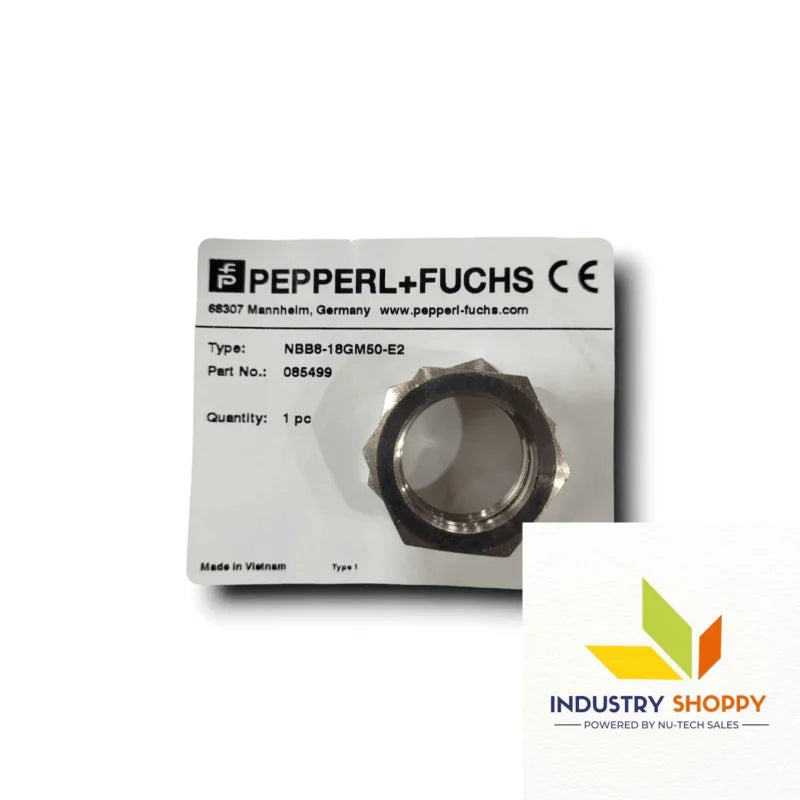

Pepperl + Fuchs NBB8-18GM50-E2 Proximity Sensor
Pepperl + Fuchs NBB8-18GM50-E2 Proximity Sensor
Pepperl + Fuchs NBB8-18GM50-E2 Proximity Sensor
Pepperl + Fuchs NBB8-18GM50-E2 Proximity Sensor
Pepperl+Fuchs

Pepperl+Fuchs NBB8-18GM50-E2 Proximity Sensor

Product SKU: NTSSEN00046
Available:
Only 14 items in stock
14 items in stock
In stock
Pre-order
Out of stock
  • Brand:  Pepperl+Fuchs
  • Part Number: 85499
  • Output Type:  PNP
  • Assured operating distance: 0 ... 6.48 mm
  • Operating voltage: 5 … 60 V
$53.00
$75.00
Notify me When Available
You will receive an email when the product is available.
Want it delivered by
  • Description
  • Specifications
  • Declaration

Pepperl+Fuchs NBB8-18GM50-E2 Inductive Sensor

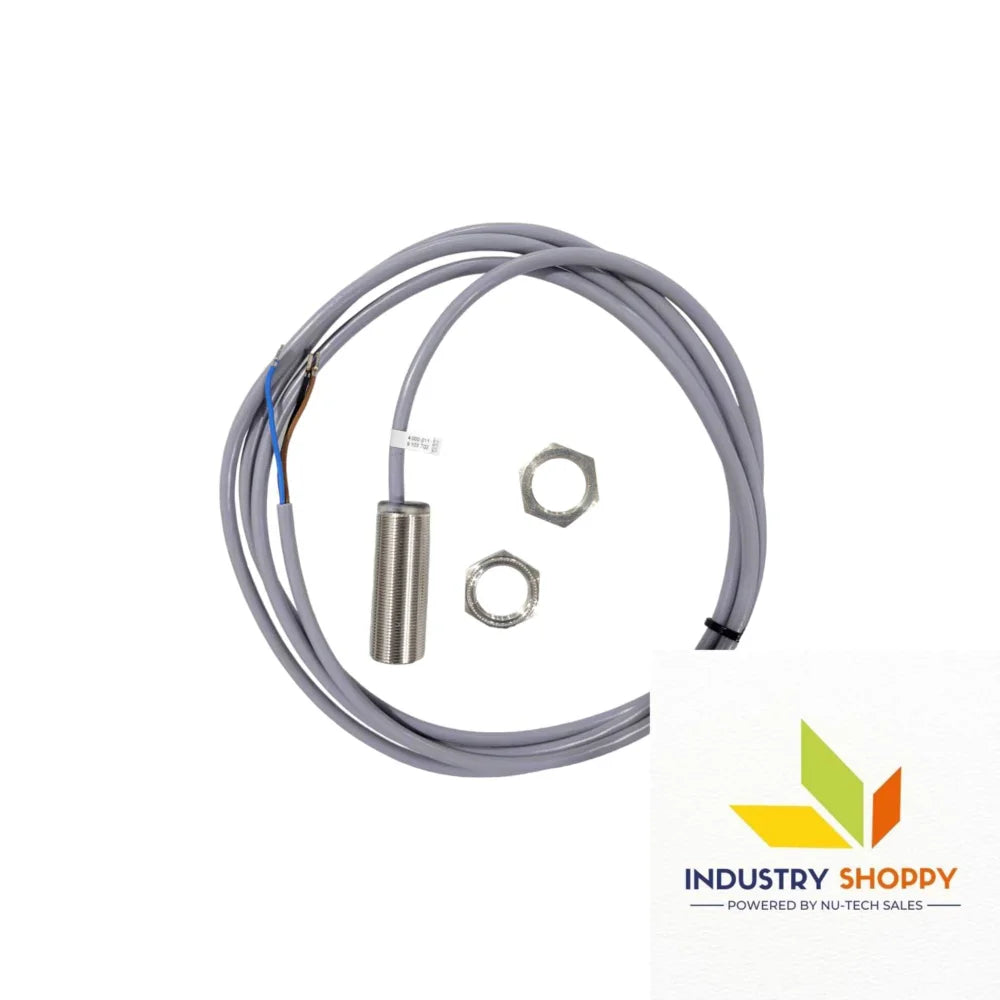

The Pepperl+Fuchs NBB8-18GM50-E2 Inductive Sensor is a high-performance M18 inductive proximity sensor designed for precise metal detection in demanding industrial environments. With a rated sensing distance of 8 mm and flush mounting capability, it ensures reliable and accurate operation even in compact installations.

This sensor features a PNP, 3-wire output with Normally Open (NO) switching, making it compatible with a wide range of control systems. It supports a wide operating voltage range of 5–60 V DC and delivers stable performance with switching frequencies up to 1500 Hz, ideal for fast automation processes.

Engineered for durability, the sensor comes with a nickel-plated brass housing and offers superior protection with an IP68 / IP69K rating, ensuring resistance to dust, water, and high-pressure washdowns. Additional protections such as reverse polarity, short-circuit, surge suppression, and inductive overvoltage protection enhance reliability and lifespan.


Applications

  • Industrial automation & machinery

  • Metal detection in conveyors

  • Packaging and assembly lines

  • Harsh environments with washdown requirements


Technical Precautions

  • Maintain proper flush mounting clearance for accurate sensing.

  • Consider reduction factors for non-ferrous metals.

  • Avoid excessive cable bending (> 6× cable diameter).

  • Ensure correct voltage supply (5–60 V DC) for stable operation.



While our engineers carefully upload product details based on official datasheets, occasional errors may still occur. We encourage users to verify specifications as needed for complete accuracy.

IndustryShoppy.com offers a wide selection of industrial automation products—from sensors and HMIs to PLCs and more. Designed for convenience, our platform ensures a smooth shopping experience backed by reliable service and customer-focused support. Explore our extensive range and elevate your industrial operations with confidence.

Note : All tax and custom duty should be pay by buyer only.

Note: All trademarks and trade names used are the property of their respective owners.


Facebook, YouTube,


Product NumberNBB8-18GM50-E2
Part Number85499
Switching FunctionNormally open (NO)
Output TypePNP, 3-wire
Rated Operating Distance8 mm
Assured Operating Distance0 … 6.48 mm
InstallationFlush
Output PolarityDC
Reduction Factor rAl0.4
Reduction Factor rCu0.3
Reduction Factor r3040.7
Reduction Factor rBrass0.45
Operating Voltage5 … 60 V
Switching Frequency0 … 1500 Hz
HysteresisTyp. 5 %
Reverse Polarity ProtectionYes
Short-Circuit ProtectionPulsing
Inductive Overvoltage ProtectionYes
Surge SuppressionYes
Voltage Drop≤ 2 V
Rated Insulation Voltage60 V
Operating Current0 … 200 mA
Off-State Current0 … 0.5 mA, typ. 0.1 µA at 25 °C
No-Load Supply Current≤ 7 mA
Time Delay Before Availability≤ 220 ms
Switching State IndicatorLED, yellow
MTTFd1085.5 a
Mission Time (TM)20 a
Diagnostic Coverage (DC)0%
StandardsEN 60947-5-2:2007, EN 60947-5-2/A1:2012, IEC 60947-5-2:2007, IEC 60947-5-2 AMD 1:2012
UL ApprovalcULus Listed, General Purpose, Class 2 Power Source
CSA ApprovalcCSAus Listed, General Purpose, Class 2 Power Source
CCC ApprovalCertified by China Compulsory Certification (CCC)
E1 Type Approval10R-04
Ambient Temperature-40 … 85 °C (-40 … 185 °F)
Storage Temperature-40 … 85 °C (-40 … 185 °F)
Connection TypeCable PUR, 2 m
Core Cross Section3 × 0.75 mm²
Housing MaterialBrass, nickel-plated
Sensing FacePBT
Degree of ProtectionIP68 / IP69K
Cable Diameter6 mm ± 0.2 mm
Bending Radius> 6 × cable diameter
Length55 mm
Diameter18 mm
Country of OriginVietnam

Note : All tax and custom duty should be pay by buyer only.

Note: All trademarks and trade names used are the property of their respective owners.

Accuracy Disclaimer: Specifications provided are based on datasheet and are subject to change without notice. While every effort has been made to ensure accuracy, errors may occur. Users are encouraged to verify specifications with the manufacturer and consult for any specific questions or requirements.
