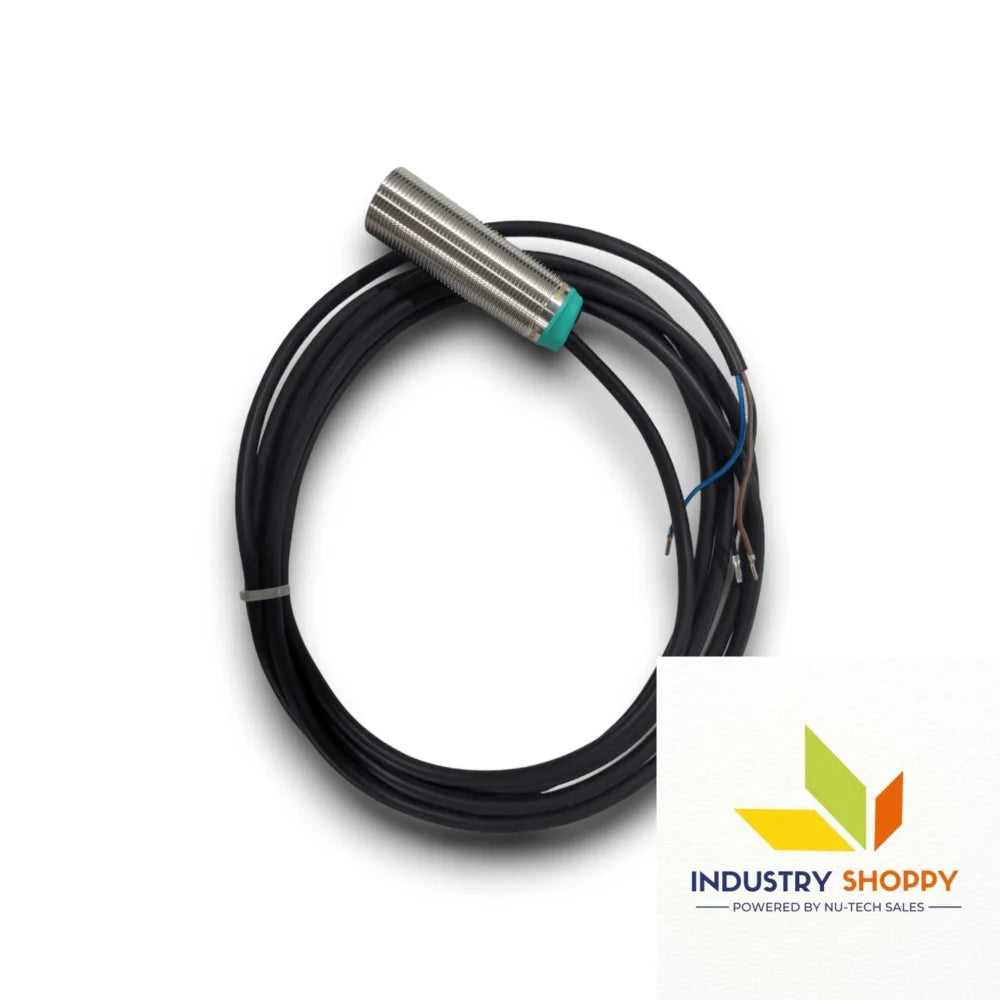

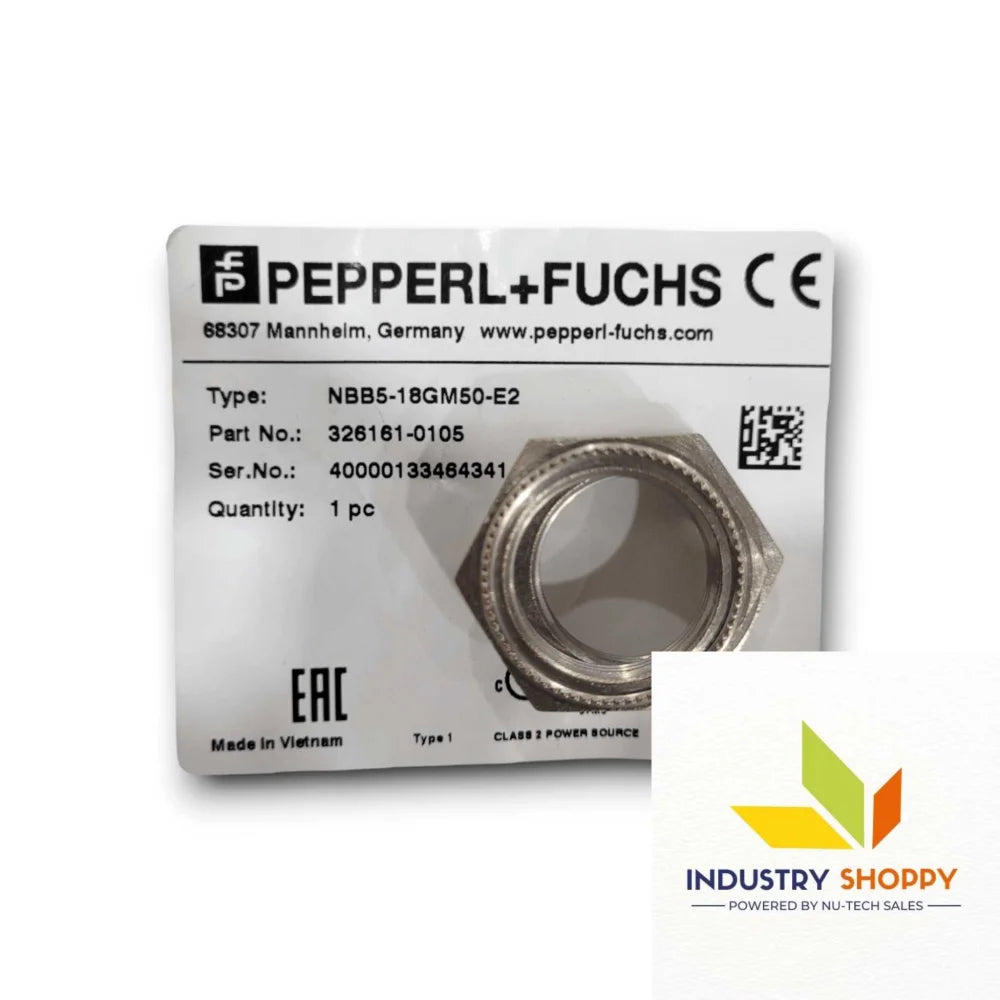

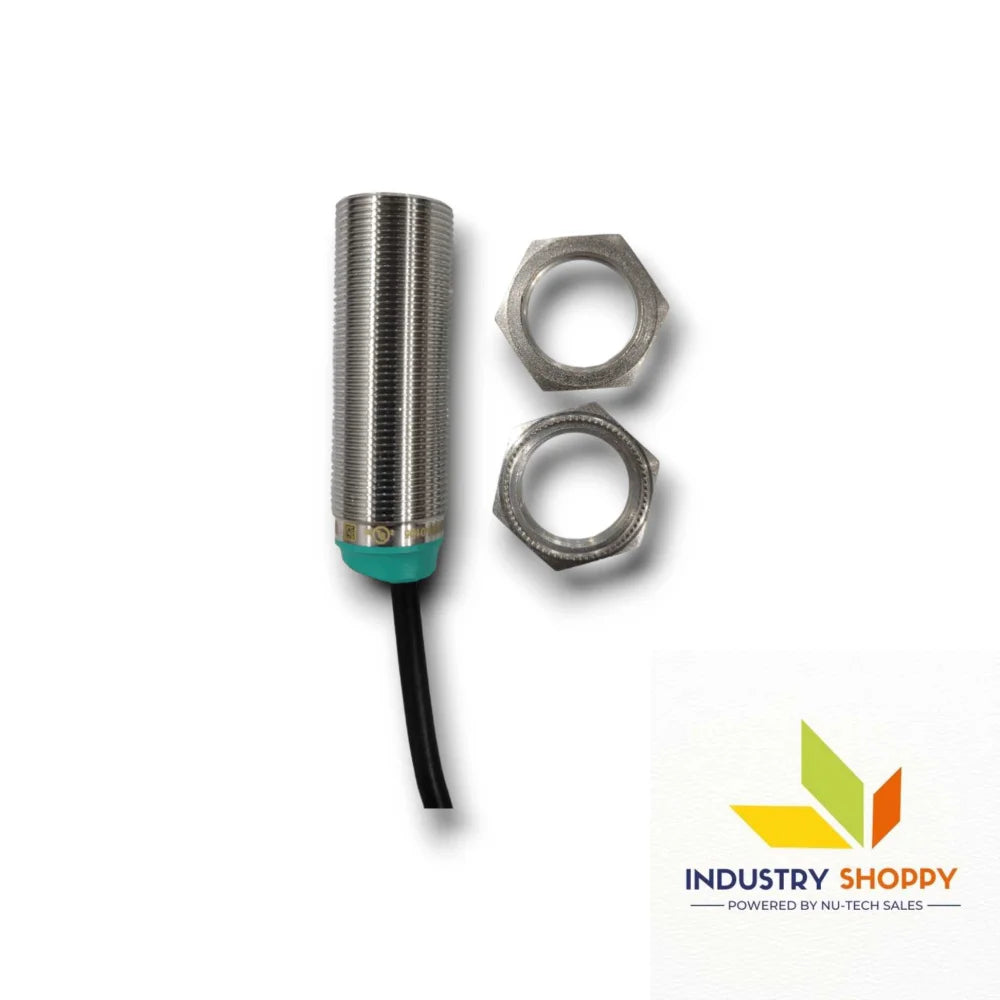

Pepperl + Fuchs NBB5-18GM50-E2 Proximity Sensor
Pepperl + Fuchs NBB5-18GM50-E2 Proximity Sensor
Pepperl + Fuchs NBB5-18GM50-E2 Proximity Sensor
Pepperl + Fuchs NBB5-18GM50-E2 Proximity Sensor
Pepperl + Fuchs NBB5-18GM50-E2 Proximity Sensor
Pepperl + Fuchs NBB5-18GM50-E2 Proximity Sensor
Pepperl+Fuchs

Pepperl+Fuchs NBB5-18GM50-E2 Proximity Sensor

Product SKU: NTSSEN00044
Available:
Only 18 items in stock
18 items in stock
In stock
Pre-order
Out of stock
  • Brand: Pepperl+Fuchs
  • Part Number: 326161-0105
  • Output Type: PNP
  • Assured operating distance: 0 ... 4.05 mm
  • Operating voltage: 5 ... 36 V
$28.00
$50.00
Notify me When Available
You will receive an email when the product is available.
Want it delivered by
  • Description
  • Specifications
  • Declaration

Pepperl+Fuchs NBB5-18GM50-E2 Proximity Sensor :

The Pepperl+Fuchs NBB5-18GM50-E2 Proximity Sensor is a high-performance M18 inductive proximity switch, engineered for precise and reliable metal detection in demanding industrial environments. With a rated sensing distance of 5 mm and flush mounting capability, it ensures stable performance even in compact installations.

Designed for efficiency, this sensor features a PNP normally open (NO) output with a 3-wire configuration, supporting operating voltages from 5 to 36 V DC. It offers a high switching frequency up to 1950 Hz, making it suitable for fast automation processes. The low voltage drop (≤1 V) and low no-load current (≤10 mA) enhance energy efficiency.

The sensor provides excellent durability with IP68 protection, a white bronze-coated brass housing, and a PBT sensing face, ensuring long-lasting operation even in harsh conditions. It also includes reverse polarity protection and short-circuit protection, enhancing operational safety.

With an extended temperature range of -40°C to +85°C, this sensor is ideal for extreme environments. Additional features like a yellow LED switching indicator and compliance with international standards (EN/IEC 60947-5-2) make it a dependable choice for industrial automation.


Applications

  • Metal detection in automation systems

  • Position sensing in machinery

  • Conveyor and packaging systems

  • Harsh industrial and outdoor environments


Technical Precautions

  • Suitable only for metal object detection.

  • Maintain correct flush mounting conditions for accurate sensing.

  • Avoid exceeding 5–36 V DC supply limits.

  • Ensure proper cable bending radius (>10× diameter) to prevent damage.



While our engineers carefully upload product details based on official datasheets, occasional errors may still occur. We encourage users to verify specifications as needed for complete accuracy.

IndustryShoppy.com offers a wide selection of industrial automation products—from sensors and HMIs to PLCs and more. Designed for convenience, our platform ensures a smooth shopping experience backed by reliable service and customer-focused support. Explore our extensive range and elevate your industrial operations with confidence.

Note : All tax and custom duty should be pay by buyer only.

Note: All trademarks and trade names used are the property of their respective owners.


Facebook, YouTube,


Product NumberNBB5-18GM50-E2
Part No.326161-0105
Switching FunctionNormally open (NO)
Output TypePNP
Rated Operating Distance5 mm
InstallationFlush
Output PolarityDC
Assured Operating Distance0 ... 4.05 mm
Actuating ElementMild steel (e.g. 1.0037, SR235JR), 18 × 18 × 1 mm
Reduction Factor rAl0.35
Reduction Factor rCu0.29
Reduction Factor r3040.73
Reduction Factor rBrass0.44
Output Type3-wire
Operating Voltage5 ... 36 V
Switching Frequency0 ... 1950 Hz
Hysteresistyp. 5 %
Reverse Polarity ProtectionReverse polarity protected
Short-Circuit ProtectionPulsing
Voltage Drop≤ 1 V
Operating Current0 ... 200 mA
Off-State Currentmax. 20 µA
No-Load Supply Current≤ 10 mA
Time Delay Before Availability≤ 10 ms
Switching State IndicatorLED, yellow
MTTFd1721 a
Mission Time (TM)20 a
Diagnostic Coverage (DC)0%
PWIS ConformityVDMA 24364-C1/T100°C-W
StandardsEN 60947-5-2:2007; EN 60947-5-2/A1:2012; IEC 60947-5-2:2007
Protection ClassII
Rated Insulation Voltage36 V
Rated Impulse Withstand Voltage500 V
UL ApprovalcULus Listed, General Purpose, Class 2 Power Source
CCC ApprovalNot required for ≤36 V products
Marine ApprovalDNVGL TAA00003AK
Ambient Temperature-40 ... +85 °C (-40 ... +185 °F)
Storage Temperature-40 ... +85 °C (-40 ... +185 °F)
Connection TypeCable
Housing MaterialBrass, white bronze coated
Sensing FacePBT, green
Degree of ProtectionIP68
Wire End FerrulesYes
Cable Diameter4.3 mm ± 0.15 mm
Bending Radius> 10 × cable diameter
MaterialPVC
ColorBlack
Number of Cores3
Core Cross Section0.34 mm²
Cable Length2 m
Sensor Length56 mm
Sensor Diameter18 mm
MountingWith nuts, M18
Tightening Torque0 ... 30 Nm
Country of OriginVietnam
