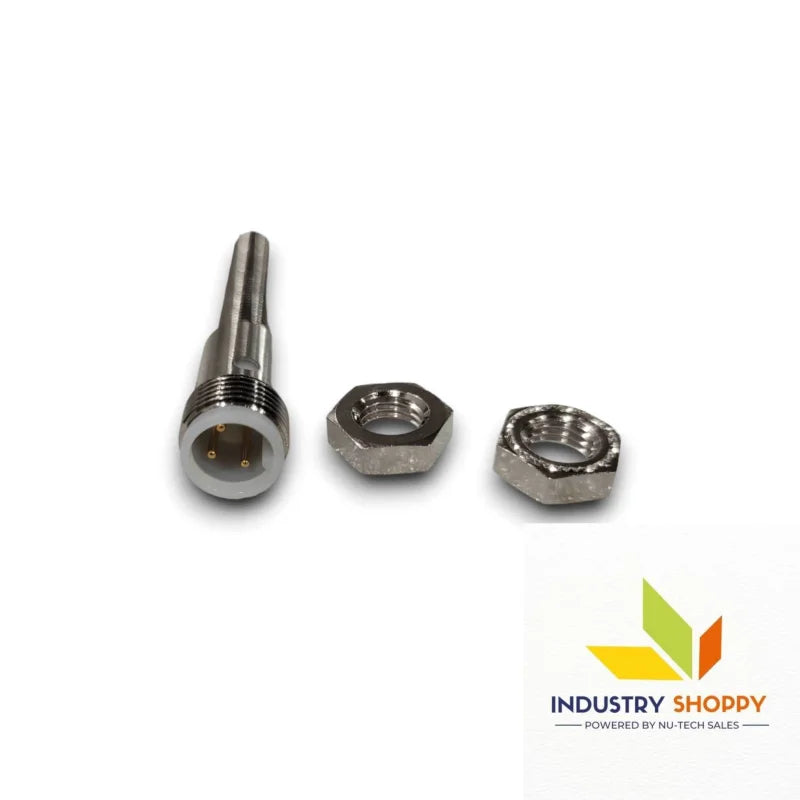

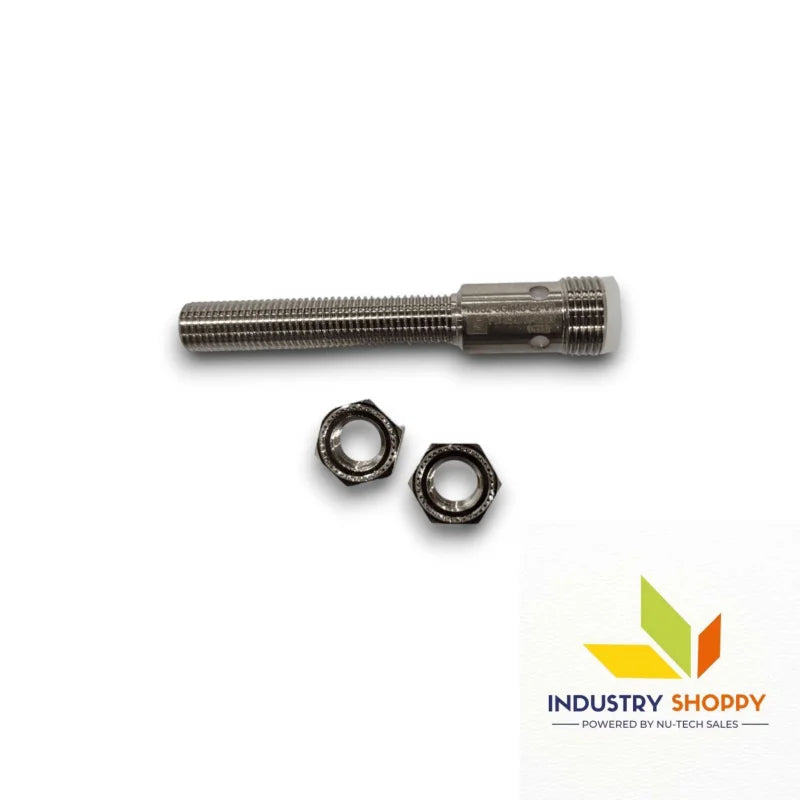

Pepperl+Fuchs NBB2-8GM40-E2-V1 Inductive Sensor
- Description
- Declaration
- Reviews
Pepperl+Fuchs NBB2-8GM40-E2-V1 Inductive Sensor :
The Pepperl+Fuchs NBB2-8GM40-E2-V1 Inductive Sensor is a compact and reliable inductive sensor designed for the non-contact detection of metallic objects in industrial environments. With a sensing range of 2 mm, it offers precise and accurate detection, making it ideal for high-precision applications. The flush-mount design ensures easy installation in tight spaces, allowing for seamless integration into machinery and automated systems.
This sensor features a robust IP67-rated housing, providing excellent protection against dust, moisture, and environmental factors, ensuring its durability and long-term performance in harsh conditions. The NBB2-8GM40-E2-V1 operates with a 3-wire DC output, making it compatible with a wide range of industrial systems. Additionally, it is equipped with short-circuit protection and reverse polarity protection, offering enhanced reliability and protection against wiring errors.
The sensor is designed with a M8 connector, ensuring straightforward and secure installation, making it ideal for use in industrial automation, material handling, and machine safety applications.
Key features :-
Product Number | NBB2-8GM40-E2-V1 |
Part Number | 304615-0058 |
Functional principle | Inductive Sensor |
Switching function | Normally open (NO) |
Output type | PNP |
Rated operating distance | 2 mm |
Installation | flush |
Output polarity | DC |
Assured operating distance | 0 ... 1.62 mm |
Actuating element | mild steel, e. g. 1.0037, SR235JR (formerly St37-2) 8 mm x 8 mm x 1 mm |
Reduction factor rAl | 0.4 |
Reduction factor rCu | 0.3 |
Reduction factor r304 | 0.75 |
Reduction factor rBrass | 0.45 |
Output type | 3-wire |
Operating voltage | 5 ... 30 V |
Switching frequency | 0 ... 6000 Hz |
Hysteresis | typ. 5% |
Reverse polarity protection | reverse polarity protected |
Short-circuit protection | pulsing |
Voltage drop | ≤ 1.5 V |
Operating current | 0 ... 100 mA |
Off-state current | 0 ... 0.2 mA |
No-load supply current | ≤ 10 mA |
Time delay before availability | ≤ 100 ms |
Switching state indicator | Multihole-LED, yellow |
MTTFd | 960 a |
Mission Time (TM) | 20 a |
Diagnostic Coverage (DC) | 0 % |
Standards | EN 60947-5-2:2007 EN 60947-5-2/A1:2012 IEC 60947-5-2:2007 IEC 60947-5-2 AMD 1:2012 |
UL approval | cULus Listed, General Purpose, Class 2 Power Source |
CCC approval | CCC approval / marking not required for products rated ≤36 V |
Ambient temperature | -40 ... 85 °C (-40 ... 185 °F) |
Storage temperature | -40 ... 85 °C (-40 ... 185 °F) |
Connection type | Connector plug M12 x 1 , 4-pin |
Housing material | brass, nickel-plated |
Sensing face | LCP |
Degree of protection | IP65 / IP66 / IP67 |
Applications :-
- Industrial Automation: Ideal for detecting metal objects in automated production lines and ensuring accurate positioning.
- Material Handling: Used for metal detection in conveyor systems, improving sorting accuracy and tracking efficiency.
- Machine Safety: Enhances safety by detecting metal objects in automated machinery and preventing accidents.
- Quality Control: Provides reliable metal detection during quality control processes, ensuring high product quality.
- Packaging Industry: Ensures precise detection and object positioning in high-speed packaging systems.
Precautions:
- Ensure Correct Wiring: Incorrect connections can cause sensor failure
- Avoid Overvoltage: Operating within 10-30V DC prevents damage
- Protect from Extreme Heat: Avoid installing near high-temperature sources
- Regular Cleaning: Keep the optical lens free from dust and debris for optimal performance
