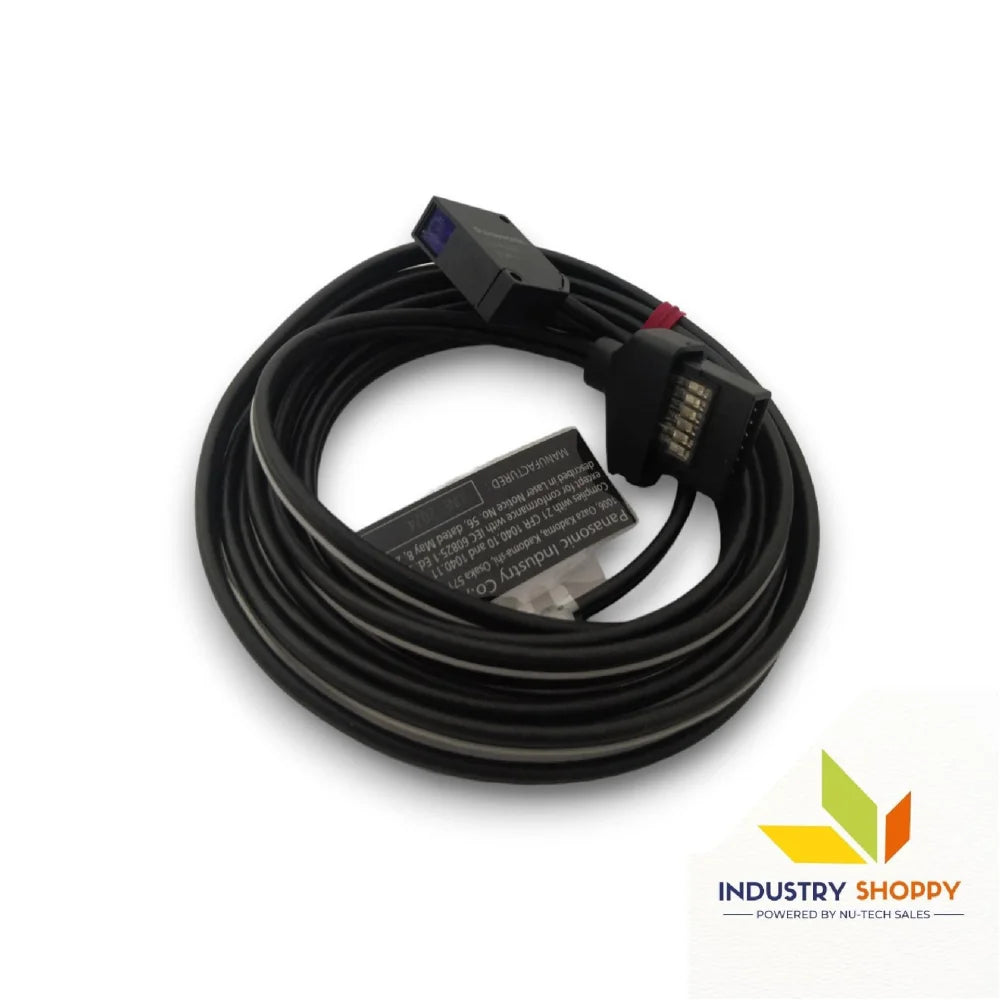

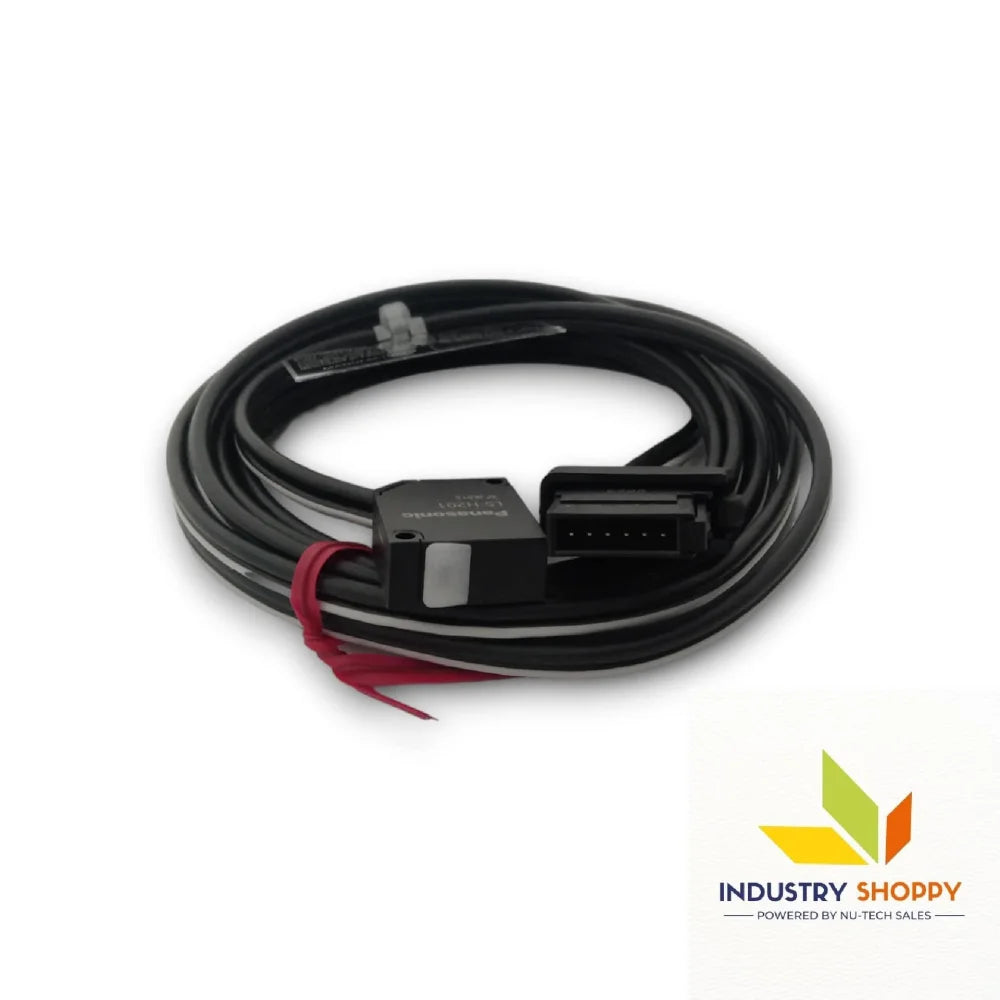

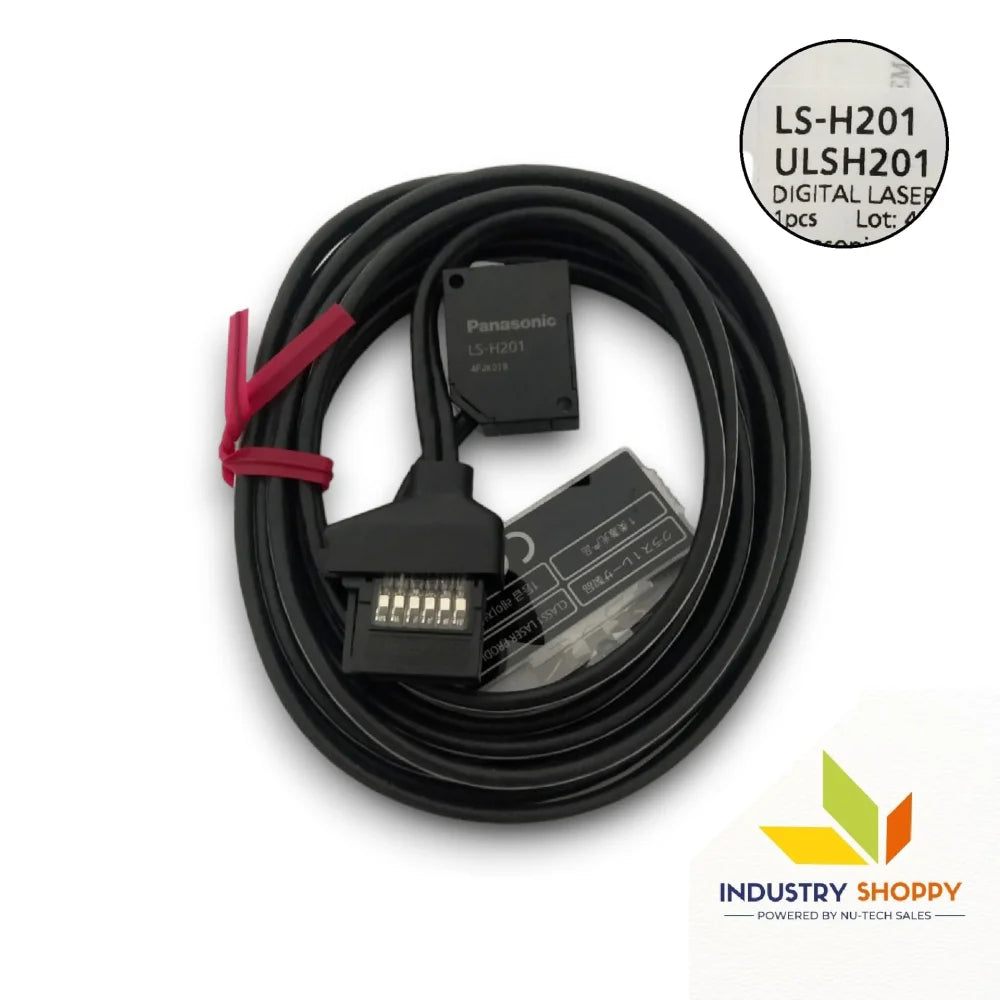

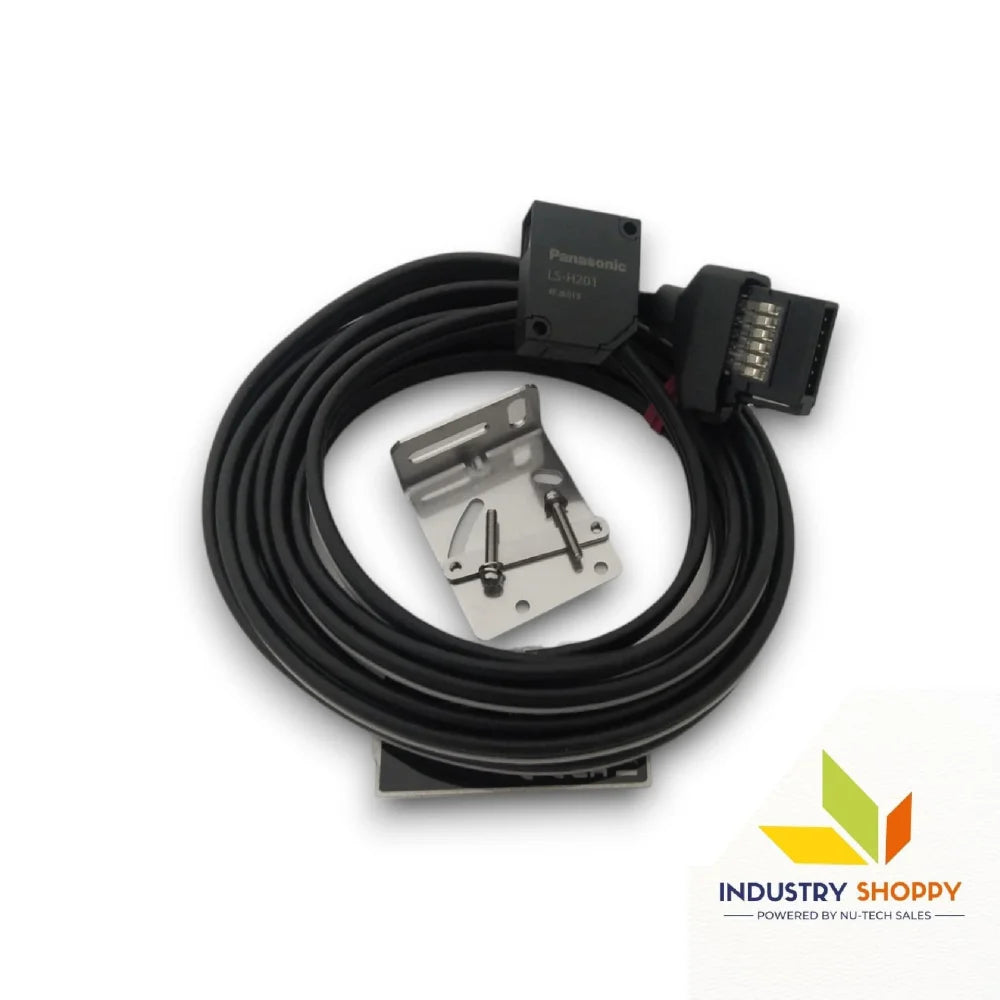

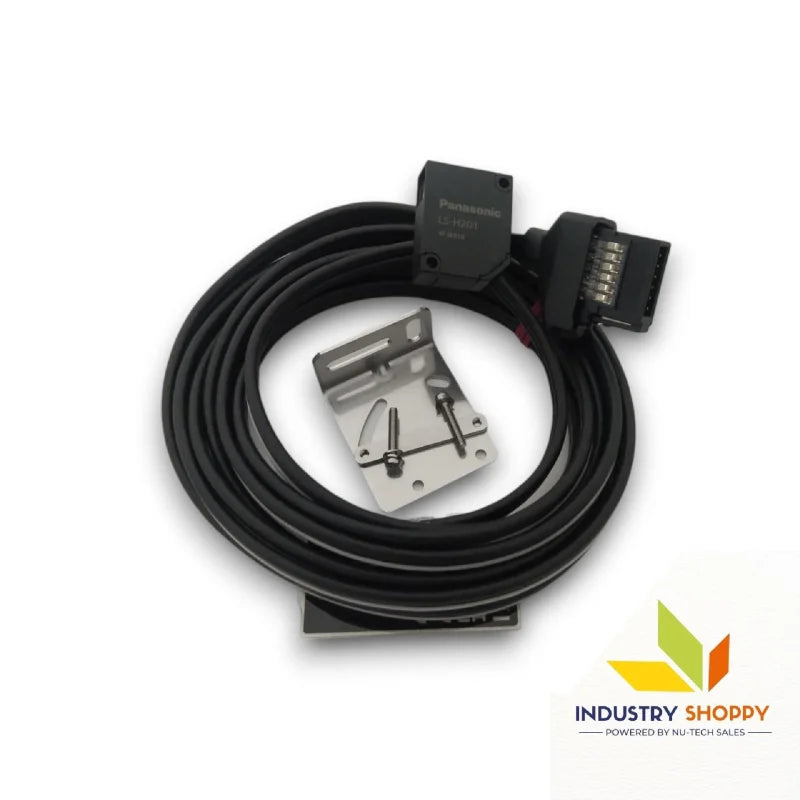

Panasonic LS-H201 Laser Sensor
Panasonic LS-H201 Laser Sensor
Panasonic LS-H201 Laser Sensor
Panasonic LS-H201 Laser Sensor
Panasonic LS-H201 Laser Sensor
Panasonic LS-H201 Laser Sensor
Panasonic LS-H201 Laser Sensor
Panasonic LS-H201 Laser Sensor
Panasonic

Panasonic LS-H201 Laser Sensor

Product SKU: NTSSEN00419
Available:
Only 5 items in stock
5 items in stock
In stock
Pre-order
Out of stock
  • Brand
:  Panasonic
  • Condition
:  New
  • Part Number
:  --
  • Type
:  Digital Laser Sensor
  • Output Type
:  --
  • Operating Range
:  --


Note : All tax and custom duty should be pay by buyer only.

$199.00
$300.00
Notify me When Available
You will receive an email when the product is available.
Want it delivered by
  • Description
  • Declaration

Panasonic LS-H201 Digital Laser Sensor

The Panasonic LS-H201 Digital Laser Sensor is a precision-engineered solution designed for reliable object detection across diverse industrial settings. This amplifier-separated type coaxial reflective sensor is optimized for detecting opaque, translucent, and transparent objects, making it highly versatile for automation tasks.

With a selectable sensing range up to 750mm, the LS-H201 adapts effortlessly to different applications through adjustable detection modes, including H-SP, FAST, STD, U-LG, and HYPR. The approx. 2mm spot size at 300mm ensures pinpoint accuracy, even at extended distances. Built for stability, the LS-H201 features a bright orange LED indicator for easy status monitoring and operates reliably within -10°C to +55°C.

The sensor integrates a red semiconductor laser diode (Class 1), offering safe and sharp target detection. Its IP40 protection rating and rugged PBT enclosure ensure durability in controlled environments, while robust vibration and shock resistance make it suitable for automated production lines.

Designed to meet EMC, RoHS, and FDA laser safety standards, the Panasonic LS-H201 is a trusted component for precise measurement, object verification, and position detection.

Key features :-

Product Number LS-H201
Brand Panasonic
Shape Rectangular
Products Name Amplifier-separated Type Digital Laser Sensor
Product details Sensor heads(Coaxial reflective type)
Applicable regulations EMC Directive, RoHS Directive
Applicable amplifiers LS-501(P), LS-501(P)-C2
(Note: When using the thru-beam type LS-H101□ or LS-H102□, do not set the receiving light sensitivity (gctL) of the applicable LS-500 series amplifier to level 2 or less. This is because there is a possibility of sensing becoming unstable.)
Sensing range: H-SP mode 150mm 5.906 in
(Note: The sensing range of the coaxial reflective type sensor is specified for white non-glossy paper (100 × 100 mm 3.937 × 3.937 in) as the object.)
Sensing range: FAST mode 200mm 7.874 in
(Note: The sensing range of the coaxial reflective type sensor is specified for white non-glossy paper (100 × 100 mm 3.937 × 3.937 in) as the object.)
Sensing range: STD mode 300mm 11.811 in
(Note: The sensing range of the coaxial reflective type sensor is specified for white non-glossy paper (100 × 100 mm 3.937 × 3.937 in) as the object.)
Sensing range: U-LG mode 450mm 17.717 in
(Note: The sensing range of the coaxial reflective type sensor is specified for white non-glossy paper (100 × 100 mm 3.937 × 3.937 in) as the object.)
Sensing range :U-LG 600mm 23.622 in
(Note: The sensing range of the coaxial reflective type sensor is specified for white non-glossy paper (100 × 100 mm 3.937 × 3.937 in) as the object.)
Sensing range: HYPR 750mm 29.528 in
(Note: The sensing range of the coaxial reflective type sensor is specified for white non-glossy paper (100 × 100 mm 3.937 × 3.937 in) as the object.)
Spot size Approx. dia. 2 mm dia. 0.079 in or less (at a distance from the sensor head of 300 mm 11.811 in)
Sensing object Opaque, translucent, or transparent object
(Note: Make sure to confirm detection with an actual sensor before use.)
Operation indicator Orange LED (lights up when the amplifier output is ON)
Protection IP40 (IEC)
Ambient temperature -10 to +55degrees + 14 to + 131 degrees Fahrenheit (No dew condensation or icing allowed), Storage: -20 to +70degrees -4 to +158 degrees Fahrenheit
Ambient humidity 35 to 85 % RH, Storage: 35 to 85 % RH
Ambient illuminance Incandescent light: 3,000 ℓx or less at the light-receiving face
Voltage withstand ability 1,000 V AC for one min. between all supply terminals connected together and enclosure
Insulation resistance 20 MOhm , or more, with 250 V DC megger between all supply terminals connected together and enclosure
Vibration resistance 10 to 500 Hz frequency, 1.5 mm 0.059 in double amplitude or maximum acceleration 98 m/s2 in X, Y and Z directions for two hours each
Shock resistance 98 m / s2 acceleration (10 G approx.) in X, Y and Z directions three times each
Emitting element: Type Red semiconductor laser diode
Emitting element :Peak emission wavelength 660 nm 0.026 mil
Emitting element :Laser class Class 1 [IEC / EN / JIS / GB / KS / FDA]
(Note: This product complies with the FDA regulations (FDA 21 CFR 1040.10 and 1040.11) in accordance with FDA Laser Notice No. 56, except for complying with IEC 60825-1 Ed. 3.
Emitting element: Max. output 2mW
Material Enclosure: PBT
Indicator cover: Polycarbonate
Beam-emitting / receiving surfaces: Glass
Cable 0.09 mm2 2-core two parallel shielded cables, 2 m 6.562 ft long
(Note: Cable cannot be extended.)



Applications :-

  • Position Detection: Accurately confirm object positioning in assembly and inspection systems.
  • Level Monitoring: Monitor liquid or bulk material levels using reflective laser detection.
  • Presence Detection: Detect opaque, translucent, and transparent objects with high stability.
  • Dimensional Checking: Measure part dimensions or spacing in automated production lines.
  • Object Sorting: Support precise object differentiation in high-speed sorting applications.

Precautions:

  • Ensure Correct Wiring: Incorrect connections can cause sensor failure
  • Avoid Overvoltage: Operating within 10-30V DC prevents damage
  • Protect from Extreme Heat: Avoid installing near high-temperature sources
  • Regular Cleaning: Keep the optical lens free from dust and debris for optimal performance

Note : All tax and custom duty should be pay by buyer only.

Note: All trademarks and trade names used are the property of their respective owners.

Note : All tax and custom duty should be pay by buyer only.

Note: All trademarks and trade names used are the property of their respective owners.

Accuracy Disclaimer: Specifications provided are based on datasheet and are subject to change without notice. While every effort has been made to ensure accuracy, errors may occur. Users are encouraged to verify specifications with the manufacturer and consult for any specific questions or requirements.
