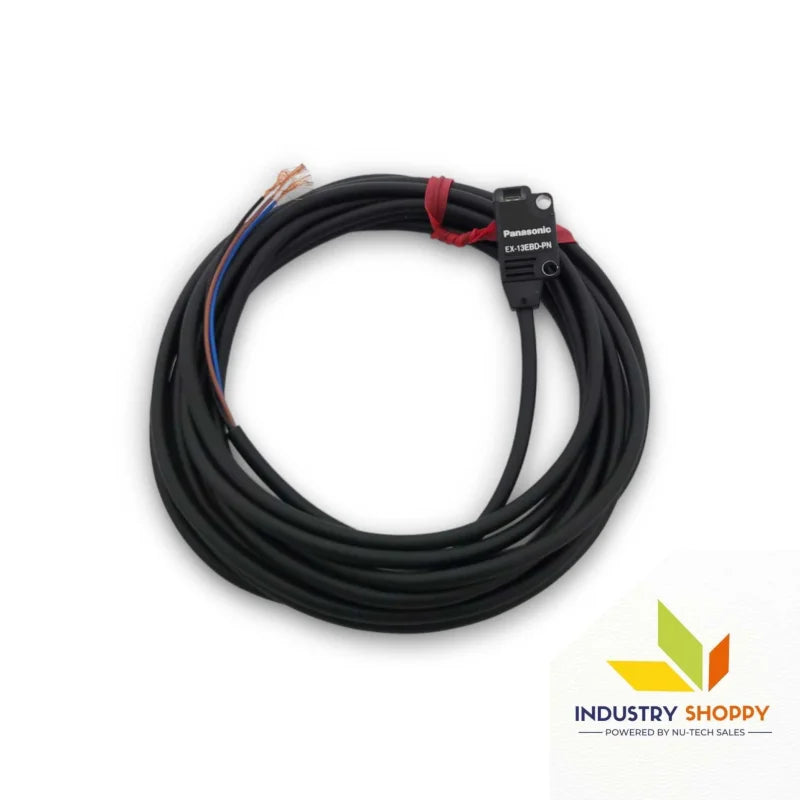

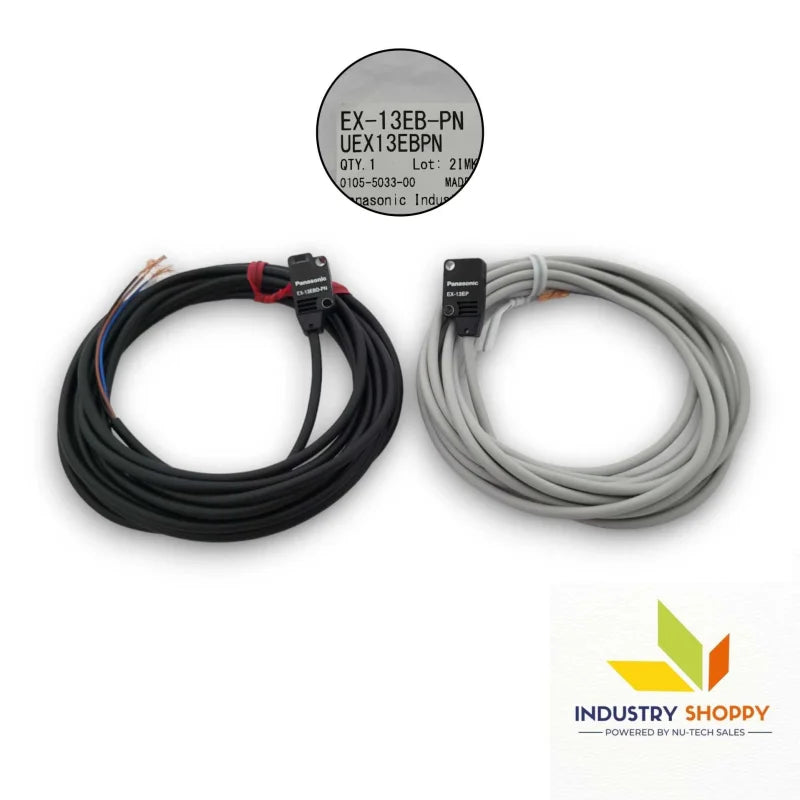

Panasonic EX-13EB-PN Photoelectric Sensor

Panasonic EX-13EB-PN Photoelectric Sensor

The Panasonic EX-13EB-PN Photoelectric Sensor (Part Number: UEX13EBPN) is a high-performance photoelectric sensor designed for precise detection of objects in industrial settings. With a sensing range of up to 500 mm (19.685 inches), it is perfect for applications requiring long-range detection of opaque objects. The sensor can detect objects as small as ø2 mm (0.079 inches) when the beam is fully interrupted. It operates with a PNP open-collector transistor output, supporting a maximum sink current of 50 mA, and features short-circuit protection for enhanced safety.

The Panasonic EX-13EB-PN Photoelectric Sensor boasts a response time of 0.5 ms or less, ensuring quick and reliable detection. It also provides green and orange LED indicators, which offer clear status feedback on operation and stability. Rated with an IP67 protection, the EX-13EB-PN is resistant to dust and water, making it suitable for use in harsh environments. It operates reliably across a temperature range from -25°C to +55°C (-13°F to +131°F), ensuring consistent performance in diverse conditions.

Key features :-

Applications :-

• Long-range Detection: Perfect for applications where objects need to be detected at greater distances, such as in automated systems or conveyor belts.
• Industrial Automation: Ideal for high-precision object detection in manufacturing or assembly lines.
• Quality Control: Can be used in production lines to ensure that products are correctly positioned and meet quality standards.
• Harsh Environments: Well-suited for environments with dust, water, or other challenging conditions due to its IP67 rating.

Precautions :-

• Ensure Correct Wiring: Incorrect connections can cause sensor failure
• Avoid Overvoltage: Operating within 10-30V DC prevents damage
• Protect from Extreme Heat: Avoid installing near high-temperature sources
• Regular Cleaning: Keep the optical lens free from dust and debris for optimal performance

Note : All tax and custom duty should be pay by buyer only.

Note: All trademarks and trade names used are the property of their respective owners.
