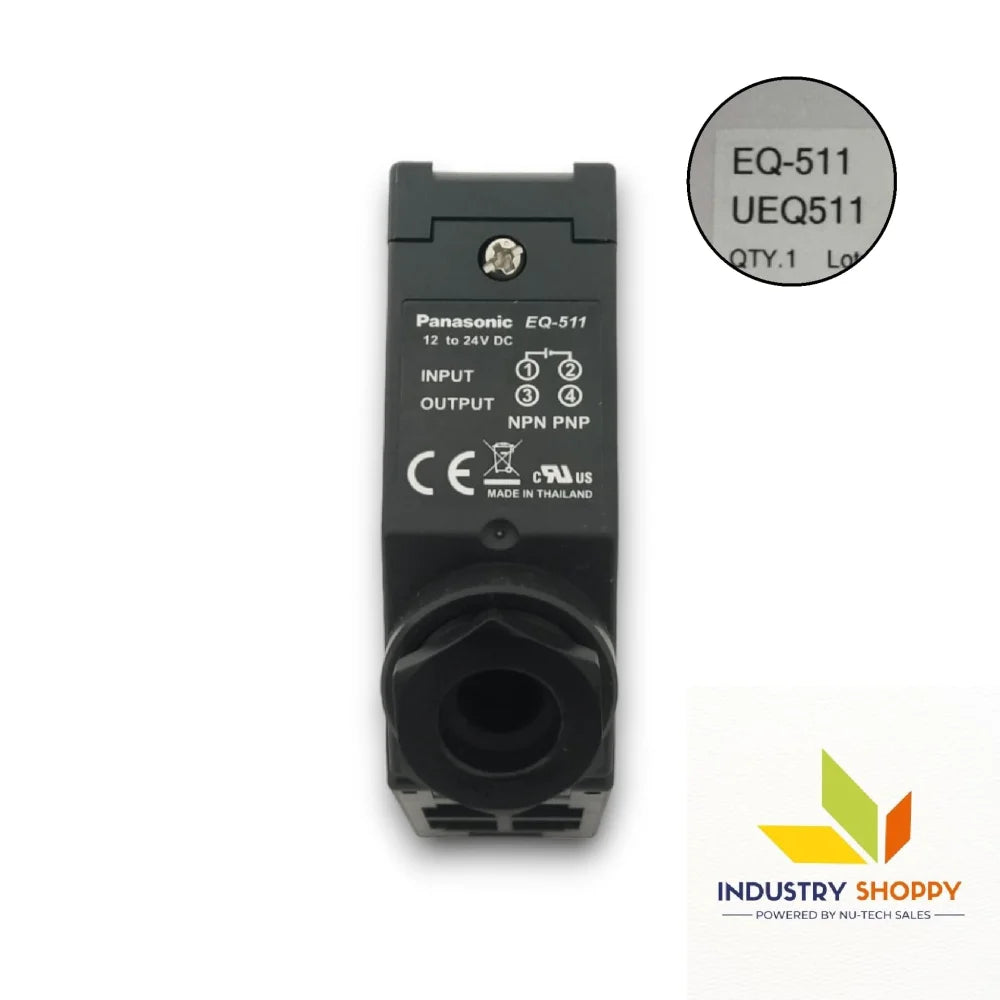

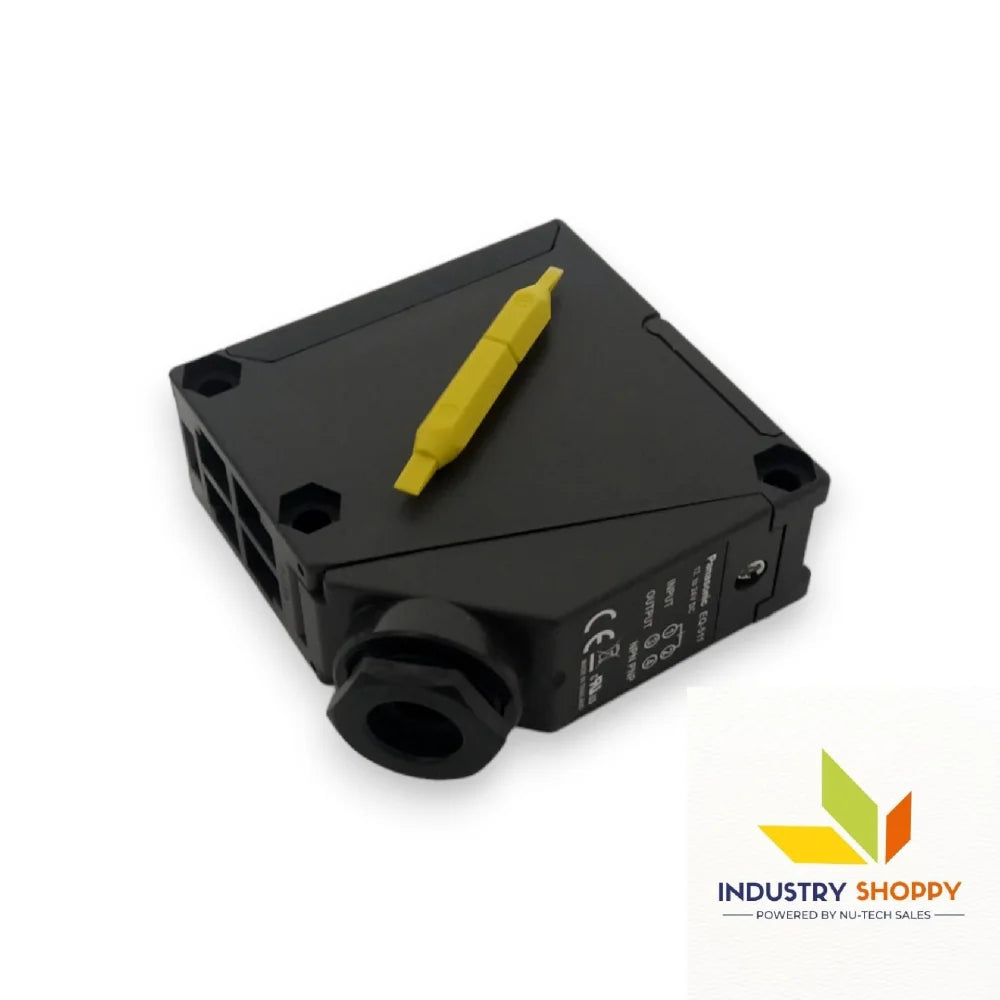

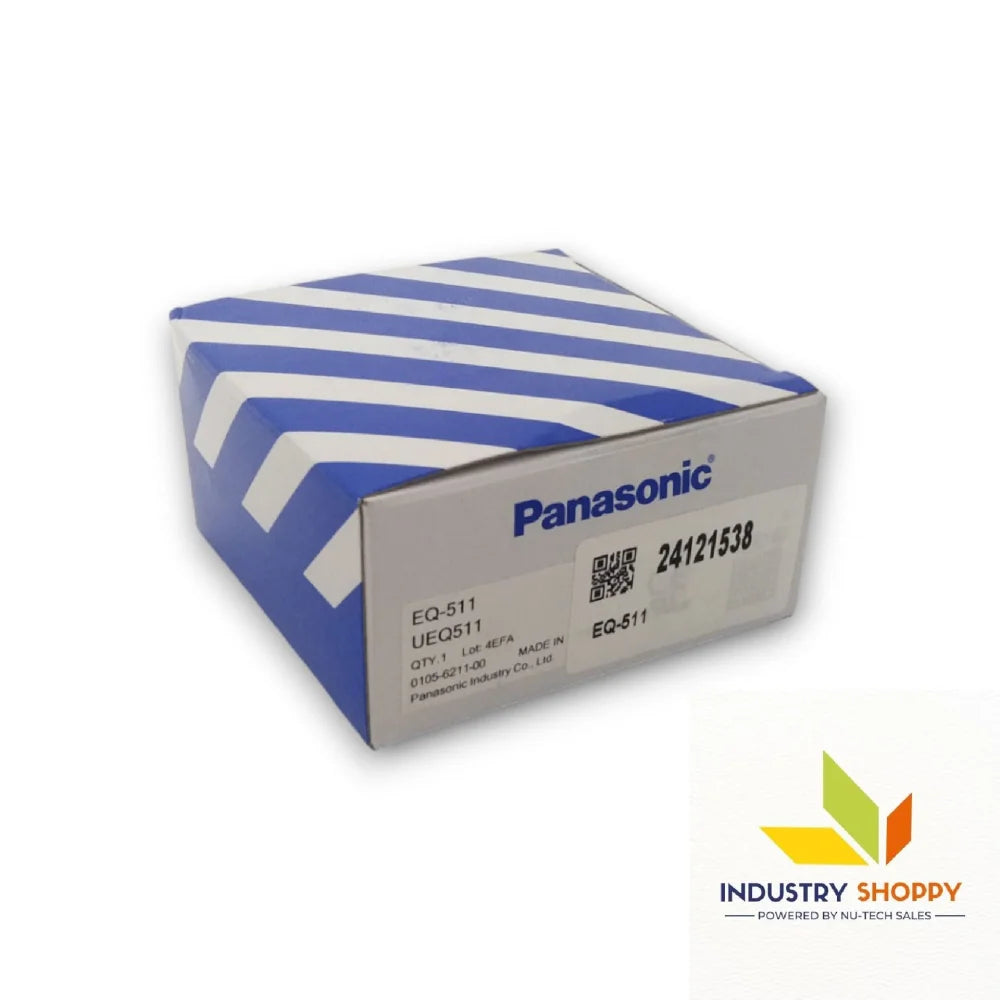

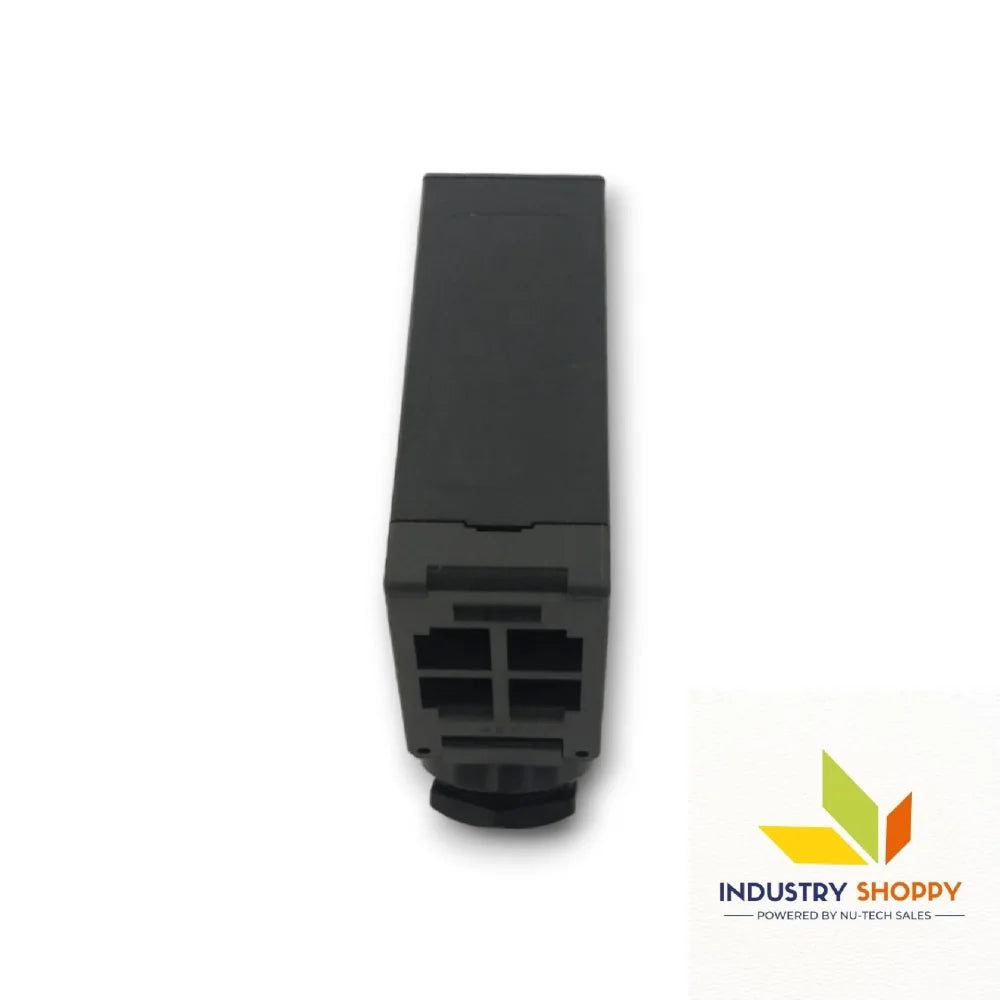

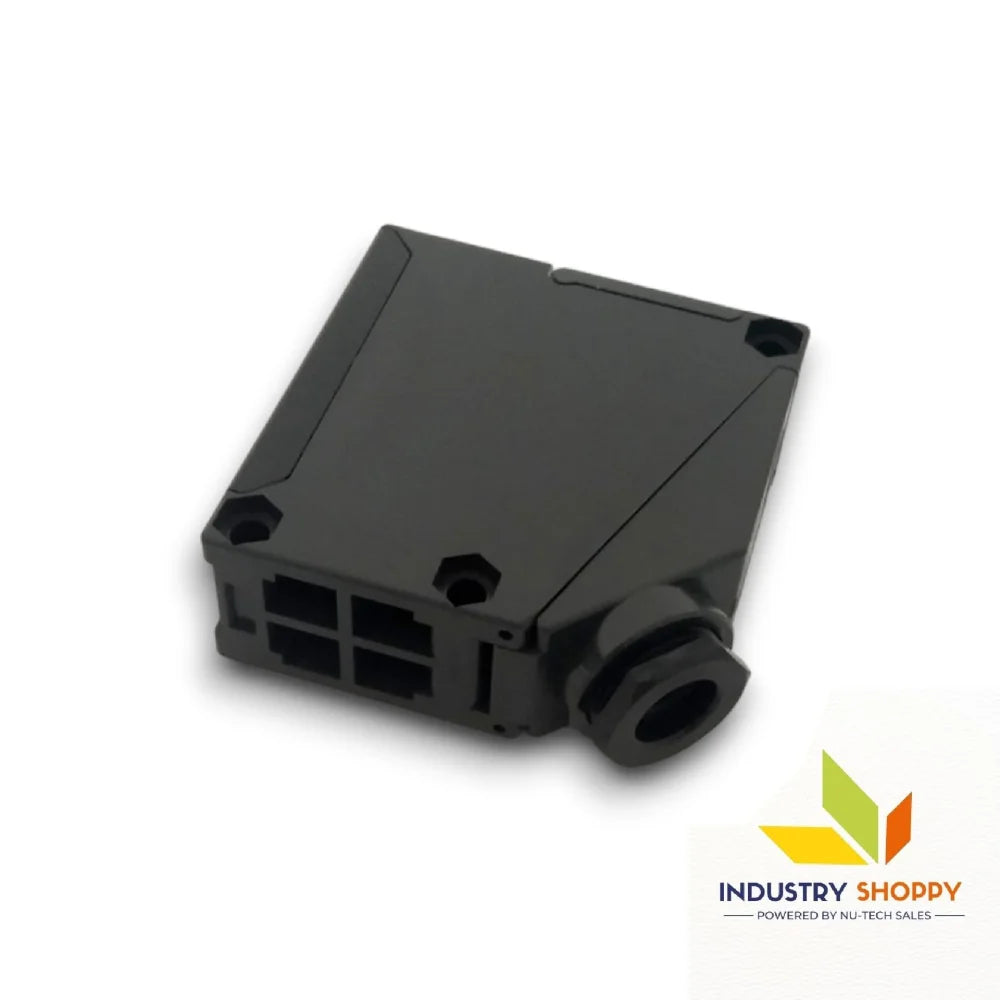

Panasonic EQ-511 Photoelectric Sensor
Panasonic EQ-511 Photoelectric Sensor
Panasonic EQ-511 Photoelectric Sensor
Panasonic EQ-511 Photoelectric Sensor
Panasonic EQ-511 Photoelectric Sensor
Panasonic EQ-511 Photoelectric Sensor
Panasonic EQ-511 Photoelectric Sensor
Panasonic EQ-511 Photoelectric Sensor
Panasonic EQ-511 Photoelectric Sensor
Panasonic EQ-511 Photoelectric Sensor
Panasonic

Panasonic EQ-511 Photoelectric Sensor

Product SKU: NTSSEN00410
Available:
Only 0 item in stock
0 item in stock
In stock
Pre-order
Out of stock
  • Brand
:  Panasonic
  • Condition
:  New
  • Part Number
:  --
  • Type
:  --
  • Output Type
:  --
  • Operating Range
:  --


Note : All tax and custom duty should be pay by buyer only.

$85.00
$125.00
Notify me When Available
You will receive an email when the product is available.
Want it delivered by
  • Description
  • Declaration

Panasonic EQ-511 Photoelectric Sensor

The Panasonic EQ-511 Photoelectric Sensor is an adjustable-range reflective sensor designed for precise and stable object detection in industrial environments. Offering a configurable sensing range of 0.2 to 2.5 meters, it ensures flexible application across various setups, from conveyor systems to packaging lines.

This sensor is equipped with both NPN and PNP open-collector transistor outputs and features a switchable Detection-ON or Detection-OFF setting for maximum adaptability. The integrated distance adjuster enables fine-tuning with a clear indicator, making setup intuitive and quick.

Built to endure, the EQ-511 has an IP67 protection rating, safeguarding it against dust and water ingress. Its infrared LED emitter and two-segment photodiode receiver deliver reliable detection even under challenging lighting conditions, while the stability and operation indicators (green and orange LEDs) provide clear, real-time feedback.

With a fast response time of 2 ms or less, shock resistance up to 500 m/s², and vibration resistance, the EQ-511 is optimized for consistent performance in demanding, high-speed industrial applications.

Key features :-

Product Number EQ-511
Part Number EQ511
Products Name Adjustable Range Reflective Photoelectric Sensor
Product details DC-voltage
The price of the product Please contact our office
Applicable regulations ・EMC Directive ： EN 60947-5-2
・RoHS Directive
Adjustable range 0.2 to 2.5 m
0.656 to 8.202 ft
(Note 1) The adjustable range stands for the maximum sensing range which can be set with the distance adjuster. The sensor can also detect an object 0.1 m 0.328 ft, or more, away.
(Note 2) The adjustable range, sensing range and hysteresis are specified for white non-glossy paper (200 x 200 mm 7.874 x 7.874 in) as the object.
Sensing range(at maximum setting distance) 0.1 to 2.5 m
0.328 to 8.202 ft
(Note) The adjustable range, sensing range and hysteresis are specified for white non-glossy paper (200 x 200 mm 7.874 x 7.874 in) as the object.
Hysteresis 10 % or less of operation distance
(Note) The adjustable range, sensing range and hysteresis are specified for white non-glossy paper (200 x 200 mm 7.874 x 7.874 in) as the object.
Repeatability(perpendicular to sensing axis) 10 mm
Note : The adjustable range, sensing range, hysteresis and repeatability are specified for white non-glossy paper (200 x 200 mm 7.874 x 7.874 in) as the object.
Supply voltage 12 to 24 V DC ±10 % Ripple P-P 10 % or less
Power / Current consumption 45 mA or less
Output NPN open-collector transistor
- Maximum sink current: 100 mA
- Applied voltage: 30 V DC or less (between output and 0 V)
- Residual voltage: 1 V or less (at 100 mA sink current), 0.4 V or less (at 16 mA sink current)
PNP open-collector transistor
- Maximum source current: 100 mA
- Applied voltage: 30 V DC or less (between output and +V)
- Residual voltage: 1 V or less (at 100 mA source current), 0.4 V or less (at 16 mA source current)
Output:Output operation Switchable either Detection-ON or Detection-OFF
Output:Short-circuit protection Incorporated
Response time 2 ms or less
Operation indicator Orange LED (lights up when the output is ON)
Stability indicator Green LED (lights up under stable operating condition)
Distance adjuster 2-turn mechanical adjuster with indicator
Sensing mode Switchable either BGS or FGS function
Timer function -
function Incorporated
(Note) Note that the detection may be unstable depending on the mounting conditions or the sensing object. In the state that this product is mounted, be sure to check the operation with the actual sensing object.
Protection IP67 (IEC)
Ambient temperature –25 to +55 ℃ –13 to +131 ℉ (No dew condensation or icing allowed),
Storage: –30 to +70 ℃ –22 to +158 ℉
Ambient humidity 35 to 85 % RH, Storage: 35 to 85 % RH
Ambient illuminance Incandescent light: 3,000 Lx or less at the light-receiving face
Voltage withstandability 1,000 V AC for one min. between all supply terminals connected together and enclosure
Insulation resistance 20 MOhm , or more, with 250 V DC megger between all supply terminals connected together and enclosure
Vibration resistance 10 to 55 Hz frequency, 1.5 mm 0.059 in double amplitude in X, Y and Z directions for two hours each
Shock resistance 500 m/s2 acceleration (50 G approx.) in X, Y and Z directions three times each
Emitting element Infrared LED (Peak emission wavelength: 855 nm 0.034 mil, modulated)
Receiving element 2-segment photodiode
Material Enclosure: ABS
Front cover: Polycarbonate
Display cover: Polycarbonate
Connection method Screw-on terminal connection
Cable Suitable for round cable φ9 to φ11 mm φ0.354 to φ0.433 in
Cable length Total length up to 100 m 328.084 ft is possible with 0.3 mm2, or more, cabtyre cable.



Applications :-

  • Automated Packaging: Ensures stable object detection on high-speed lines.
  • Conveyor Systems: Supports precise sensing and positioning.
  • Material Handling: Detects containers, pallets, or parts reliably.
  • Robotic Cells: Verifies object presence in pick-and-place operations.
  • Assembly Lines: Identifies components during process stages.

Precautions:

  • Ensure Correct Wiring: Incorrect connections can cause sensor failure
  • Avoid Overvoltage: Operating within 10-30V DC prevents damage
  • Protect from Extreme Heat: Avoid installing near high-temperature sources
  • Regular Cleaning: Keep the optical lens free from dust and debris for optimal performance
