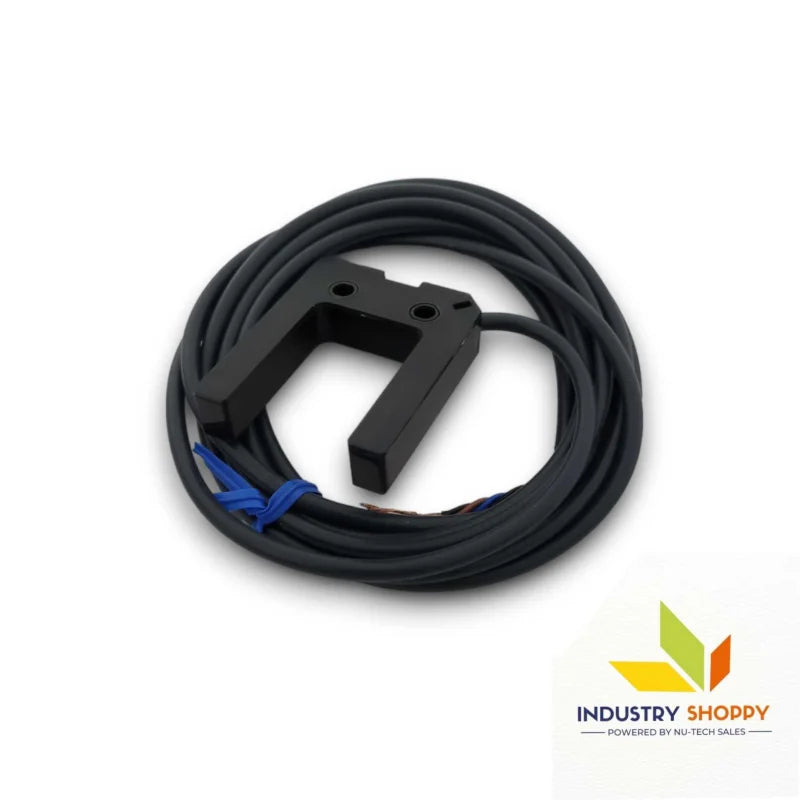

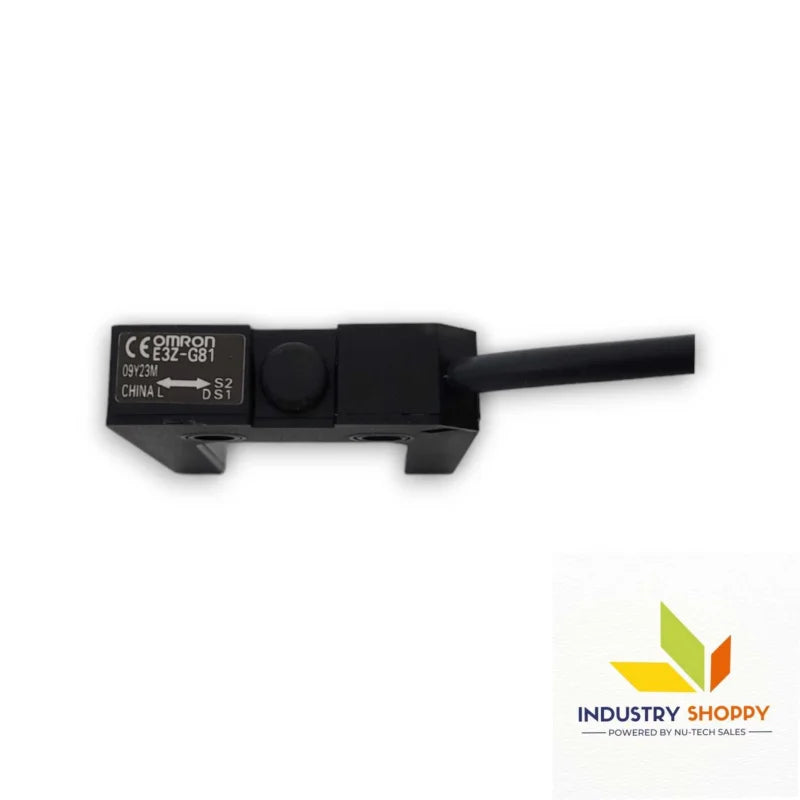

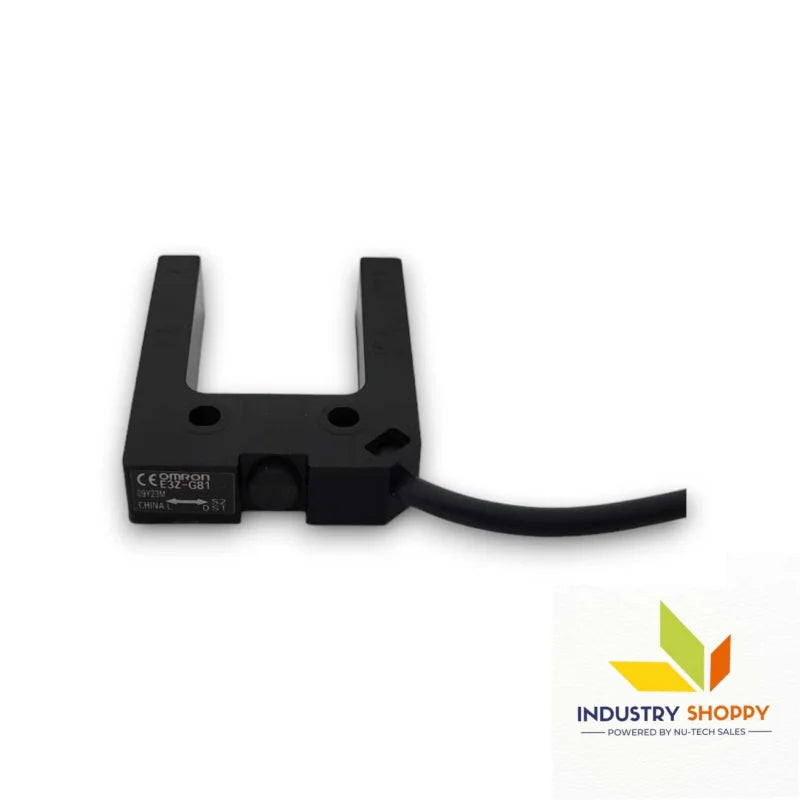

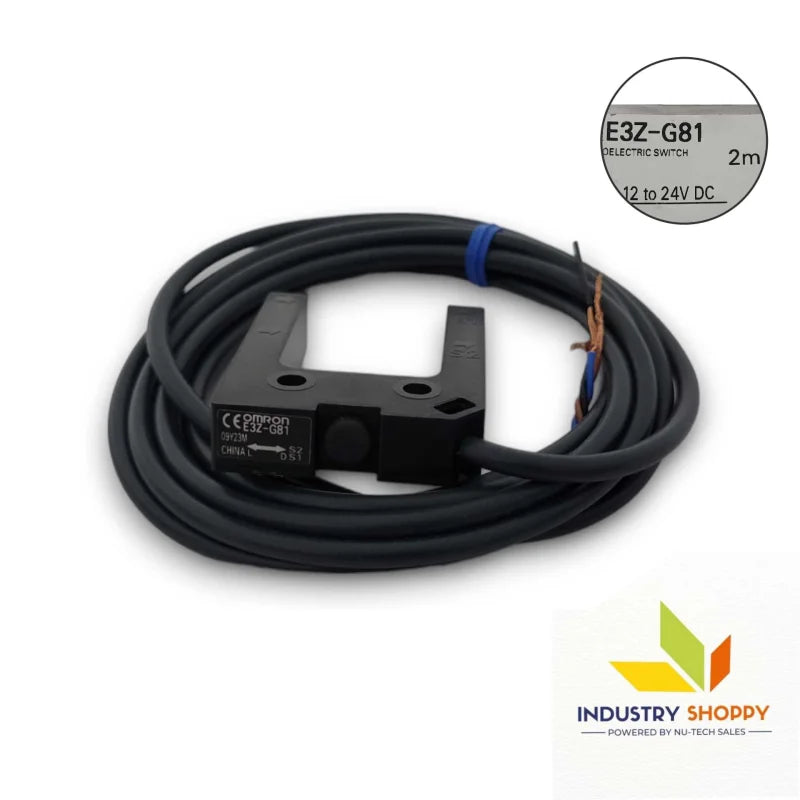

Omron E3Z-G81 Photoelectric Switch

Omron E3Z-G81 Photoelectric Switch

The Omron E3Z-G81 is a photo microsensor designed to offer precise sensing with a 25 mm sensing distance and a grooved type shape. Featuring an infrared LED light source (940 nm), this sensor ensures accurate object detection. It is ideal for detecting small, opaque objects with a minimum diameter of 1.5 mm.

Operating within a power supply voltage range of 12 to 24 VDC, the sensor consumes a maximum of 25 mA, making it energy-efficient. The PNP open collector output supports up to 100 mA, with a maximum residual voltage of 1 V at full load, ensuring reliable output signals. The light-ON/Dark-ON selectable operation mode offers flexibility in various applications.

Built for durability, the E3Z-G81 is equipped with protective circuits to prevent damage from output short circuits and reverse polarity on the power supply. With a response time of 1 ms, it provides fast and reliable sensing. The sensor operates efficiently in a wide temperature range of -25 to 55°C and can withstand environments with humidity levels ranging from 35 to 85%. It is IP64 rated, offering protection against dust and water splashes.

Key features :-

Applications :-

• Automated Assembly Lines: The E3Z-G81 is ideal for use in automated systems where quick and reliable detection of small objects is essential for process control and monitoring.
• Conveyor Systems: It is well-suited for monitoring the presence of objects on conveyor belts, ensuring smooth and accurate transportation in various industrial processes.
• Packaging Machines: This sensor can be used to detect items in packaging machinery, ensuring correct positioning and placement of products during packing.
• Sorting Systems: In sorting systems, the E3Z-G81 efficiently detects small objects, enabling high-speed sorting of materials and components in industrial environments.
• Material Handling: The sensor can be used in material handling systems for detecting small items, contributing to efficient processing and handling in warehouses and factories.

Precautions:

• Ambient Light: The sensor may be affected by high levels of ambient light, especially sunlight or incandescent lamps. Ensure the sensor is installed in a location where exposure to direct light is minimized for optimal performance.
• Installation: Proper installation is crucial. Ensure that the sensor is mounted securely and is aligned with the detection target to maintain accurate sensing.
• Temperature and Humidity: The E3Z-G81 should only be used within the specified temperature and humidity ranges. Exceeding these limits may impact its performance and longevity.
• Wiring: Properly connect the sensor according to the wiring diagram to avoid short circuits or incorrect wiring, which could damage the sensor.
• Mechanical Impact: The sensor is built to withstand vibration and shock to a certain degree. However, avoid exposing it to excessive mechanical impact or extreme vibrations.
• Cleaning: Use a soft, damp cloth to clean the sensor. Avoid using harsh chemicals or abrasive materials that could damage the sensor's housing or sensing surface.
