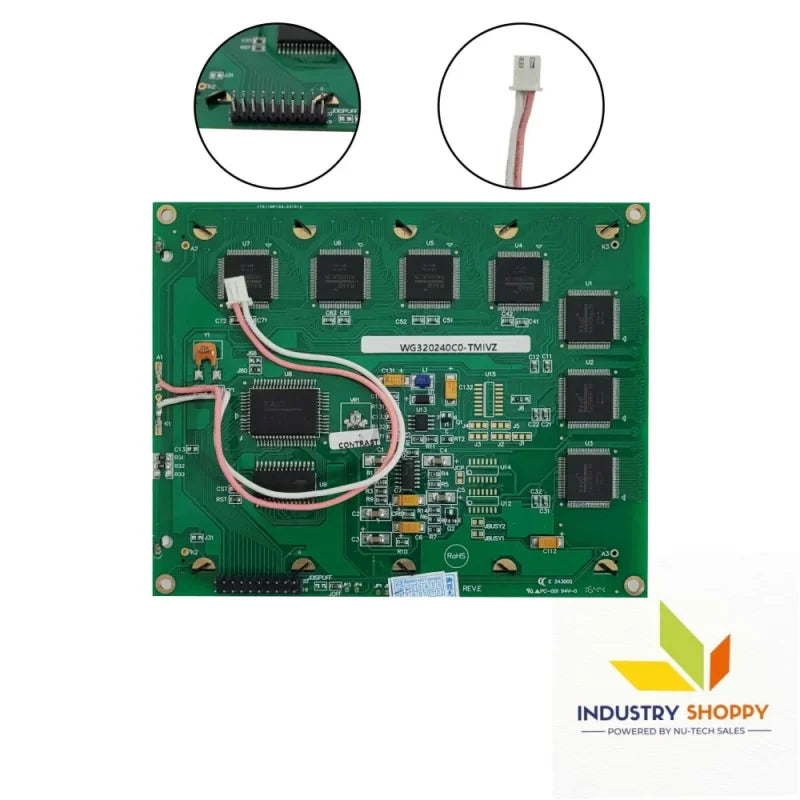

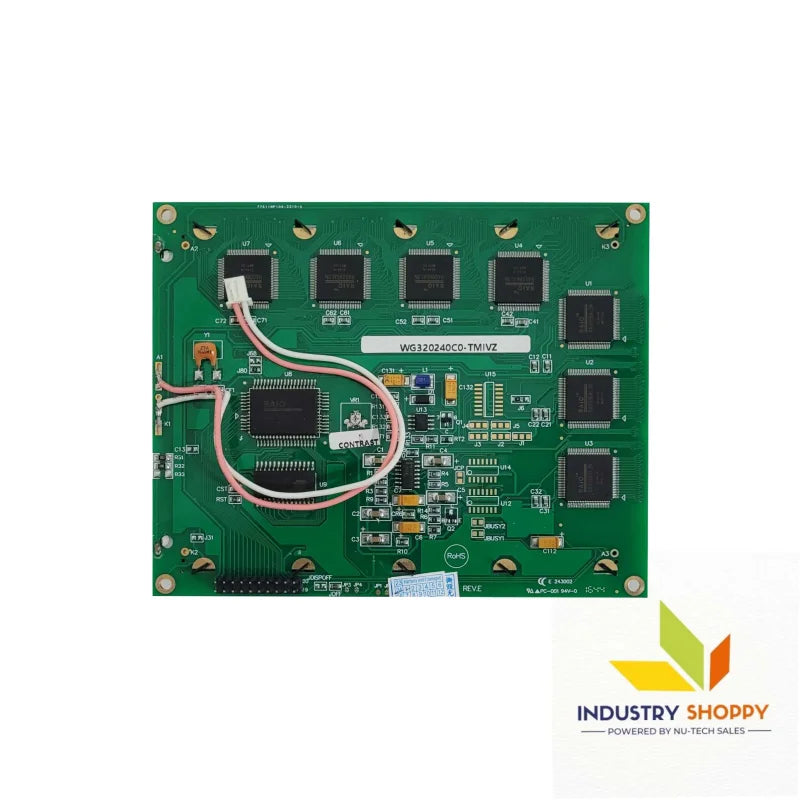

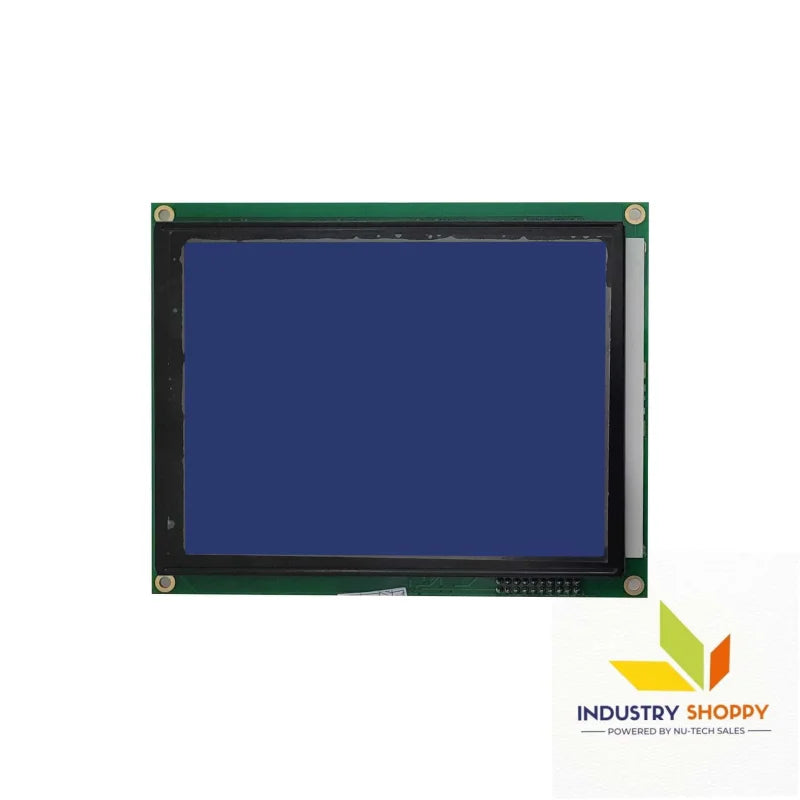

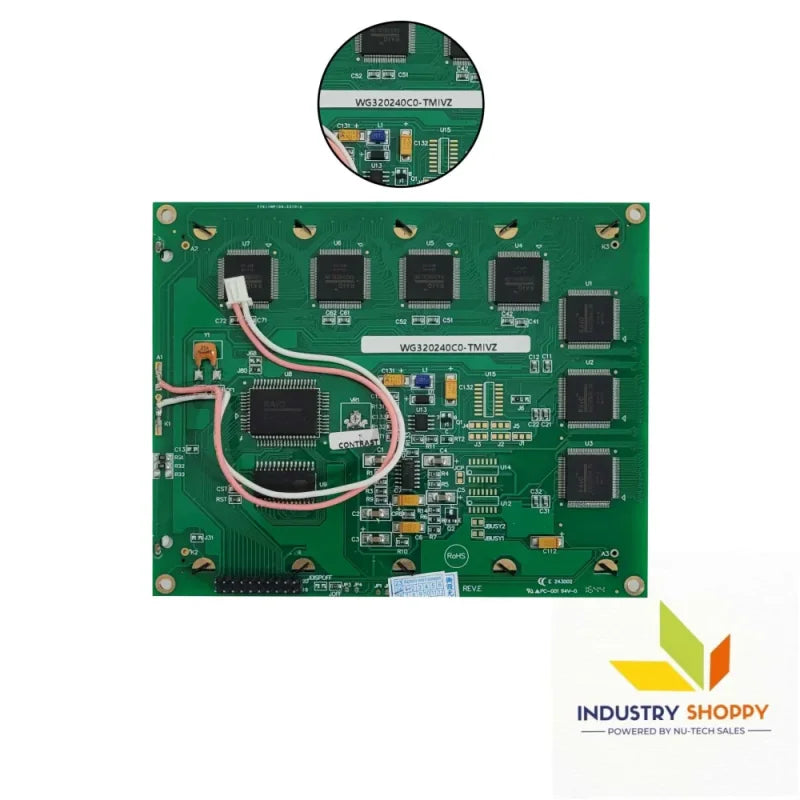

NTS WG320240C0-TMIVZ LCD Module

NTS WG320240C0-TMIVZ LCD Module

The NTS WG320240C0-TMIVZ is a 3.2-inch a-Si TFT-LCD module designed for applications that require a compact display with high-quality visual output. Offering a resolution of 320x240 (QVGA) and a pixel density of 100 PPI, this module delivers sharp, clear visuals with accurate color reproduction, making it ideal for use in handheld devices, industrial control panels, and point-of-sale (POS) systems.

This module boasts a brightness of 350 cd/m² and a contrast ratio of 500:1, ensuring vibrant and crisp visuals even in well-lit environments. With wide viewing angles of 60°/60°/50°/60° (L/R/U/D), it provides consistent image clarity from different perspectives, making it versatile for various applications.

The WG320240C0-TMIVZ features an LED backlight, ensuring energy-efficient performance with a long lifespan. The antiglare surface treatment reduces reflections, enhancing visibility in bright settings, while the module is well-suited for extended operation in diverse environments.

Key Features:

• Brand: NTS
• Model: WG320240C0-TMIVZ
• Diagonal Size: 3.2 inches
• Resolution: 320×240 (QVGA), 100 PPI
• Pixel Format: RGB Vertical Stripe for accurate and vibrant color reproduction
• Active Area: 69.0(W) × 51.0(H) mm
• Bezel Opening: 72.0(W) × 54.0(H) mm
• Outline Dimensions: 77.0(W) × 61.0(H) × 6.5(D) mm
• Surface Treatment: Antiglare to reduce reflections and enhance readability
• Brightness: 350 cd/m² (Typical), ensuring visibility in bright environments
• Contrast Ratio: 500:1 (Typical), providing clear and vivid images
• Viewing Angle: 60°/60°/50°/60° (L/R/U/D), allowing for clear visibility from different angles
• Backlight Type: LED for energy-efficient performance and long operational life
• Display Mode: TN, Normally White, Transmissive
• Response Time: 25 ms (Typical, Tr/Td) for smooth visual transitions
• Signal Interface: RGB 6-bit, 40-pin FPC connector
• Input Voltage: 3.3V (Typical for VCC)
• Operating Temperature: -20°C to 70°C, designed for use in a variety of environments
• Storage Temperature: -30°C to 80°C, offering flexible storage options

Applications:

• Handheld Devices: Ideal for compact devices that require small, high-quality displays
• Industrial Control Panels: Suitable for industrial systems where space is limited but high-quality visuals are essential
• Point-of-Sale (POS) Displays: Perfect for retail applications requiring compact displays with clear, vibrant colors
• Medical Devices: Ideal for small diagnostic tools or medical equipment where visibility and readability are critical

Technical Precautions:

• Handling: Handle carefully to avoid damaging the surface or internal components
• ESD Protection: Use electrostatic discharge (ESD) precautions during installation
• Temperature Limits: Ensure the module operates within the recommended temperature range (-20°C to 70°C) for optimal performance
• Installation Guidelines: Avoid excessive pressure on connectors to maintain reliability
• Backlight Maintenance: Regularly check the backlight to ensure continued performance

Note : All tax and custom duty should be pay by buyer only.

Note: All trademarks and trade names used are the property of their respective owners.
