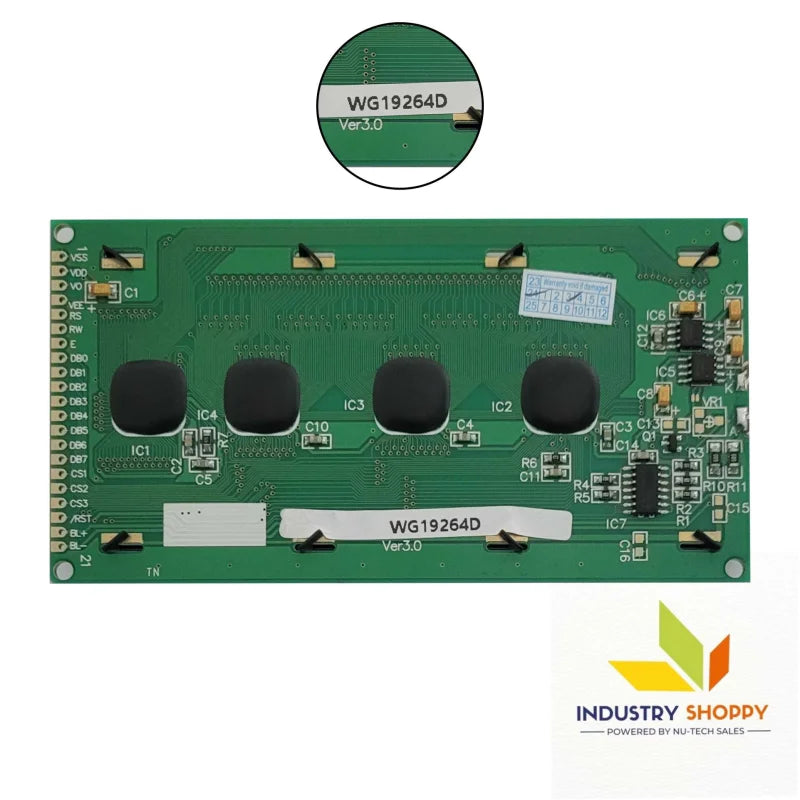

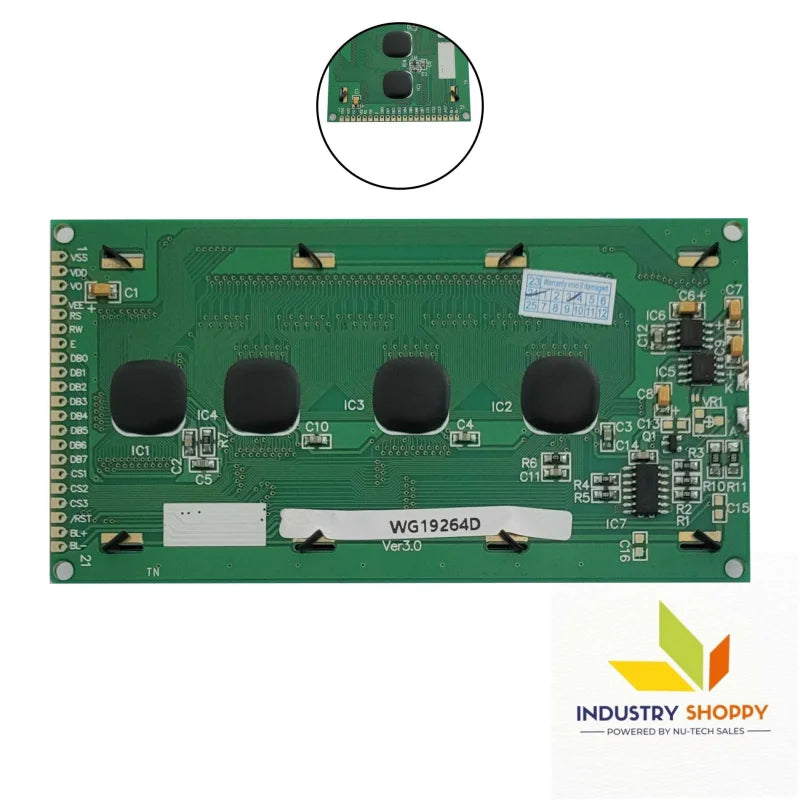

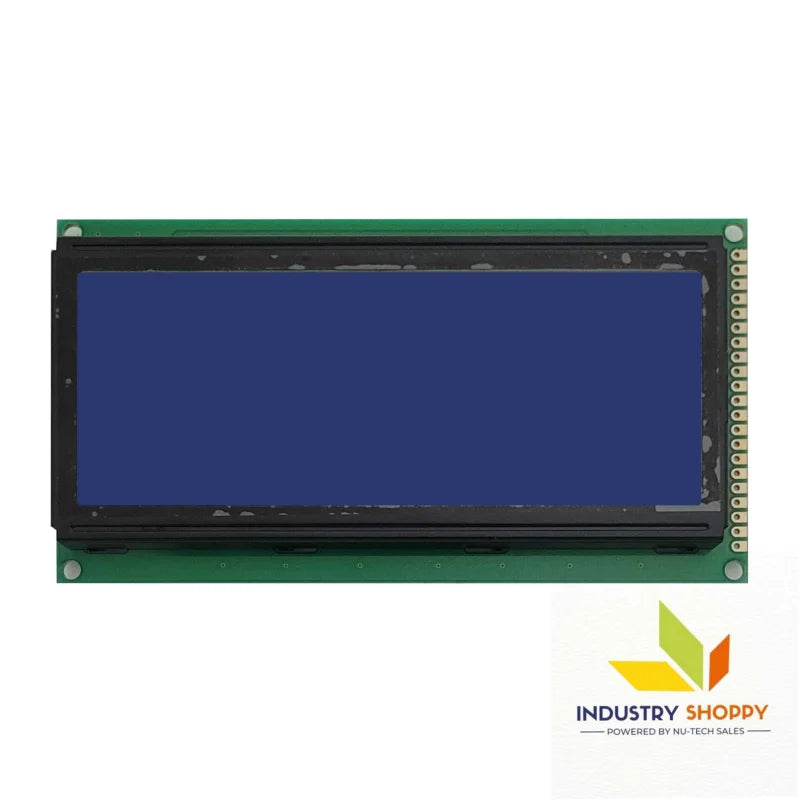

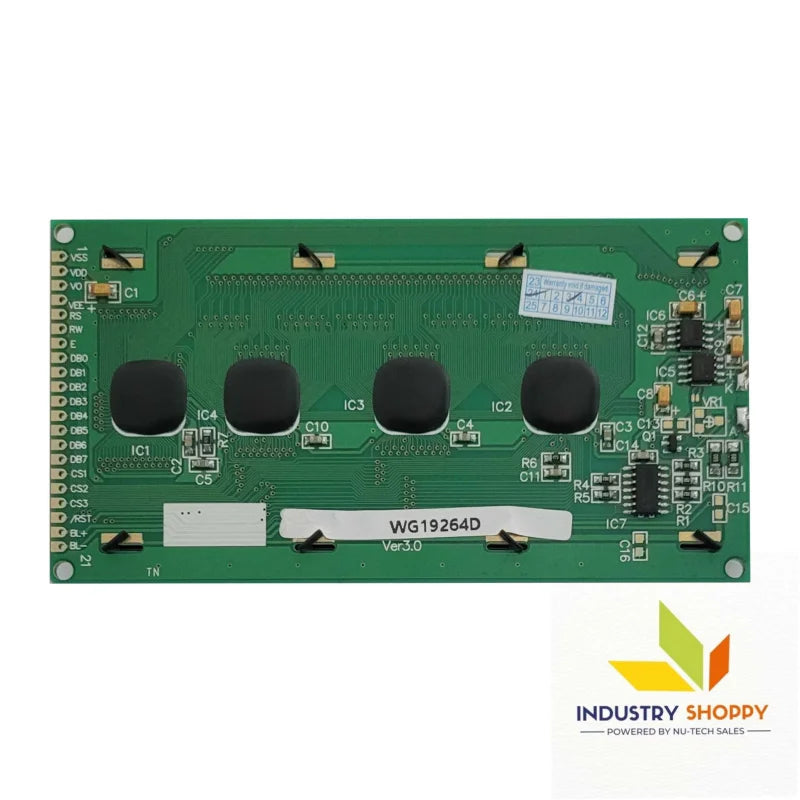

NTS WG19264D LCD Module

NTS WG19264D LCD Module

The NTS WG19264D is a 2.0-inch a-Si TFT-LCD module designed to offer compact size and high-quality display performance for various applications. Featuring a resolution of 192x64, this module provides clear, crisp visuals with a pixel density of 96 PPI, making it ideal for applications like industrial control panels, POS systems, and embedded devices that require efficient and vibrant display solutions.

This module boasts a brightness of 300 cd/m² and a contrast ratio of 500:1, ensuring clear and vibrant visuals in bright environments. The wide viewing angles of 60°/60°/50°/60° (L/R/U/D) offer consistent image clarity from multiple perspectives, making it versatile for various industrial and consumer electronics applications.

With an LED backlight, the WG19264D is both energy-efficient and durable, providing long-lasting performance. The antiglare surface treatment reduces reflections and enhances visibility, making it ideal for use in bright or outdoor environments.

Key Features:

• Brand: NTS
• Model: WG19264D
• Diagonal Size: 2.0 inches
• Resolution: 192×64, 96 PPI
• Pixel Format: RGB Vertical Stripe for accurate color reproduction
• Active Area: 38.4(W) × 12.8(H) mm
• Bezel Opening: 41.0(W) × 15.0(H) mm
• Outline Dimensions: 46.0(W) × 19.0(H) × 5.0(D) mm
• Surface Treatment: Antiglare to reduce reflections and improve readability
• Brightness: 300 cd/m² (Typical), ensuring visibility in various lighting conditions
• Contrast Ratio: 500:1 (Typical), providing high contrast for clear visuals
• Viewing Angle: 60°/60°/50°/60° (L/R/U/D), offering consistent image clarity from multiple angles
• Backlight Type: LED for energy-efficient performance and long-lasting operation
• Display Mode: TN, Normally White, Transmissive
• Response Time: 25 ms (Typical, Tr/Td) for smooth visuals
• Signal Interface: RGB 6-bit, 40-pin FPC connector
• Input Voltage: 3.3V (Typical for VCC)
• Operating Temperature: -20°C to 70°C, suitable for use in various environments
• Storage Temperature: -30°C to 80°C, flexible for different storage conditions

Applications:

• Industrial Control Panels: Ideal for systems where space is limited but high-quality visuals are essential
• Point-of-Sale (POS) Displays: Perfect for compact retail displays requiring clear and vibrant visuals
• Embedded Systems: Suitable for devices requiring a small but efficient display solution
• Medical Devices: Great for diagnostic equipment requiring clear and sharp visual output

Technical Precautions:

• Handling: Handle with care to prevent damage to the surface or internal components
• ESD Protection: Use electrostatic discharge (ESD) precautions during installation
• Temperature Limits: Ensure the module operates within the recommended temperature range (-20°C to 70°C) for optimal longevity
• Installation Guidelines: Avoid excessive pressure on connectors during installation
• Backlight Maintenance: Regularly inspect the backlight to ensure its continued performance
