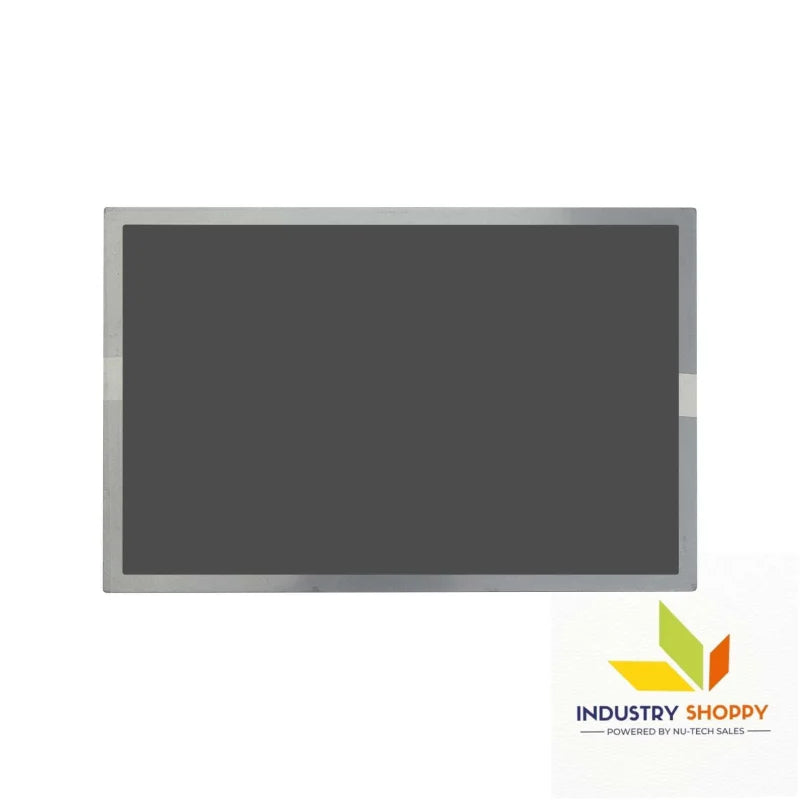

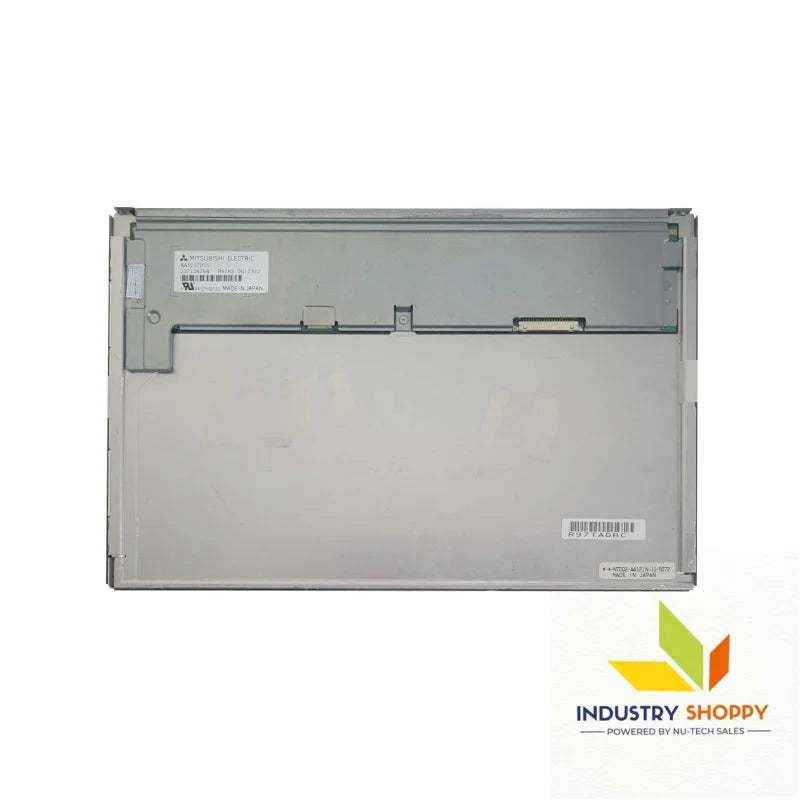

Mitsubishi AA121TD01 LCD Module

Mitsubishi AA121TD01 LCD Module

The Mitsubishi AA121TD01 is a 12.1-inch a-Si TFT-LCD module designed for high-performance applications where clear, sharp visuals and reliable performance are essential. Featuring a resolution of 800x600 (SVGA) and a pixel density of 100 PPI, this display offers vibrant color reproduction and crisp image clarity, making it ideal for industrial, medical, and commercial applications.

With a brightness of 450 cd/m² and a contrast ratio of 600:1, the module ensures excellent visibility in various lighting conditions. The wide viewing angles of 80°/80°/80°/80° (L/R/U/D) offer consistent and clear visuals from multiple viewing positions, making it versatile for different environments.

Equipped with an LED backlight, the module provides an extended lifespan, ensuring long-term reliability and energy efficiency. The antiglare surface treatment minimizes reflections, enhancing readability in environments with ambient light, which is especially important for industrial or medical settings.

Key Features:

• Brand: Mitsubishi

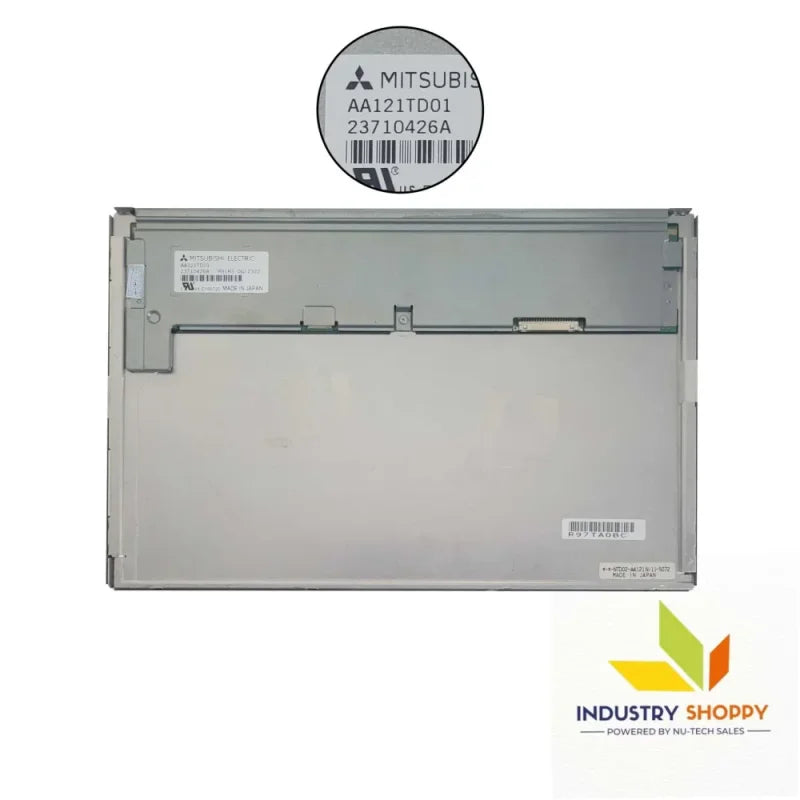

• Model: AA121TD01
• Diagonal Size: 12.1 inches
• Resolution: 800×600 (SVGA), 100 PPI
• Pixel Format: RGB Vertical Stripe for precise color accuracy and vivid display
• Active Area: 246.0(W) × 184.5(H) mm
• Bezel Opening: 249.0(W) × 187.5(H) mm
• Outline Dimensions: 270.0(W) × 208.5(H) × 11.0(D) mm
• Surface Treatment: Antiglare for enhanced visibility in bright environments
• Brightness: 450 cd/m² (Typical), ideal for both moderate and bright environments
• Contrast Ratio: 600:1 (Typical), providing clear differentiation between dark and light areas
• Viewing Angle: 80°/80°/80°/80° (L/R/U/D), offering consistent image clarity from multiple viewing positions
• Backlight Type: LED with extended lifespan for reliability and energy efficiency
• Display Mode: TN, Normally White, Transmissive
• Response Time: 20 ms (Typical, Tr/Td) for smooth, responsive visuals

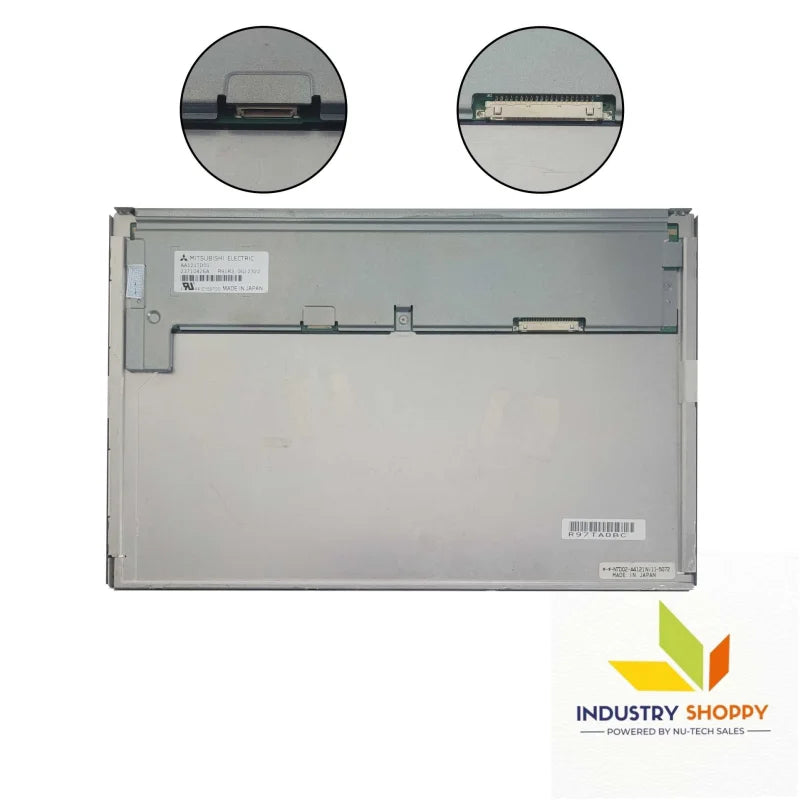

• Signal Interface: LVDS (1 channel, 6/8-bit), 30-pin FPC connector
• Input Voltage: 3.3V (Typical for VCC)
• Operating Temperature: 0°C to 50°C, suitable for a variety of operating conditions
• Storage Temperature: -20°C to 60°C, providing flexibility for storage in varying conditions

Applications:

• Industrial Control Panels: Ideal for industrial systems where clear visuals and reliable performance are necessary
• Medical Devices: Suitable for medical equipment needing high clarity and consistency for accurate readings
• Point-of-Sale (POS) Displays: Perfect for retail environments requiring clear displays with vibrant colors
• Embedded Systems: Well-suited for embedded applications that require high-quality display solutions

Technical Precautions:

• Handling: Handle carefully to avoid damage to the surface or internal components
• ESD Protection: Use electrostatic discharge (ESD) precautions during installation to protect the module
• Temperature Limits: Ensure the module operates within the recommended temperature range (0°C to 50°C) for optimal performance
• Installation Guidelines: Avoid excessive pressure on connectors during installation to maintain long-term reliability
• Backlight Maintenance: Regularly inspect the backlight to ensure continued performance
