Leuze RK3C/4P-200-M8 Photoelectric Sensor

Leuze RK3C/4P-200-M8 Photoelectric Sensor

Part No. 50143651

The Leuze RK3C/4P-200-M8 Photoelectric Sensor delivers accurate detection of high-gloss and polished surfaces in even the most demanding environments. Using the reflection principle and a red LED light source at 633 nm, it offers a reliable sensing range of 0.02 to 7 meters when paired with a TK(S) 100x100 reflector.

This compact sensor features fast response times of 0.33 ms and supports both light and dark switching for application flexibility. With IP67 and IP69K protection, it withstands harsh conditions, including moisture and cleaning processes.

Its ECOLAB-certified housing ensures resistance to common cleaning agents, while the PNP transistor output provides dependable signal transmission. The device integrates short circuit and polarity reversal protection for electrical safety.

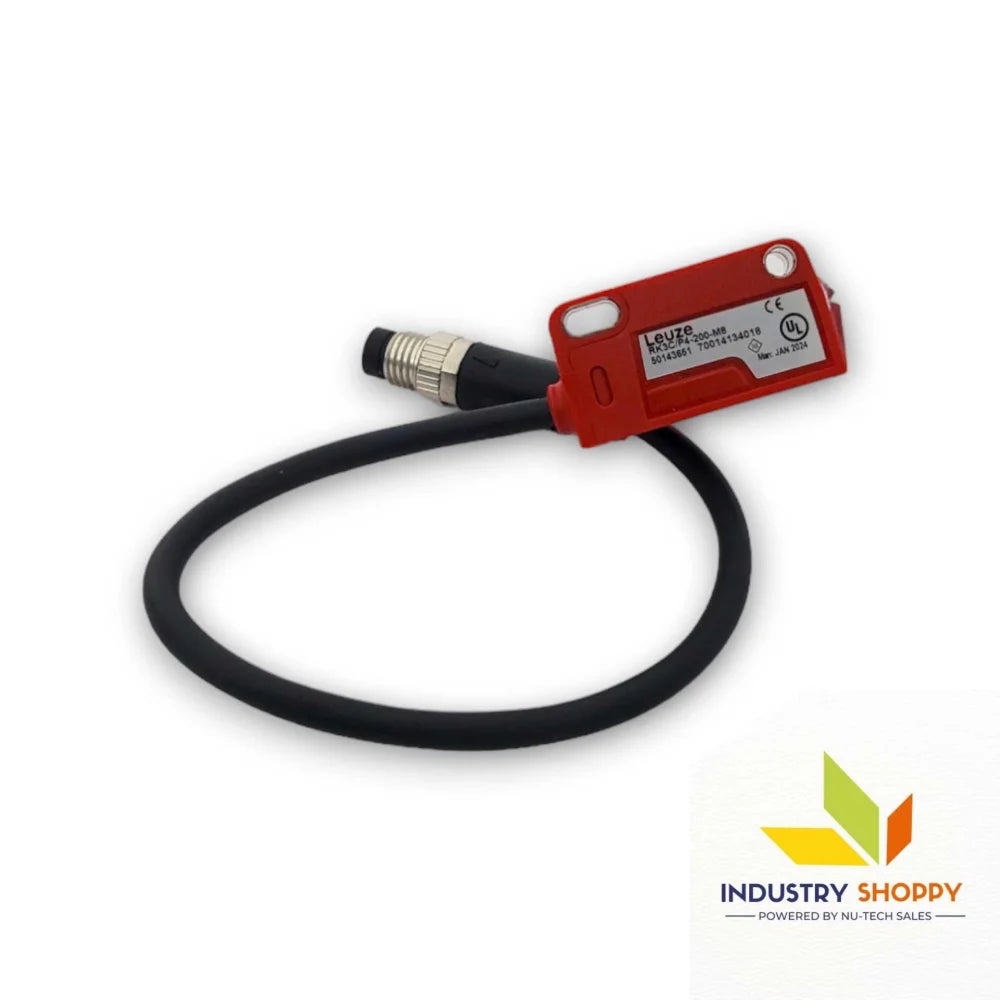

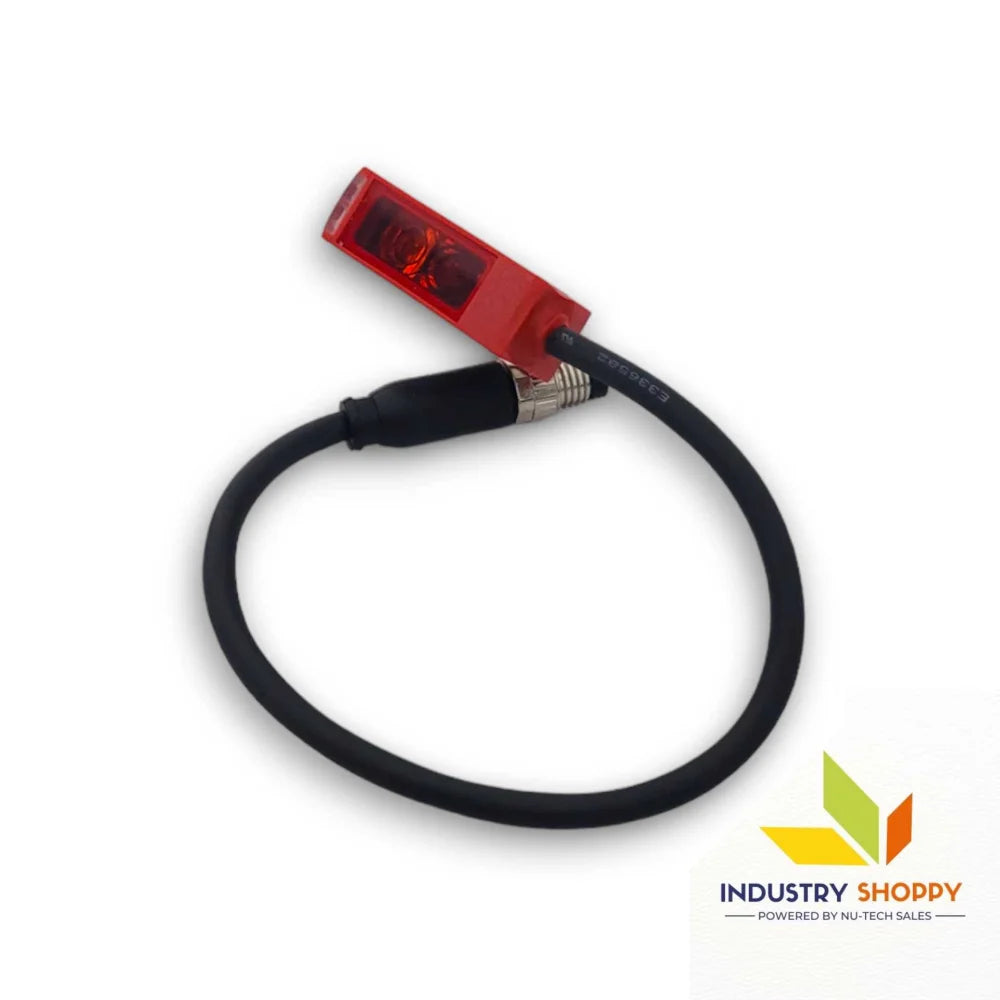

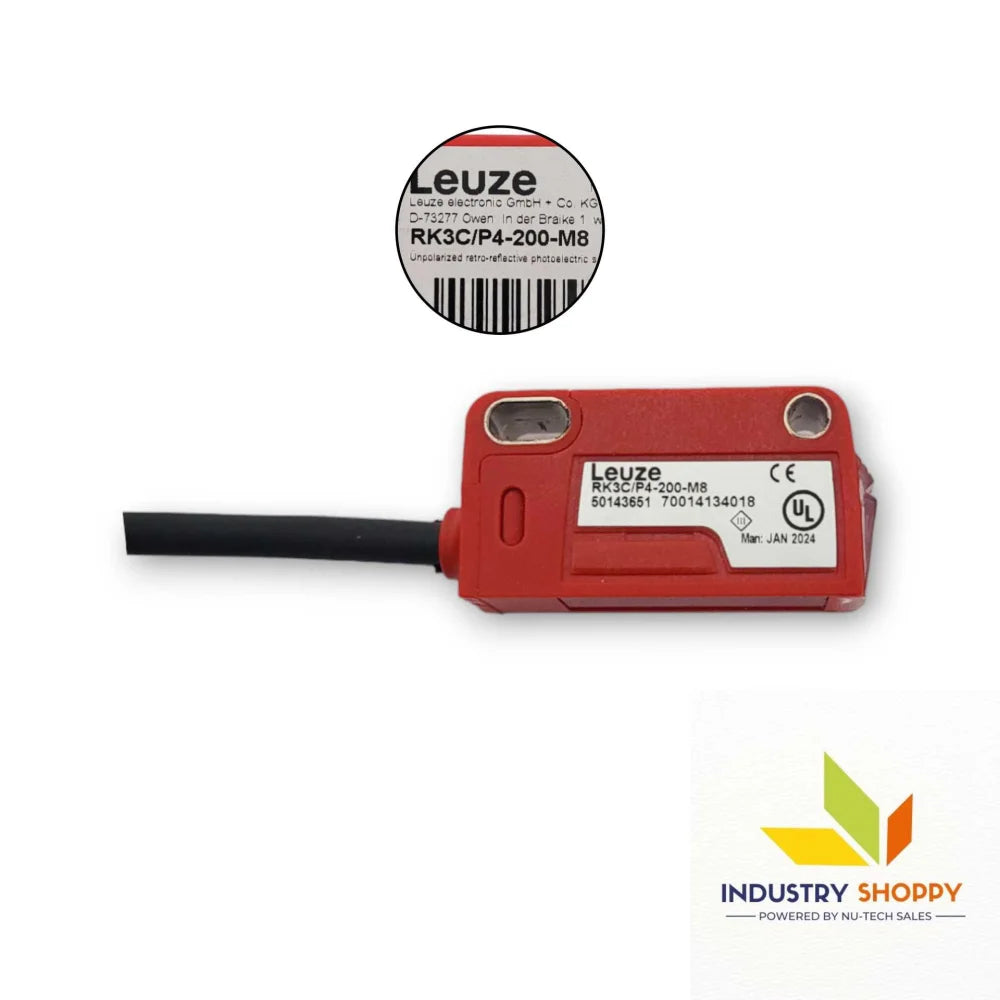

Installation is simple with an M8 male connector and 200 mm PUR-sheathed cable. Compact dimensions — 11.4 x 34.2 x 18.3 mm — make it ideal for space-limited applications.

Engineered for efficiency and durability, the Leuze RK3C/4P-200-M8 is the perfect solution for polished surface detection across automated systems.

Key features :-

Applications :-

• Glossy Object Detection: Precisely identifies reflective and high-gloss surfaces in packaging, assembly, and inspection lines.
• Material Handling Systems: Ensures smooth detection of objects during automated transportation or storage operations.
• Position Verification: Validates product positions on fast-moving conveyor belts for quality control.
• Industrial Robotics: Supports robot guidance systems by reliably sensing polished or metallic surfaces.
• Automated Sorting Lines: Enhances the efficiency of sorters by detecting diverse surface types, including shiny and challenging textures.

Precautions:

• Ensure Correct Wiring: Incorrect connections can cause sensor failure
• Avoid Overvoltage: Operating within 10-30V DC prevents damage
• Protect from Extreme Heat: Avoid installing near high-temperature sources
• Regular Cleaning: Keep the optical lens free from dust and debris for optimal performance
