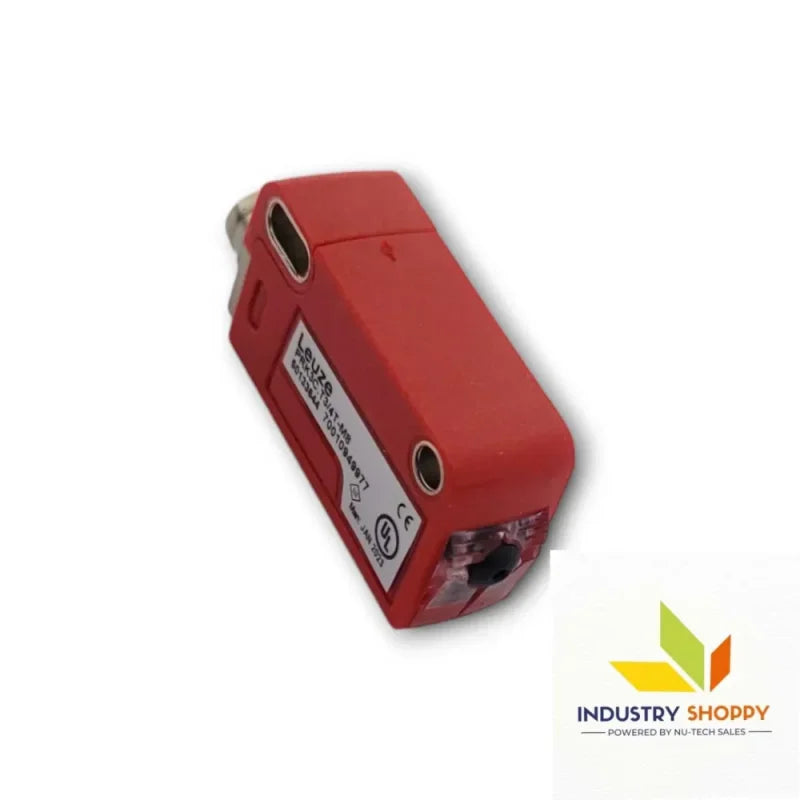

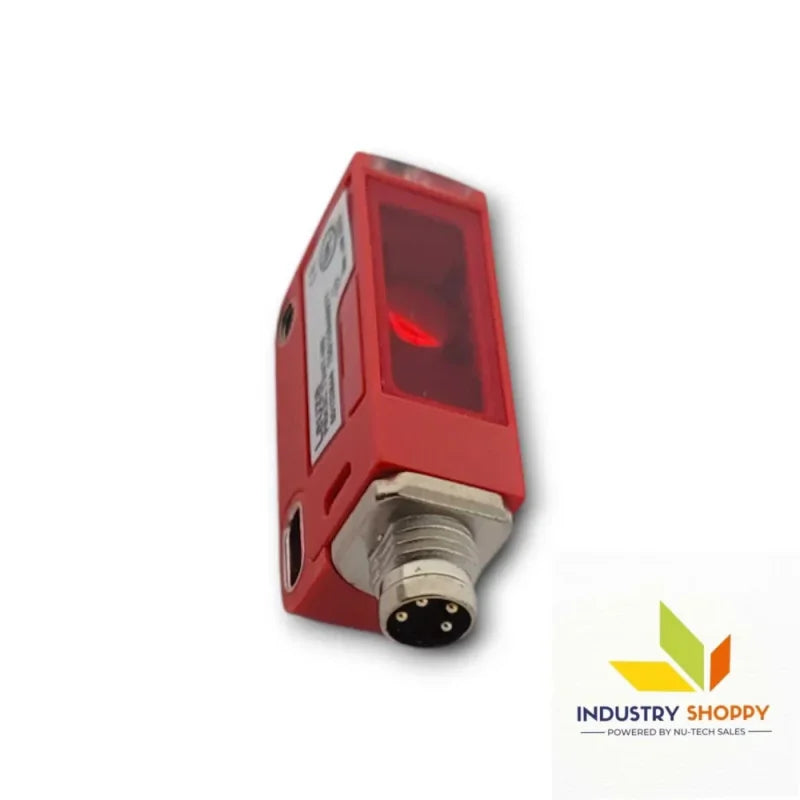

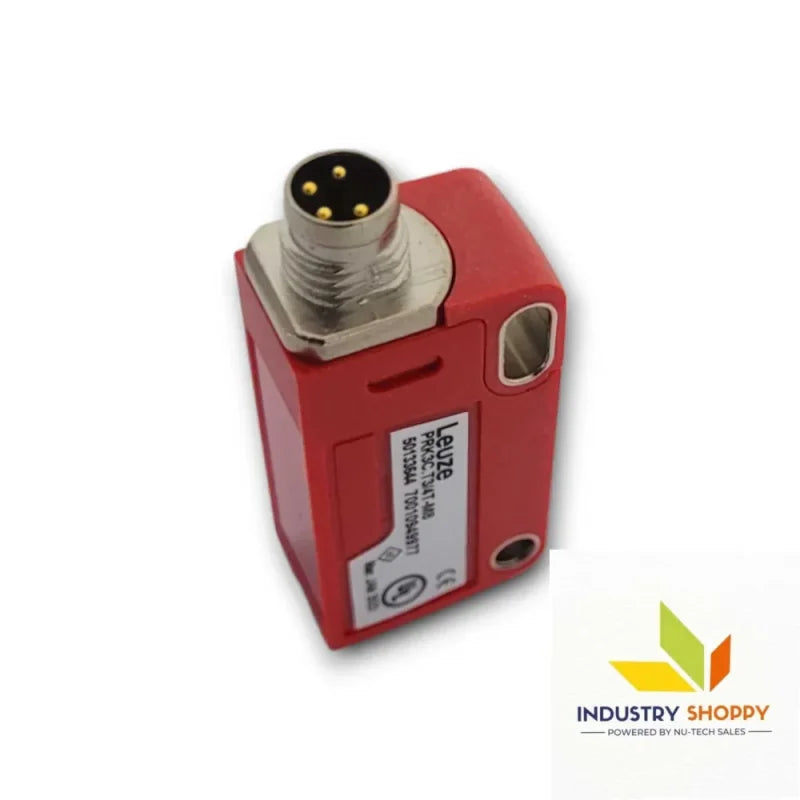

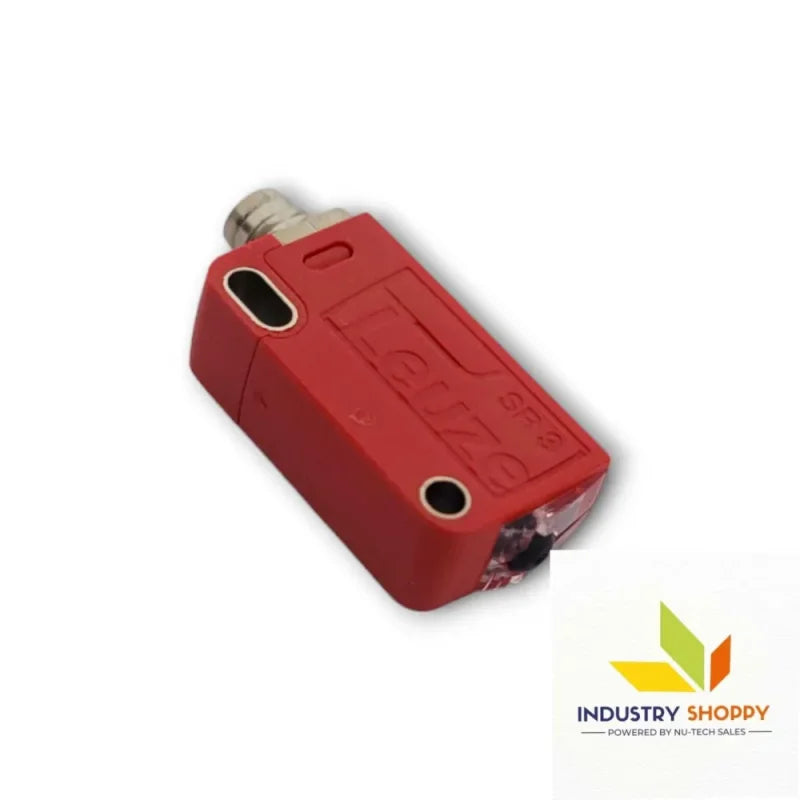

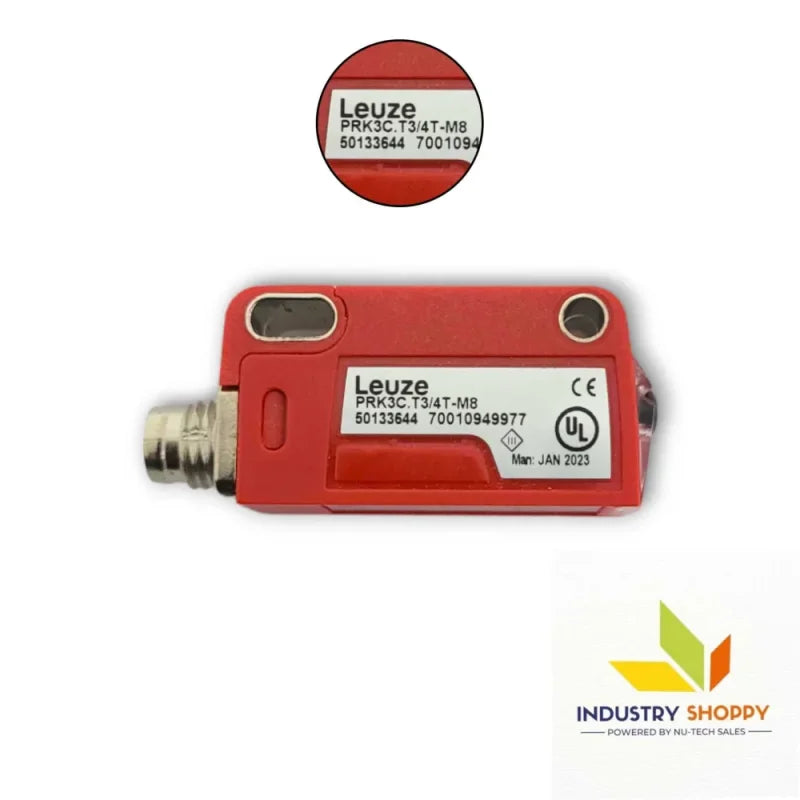

Leuze PRK3C.T3/4T-M8 Photoelectric Sensor

Leuze PRK3C.T3/4T-M8 Photoelectric Sensor

The Leuze PRK3C.T3/4T-M Photoelectric Sensor is an advanced photoelectric sensor designed with the reflection principle for high-precision object detection. It features an autocollimation special version, enhancing detection accuracy in complex environments. The guaranteed operating range is from 0 to 3 meters with the TK(S) 100x100 reflector, and it offers a typical operating range limit of up to 3.6 meters. The red LED light source (635 nm) provides efficient detection and is in the exempt group according to EN 62471 standards.

The Leuze PRK3C.T3/4T-M Photoelectric Sensor supports both light/dark switching with a PNP transistor and provides an adjustable sensitivity control via the Teach button, allowing fine-tuning of the detection range. The sensor operates with a switching frequency of 1,500 Hz and a response time of 0.33 ms, ensuring fast and accurate switching in high-speed environments.

With a voltage supply range of 10-30 V DC, it offers flexibility for integration into various automation systems. Its IP67 and IP69K protection ratings ensure durability and reliable performance in harsh environments exposed to dust, water, and high-pressure cleaning. The M8 male connector makes installation quick and easy, while the Teach button allows for easy sensitivity adjustment for varying operational requirements.

Key features :-

Applications :-

• Industrial Automation: Ideal for object detection, ensuring accurate positioning in automated production lines.
• Material Handling: Perfect for use in conveyor systems and item detection.
• Packaging Systems: Provides reliable detection for sorting and packaging tasks.
• Logistics and Warehousing: Facilitates sorting, tracking, and handling of goods in warehouse environments.
• Security Systems: Effective in detecting unauthorized access or irregularities in security applications.

Precautions :-

• Ensure Correct Wiring: Incorrect connections can cause sensor failure
• Avoid Overvoltage: Operating within 10-30V DC prevents damage
• Protect from Extreme Heat: Avoid installing near high-temperature sources
• Regular Cleaning: Keep the optical lens free from dust and debris for optimal performance
