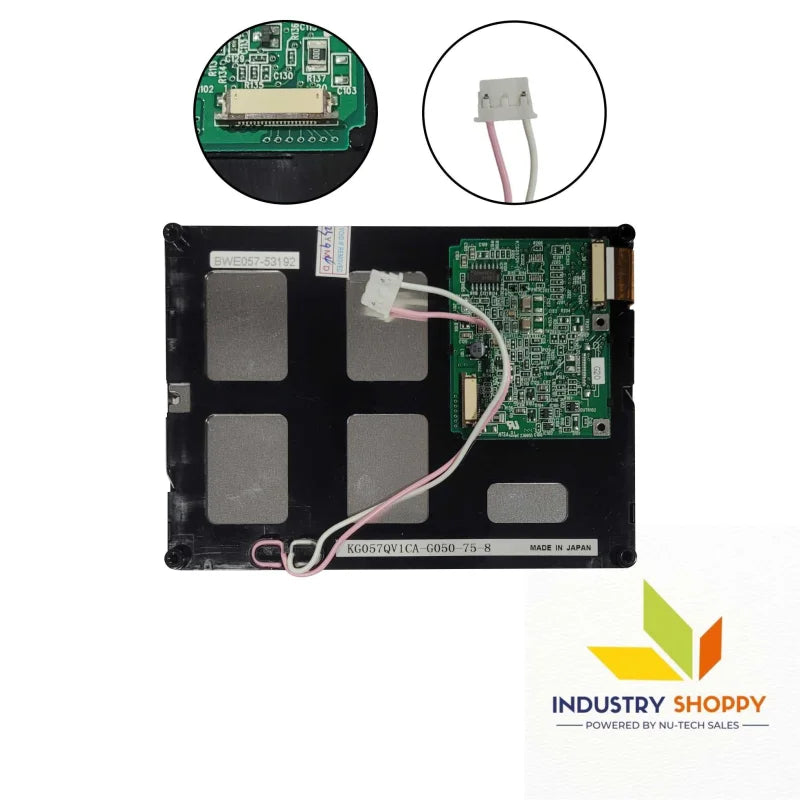

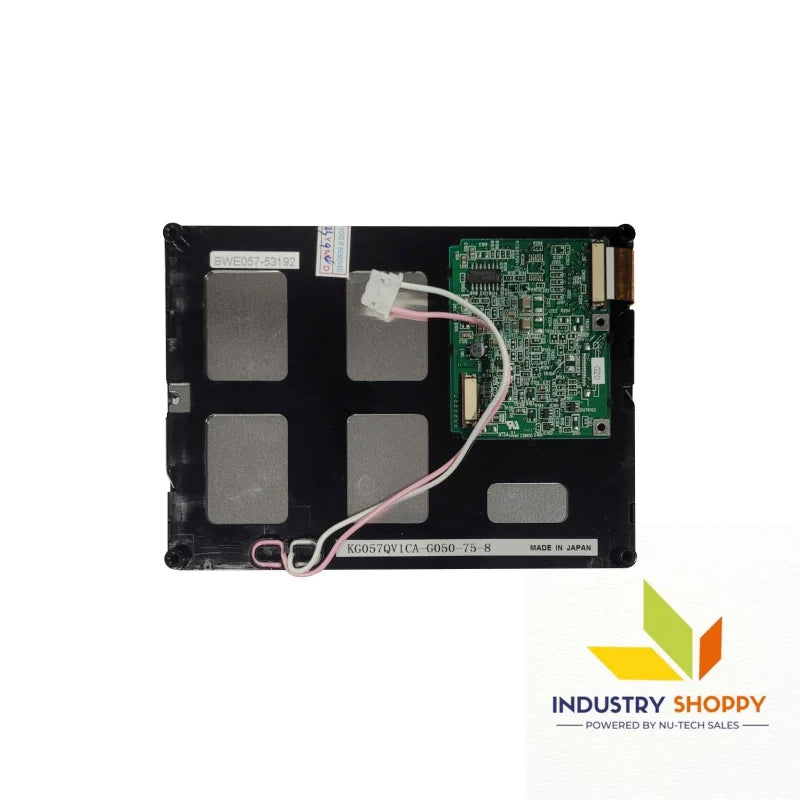

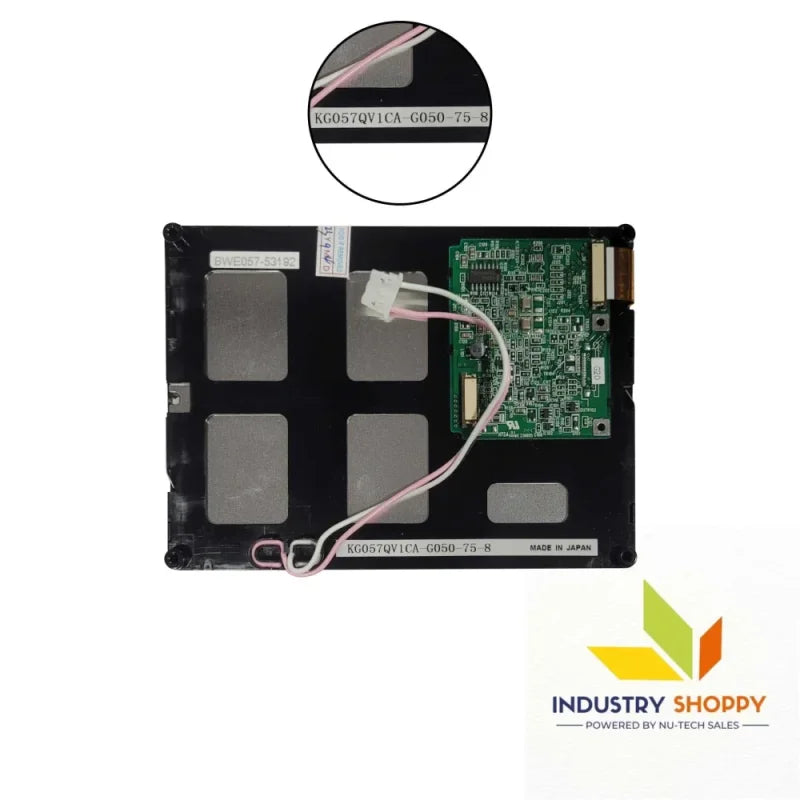

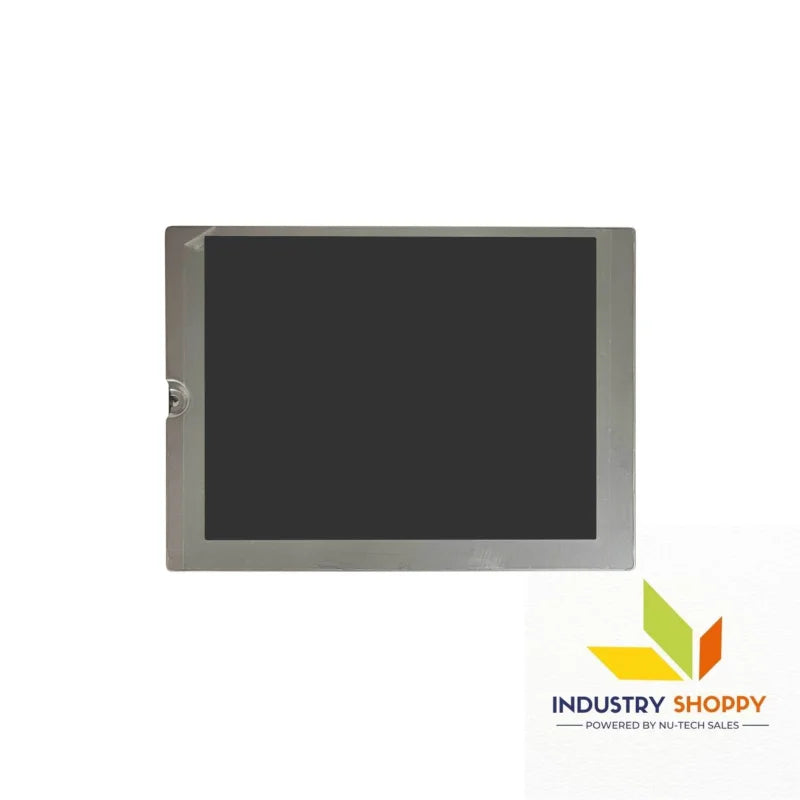

Kyocera KG057QV1CA-G050 LCD Module

Kyocera KG057QV1CA-G050 LCD Module

The Kyocera KG057QV1CA-G050 is a 5.7-inch a-Si TFT-LCD module designed for applications that require high-quality visual performance in a compact form factor. With a resolution of 640x480 (VGA) and a pixel density of 120 PPI, this display offers sharp, clear visuals and accurate color reproduction, making it ideal for industrial, medical, and commercial uses.

This module provides a brightness of 450 cd/m² and a contrast ratio of 500:1, ensuring optimal visibility even in bright environments. The wide viewing angles of 80°/80°/60°/80° (L/R/U/D) ensure consistent image clarity from various positions, making it versatile for a range of applications where multiple viewing angles are required.

With an LED backlight offering a long lifespan, the module is designed for energy efficiency and reliability, reducing the need for frequent maintenance. Its antiglare surface treatment minimizes reflections and improves readability in environments with ambient light, making it well-suited for industrial or medical environments.

Key Features:

• Brand: Kyocera
• Model: KG057QV1CA-G050
• Diagonal Size: 5.7 inches
• Resolution: 640×480 (VGA), 120 PPI
• Pixel Format: RGB Vertical Stripe for vibrant and accurate color reproduction
• Active Area: 115.2(W) × 86.4(H) mm
• Bezel Opening: 118.2(W) × 89.4(H) mm
• Outline Dimensions: 129.6(W) × 98.3(H) × 7.7(D) mm
• Surface Treatment: Antiglare for enhanced readability in bright environments
• Brightness: 450 cd/m² (Typical), ideal for bright settings
• Contrast Ratio: 500:1 (Typical), providing good differentiation between light and dark areas
• Viewing Angle: 80°/80°/60°/80° (L/R/U/D), offering consistent visual clarity from multiple angles
• Backlight Type: LED with long lifespan for energy efficiency and reliability
• Display Mode: TN, Normally White, Transmissive
• Response Time: 20 ms (Typical, Tr/Td) for smooth, responsive visuals
• Signal Interface: LVDS (1 channel, 6/8-bit), 20-pin FPC connector
• Input Voltage: 3.3V (Typical for VCC)
• Operating Temperature: -20°C to 70°C, designed for operation in a wide range of environmental conditions
• Storage Temperature: -30°C to 80°C, flexible storage conditions

Applications:

• Industrial Control Panels: Ideal for industrial systems that require compact, high-quality displays with vibrant color reproduction
• Medical Devices: Suitable for small medical equipment and diagnostic tools where clarity and readability are essential
• Point-of-Sale (POS) Displays: Reliable for retail applications that require clear, vibrant visuals and space-saving solutions
• Portable Devices: Well-suited for handheld devices that require high performance in a compact display

Technical Precautions:

• Handling: Handle with care to prevent damage to the surface or internal components
• ESD Protection: Use electrostatic discharge (ESD) precautions during installation to protect the module
• Temperature Limits: Ensure the module operates within the recommended temperature range (-20°C to 70°C) for optimal performance
• Installation Guidelines: Avoid excessive pressure on connectors during installation to maintain reliability
• Backlight Maintenance: Regularly inspect the backlight for continued performance

Note : All tax and custom duty should be pay by buyer only.

Note: All trademarks and trade names used are the property of their respective owners.
