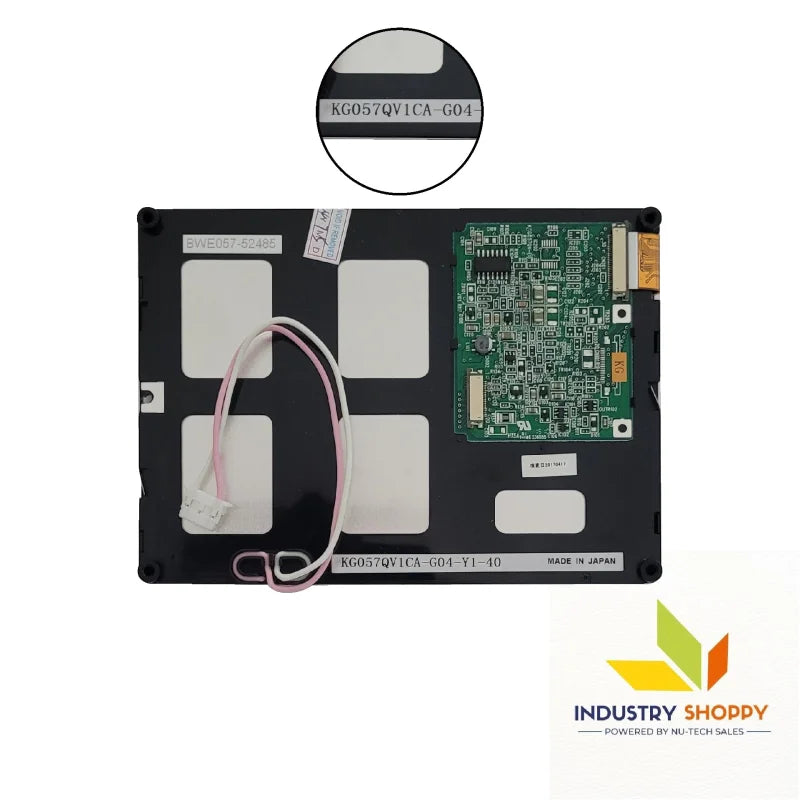

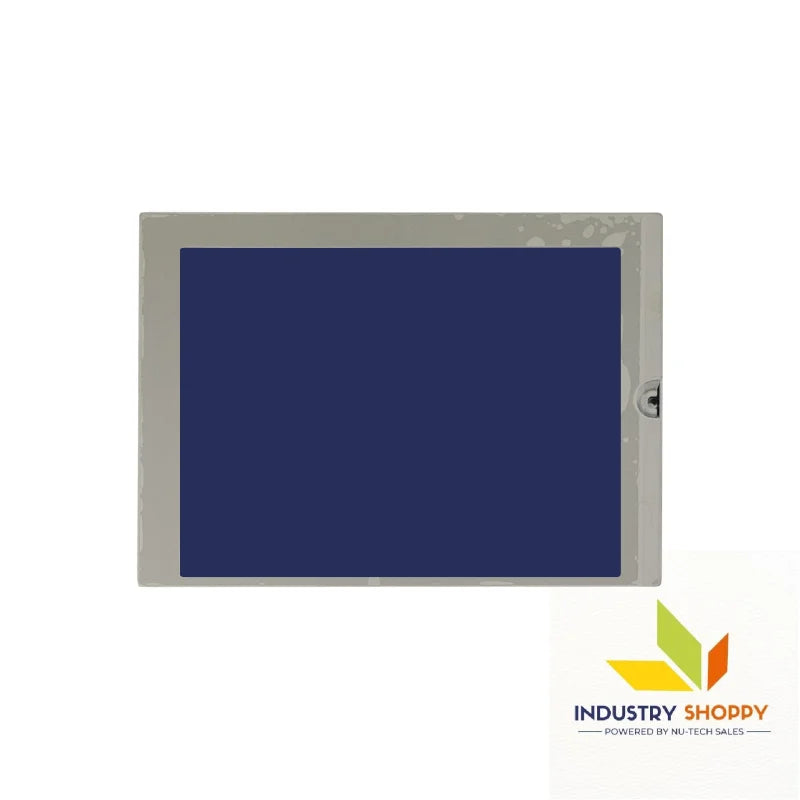

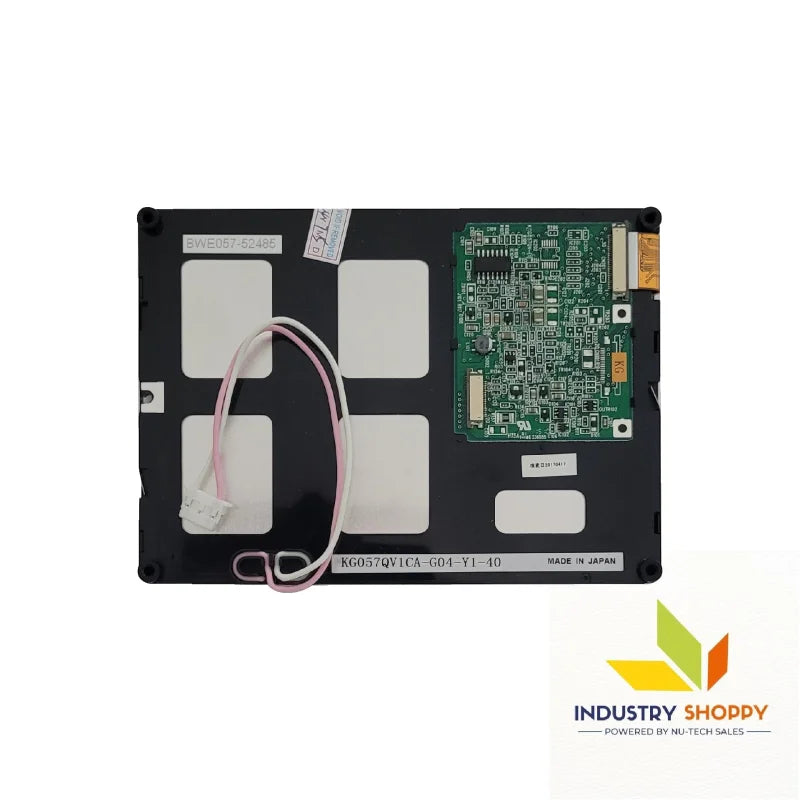

Kyocera KG057QV1CA-G04 LCD Module

Kyocera KG057QV1CA-G04 LCD Module

The Kyocera KG057QV1CA-G04 is a 5.7-inch a-Si TFT-LCD module designed for high-performance applications where compact size and excellent visual clarity are required. With a resolution of 640x480 (VGA) and a pixel density of 120 PPI, this display offers sharp, high-quality images with vibrant color reproduction, making it suitable for a wide range of industrial, medical, and commercial applications.

With a brightness of 500 cd/m² and a contrast ratio of 500:1, this module ensures clear visibility in both dim and bright environments, providing optimal performance in various lighting conditions. The wide viewing angles of 80°/80°/60°/80° (L/R/U/D) allow for consistent image clarity from different viewing positions, making it a versatile solution for applications that require multiple viewpoints.

Equipped with an LED backlight for energy efficiency and a long lifespan, this display offers durability for extended use. The antiglare surface treatment reduces reflections, improving readability and visibility in environments with ambient light, which is especially important for industrial, medical, and commercial environments.

Key Features:

• Brand: Kyocera
• Model: KG057QV1CA-G04
• Diagonal Size: 5.7 inches
• Resolution: 640×480 (VGA), 120 PPI
• Pixel Format: RGB Vertical Stripe for accurate and vibrant color reproduction
• Active Area: 115.2(W) × 86.4(H) mm
• Bezel Opening: 118.2(W) × 89.4(H) mm
• Outline Dimensions: 129.6(W) × 98.3(H) × 7.7(D) mm
• Surface Treatment: Antiglare for better readability in bright environments
• Brightness: 500 cd/m² (Typical), suitable for use in bright conditions
• Contrast Ratio: 500:1 (Typical), providing high-quality visuals with good differentiation
• Viewing Angle: 80°/80°/60°/80° (L/R/U/D), offering consistent visual clarity from multiple angles
• Backlight Type: LED with long lifespan for reliable, energy-efficient performance
• Display Mode: TN, Normally White, Transmissive
• Response Time: 20 ms (Typical, Tr/Td) for smooth visuals

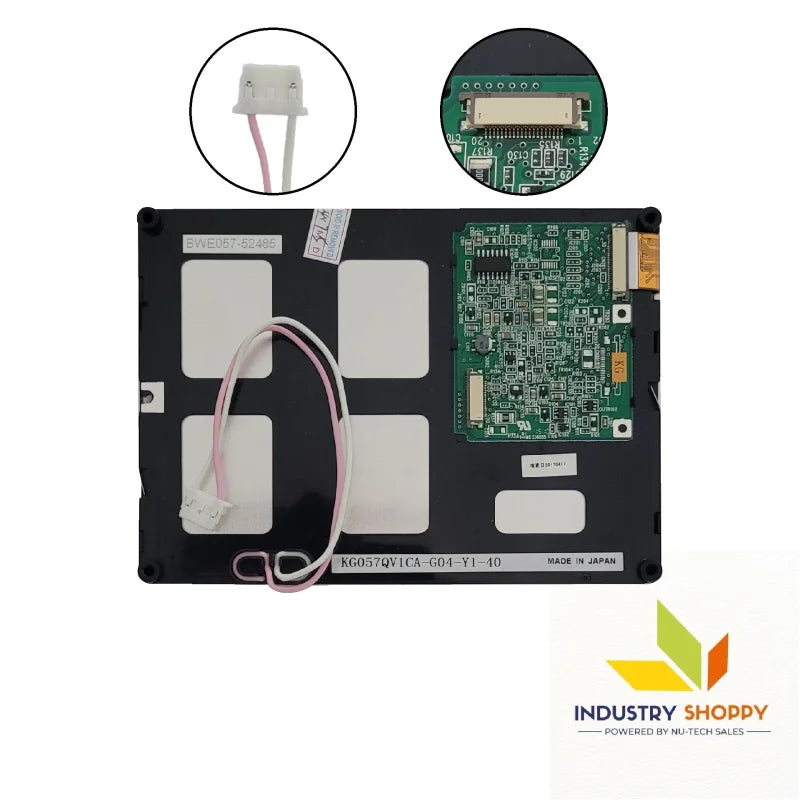

• Signal Interface: LVDS (1 channel, 6/8-bit), 20-pin FPC connector
• Input Voltage: 3.3V (Typical for VCC)
• Operating Temperature: -20°C to 70°C, designed to operate in a variety of environmental conditions
• Storage Temperature: -30°C to 80°C, providing flexibility for storage

Applications:

• Industrial Control Panels: Perfect for industrial systems that need compact, high-quality displays with vibrant color reproduction
• Medical Devices: Ideal for diagnostic tools and medical equipment where clear visuals are critical
• Point-of-Sale (POS) Displays: Suitable for retail applications requiring compact displays with high visibility
• Portable Devices: Ideal for handheld devices needing high-quality, compact displays

Technical Precautions:

• Handling: Handle carefully to avoid damaging the surface or internal components
• ESD Protection: Use electrostatic discharge (ESD) precautions during installation to protect the module
• Temperature Limits: Ensure the module operates within the recommended temperature range (-20°C to 70°C) for optimal performance
• Installation Guidelines: Avoid excessive pressure on connectors during installation to maintain reliability
• Backlight Maintenance: Regularly inspect the backlight to ensure continued performance
