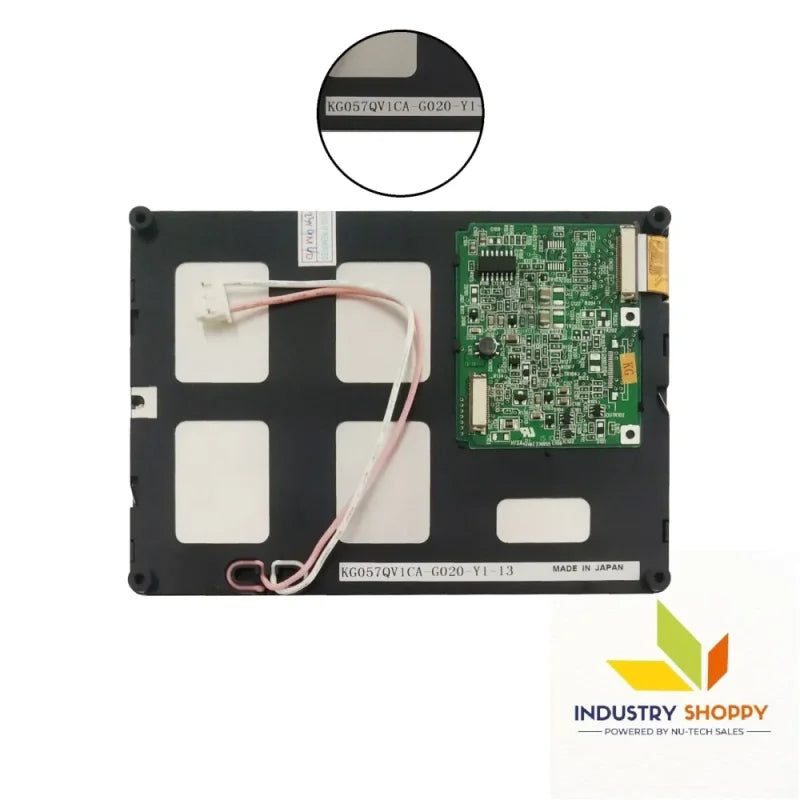

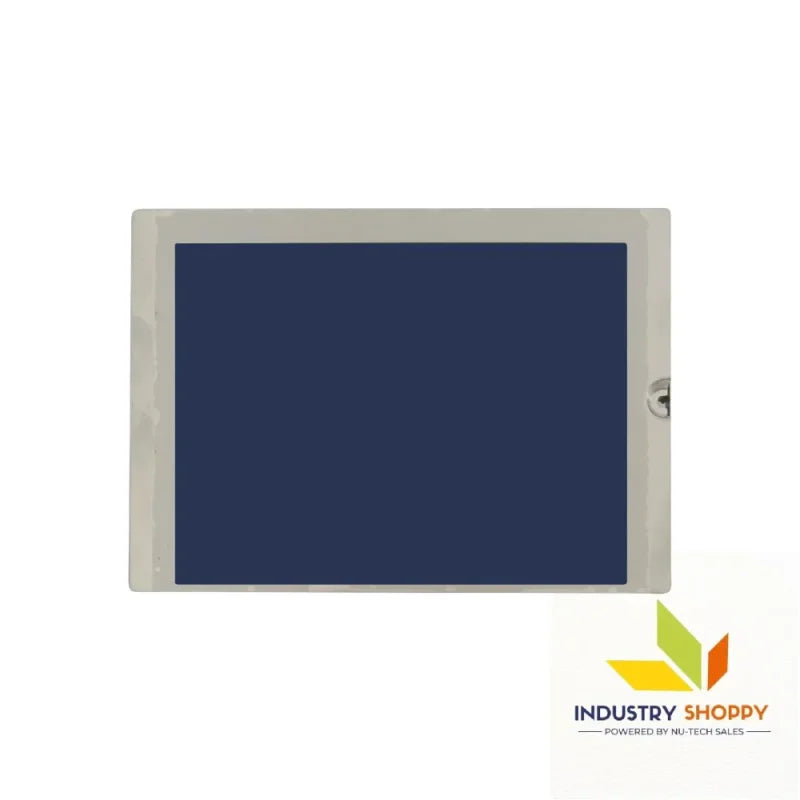

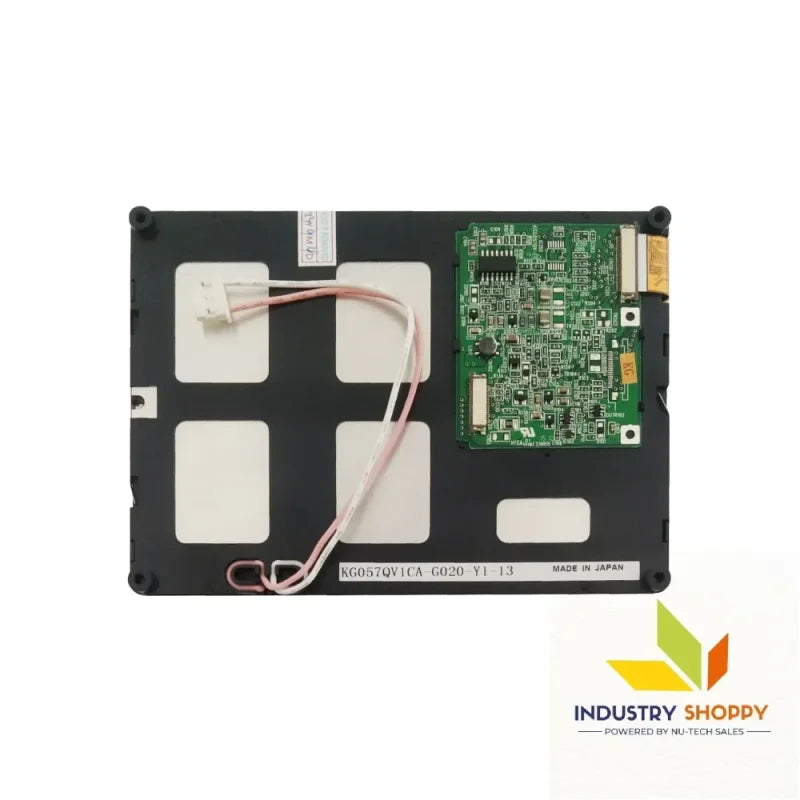

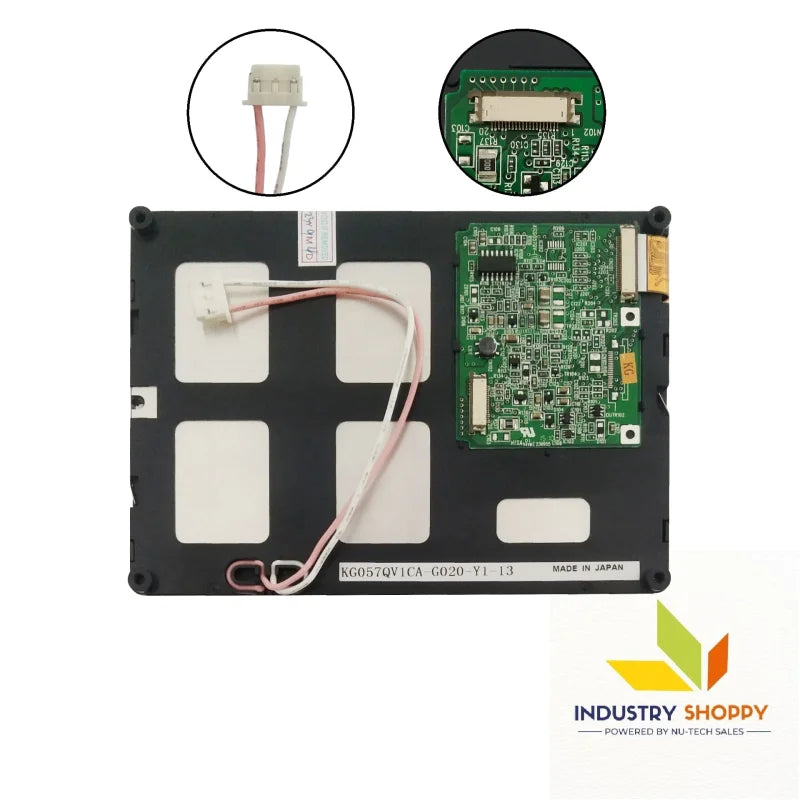

Kyocera KG057QV1CA-G020 LCD Module

Kyocera KG057QV1CA-G020 LCD Module

The Kyocera KG057QV1CA-G020 is a 5.7-inch a-Si TFT-LCD module designed for high-performance applications that require compact, high-quality visual displays. With a resolution of 640x480 (VGA) and a pixel density of 120 PPI, this module delivers sharp, clear images with accurate color reproduction, making it perfect for various industrial, medical, and commercial applications.

The module features a brightness of 500 cd/m² and a contrast ratio of 500:1, ensuring excellent visibility in diverse lighting conditions, including bright environments. With wide viewing angles of 80°/80°/60°/80° (L/R/U/D), it maintains consistent image clarity from different viewing positions, providing versatility for applications requiring multiple viewing angles.

Equipped with an LED backlight, this module offers long lifespan and energy efficiency, providing reliable performance over time. Additionally, the antiglare surface treatment reduces reflections and improves readability in environments with ambient light, making it ideal for industrial and medical settings where visibility is crucial.

Key Features:

• Brand: Kyocera
• Model: KG057QV1CA-G020
• Diagonal Size: 5.7 inches
• Resolution: 640×480 (VGA), 120 PPI
• Pixel Format: RGB Vertical Stripe for vibrant and accurate color reproduction
• Active Area: 115.2(W) × 86.4(H) mm
• Bezel Opening: 118.2(W) × 89.4(H) mm
• Outline Dimensions: 129.6(W) × 98.3(H) × 7.7(D) mm
• Surface Treatment: Antiglare for improved readability in bright environments
• Brightness: 500 cd/m² (Typical), ideal for use in bright settings
• Contrast Ratio: 500:1 (Typical), providing high-quality visuals with clear differentiation
• Viewing Angle: 80°/80°/60°/80° (L/R/U/D), offering consistent image clarity from various angles
• Backlight Type: LED with long lifespan for energy efficiency and reliable performance
• Display Mode: TN, Normally White, Transmissive
• Response Time: 20 ms (Typical, Tr/Td) for smooth, responsive visuals
• Signal Interface: LVDS (1 channel, 6/8-bit), 20-pin FPC connector
• Input Voltage: 3.3V (Typical for VCC)
• Operating Temperature: -20°C to 70°C, designed to operate in diverse environmental conditions
• Storage Temperature: -30°C to 80°C, suitable for flexible storage

Applications:

• Industrial Control Panels: Ideal for industrial systems requiring compact and clear displays with vibrant colors
• Medical Devices: Perfect for small medical equipment and diagnostic tools that need sharp, accurate visuals
• Point-of-Sale (POS) Displays: Great for retail applications that demand compact displays with high visibility and vibrant colors
• Portable Devices: Suitable for handheld devices requiring high-quality displays in a compact form factor

Technical Precautions:

• Handling: Handle carefully to avoid damaging the surface or internal components
• ESD Protection: Use electrostatic discharge (ESD) precautions during installation to protect the module
• Temperature Limits: Ensure the module operates within the recommended temperature range (-20°C to 70°C) for optimal performance
• Installation Guidelines: Avoid excessive pressure on connectors during installation to ensure long-term reliability
• Backlight Maintenance: Regularly inspect the backlight to ensure continued performance
