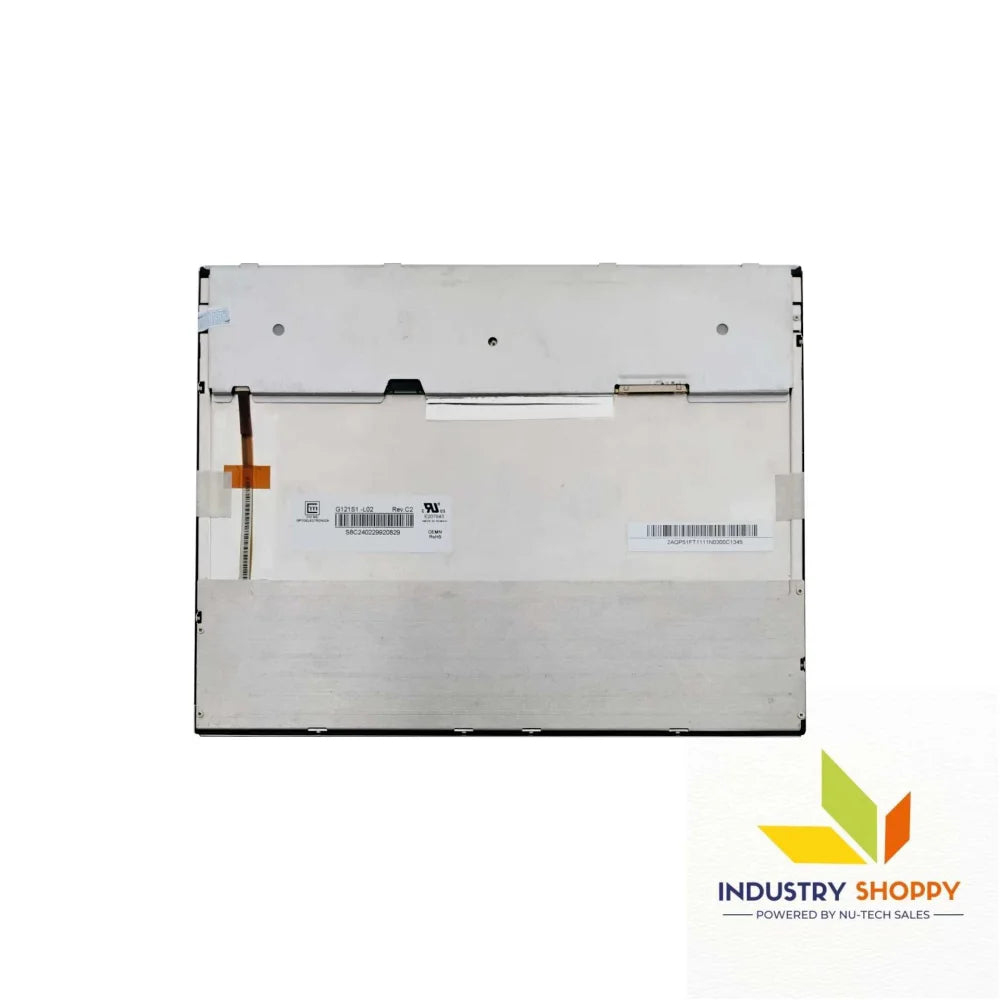

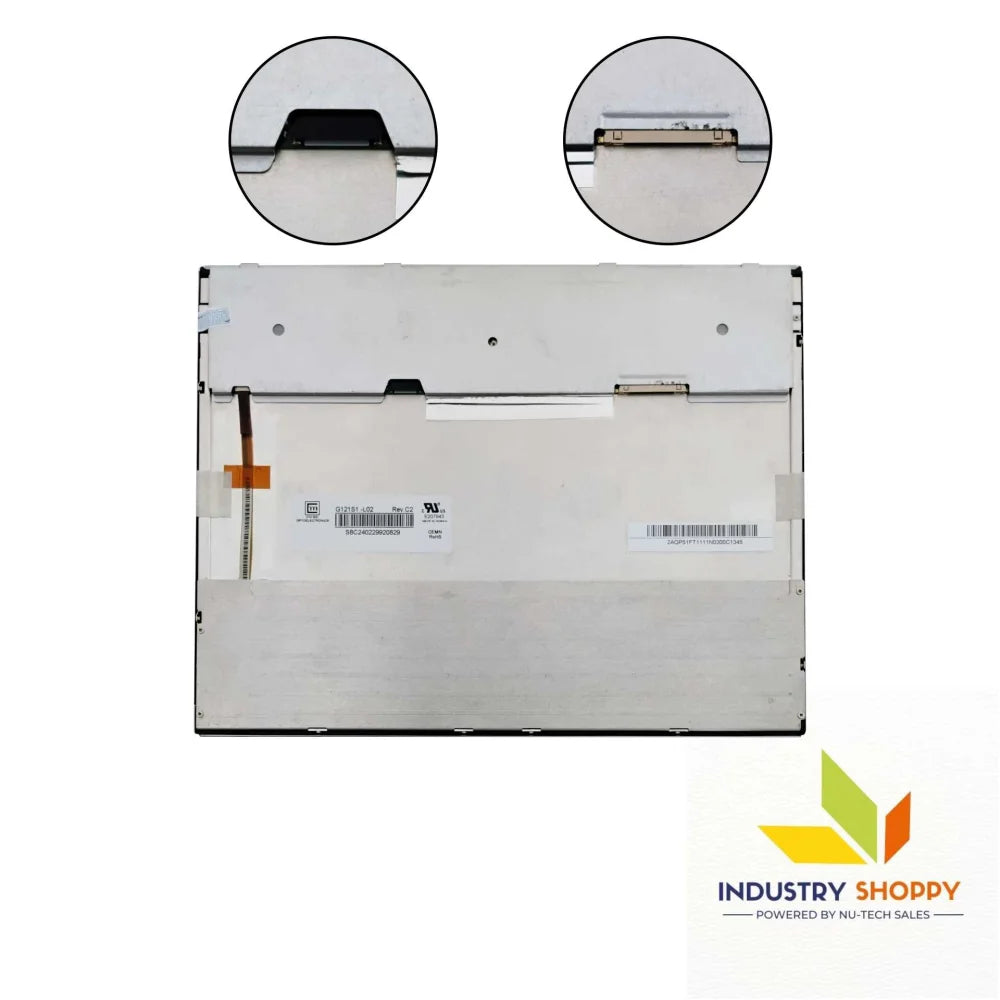

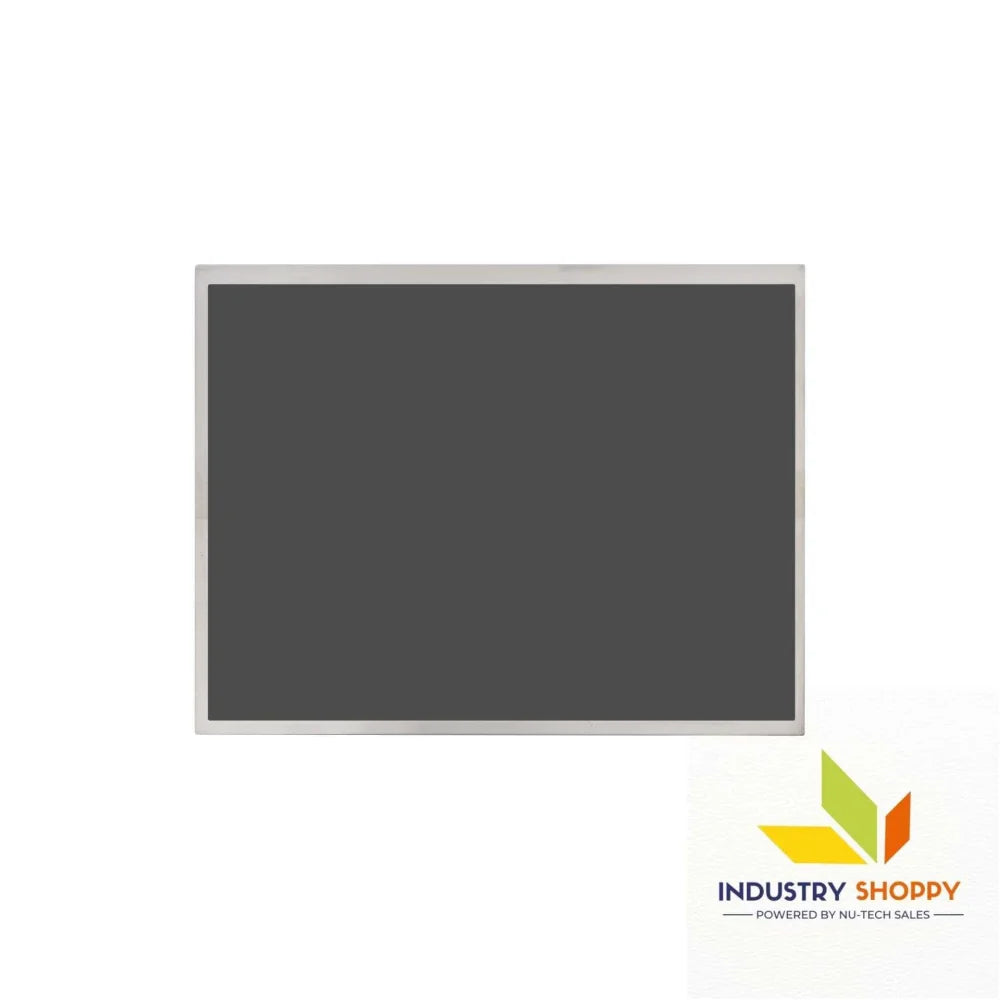

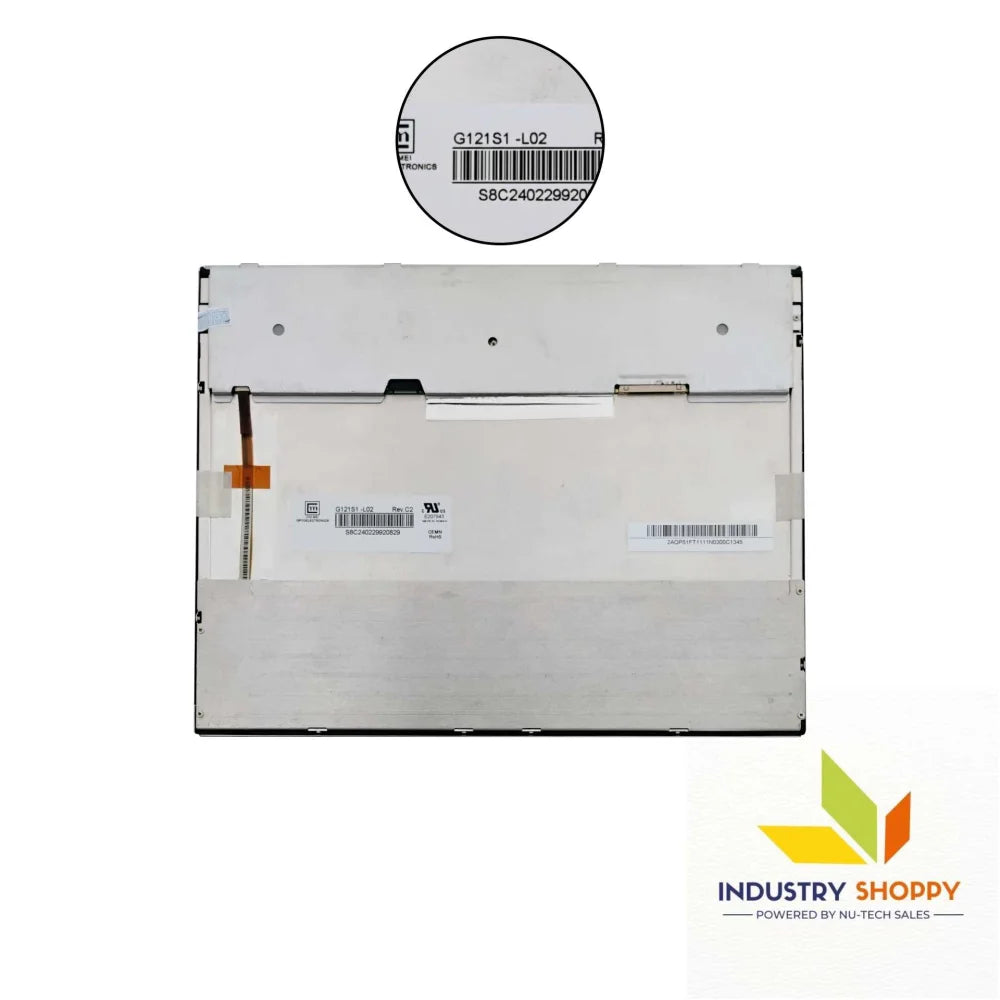

Innolux G121S1-L02 LCD Module

Innolux G121S1-L02 LCD Module

The Innolux G121S1-L02 LCD Module is a highly reliable 12.1-inch SVGA display designed to deliver crisp and bright visual performance in demanding environments. Featuring a resolution of 800(RGB)×600 with 82PPI, this display ensures sharp image rendering, even for detailed content.

With an impressive 600 cd/m² luminance and a solid 500:1 contrast ratio, it guarantees excellent visibility under various lighting conditions. The 89° wide viewing angles in all directions further enhance usability in both fixed and moving installations. Its response time of 13/12 ms (Tr/Td) ensures smooth image transitions for dynamic content.

The module incorporates WLED backlighting with a 50K-hour lifespan and an integrated LED driver, ensuring both long service life and easy installation. Its rugged build and broad operating temperature range of -30°C to 80°C make it a trusted solution for industrial control, transportation, and medical systems. For projects that demand a balance of brightness, durability, and broad viewing, the G121S1-L02 is an excellent fit.

Key features :-

• Brand: Innolux
• Diagonal Size: 12.1"
• Resolution: 800(RGB)×600, SVGA 82PPI
• Active Area: 246(W)×184.5(H) mm
• Outline Dimension: 260.5(W)×204(H)×8.9(D) mm
• Luminance: 600 cd/m² (Typ.)
• Contrast Ratio: 500:1 (Typ.) (TM)
• Viewing Angle: 89/89/89/89 (Typ.) (CR≥10)
• Response Time: 13/12 (Typ.) (Tr/Td)
• Panel Type: a-Si TFT-LCD, LCM
• Treatment: RGB Vertical Stripe
• Operating Mode: TN, Normally White, Transmissive
• Support Color: 262K/16.2M 50% NTSC
• Signal Interface Type: LVDS (1 ch, 6/8-bit), 20 pins Connector
• Frame Rate: 60Hz
• Power Supply: 3.3/5.0V (Typ.)
• Backlight: WLED, 50K hours, With LED Driver
• Weight: 520/550g (Typ./Max.)
• Operating Temp.: -30 ~ 80 °C
• Storage Temp.: -30 ~ 85 °C

Technical Precautions :-

• Handling Care: Handle carefully to protect the hard-coated surface from damage
• Connection Instructions: Always power off the display before connecting
• Temperature Limits: Maintain operating temperatures between -10°C to 50°C for optimal performance
• Mounting Guidelines: Use appropriate fittings for secure installation, especially in industrial settings
• Backlight Maintenance: Ensure regular inspections as the backlight has a lifespan of 20,000 hours
