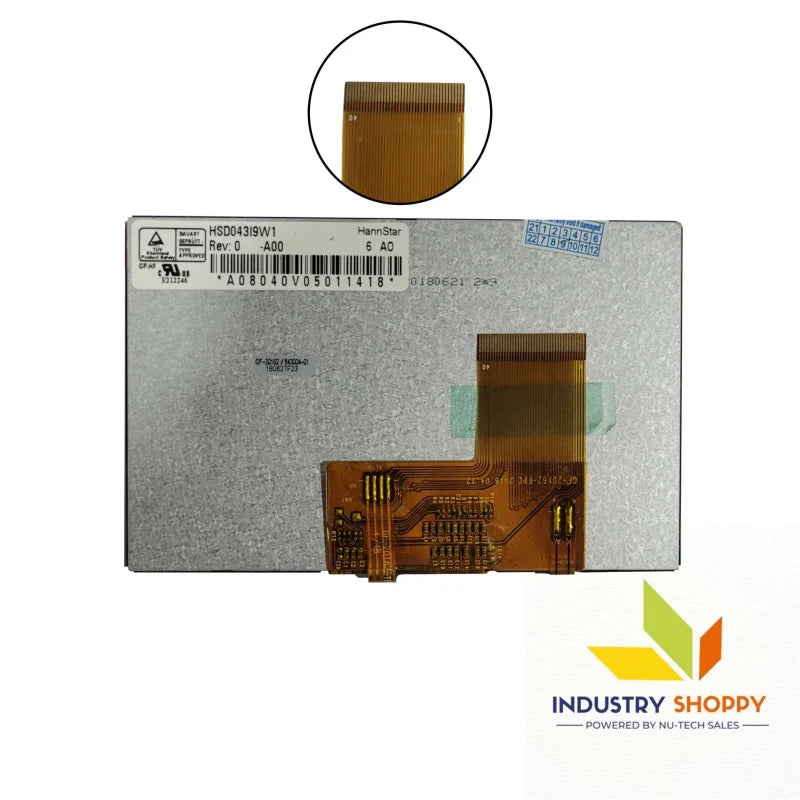

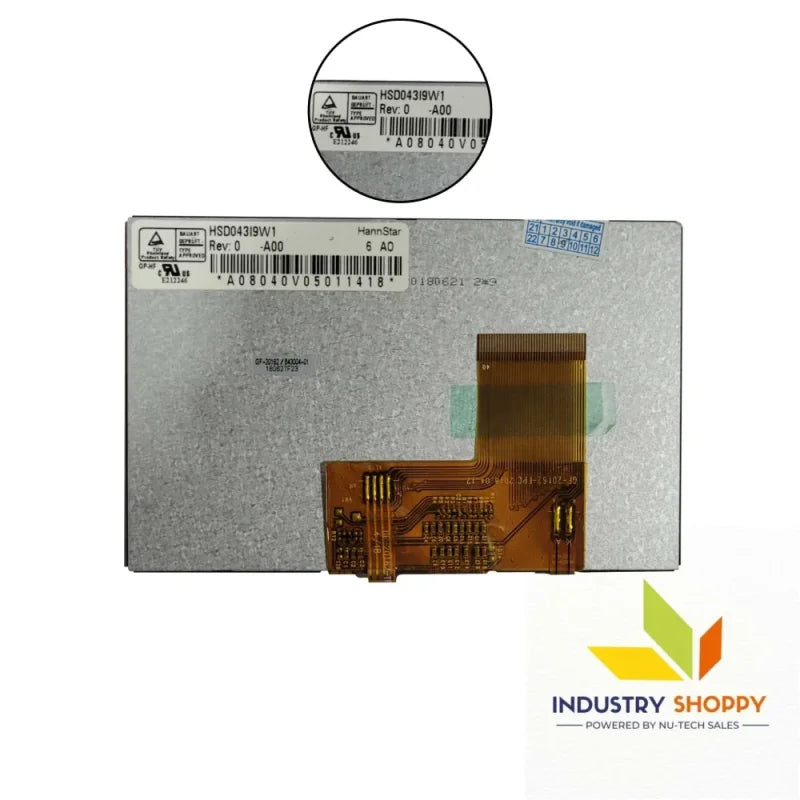

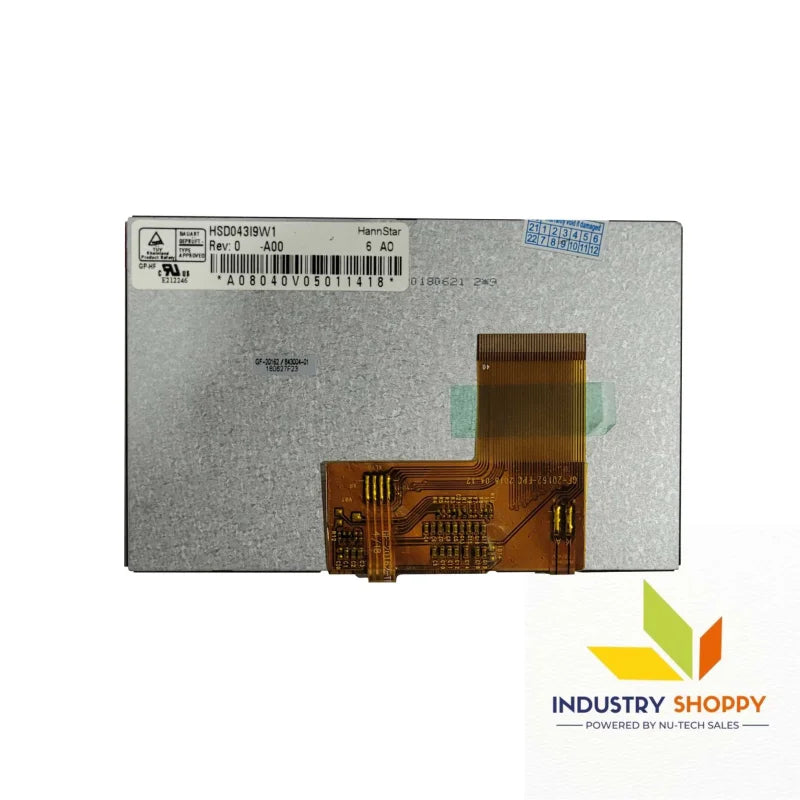

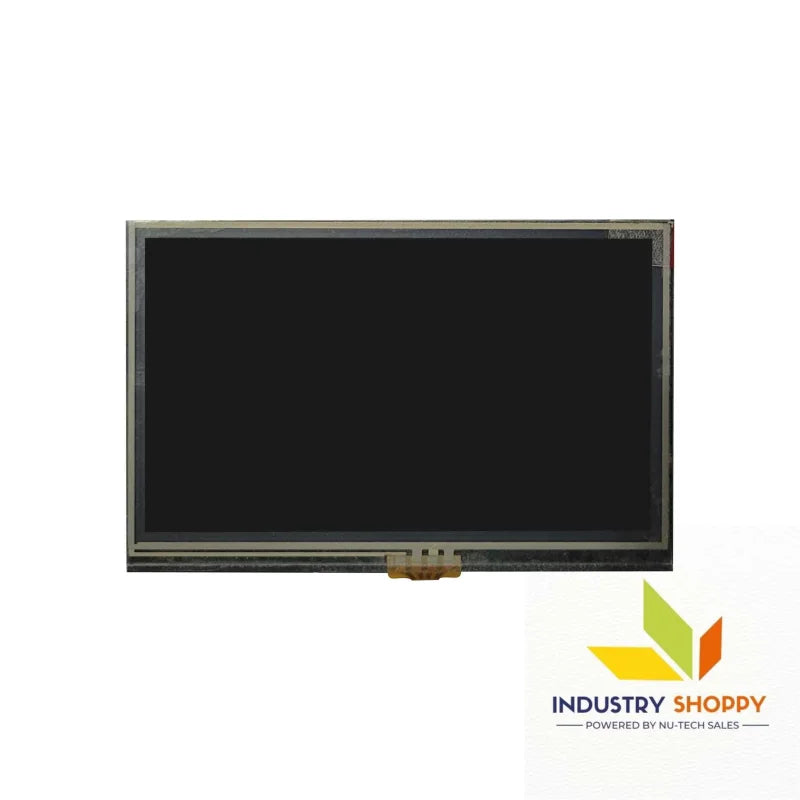

HannStar HSD043I9W1-A00 with Touch LCD Module

The HannStar HSD043I9W1-A00 is a 4.3-inch a-Si TFT-LCD module with an integrated touchscreen designed for applications where compact size and high-quality display performance are required. With a resolution of 480x272 (WQVGA) and a pixel density of 125 PPI, this module delivers sharp visuals with accurate color reproduction, making it suitable for a range of devices like industrial control panels, handheld devices, and point-of-sale (POS) systems.

This module features a brightness of 400 cd/m² and a contrast ratio of 500:1, ensuring high-quality display even in bright environments. The wide viewing angles of 70°/70°/60°/70° (L/R/U/D) allow for consistent image clarity from various viewing positions, making it a versatile option for applications requiring multi-angle viewing.

The HSD043I9W1-A00 also comes with an LED backlight, providing energy-efficient operation and a long lifespan. The integrated touchscreen enhances user interaction, while the antiglare surface treatment ensures good readability in environments with ambient light.

Key Features:

• Brand: HannStar
• Model: HSD043I9W1-A00
• Diagonal Size: 4.3 inches
• Resolution: 480×272 (WQVGA), 125 PPI
• Pixel Format: RGB Vertical Stripe for vibrant and accurate color reproduction
• Active Area: 95.04(W) × 53.86(H) mm
• Bezel Opening: 97.2(W) × 56.06(H) mm
• Outline Dimensions: 107.9(W) × 65.2(H) × 6.0(D) mm
• Surface Treatment: Antiglare to reduce reflections and enhance visibility
• Brightness: 400 cd/m² (Typical), ensuring visibility in various lighting conditions
• Contrast Ratio: 500:1 (Typical), providing clear and distinct image quality
• Viewing Angle: 70°/70°/60°/70° (L/R/U/D), offering clear visibility from multiple angles
• Backlight Type: LED for energy-efficient and long-lasting performance
• Display Mode: TN, Normally White, Transmissive
• Response Time: 25 ms (Typical, Tr/Td) for smooth visuals
• Signal Interface: RGB 6-bit, 40-pin FPC connector
• Input Voltage: 3.3V (Typical for VCC)
• Operating Temperature: -20°C to 70°C, suitable for use in various environments
• Storage Temperature: -30°C to 80°C, offering flexible storage options
• Touchscreen Type: Resistive touchscreen for easy user interaction

Applications:

• Handheld Devices: Ideal for use in portable devices requiring compact, interactive displays
• Industrial Control Panels: Suitable for industrial systems where space is limited but high-quality visuals and touch input are essential
• Point-of-Sale (POS) Displays: Perfect for retail systems that require a responsive touchscreen with vibrant color display
• Medical Devices: Ideal for small medical equipment where touchscreen functionality and visual clarity are critical

Technical Precautions:

• Handling: Handle carefully to prevent damage to the surface or internal components
• ESD Protection: Use electrostatic discharge (ESD) precautions during installation
• Temperature Limits: Ensure the module operates within the recommended temperature range (-20°C to 70°C) for optimal performance
• Installation Guidelines: Avoid excessive pressure on connectors and touchscreen during installation
• Backlight Maintenance: Regularly inspect the backlight to ensure long-term functionality
