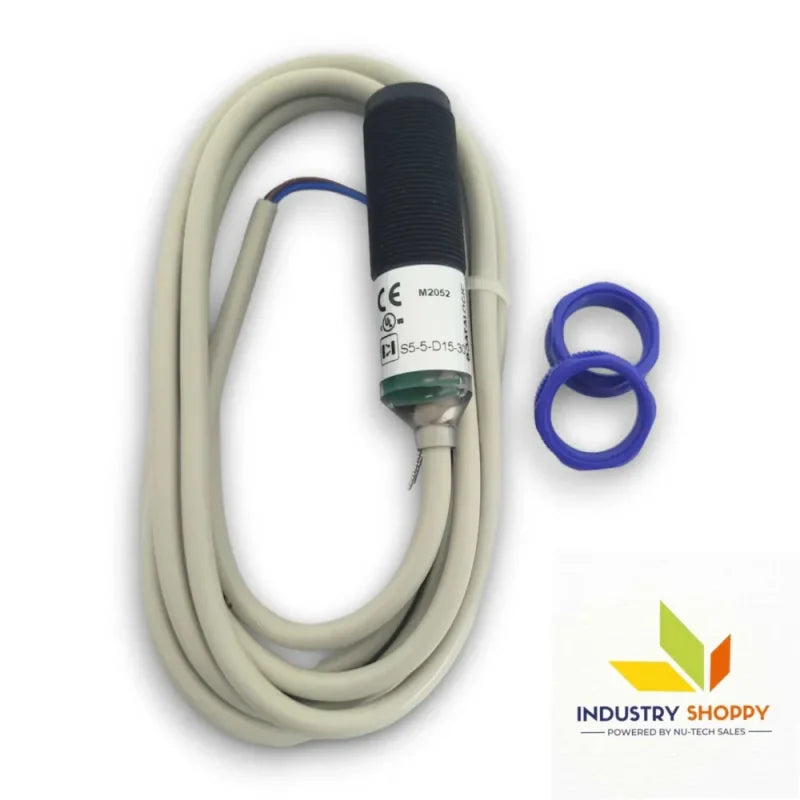

Datalogic S5-5-D15-30 Photoelectric Sensor
The Datalogic S5-5-D15-30 is a compact photoelectric sensor designed for reliable medium-distance object detection in industrial automation environments. Featuring diffuse reflection technology with a fixed focus beam, it offers a nominal sensing distance of 15 mm and operates without the need for sensitivity adjustment, simplifying setup and use. The sensor uses infrared LED emission and integrates Dark/Light selection along with NPN/PNP output options, making it highly adaptable across different systems.
With a quick response time and a power-on delay of less than 200 ms, it ensures real-time detection while maintaining system reliability. Built with durable ABS and PMMA materials, and housed in a tubular M18 axial optic design, the sensor is compact yet sturdy. It operates at 10–30 VDC, includes a green LED for power indication, and complies with EMC standards EN 60947-5-2. Ideal for applications where space is limited, the sensor offers dependable detection in temperatures ranging from -15°C to +55°C.
Key features :-
Product Number | S5-5-D15-30 |
Part Number | G5210430 |
Series | S5 |
Nominal sensing distance | 15mm |
Sensitivity adjustment | n/a |
Function Principle | Diffuse reflection (medium distance, ≤600mm) |
Description | Tubular M18 - axial optic |
Functions | Fix focus beam |
Output type | NPN/PNP - Dark/Light sel. |
Response time | 1 |
Operating Voltage | 10…30VDC |
LED indicators | Green (power: ON) |
Time delay before availability | ≤200ms |
Emission | LED Infrared |
Dimensions | Ø18x67 |
Connections | 2m cable |
Material | Plastic ABS / PMMA |
EMC compatibility | EN 60947-5-2 |
Dimensions | Ø18x67 |
Operating Temperature | - 15°C...+ 55°C (Without freeze) |
Applications :-
- Packaging Equipment: Ideal for fixed-position detection of products in packaging lines with consistent object spacing.
- Conveyor Automation: Detects presence of small to medium items as they pass fixed checkpoints on conveyors.
- Bottling Lines: Ensures detection of individual bottles or containers before filling or capping processes.
- Printing and Labeling Machines: Senses label position or product presence to trigger print or dispense operations.
- Assembly Automation: Confirms presence of components during the production process in compact assembly cells.
- Access Control Systems: Used for detecting objects or users approaching gates or turnstiles in controlled access areas.
Precautions:
- Ensure Correct Wiring: Incorrect connections can cause sensor failure
- Avoid Overvoltage: Operating within 10-30V DC prevents damage
- Protect from Extreme Heat: Avoid installing near high-temperature sources
- Regular Cleaning: Keep the optical lens free from dust and debris for optimal performance
Note : All tax and custom duty should be pay by buyer only.
Note: All trademarks and trade names used are the property of their respective owners.
Note : All tax and custom duty should be pay by buyer only.
Note: All trademarks and trade names used are the property of their respective owners.
Accuracy Disclaimer: Specifications provided are based on datasheet and are subject to change without notice. While every effort has been made to ensure accuracy, errors may occur. Users are encouraged to verify specifications with the manufacturer and consult for any specific questions or requirements.
