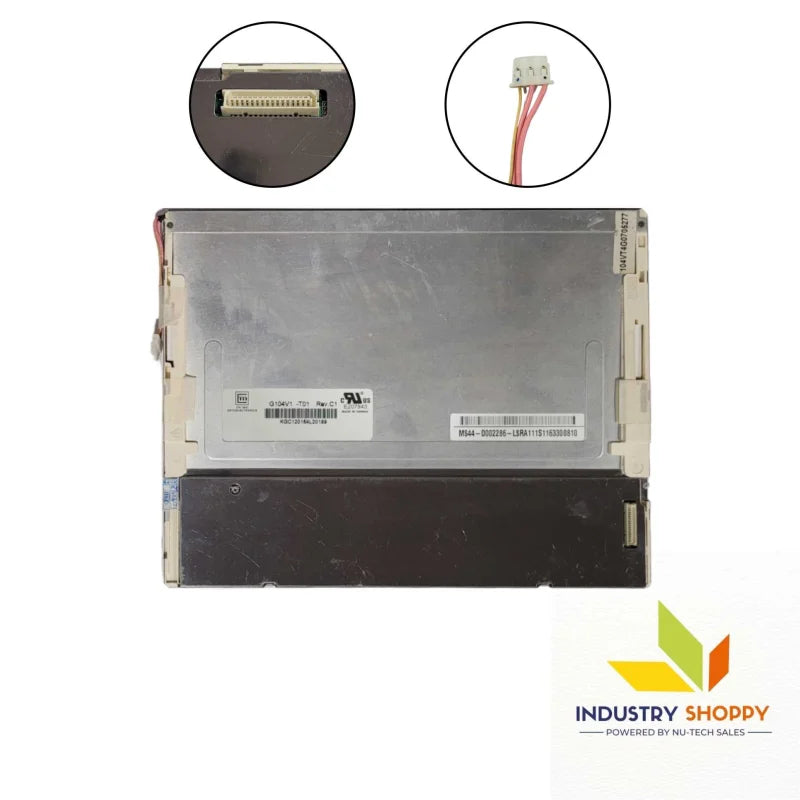

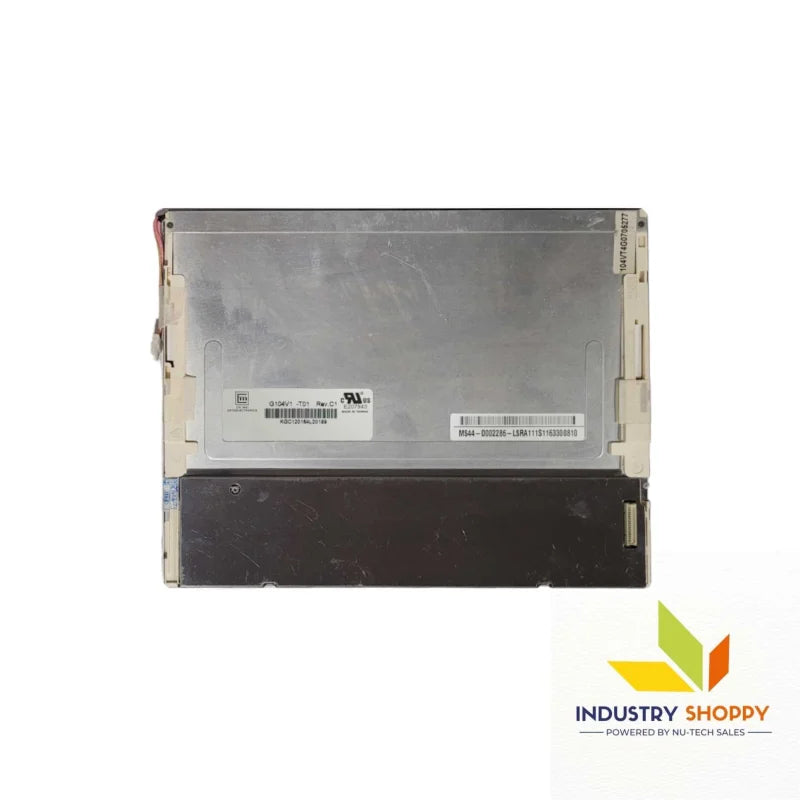

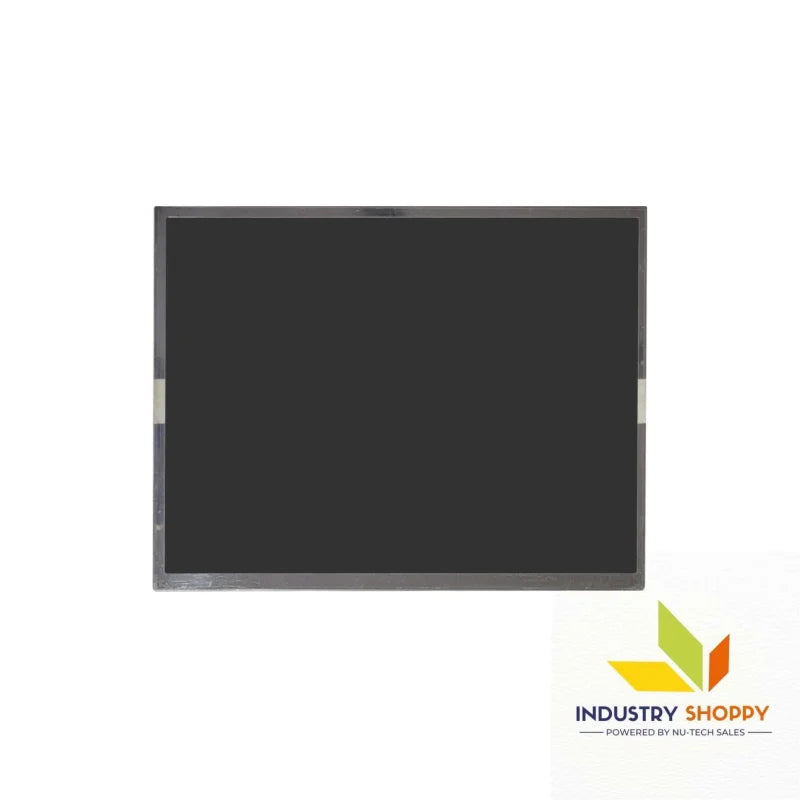

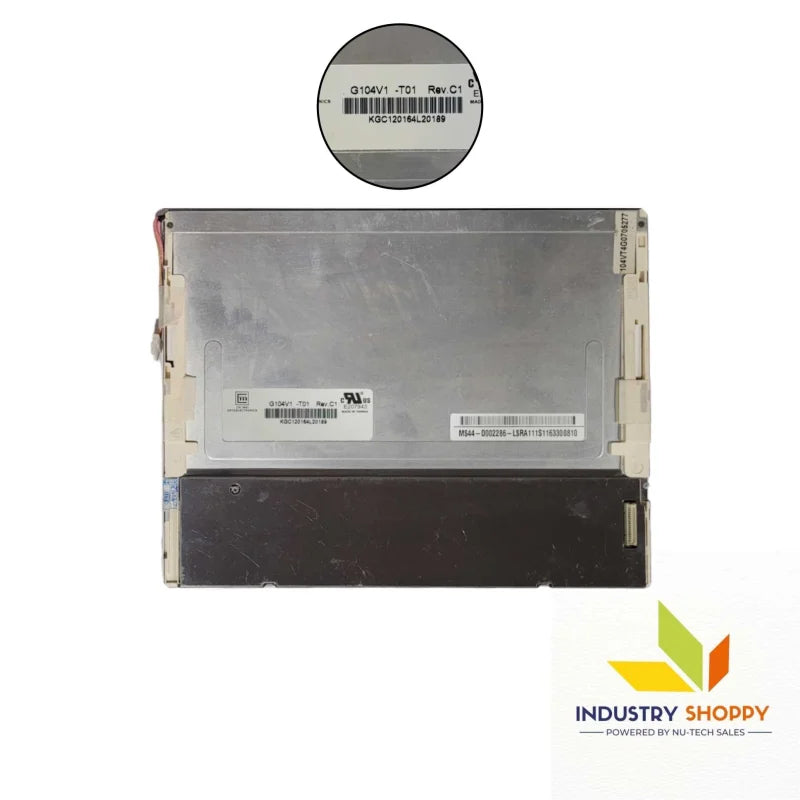

ChiMie G104V1-T01 LCD Module

ChiMie G104V1-T01 LCD Module

The ChiMie G104V1-T01 is a 10.4-inch TFT-LCD module designed to deliver clear and vibrant visual performance for various industrial and commercial applications. It offers a SVGA resolution (800×600) and features a wide viewing angle, ensuring consistent and bright display quality from multiple perspectives. The module’s antiglare surface and rugged design make it well-suited for environments that require durability and high visibility.

With its LED backlight and high contrast ratio, the ChiMie G104V1-T01 ensures that users experience clear, sharp visuals even in bright settings. It is an excellent choice for HMI (Human-Machine Interface) systems, industrial equipment, and embedded applications.

Key Features:

• Brand: ChiMie
• Model: G104V1-T01
• Diagonal Size: 10.4 inches
• Resolution: 800×600 (SVGA), 100 PPI
• Pixel Format: RGB Vertical Stripe for accurate color rendering
• Active Area: 211.2(W) × 158.4(H) mm
• Bezel Opening: 214.4(W) × 161.6(H) mm
• Outline Dimensions: 230.0(W) × 177.2(H) × 8.5(D) mm
• Surface Treatment: Antiglare for reduced reflections and better visibility in bright environments
• Brightness: 400 cd/m² (Typical), providing visibility in various lighting conditions
• Contrast Ratio: 500:1 (Typical), ensuring deep blacks and bright whites for enhanced image clarity
• Viewing Angle: 70°/70°/50°/60° (L/R/U/D), providing a good viewing range from multiple angles
• Display Mode: Normally White, Transmissive for clear and bright images
• Response Time: 15 ms (Typical), minimizing motion blur for smoother visuals
• Backlight Type: LED, offering long-lasting and energy-efficient performance
• Signal Interface: TTL (18-bit), 30-pin FPC connector
• Input Voltage: 3.3V (Typical)
• Operating Temperature: 0°C to 50°C, suitable for indoor industrial environments
• Storage Temperature: -20°C to 60°C, ensuring safe storage conditions

Applications:

• Industrial Equipment: Ideal for HMI systems, control panels, and automation equipment
• Embedded Systems: Suitable for use in embedded applications requiring a compact and reliable display
• Medical Devices: Can be used in medical equipment for displaying diagnostic data and controls
• Consumer Electronics: Perfect for applications requiring clear, bright displays in a compact form factor

Technical Precautions:

• Handling: Handle the module carefully, especially to protect the screen and internal components from damage
• ESD Protection: Always follow electrostatic discharge precautions during installation to avoid damaging the display
• Temperature Limits: Ensure operation within the recommended temperature range (0°C to 50°C) for optimal performance
• Connection Instructions: Power off the display before making any connections or disconnections
• Mounting Recommendations: Use approved mounting fixtures to securely install the module in its intended environment
