Baumer UR18.DA0.2-11200642 Ultrasonic Sensor

Baumer UR18.DA0.2-11200642 Ultrasonic Sensor - UR18.DA0.2-IA1B.9SF

The Baumer UR18.DA0.2-11200642 Ultrasonic Sensor is a reliable and precise distance measuring device ideal for industrial applications. With a scanning range of 70 to 1000 mm, it ensures accurate and efficient measurement for a variety of uses. Featuring high repeat accuracy (<0.5 mm) and resolution (<0.3 mm), this sensor is perfect for tasks requiring exceptional precision. Its fast response time (<40 ms) enhances operational efficiency, while its temperature drift compensation and power-up drift adjustment guarantee consistent performance.

Built with a durable stainless steel (V2A) housing and PEEK active face, it is designed to withstand tough industrial conditions. The sensor supports qTeach and line-Teach adjustments, making setup straightforward. LED indicators provide alignment and power-on assistance, ensuring seamless integration. Its current output signal (4-20 mA or 20-4 mA) supports flexible system compatibility.

Electrical safeguards, such as short circuit and reverse polarity protection, enhance reliability and safety. Compact and robust, the sensor is equipped with an M12 5-pin connector for secure and easy installation.

Key Features:

• Scanning Range: 70 to 1000 mm for versatile applications.
• Accuracy: Repeat accuracy < 0.5 mm and resolution < 0.3 mm for precise measurements.
• Fast Response: Response time < 40 ms; release time < 40 ms.
• Temperature Drift: Less than 2% of distance to the target, compensated after 15 minutes.
• Sonic Frequency: Operates at 200 kHz for reliable performance.
• Adjustment Options: Supports qTeach and line-Teach for ease of configuration.
• Indicators: LED yellow for alignment aid and LED green for power status.
• Voltage Supply: Operates on 12-30 VDC with typical current consumption of 35 mA.
• Output Signal: 4-20 mA or 20-4 mA for flexible integration.
• Electrical Protections: Built-in short circuit and reverse polarity protection.

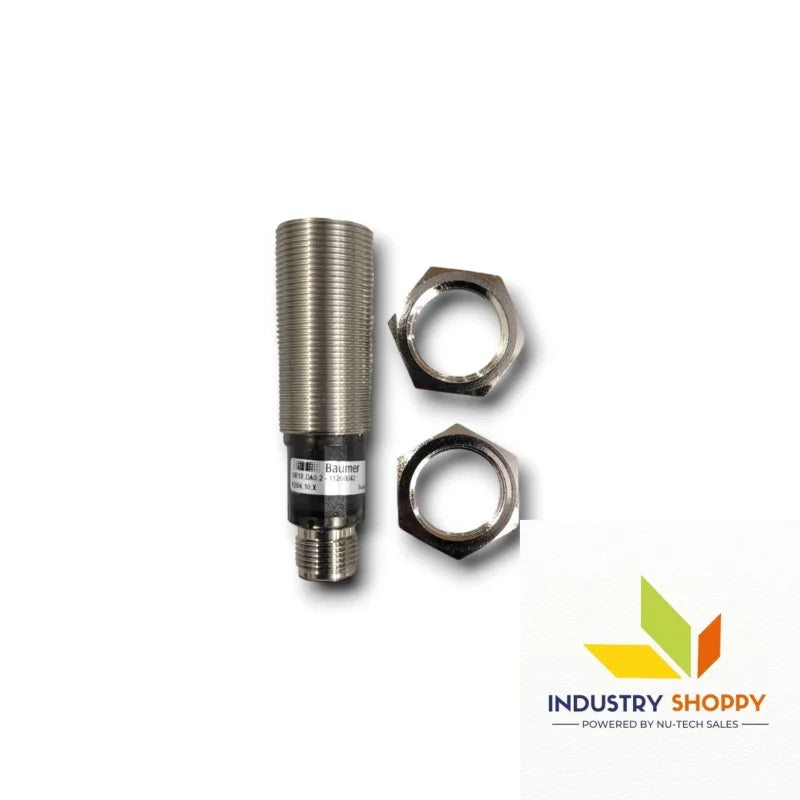

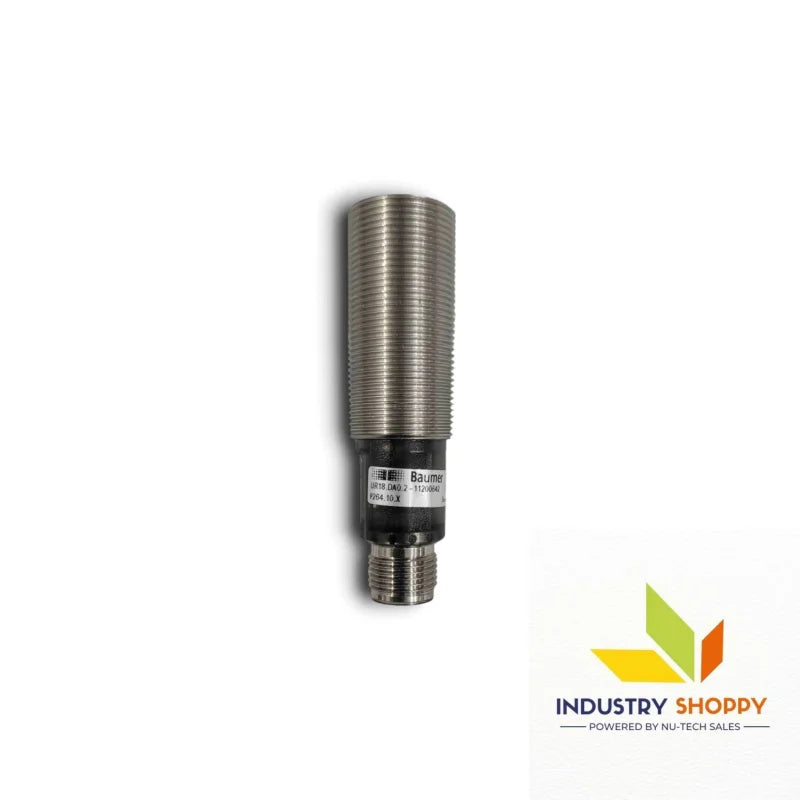

• Durable Build: Cylindrical stainless steel (V2A) housing with PEEK active face.
• Compact Design: 18 mm diameter, 64 mm length for easy installation.

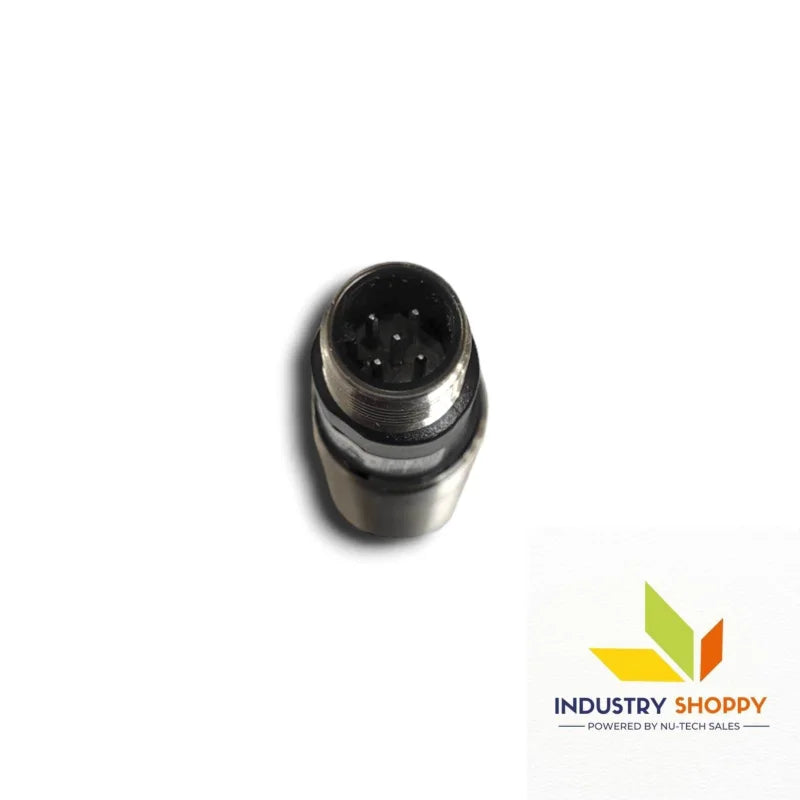

• Connector: M12 5-pin for secure connections.

Application:

The Baumer UR18.DA0.2-11200642 Ultrasonic Sensor is ideal for diverse applications, including industrial automation for precise distance measurement and object detection, level monitoring in tanks and silos, material handling on conveyor systems, and robotics for collision avoidance. It supports packaging lines with accurate object counting, agriculture for seed and crop detection, automotive parking assistance, and healthcare for non-contact measurements. Additionally, it is used in warehouse inventory management and renewable energy systems for optimal component positioning, offering reliable performance in harsh and complex environments.

Technical Precautions:

1. Voltage Supply: Operate the sensor only within the 12-30 VDC range to prevent malfunction.
2. Environmental Conditions: Ensure the operating temperature remains between -10°C and +50°C to maintain accuracy.
3. Alignment: Install with an alignment axis deviation of less than 2° to avoid measurement errors.
4. Sonic Frequency Interference: Avoid using near equipment operating at similar sonic frequencies (200 kHz) to prevent signal interference.
5. Installation Surface: Ensure the active face (PEEK material) is free from dirt or obstructions to maintain reliable detection.
6. Connection: Use the M12 5-pin connector securely to avoid disconnection or signal loss.
7. Response Time: Allow for a response/release time of < 40 ms in dynamic applications for accurate readings.
8. Start-Up Drift: Allow a 15-minute stabilization period after power-up for optimal performance.
