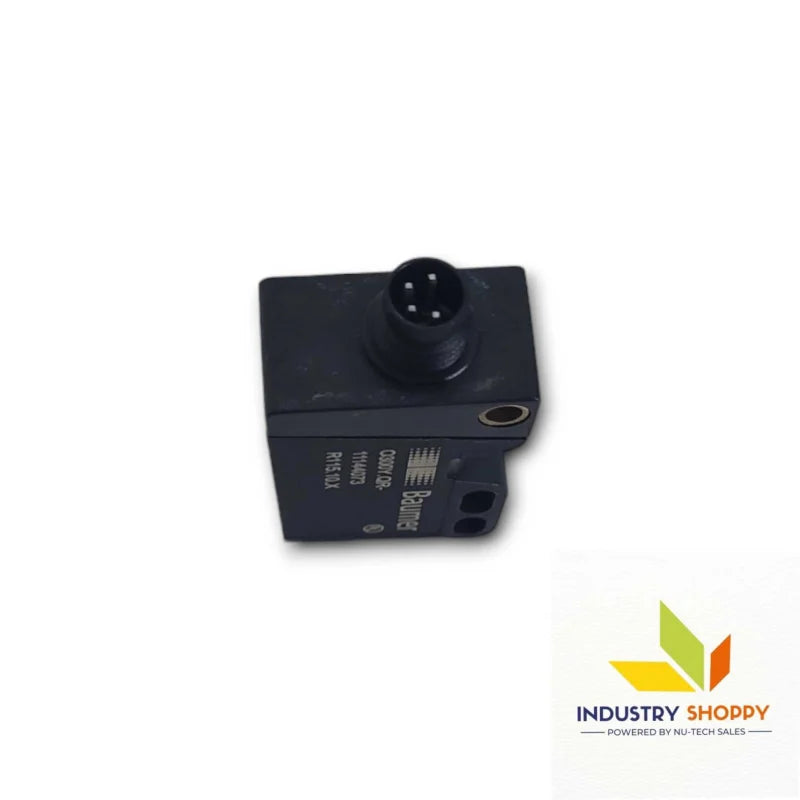

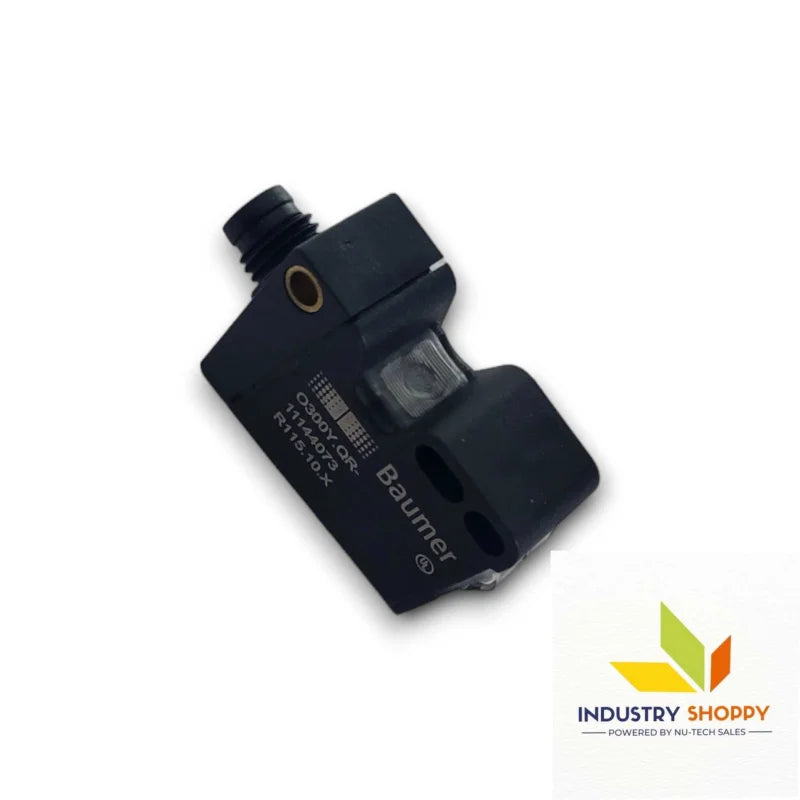

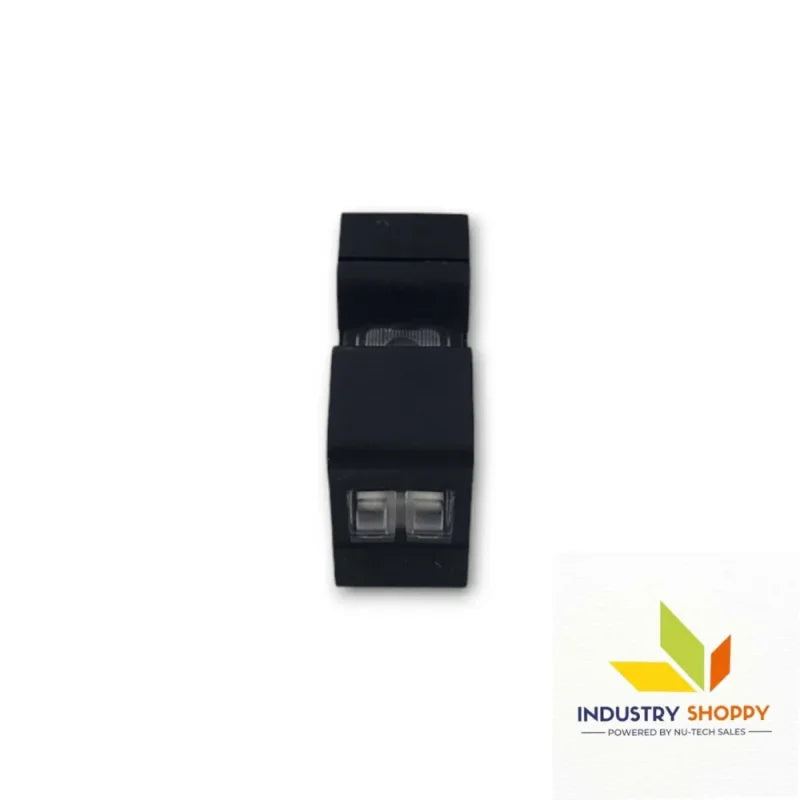

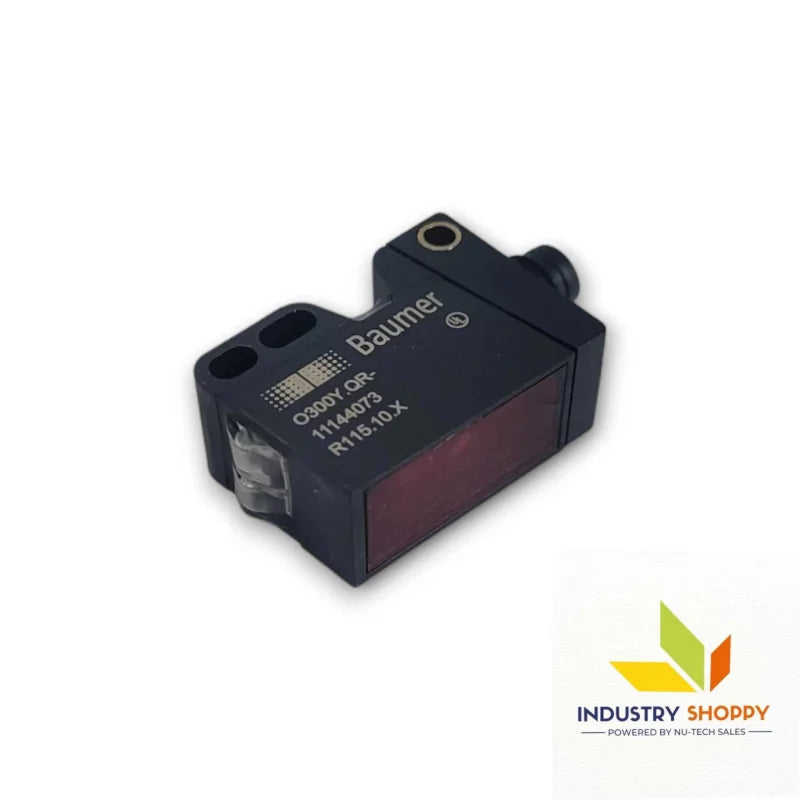

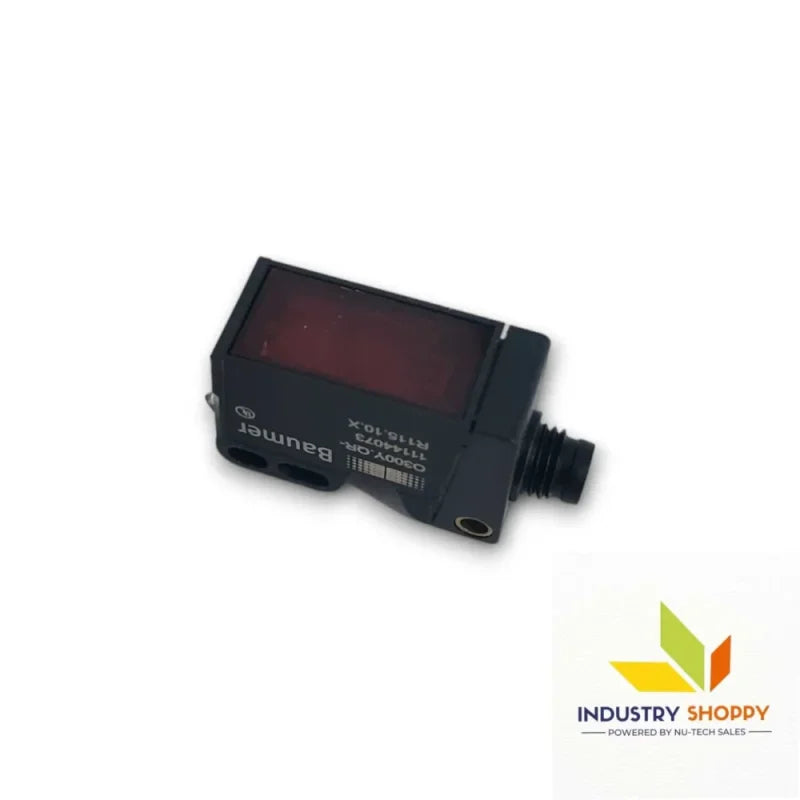

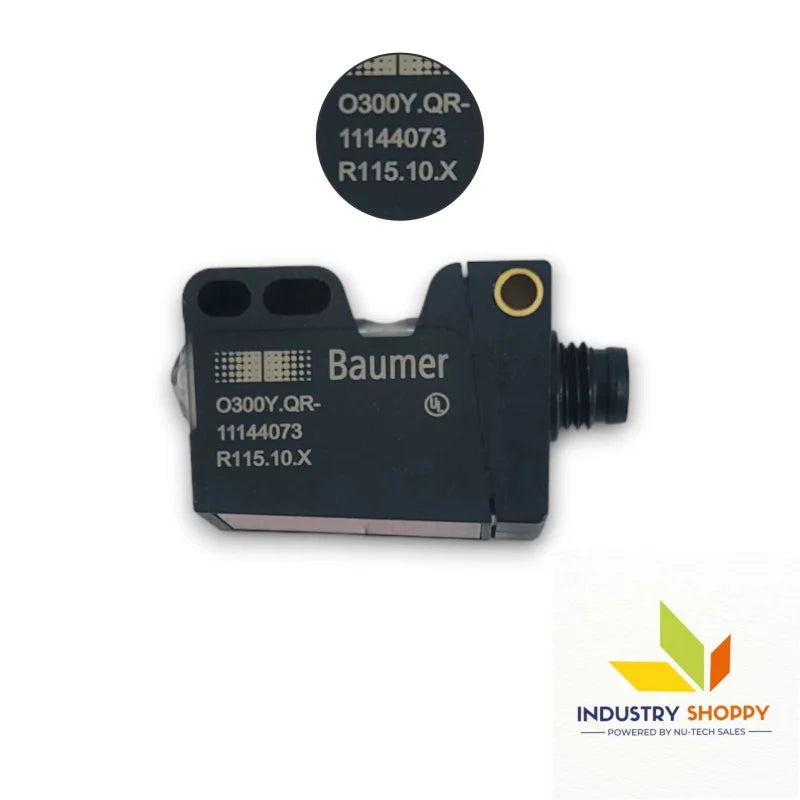

Baumer O300Y.QR-11144073 Photoelectric Sensor

Baumer O300Y.QR-11144073 Photoelectric Sensor

The Baumer O300Y.QR-11144073 Photoelectric Sensor is a high-precision diffuse sensor with background suppression, ideal for industrial applications requiring accurate object detection. Equipped with a pulsed red LED light source, this sensor features a versatile sensing distance range from 30 mm to 300 mm, making it suitable for various detection tasks.

Key Features:

• Part Number: 11144073
• Model Number: O300Y.QR-PV1Z.72N
• Type: Diffuse sensor with background suppression
• Sensing Distance (Tw): 30 mm to 300 mm
• Power On Indication: LED green
• Light Indicator: LED yellow
• Sensing Distance Adjustment: qTeach
• Suppression of Reciprocal Influence: Yes
• Alignment Optical Axis: < 2°
• Light Source: Pulsed red LED
• Wave Length: 630 nm

Electrical Data:

• Response Time / Release Time: < 1 ms
• Voltage Supply Range (+Vs): 10 to 30 VDC
• Current Consumption Max. (No Load): 45 mA
• Current Consumption Typ.: 30 mA
• Voltage Drop (Vd): < 3 VDC
• Output Function: Light / dark operate
• Output Circuit: PNP complementary
• Output Current: 100 mA
• Short Circuit Protection: Yes
• Reverse Polarity Protection: Yes

Mechanical Data:

• Width / Diameter: 12.9 mm
• Height / Length: 32.3 mm
• Depth: 23 mm
• Design: Rectangular
• Housing Material: Plastic (ASA, PMMA)
• Front (Optics): PMMA
• Connection Types: Connector M8 4 pin

Ambient Conditions:

• Protection Class: IP 67
• Operating Temperature: -25°C to +60°C

Application:

The Baumer O300Y.QR-11144073 is suitable for a wide range of industries, including manufacturing, packaging, automotive, pharmaceutical, food and beverage, logistics, and textiles. It enhances automation processes by providing accurate and reliable object detection.

Technical Precautions:

• Ensure proper installation and secure connection to avoid any operational issues.
• Always handle the sensor carefully to prevent damage to the cable and sensor body.
• Regularly check the sensor for any signs of wear and tear, especially in demanding environments.
• Maintain the sensor within the specified operating temperature range for optimal performance.
• Ensure the sensor's IP67 rating is maintained by keeping it clean and free from contaminants.
