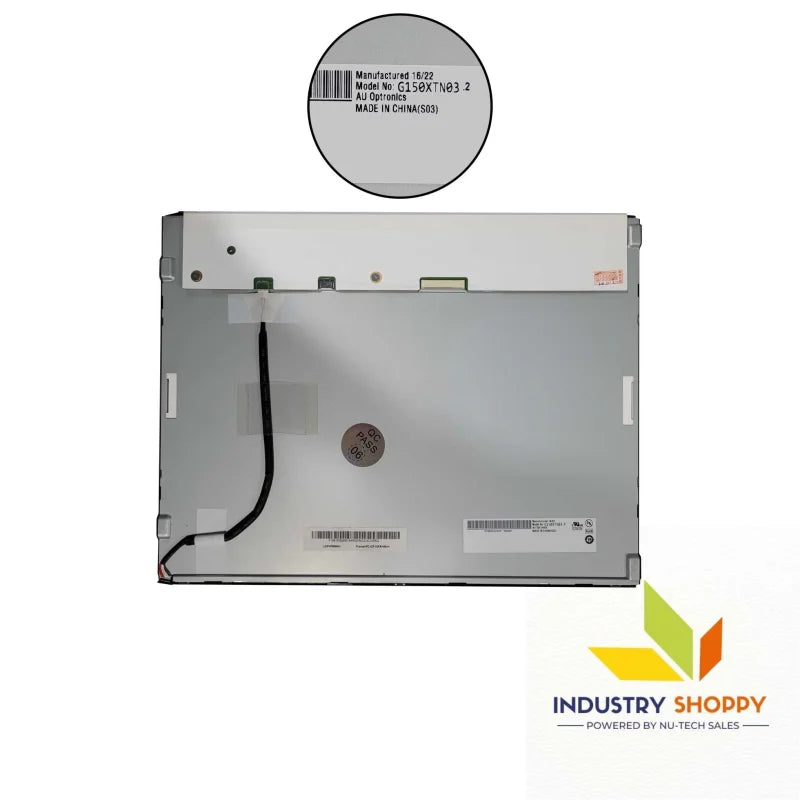

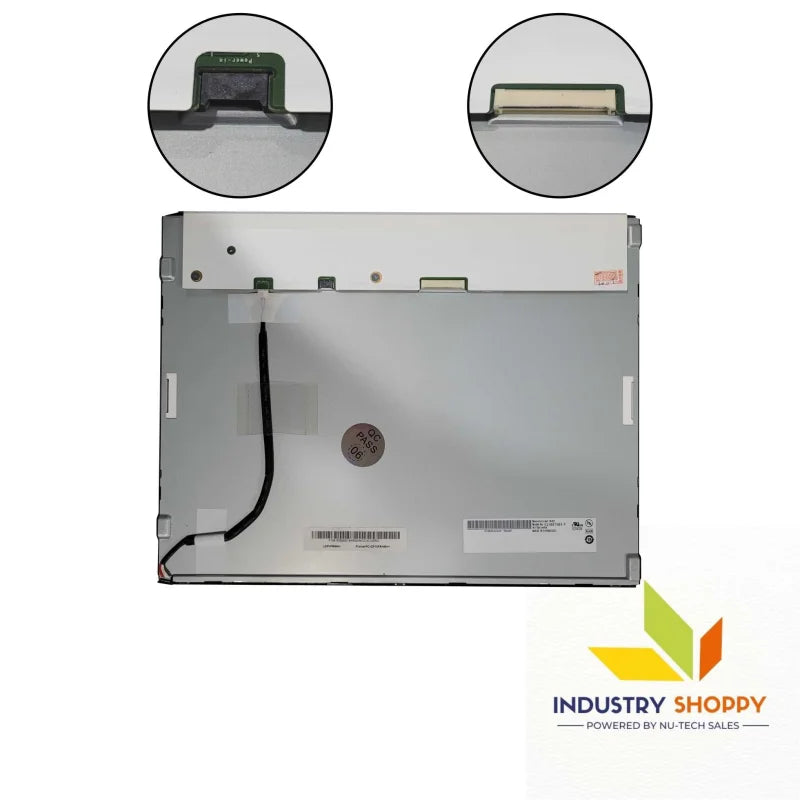

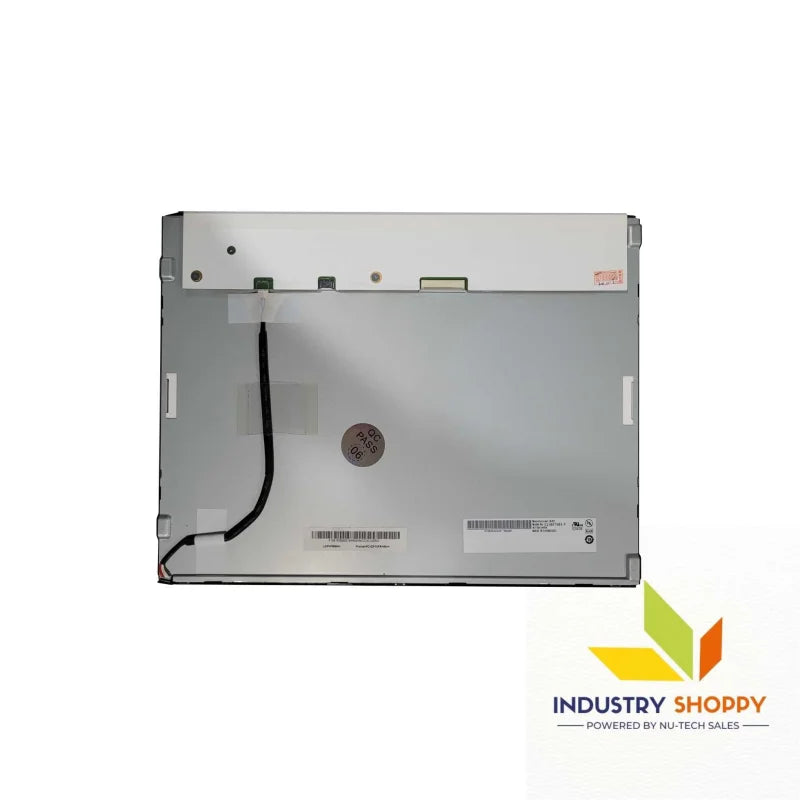

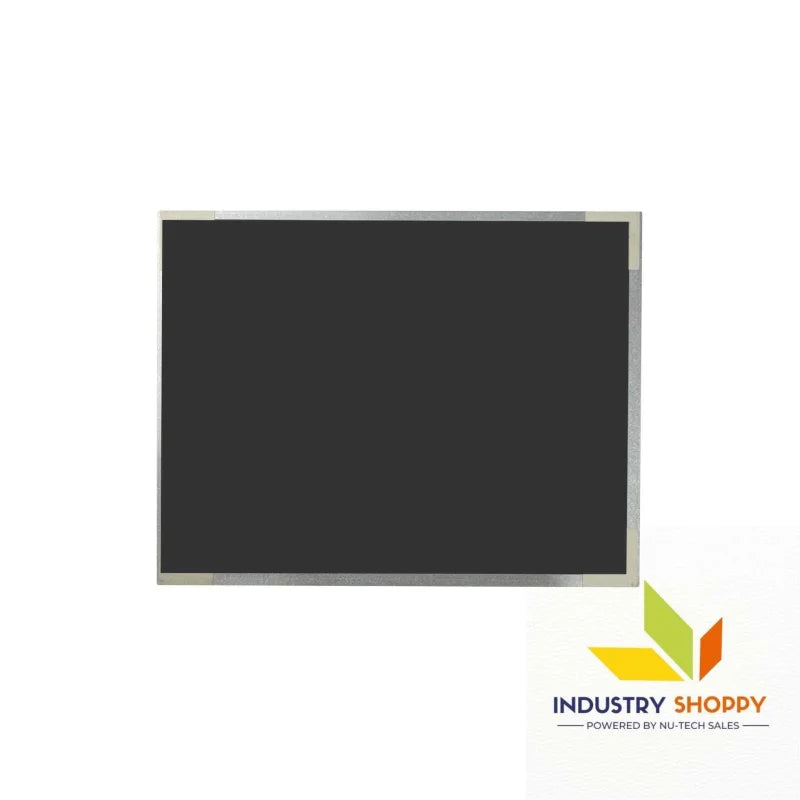

AUO G150XTN03.2 LCD Module

AUO G150XTN03.2 LCD Module

The AUO G150XTN03.2 is a 15.0-inch a-Si TFT-LCD module designed for industrial and commercial applications that require a high-quality, large-screen display. With a resolution of 1024x768 (XGA) and a pixel density of 100 PPI, this module delivers clear, detailed images with excellent color reproduction. The RGB Vertical Stripe pixel arrangement ensures vibrant colors and sharp clarity, making it ideal for applications where precise visual output is essential.

This module features a brightness of 400 cd/m² and a contrast ratio of 500:1, providing clear and vivid visuals even in moderately lit environments. With wide viewing angles of 85°/85°/75°/75° (L/R/U/D), it guarantees excellent image visibility from multiple viewing positions, making it a versatile option for various uses.

The WLED backlight offers a long lifespan of 50,000 hours, ensuring durability and long-term reliability. Additionally, the antiglare surface treatment reduces reflections and enhances readability, making the display well-suited for environments with bright ambient light, such as industrial control panels, kiosks, and POS systems.

Key Features:

• Brand: AUO
• Model: G150XTN03.2
• Diagonal Size: 15.0 inches
• Resolution: 1024×768 (XGA), 100 PPI
• Pixel Format: RGB Vertical Stripe for accurate and vibrant color reproduction
• Active Area: 304.0(W) × 228.0(H) mm
• Bezel Opening: 307.0(W) × 231.0(H) mm
• Outline Dimensions: 335.0(W) × 255.0(H) × 8.5(D) mm
• Surface Treatment: Antiglare for enhanced readability in bright settings
• Brightness: 400 cd/m² (Typical), suitable for environments with moderate lighting
• Contrast Ratio: 500:1 (Typical), ensuring sharp and clear visuals
• Viewing Angle: 85°/85°/75°/75° (L/R/U/D), providing consistent clarity from various angles
• Backlight Type: WLED with a 50,000-hour lifespan for long-term use
• Display Mode: TN, Normally White, Transmissive
• Response Time: 20 ms (Typical, Tr/Td), delivering smooth visuals without motion blur
• Signal Interface: LVDS (1 channel, 6/8-bit), 30-pin FPC connector
• Input Voltage: 3.3V (Typical for VCC)
• Operating Temperature: -20°C to 70°C, designed for use in various environmental conditions
• Storage Temperature: -30°C to 80°C, adaptable to different storage environments

Applications:

• Industrial Control Panels: Ideal for control systems requiring large, clear displays with high reliability
• Kiosks: Perfect for public-facing interactive displays that require bright and clear visuals
• POS Systems: Suitable for retail environments where vibrant color and clarity are necessary
• Medical Devices: Excellent for medical equipment requiring reliable, legible displays in varied lighting

Technical Precautions:

• Handling: Handle with care to avoid damage to the surface or internal components
• ESD Protection: Use electrostatic discharge (ESD) precautions during installation to protect the module
• Temperature Limits: Ensure the module operates within the recommended temperature range (-20°C to 70°C) for optimal performance
• Installation Guidelines: Avoid excessive pressure on connectors during installation to maintain durability and reliability
• Backlight Maintenance: Inspect the backlight regularly, which has a 50,000-hour lifespan, to ensure continued performance
