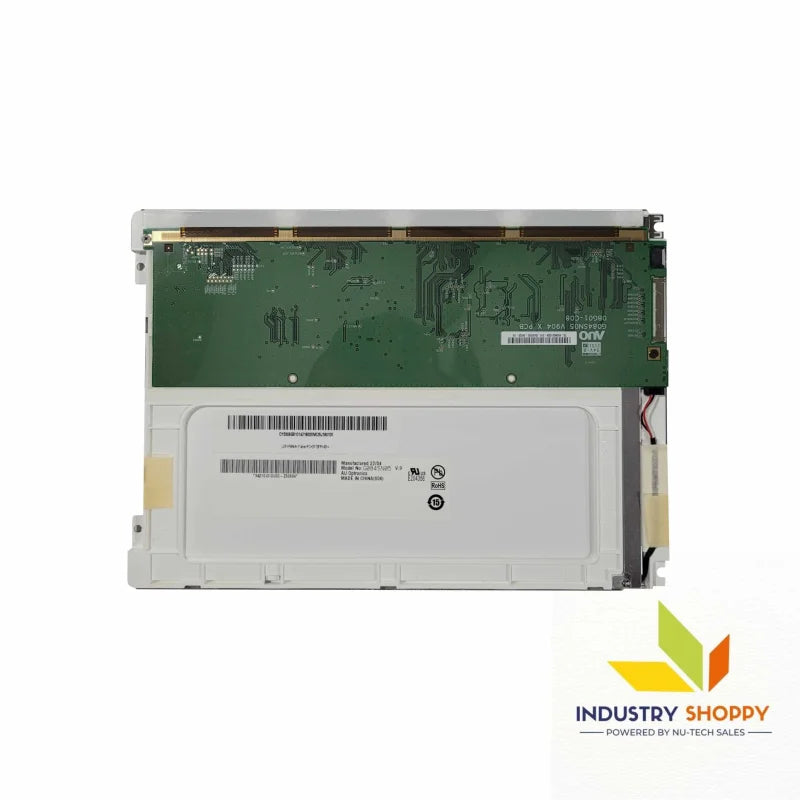

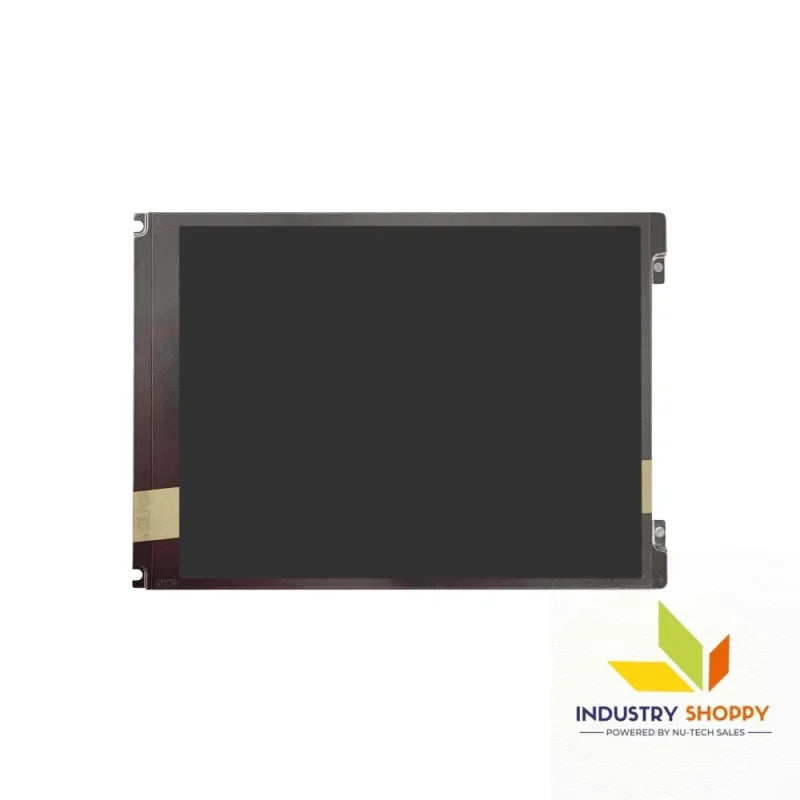

AUO G084SN05-V.9 LCD Module

AUO G084SN05-V.9 LCD Module

The AUO G084SN05-V.9 is an 8.4-inch TFT-LCD module designed for high-performance applications requiring a compact and efficient display. Featuring a resolution of 800x600 (SVGA) and a pixel density of 120 PPI, this module delivers sharp, clear visuals and vibrant color reproduction. It is ideal for a wide range of applications such as industrial control systems, medical equipment, point-of-sale (POS) systems, and embedded systems.

With a brightness of 500 cd/m² and a contrast ratio of 600:1, the G084SN05-V.9 ensures excellent visibility even in environments with bright ambient light. Its wide viewing angles of 80°/80°/80°/80° (L/R/U/D) provide consistent image quality from multiple viewing positions, making it suitable for various applications that require clear visibility from different angles.

The module also features an LED backlight, offering energy efficiency and a long lifespan. The antiglare surface treatment further enhances readability, reducing reflections and making it ideal for environments with fluctuating light conditions.

Key Features:

• Brand: AUO

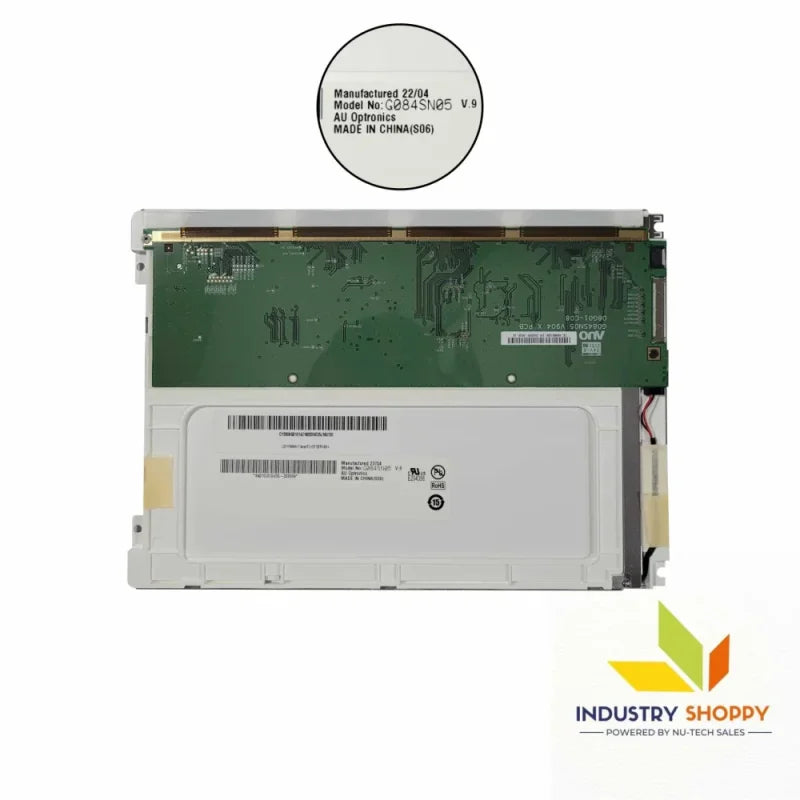

• Model: G084SN05-V.9
• Diagonal Size: 8.4 inches
• Resolution: 800×600 (SVGA), 120 PPI
• Pixel Format: RGB Vertical Stripe for accurate and vibrant color reproduction
• Active Area: 170.4(W) × 127.8(H) mm
• Bezel Opening: 173.6(W) × 130.0(H) mm
• Outline Dimensions: 198.0(W) × 151.0(H) × 9.0(D) mm
• Surface Treatment: Antiglare for better readability in bright environments
• Brightness: 500 cd/m² (Typical), ideal for bright settings
• Contrast Ratio: 600:1 (Typical), ensuring high-quality visuals with clear differentiation
• Viewing Angle: 80°/80°/80°/80° (L/R/U/D), providing clear viewing from multiple angles
• Backlight Type: LED for energy-efficient operation and extended lifespan
• Display Mode: Normally White, Transmissive
• Response Time: 25 ms (Typical, Tr/Td) for smooth and responsive visuals

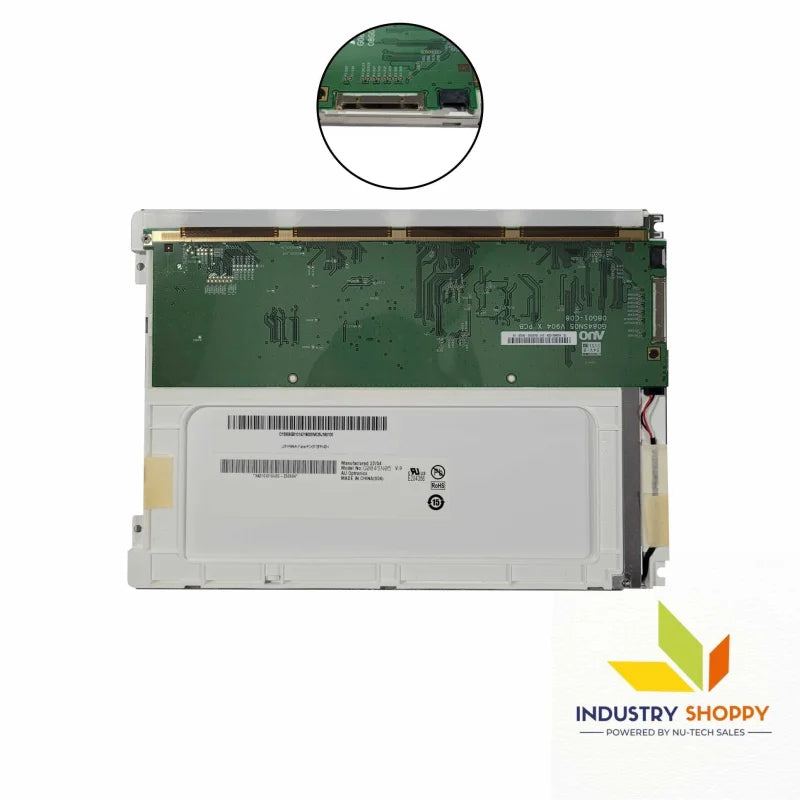

• Signal Interface: LVDS, 40-pin FPC connector
• Input Voltage: 3.3V (Typical for VCC)
• Operating Temperature: -20°C to 70°C, designed to function in diverse environments
• Storage Temperature: -30°C to 80°C, suitable for flexible storage

Applications:

• Industrial Control Panels: Perfect for industrial systems requiring a compact, high-performance display
• Medical Devices: Ideal for medical equipment needing clear and readable visuals
• Point-of-Sale (POS) Systems: Excellent for retail environments with dynamic and colorful display needs
• Embedded Systems: Suitable for embedded applications requiring a high-quality, reliable display

Technical Precautions:

• Handling: Handle with care to prevent damage to the surface or internal components
• ESD Protection: Use electrostatic discharge (ESD) precautions during installation to protect the module
• Temperature Limits: Ensure the module operates within the recommended temperature range (-20°C to 70°C) for optimal longevity
• Installation Guidelines: Avoid excessive pressure on connectors during installation to maintain reliability
• Backlight Maintenance: Inspect the backlight regularly to maintain performance and extend its lifespan
