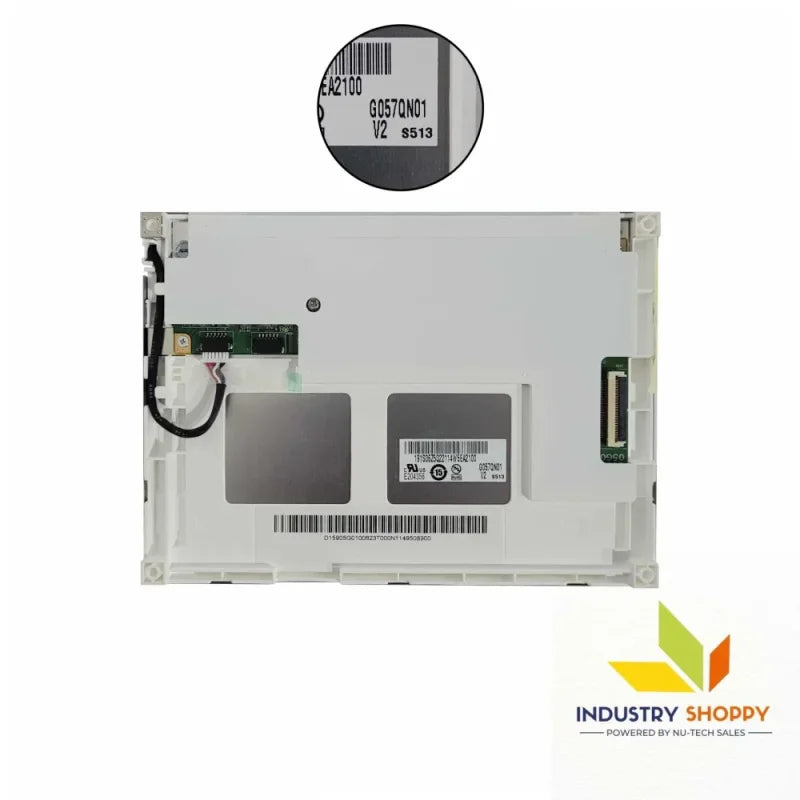

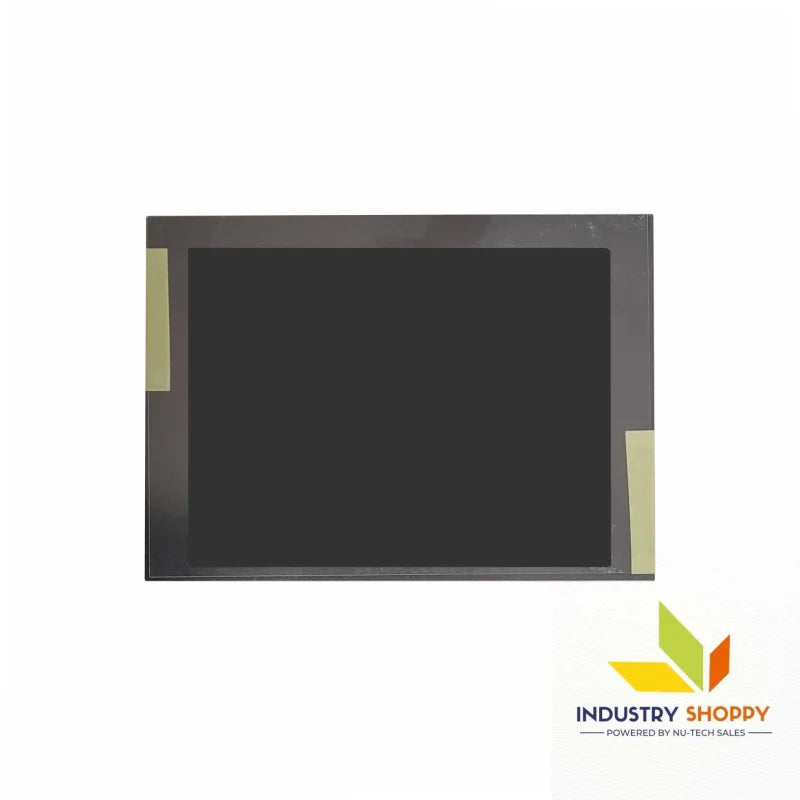

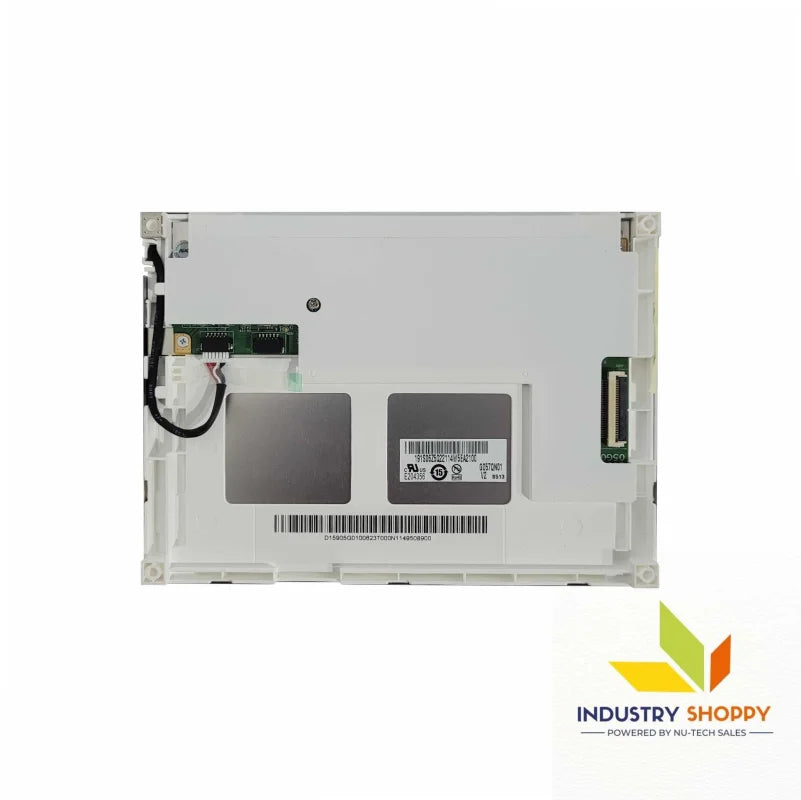

AUO G057QN01-V.2 LCD Module

AUO G057QN01-V.2 LCD Module

The AUO G057QN01-V.2 LCD Module is a 5.7-inch TFT-LCD module designed to offer high-quality displays in a compact form. With a resolution of 640x480 (VGA) and a pixel density of 120 PPI, it delivers clear, sharp visuals with excellent color accuracy. The module utilizes an RGB Vertical Stripe pixel arrangement, ensuring vibrant and precise color reproduction, making it suitable for various applications that require detailed and accurate visual output.

This display has a brightness of 500 cd/m² and a contrast ratio of 500:1, allowing for excellent readability even in bright environments. Its wide viewing angles of 80°/80°/60°/80° (L/R/U/D) ensure consistent image clarity from different angles, making it versatile for applications that need reliable performance from multiple viewpoints.

The module is equipped with an LED backlight offering a long lifespan of 50,000 hours, ensuring durability and longevity. Its antiglare surface treatment improves visibility by reducing reflections, making it ideal for use in environments with high ambient light.

Key Features:

• Brand: AUO
• Model: G057QN01-V.2
• Diagonal Size: 5.7 inches
• Resolution: 640×480 (VGA), 120 PPI
• Pixel Format: RGB Vertical Stripe for accurate and vibrant color reproduction
• Active Area: 115.2(W) × 86.4(H) mm
• Bezel Opening: 118.2(W) × 89.4(H) mm
• Outline Dimensions: 129.6(W) × 98.3(H) × 7.7(D) mm
• Surface Treatment: Antiglare for enhanced readability in bright environments
• Brightness: 500 cd/m² (Typical), ideal for use in bright settings
• Contrast Ratio: 500:1 (Typical), ensuring high-quality visuals with sharp differentiation
• Viewing Angle: 80°/80°/60°/80° (L/R/U/D), providing clear viewing from multiple angles
• Backlight Type: LED with a lifespan of 50,000 hours for extended use
• Display Mode: Normally White, Transmissive
• Response Time: 20 ms (Typical, Tr/Td) for responsive visuals

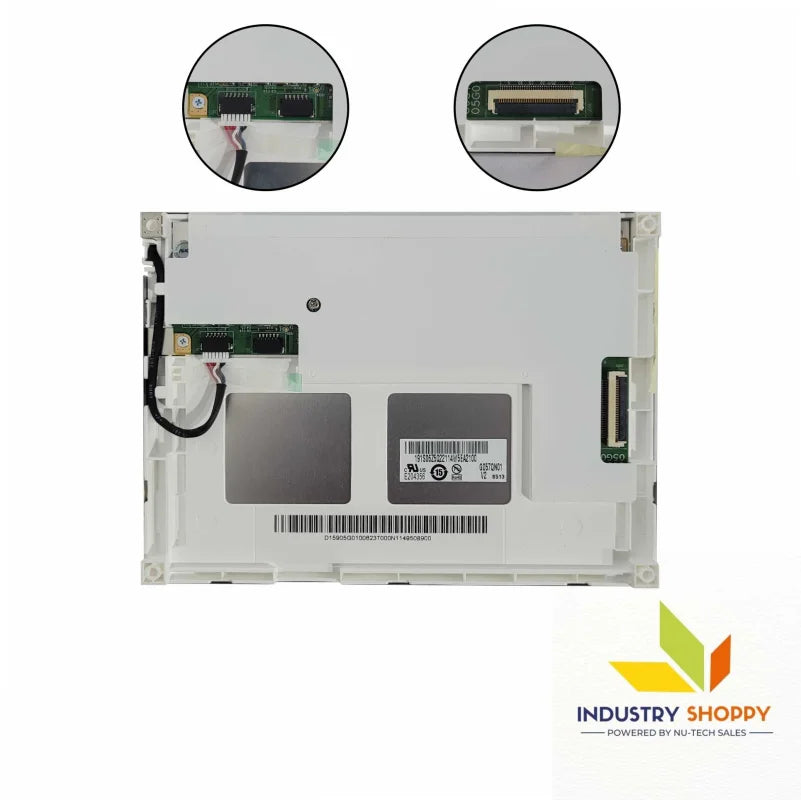

• Signal Interface: LVDS, 1 channel, 6/8-bit, 20-pin FPC connector
• Input Voltage: 3.3V (Typical for VCC)
• Operating Temperature: -20°C to 70°C, designed for a wide range of environmental conditions
• Storage Temperature: -30°C to 80°C, suitable for flexible storage

Applications:

• Handheld Devices: Ideal for portable devices that require a small, high-quality display
• Industrial Control Panels: Perfect for industrial applications needing a compact, reliable visual output
• Point-of-Sale (POS) Displays: Suitable for retail systems requiring a clear, vibrant display
• Medical Devices: Ideal for small medical instruments that need precise and legible visuals

Technical Precautions:

• Handling: Handle carefully to prevent damage to the surface or internal components
• ESD Protection: Use electrostatic discharge (ESD) precautions during installation to protect the module
• Temperature Limits: Ensure the module operates within the recommended temperature range (-20°C to 70°C) for optimal longevity
• Installation Guidelines: Avoid excessive pressure on connectors during installation to maintain reliability
• Backlight Maintenance: Regularly inspect the backlight to ensure continued performance and longevity
