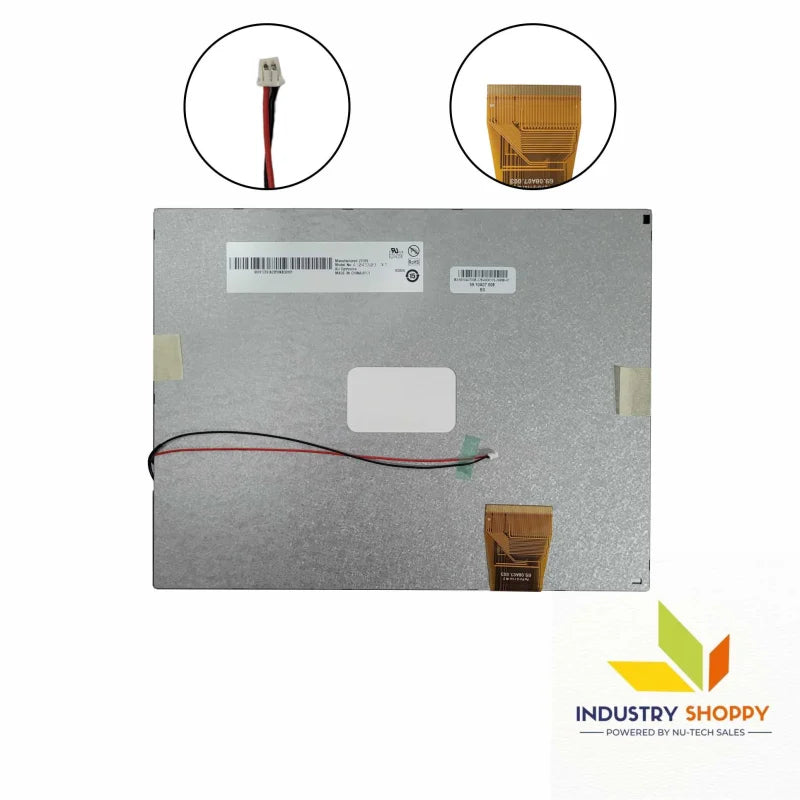

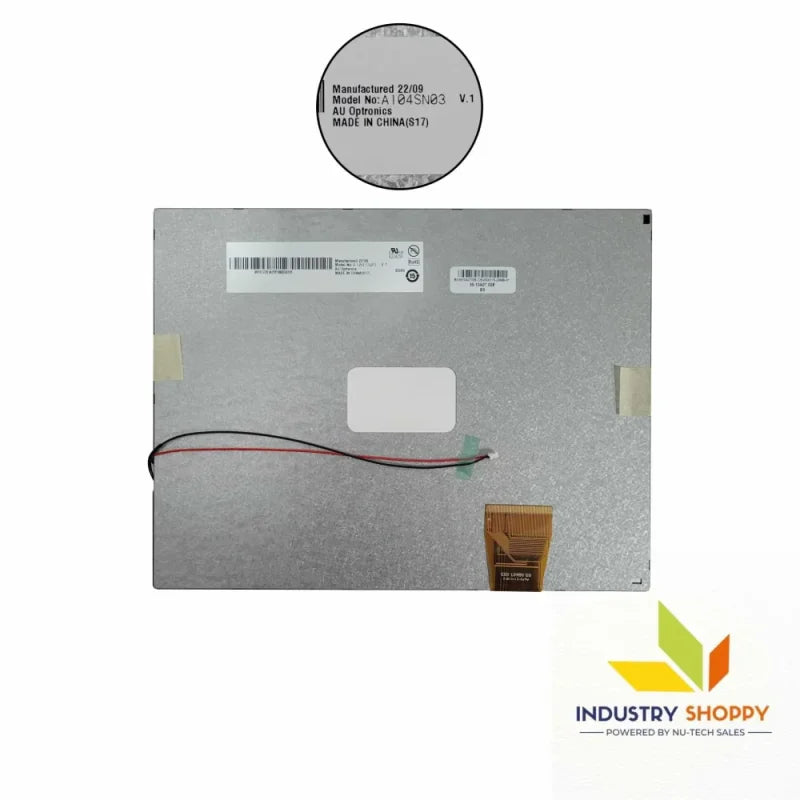

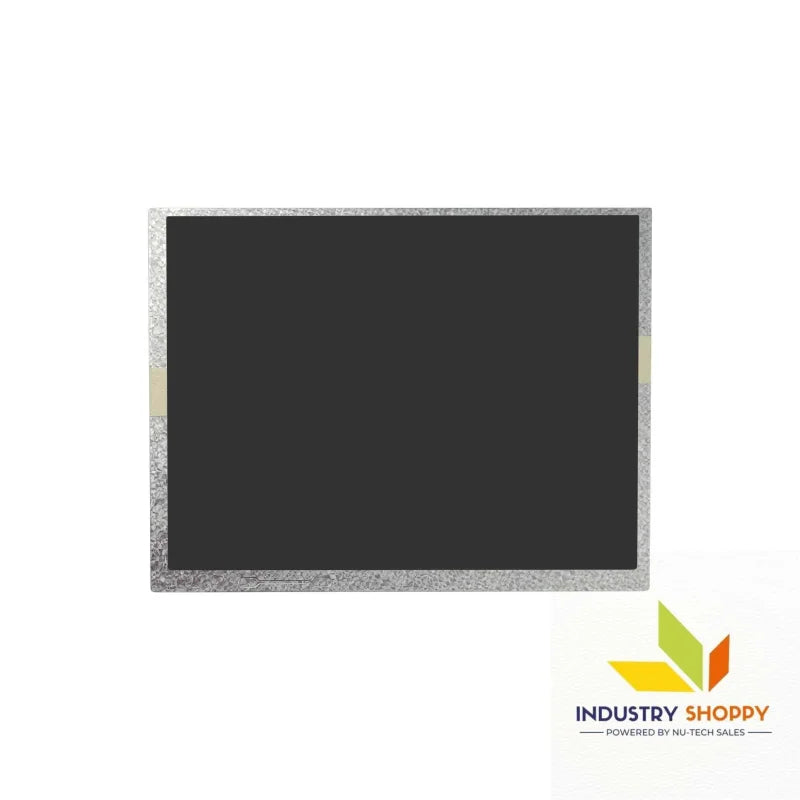

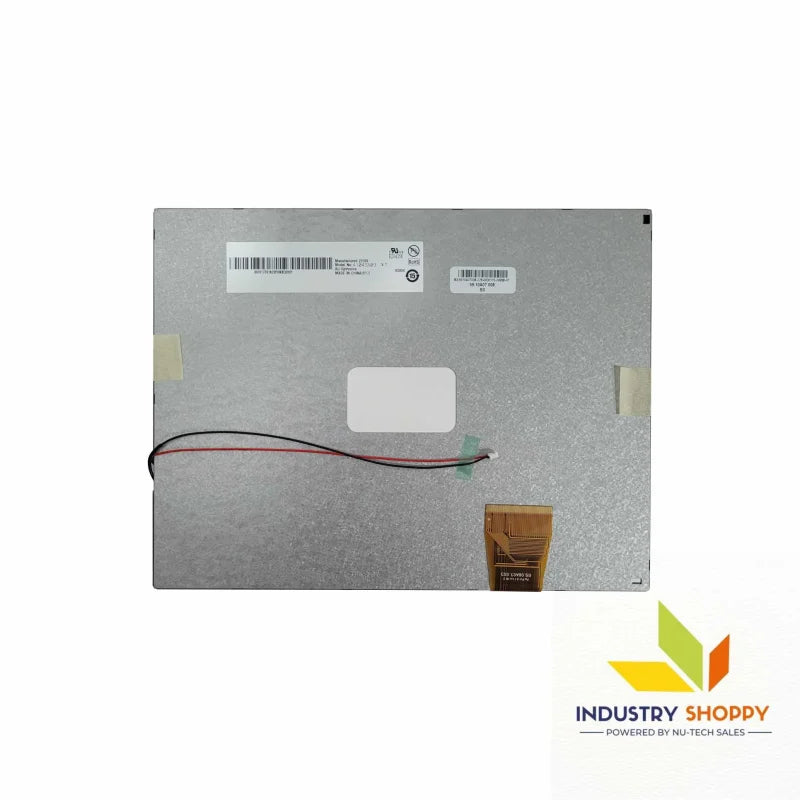

AUO A104SN03-V.1 LCD Module

AUO A104SN03-V.1 LCD Display

The AUO A104SN03-V.1 is a highly reliable 10.4" a-Si TFT-LCD panel designed primarily for industrial and medical applications. This display delivers outstanding visual clarity with an 800x600 (SVGA) resolution and a contrast ratio of 500:1, ensuring sharp and vibrant images. With an integral WLED backlight system (without a driver), it boasts a typical brightness of 350 cd/m², ideal for both indoor and outdoor environments.

Engineered for durability, it can operate within a temperature range of -10°C to 60°C and is built with an antiglare hard coating (3H) for enhanced readability and protection. It supports 262K/16.7M colors and operates at a 60Hz frame rate for smooth visuals. The TTL interface (6/8-bit + SPI) and 60-pin FPC connector provide easy integration into your systems.

Key Features:

• Brand: AUO
• Diagonal Size: 10.4"
• Resolution: 800(RGB)×600, SVGA 96PPI
• Active Area: 211.2(W)×158.4(H) mm
• Outline Dimension: 228.4(W)×175.4(H) ×6.5(D) mm
• Luminance: 350 cd/m² (Typ.)
• Contrast Ratio: 500:1 (Typ.) (TM)
• Viewing Angle: 75/75/50/60 (Typ.)(CR≥10)
• Response Time: 30 (Typ.)(Tr+Td)
• Panel Type: a-Si TFT-LCD, LCM
• Treatment: Antiglare, Hard coating (3H)
• Operating Mode: TN, Normally White, Transmissive
• Support Color: 262K/16.7M 50% NTSC
• Signal Interface Type: TTL (1 ch, 6/8-bit) + SPI , 60 pins FPC
• Frame Rate: 60Hz
• Power Supply: 3.3/11/15/-7V (Typ.)(VCC/AVDD/VGH/VGL)
• Backlight: 3S12P WLED , 10K hours , Without Driver
• Operating Temp.: -10 ~ 60 °C
• Storage Temp.: -20 ~ 70 °C

No Technical skills required! No soldering required! It is easy to install!

Application: This LCD panel is perfect for use in industrial control systems, medical diagnostic equipment, point-of-sale systems, and automated kiosks, where reliable and clear display functionality is essential. Its wide operating temperature range of -10°C to 60°C and robust design make it ideal for environments that demand consistent performance under extreme conditions.

Technical Precautions:

• Avoid excessive force during installation to prevent damage to the LCD or its connectors.
• Always ensure proper electrostatic discharge (ESD) precautions when handling the panel to avoid damaging sensitive components.
• Do not expose the panel to temperatures outside the -20°C to 70°C storage range to maintain long-term performance.
• It is recommended to power off the device before connecting or disconnecting the panel to prevent electrical surges.
• Ensure adequate ventilation or cooling in high-temperature environments to avoid overheating, which could degrade display performance over time.
• Handle the panel by its edges to avoid damaging the antiglare surface or leaving fingerprints that may reduce clarity.
