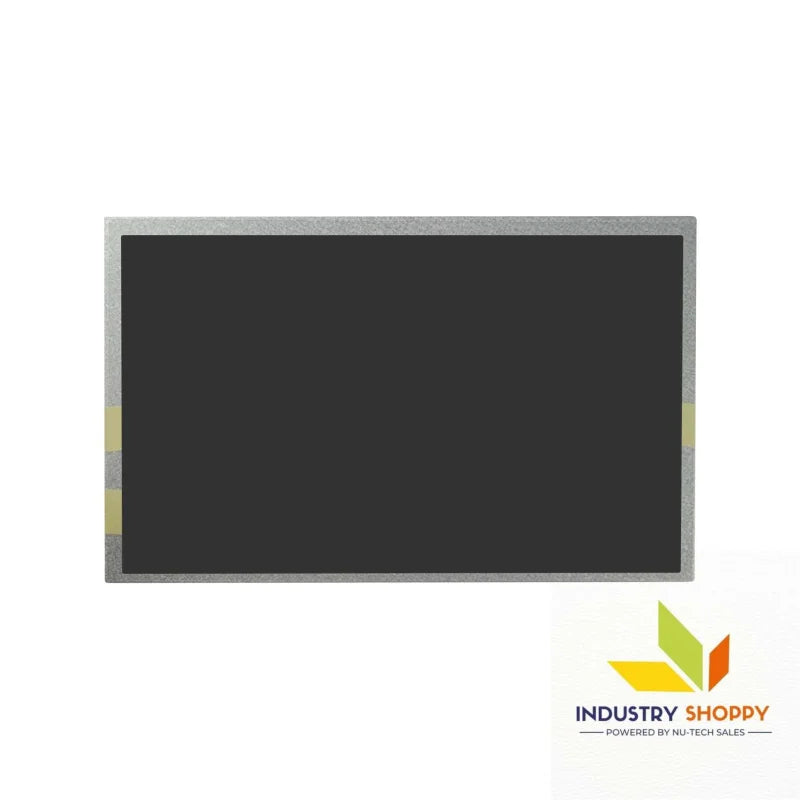

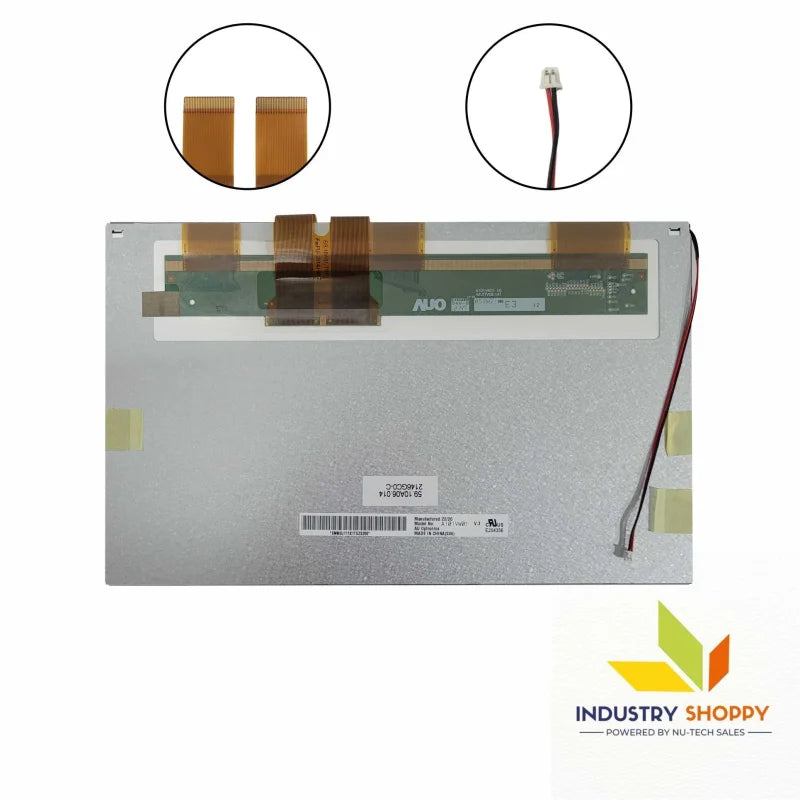

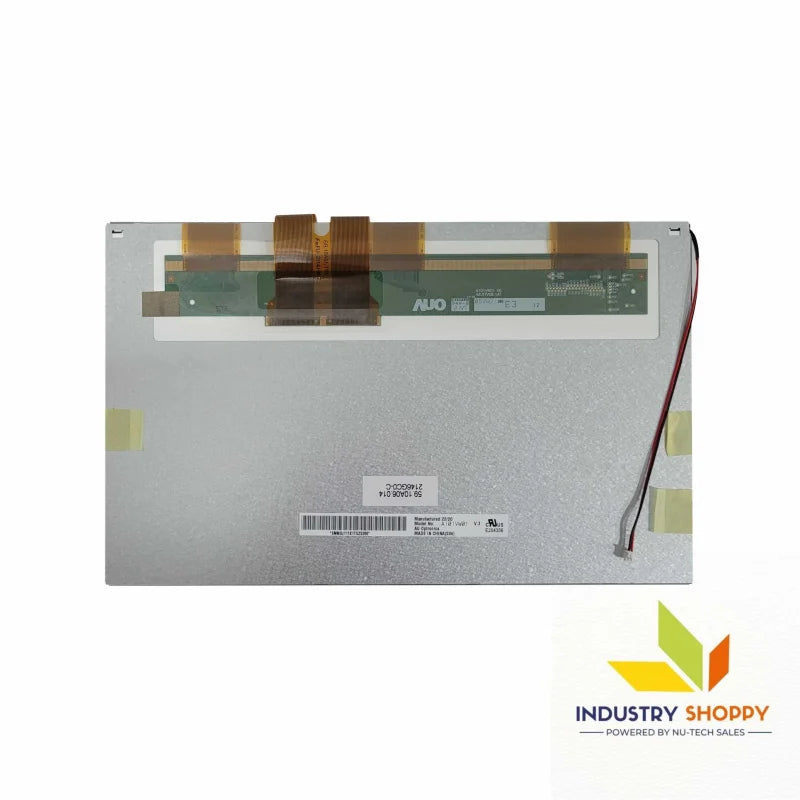

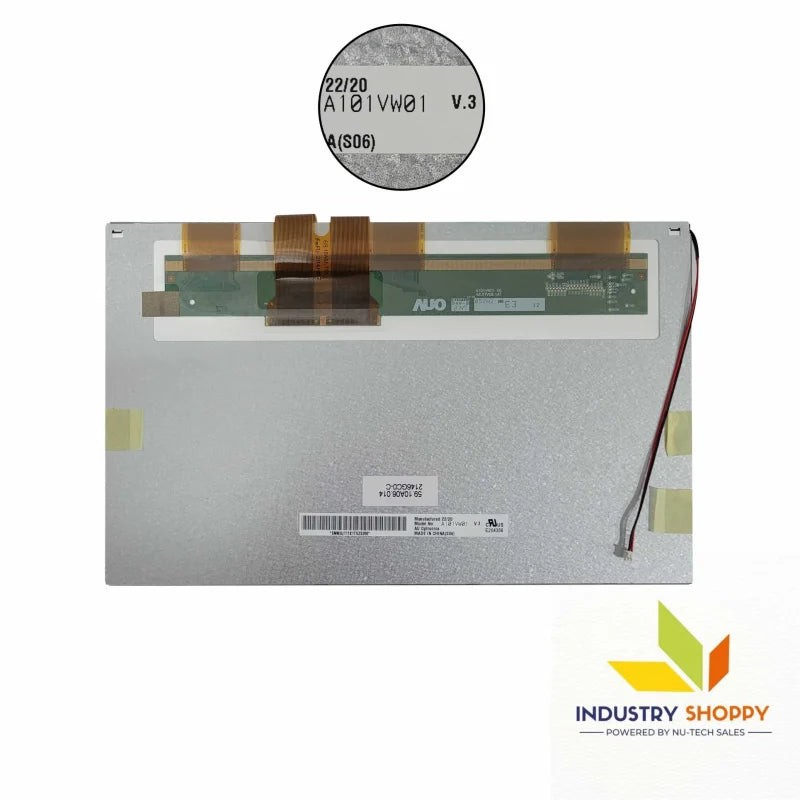

AUO A101VW01-V.3 LCD Module

AUO A101VW01-V.3 LCD Module

The AUO A101VW01-V.3 is a 10.1-inch a-Si TFT-LCD module designed to provide high-quality display performance for a wide range of applications. Featuring a resolution of 1920x1200 (WUXGA) and a pixel density of 224 PPI, this display offers sharp, clear visuals and vibrant color reproduction, making it ideal for industrial control panels, medical devices, POS systems, and digital signage.

With a brightness of 450 cd/m² and a contrast ratio of 800:1, the A101VW01-V.3 ensures high visibility even in bright settings, making it perfect for environments with varying lighting conditions. The wide viewing angles of 85°/85°/85°/85° (L/R/U/D) provide clear and consistent image quality from various perspectives, making it an excellent choice for applications where the display is viewed by multiple people.

The A101VW01-V.3 is equipped with an LED backlight, which offers energy efficiency and a long lifespan, reducing maintenance needs. Additionally, the antiglare surface treatment minimizes reflections, improving readability in bright or high-ambient-light environments.

Key Features:

• Brand: AUO
• Model: A101VW01-V.3
• Diagonal Size: 10.1 inches
• Resolution: 1920×1200 (WUXGA), 224 PPI
• Pixel Format: RGB Vertical Stripe for accurate and vibrant color reproduction
• Active Area: 222.72(W) × 138.48(H) mm
• Bezel Opening: 225.0(W) × 141.0(H) mm
• Outline Dimensions: 243.0(W) × 163.0(H) × 7.0(D) mm
• Surface Treatment: Antiglare for better readability in bright environments
• Brightness: 450 cd/m² (Typical), ensuring visibility in various lighting conditions
• Contrast Ratio: 800:1 (Typical), delivering vibrant, high-contrast visuals
• Viewing Angle: 85°/85°/85°/85° (L/R/U/D), providing consistent clarity from all angles
• Backlight Type: LED for energy-efficient performance with a long lifespan
• Display Mode: IPS, Normally White, Transmissive
• Response Time: 25 ms (Typical, Tr/Td) for smooth and responsive visuals
• Signal Interface: LVDS, 40-pin FPC connector
• Input Voltage: 3.3V (Typical for VCC)
• Operating Temperature: -20°C to 70°C, suitable for a variety of environments
• Storage Temperature: -30°C to 80°C, adaptable to different storage conditions

Applications:

• Industrial Control Panels: Perfect for control panels where space is limited but high-quality visuals are required
• Medical Devices: Ideal for medical equipment requiring clear, precise displays
• Point-of-Sale (POS) Systems: Suitable for retail environments where visibility and color accuracy are crucial
• Digital Signage: Great for use in public spaces, retail displays, and advertising

Technical Precautions:

• Handling: Handle with care to avoid damaging the surface or internal components
• ESD Protection: Use electrostatic discharge (ESD) precautions during installation
• Temperature Limits: Ensure the module operates within the recommended temperature range (-20°C to 70°C) for optimal performance
• Installation Guidelines: Avoid applying excessive pressure on connectors during installation
• Backlight Maintenance: Regularly inspect the backlight to ensure long-lasting performance
