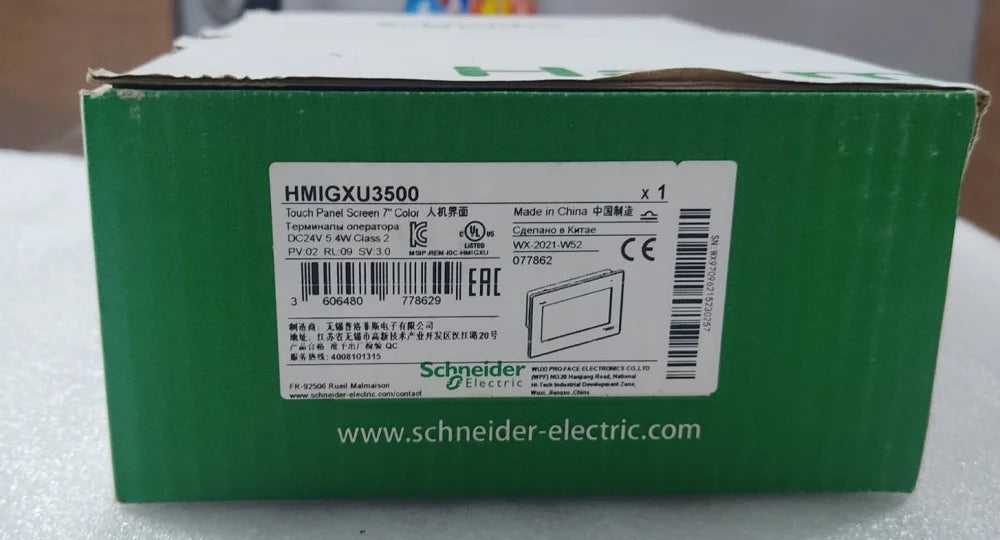

Schneider HMIGXU3500 HMI Panel

Schneider HMIGXU3500 HMI Panel

The Schneider HMIGXU3500 HMI Panel is designed for seamless integration into advanced control systems, combining high performance with user-friendly functionality. Its vibrant 7-inch LCD touch screen delivers sharp visuals with 800 x 480 WVGA resolution and supports 65536 colors for clear, accurate data representation.

Engineered for durability, the HMIGXU3500 features a 20,000-hour backlight lifespan and is protected by an IP65-rated front panel, making it ideal for industrial settings. It operates efficiently in temperatures from 0°C to 50°C, ensuring consistent reliability even under demanding conditions.

The panel is powered by 24V DC and supports serial RS422/RS485 communication as well as USB mini-B connectivity for flexible integration. With 32 MB application memory and 128 MB DDR internal memory, it offers enough capacity for dynamic applications via Video Designer Basic software.

Compact yet powerful, the HMIGXU3500 provides a perfect balance of performance, adaptability, and ease of use for automation environments.

Key features :-

Applications :-

• Industrial Control Systems: Smooth data visualization with WVGA resolution.
• Machine Interfaces: Responsive 7-inch LCD touchscreen operation.
• Data Logging: Reliable memory capacity for real-time operations.
• Automation Projects: Video Designer Basic for intuitive configuration.
• Harsh Environments: IP65 front and wide temperature resistance.

Precautions:

• Power Supply: Use a stable 24VDC source with proper grounding to prevent damage.
• Installation Environment: Avoid exposure to direct sunlight, excessive dust, or corrosive gases.
• Temperature & Humidity: Operate only within the specified 0°C–45°C temperature and 5%–90% humidity range.
• Wiring: Ensure all communication and power cables are properly shielded to avoid interference.
• Maintenance: Disconnect power before cleaning or performing any hardware adjustments.

Note : All tax and custom duty should be pay by buyer only.

Note: All trademarks and trade names used are the property of their respective owners.
