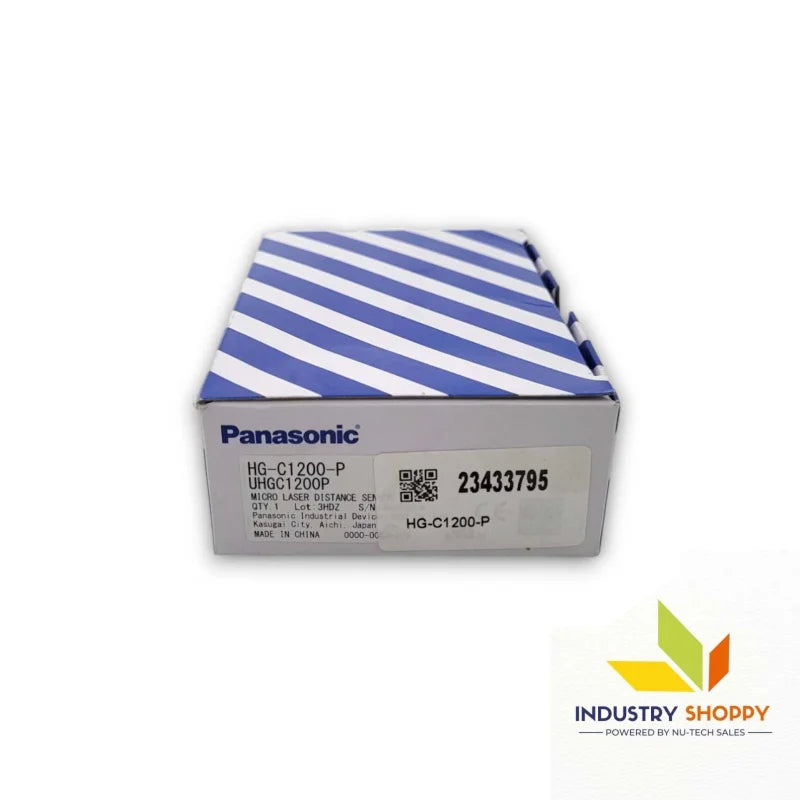

Panasonic HG-C1200-P Photoelectric Sensor
Panasonic HG-C1200-P Photoelectric Sensor
Panasonic HG-C1200-P Photoelectric Sensor
Panasonic HG-C1200-P Photoelectric Sensor
Panasonic HG-C1200-P Photoelectric Sensor
Panasonic HG-C1200-P Photoelectric Sensor
Panasonic HG-C1200-P Photoelectric Sensor
Panasonic HG-C1200-P Photoelectric Sensor
Panasonic

Panasonic HG-C1200-P Micro Laser Distance Sensor

Product SKU: NTSSEN00366
Available:
Only 3 items in stock
3 items in stock
In stock
Pre-order
Out of stock
  • Brand
:  Panasonic
  • Condition
:  New
  • Part Number
:  UHGC1200P
  • Type
:  Micro Laser Distance Sensor
  • Output Type
:  PNP
  • Operating Range
:  --


Note : All tax and custom duty should be pay by buyer only.

For Indian Buyers : IndustryShoppy.in


$301.00
Notify me When Available
You will receive an email when the product is available.
Want it delivered by
  • Description
  • Declaration

Panasonic HG-C1200-P Micro Laser Distance Sensor

The Panasonic HG-C1200-P Micro Laser Distance Sensor delivers highly accurate distance measurements in a compact and durable design. With a center measurement distance of 200 mm and a measuring range of ±80 mm, it ensures precision in demanding environments. Its repeatability of 200 μm and linearity of ±0.2% F.S. make it ideal for tasks requiring consistent and reliable results.

This sensor uses a Class 2 red semiconductor laser with a peak wavelength of 655 nm and offers selectable response times of 1.5 ms, 5 ms, or 10 ms, making it adaptable to various application speeds. Analog and digital outputs—including both voltage (0–5 V) and current (4–20 mA)—enhance its integration flexibility.

The HG-C1200-P features IP67 protection, robust vibration and shock resistance, and operates reliably between -10 to +45 °C. Designed to comply with EMC and FDA standards, this sensor includes short-circuit protection, external input, and auto-reset safety functions. With a rugged aluminum die-cast housing, it's well-suited for harsh industrial environments requiring compact sensing solutions.

Key features :-

Brand Panasonic
Product Number HG-C1200-P
Part Number UHGC1200P
Applicable Standard EMC Directive Compliance, FDA Standard
Measurement Center Distance 200 mm 7.874 in
Measuring Range ±80 mm 3.150 in
Repeatability 200 μm 7.874 mil
Linearity ±0.2%F.S.
Temperature Characteristics 0.03% F.S./℃
Light Source Red semiconductor laser Class 2 [JIS/IEC/GB/FDA (Note) ]
Max. output: 1 mW
emission peak wavelength: 655 nm 0.026 mil
(Note) This product complies with 21 CFR 1040.10 and 1040.11 Laser Notice No. 50, dated June 24, 2007, issued by CDRH (Center for Devices and Radiological Health) under the FDA (Food and Drug Administration).
Beam Diameter ø300 μm 11.8111 mil approx.
(Note) This is the size in the measurement center distance. These values were defined by using 1/e2 (13.5% approx.) of the center light intensity. Due to leak light outside the specified area, the reflectance around the detecting point may be higher than at the point and this may affect the measurement value.
Supply Voltage 12 to 24 V DC ±10 %, Ripple P-P 10 % or less
Current Consumption 40 mA or less (at 24V DC supply voltage)
65 mA or less (at 12V DC supply voltage)
Note : Specifications have been changed from shipment in August, 2016. For shipment before July 2016 ： 40 mA or less (at 24 V DC supply voltage), 60 mA or less (at 12 V DC supply voltage)
Control Output PNP open-collector transistor
- Maximum source current: 50 mA
- Applied voltage: 30 V DC or less (Between control output to +V)

- Leakage current: 0.1 mA or less
Control Output: Output Operation Either Light-ON or Dark-ON
Control Output: Short-Circuit Protection Incorporated (Auto reset type)
Analogue Output: Analog Voltage Output • Output range: 0 to 5 V (at alarm: +5.2 V)
• Output impedance: 100Ω
Analogue Output: Analog Current Output • Output range: 4 to 20mA (at alarm: 0mA)
• Output impedance: 300Ω or less
Note : Analog current output has been added from shipment in August 2016.
Response Time Switchable between 1.5 ms / 5 ms / 10 ms
External Input PNP non-contact input
- Input conditions
Invalid: 0 to +0.6 V DC or Open
Valid: +4 to +V DC
- Input impedance: 10 kΩ approx.
Pollution Degree 2
Operating Altitude 2,000 m 6561.680 ft or less
Protection IP67 (IEC)
Ambient Temperature -10 to +45 ℃ -14 to 113 ℉ (No dew condensation or icing allowed), Storage: -20 to +60 ℃ -4 to 140 ℉
Ambient Humidity 35 to 85 % RH, Storage: 35 to 85 % RH
Ambient Illuminance Incandescent light: 3,000 ℓx or less at the light-receiving face
Vibration Resistance 10 to 55 Hz (period: 1 min.) frequency, 1.5 mm 0.059 in double amplitude in X, Y and Z directions for two hours each
Shock Resistance 500 m/s2 acceleration (50 G approx.) in X, Y and Z directions three times each
Cable 5-core composite cable, 2 m 6.5617 ft long
Cable Extension Extension up to total 10 m 393.701 ft is possible with 0.3 mm2, or more, cable.
Material Enclosure: Aluminum die-cast
Front cover: Acrylic



Applications :-

  • Precision Positioning: Ideal for high-accuracy part placement in robotic and assembly systems.
  • Height and Thickness Measurement: Accurately measures object dimensions on conveyors or production lines.
  • Loop Control in Web Processes: Maintains tension and alignment in materials like film or paper.
  • Automated Inspection Systems: Detects surface height variations or defects with consistent precision.
  • Distance Monitoring in Compact Spaces: Provides reliable feedback in space-constrained equipment or fixtures.

Precautions :-

  • Ensure Correct Wiring: Incorrect connections can cause sensor failure
  • Avoid Overvoltage: Operating within 10-30V DC prevents damage
  • Protect from Extreme Heat: Avoid installing near high-temperature sources
  • Regular Cleaning: Keep the optical lens free from dust and debris for optimal performance
