Monitouch TS1070S HMI Panel

Monitouch TS1070S HMI Panel

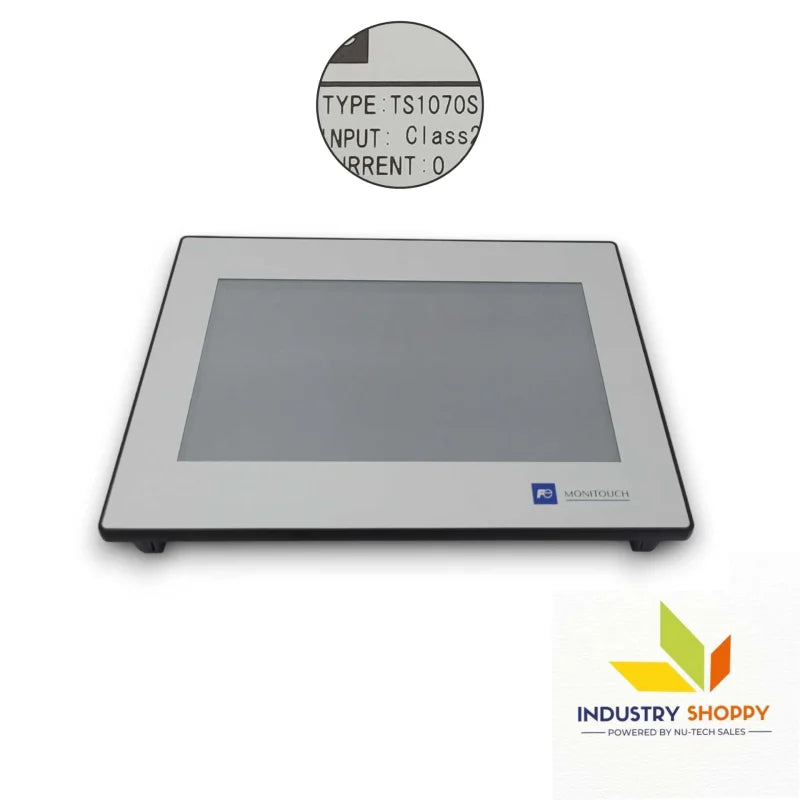

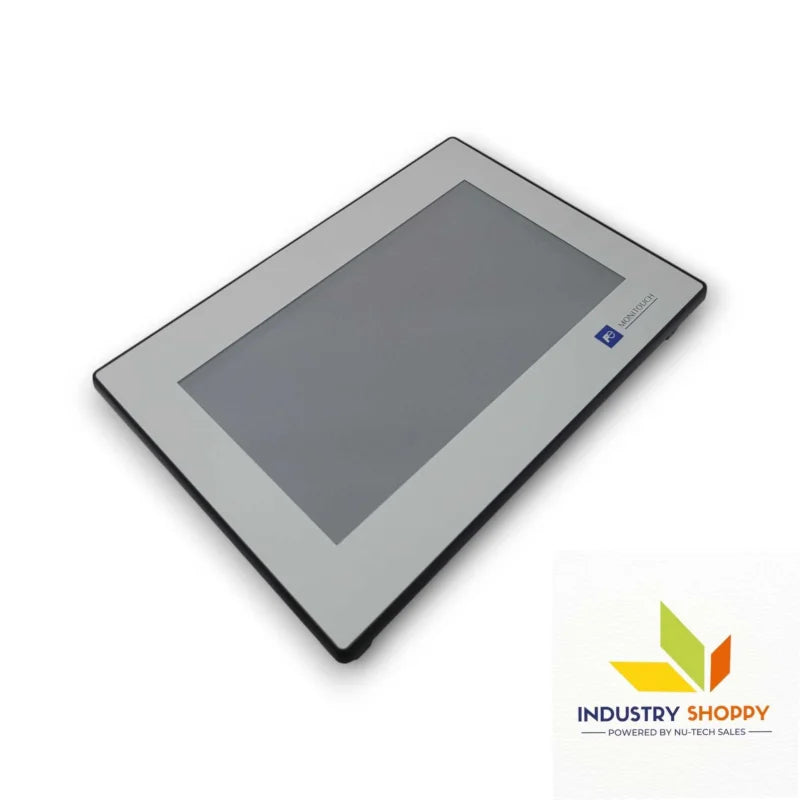

The Monitouch TS1070S HMI Panel delivers versatile, high-quality operator interface capabilities for a range of industrial automation tasks. Featuring a 7” wide TFT color LCD with 800x480 resolution, it provides sharp visualization, complemented by 65,536 vivid colors and a 450 cd/m² luminance for excellent readability in various lighting conditions.

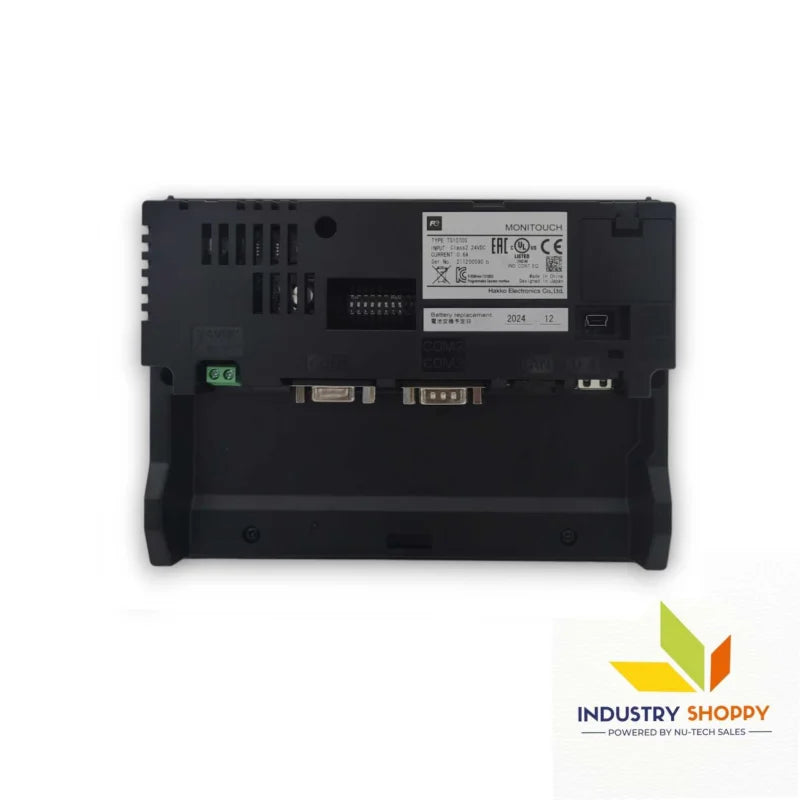

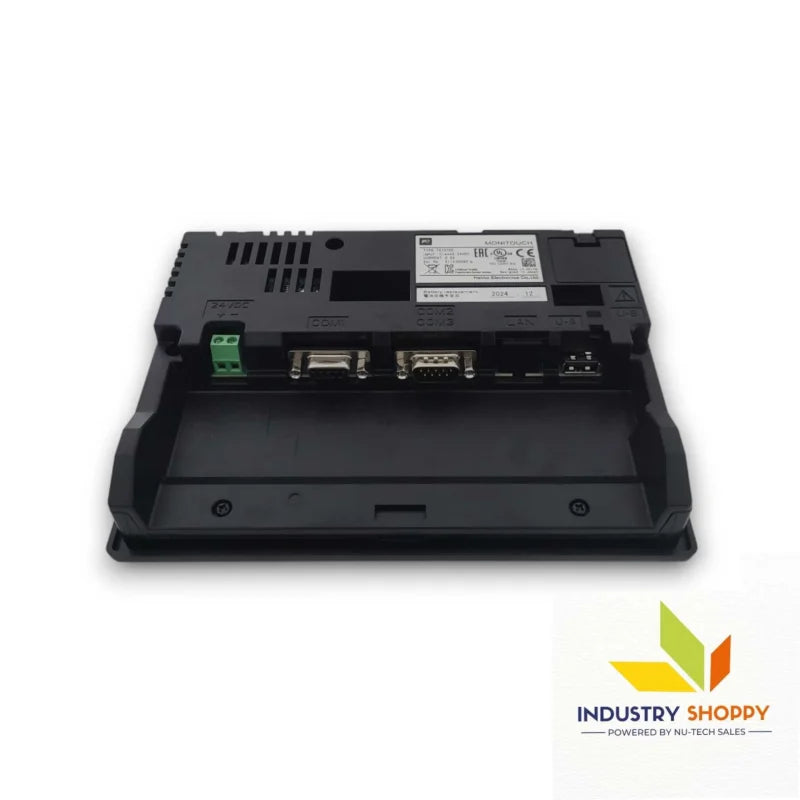

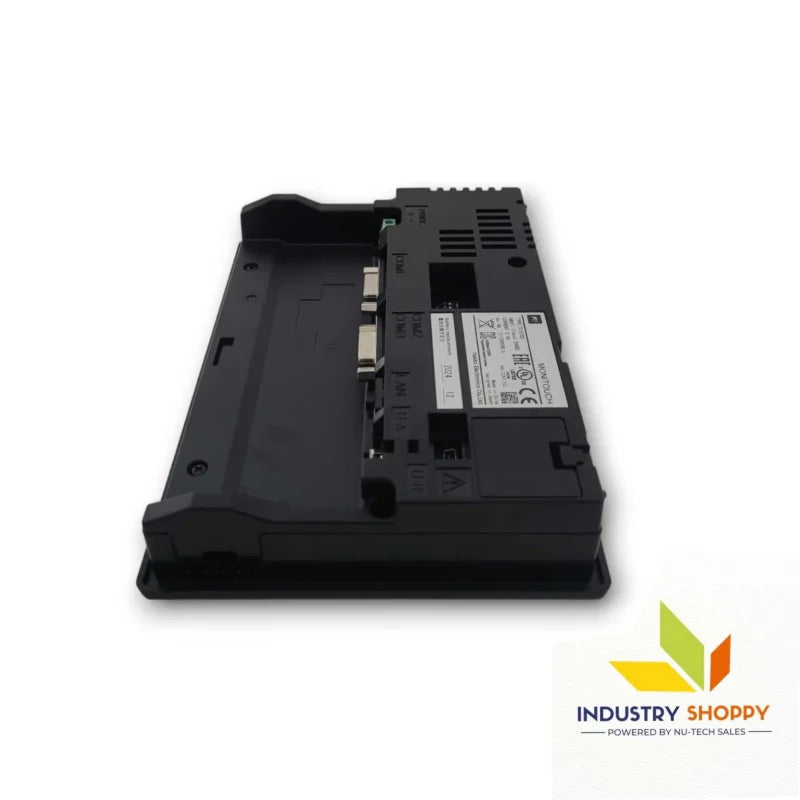

Its robust communication setup includes three serial ports (RS-232C, RS-422/485) supporting flexible baud rates and configurations, along with two USB ports for smooth data handling and peripheral connection. Designed for durability, it withstands ambient temperatures from 0°C to 50°C and meets IP65 front panel protection when mounted correctly.

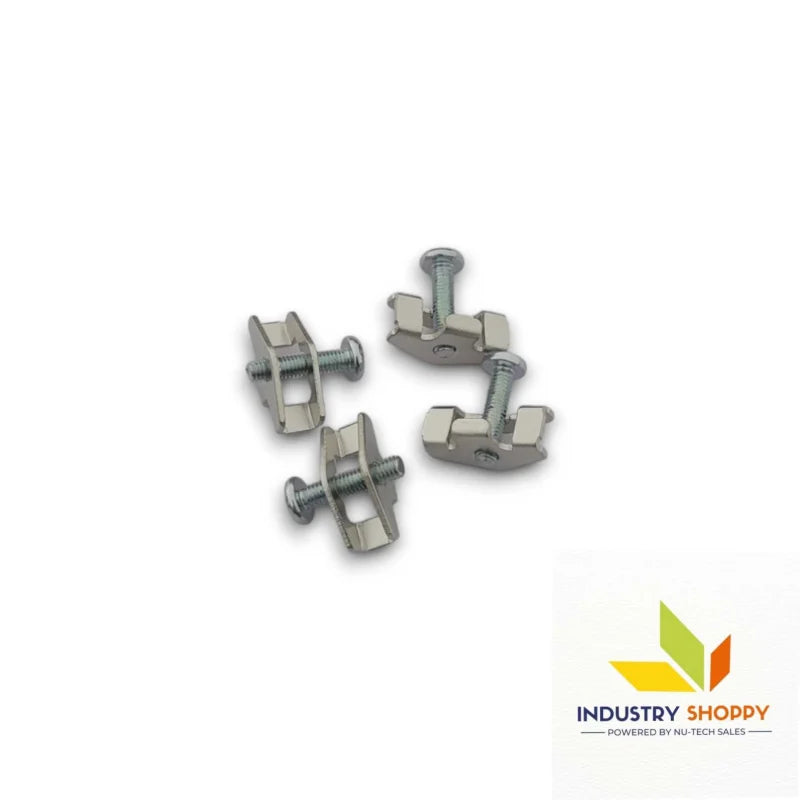

Equipped with 10.5 MB FROM and 128 KB SRAM, the TS1070S offers efficient memory for project data and real-time operations. Its coin-type lithium battery ensures reliable clock and data retention, while the panel-mount design simplifies integration into industrial systems.

For environments demanding reliability, flexibility, and a clear user interface, the Monitouch TS1070S is a powerful, compact solution.

Key features :-

Applications :-

• Process Visualization: Display real-time machine status on a vibrant 7” LCD.
• Data Logging: Store process data using onboard 10.5 MB FROM.
• Alarm Notification: Highlight system errors and event alarms instantly.
• Multi-Device Communication: Supports RS-232/RS-422/RS-485 for PLC and device links.
• Industrial Control Integration: Durable IP65-rated front panel suits harsh conditions.

Precautions:

• Power Supply: Use a stable 24VDC source with proper grounding to prevent damage.
• Installation Environment: Avoid exposure to direct sunlight, excessive dust, or corrosive gases.
• Temperature & Humidity: Operate only within the specified 0°C–45°C temperature and 5%–90% humidity range.
• Wiring: Ensure all communication and power cables are properly shielded to avoid interference.
• Maintenance: Disconnect power before cleaning or performing any hardware adjustments.

Note : All tax and custom duty should be pay by buyer only.

Note: All trademarks and trade names used are the property of their respective owners.
