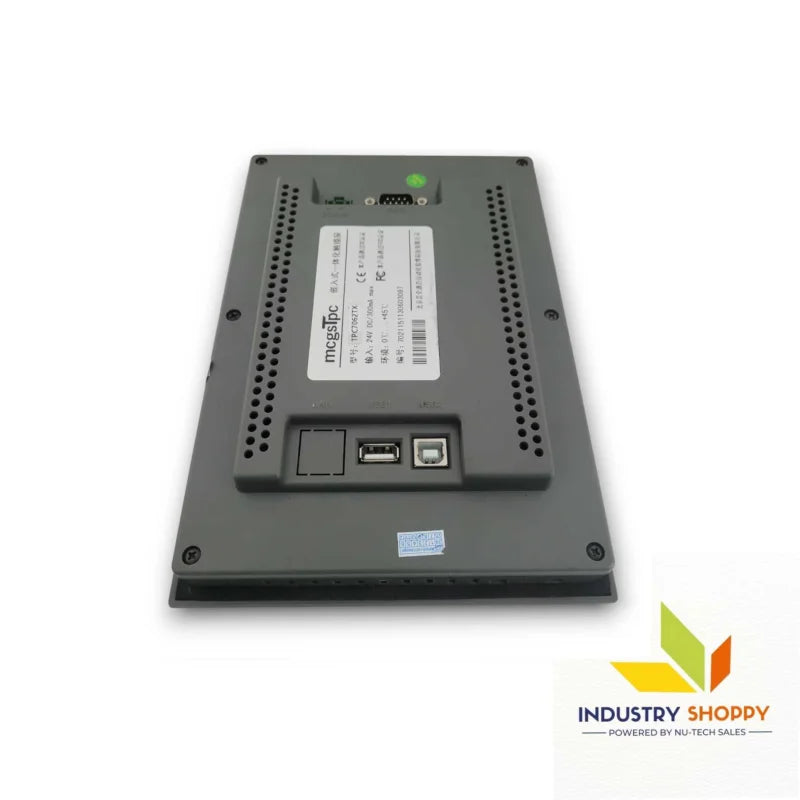

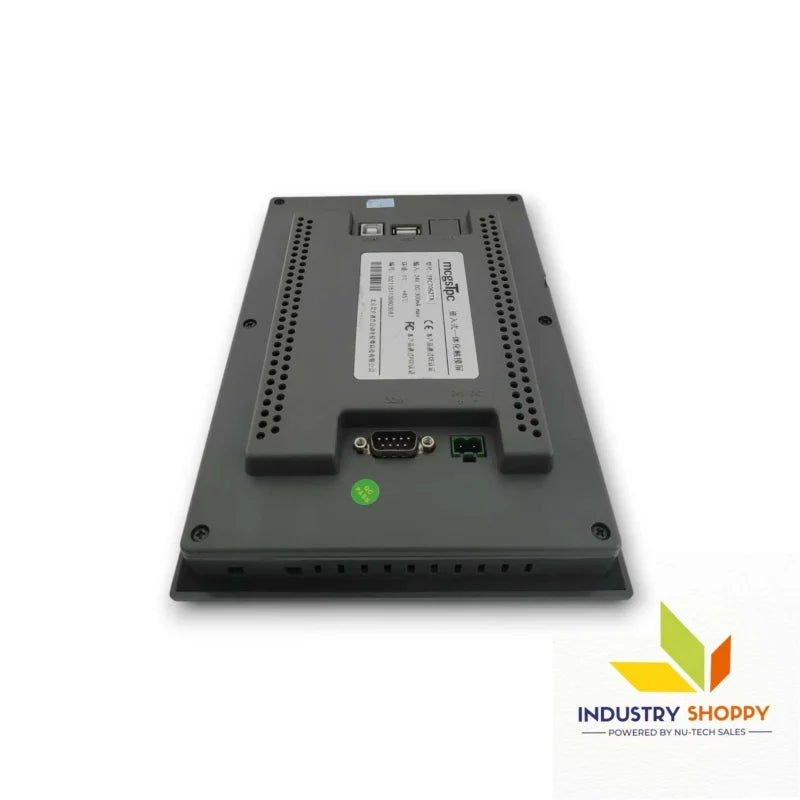

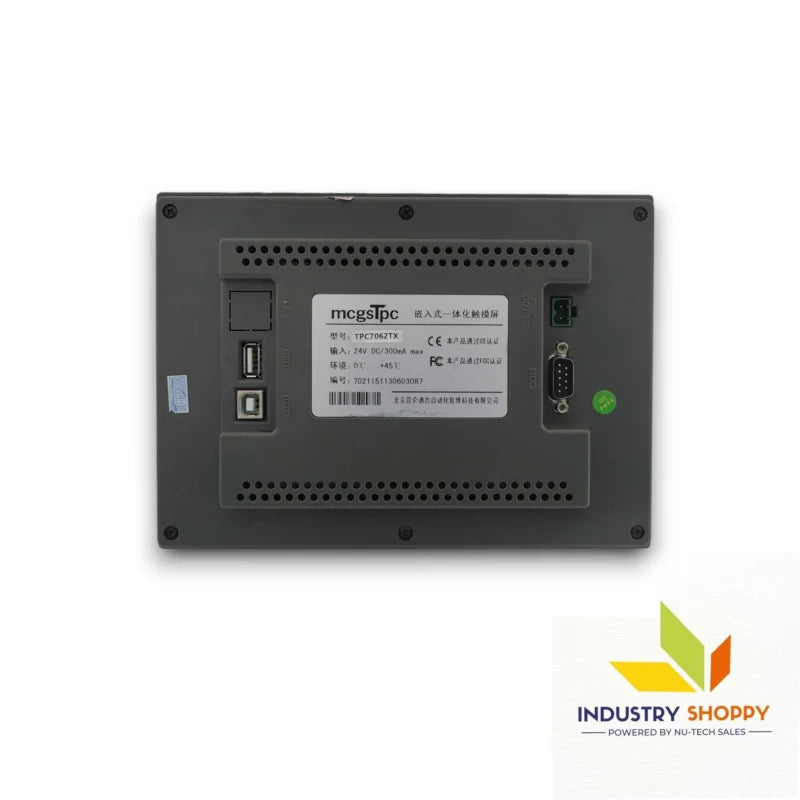

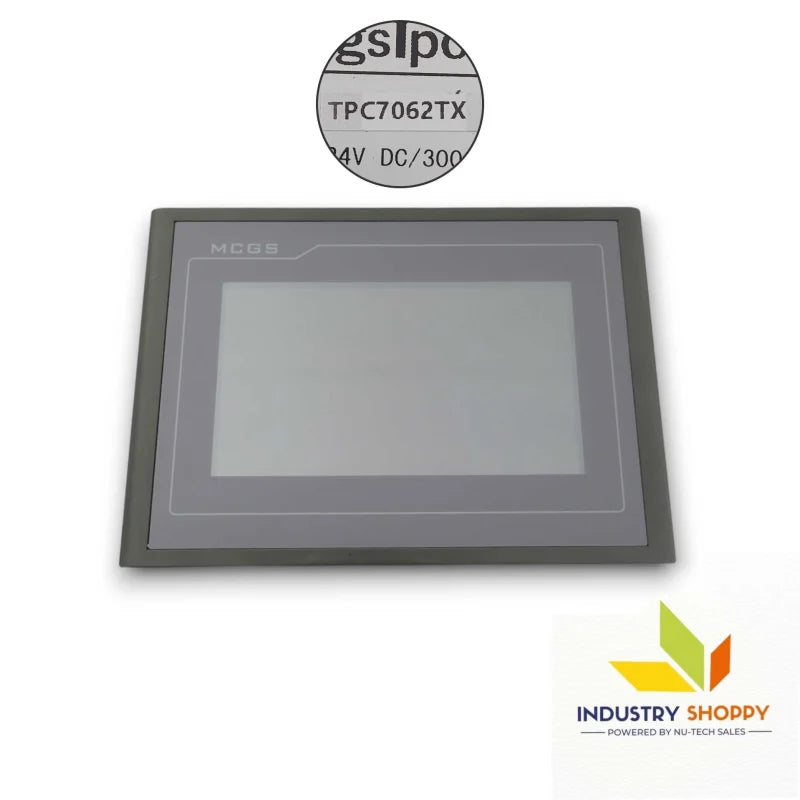

MCGS TPC7062TX(KX) HMI Panel

MCGS TPC7062TX(KX) HMI Panel

The MCGS TPC7062TX(KX) HMI Operator Panel is a 7-inch human-machine interface designed for seamless industrial automation control. Featuring a TFT LCD with an LED backlight, it delivers a vibrant true-color display with 65,535 colors and a resolution of 800×480 pixels, ensuring crisp and clear visuals.

Built for precision and durability, it includes a resistive touch screen for responsive and accurate operation. Running on a 400MHz ARM CPU with 64MB memory, it provides reliable performance for real-time monitoring and control applications.

The 24V DC power input with a 5W power rating ensures energy-efficient operation, while the rugged industrial plastic enclosure offers protection in demanding environments. Designed to operate within a temperature range of 0°C to 45°C, this HMI is built to handle industrial conditions effectively.

Connectivity is a key feature of the MCGS TPC7062TX(KX), with Com1 RS232 and Com2 RS485 serial ports, 1 host USB and 1 client USB port, and a 10/100M Ethernet port, allowing flexible communication with industrial systems.

Certified with CE and FCC approvals, this China-manufactured HMI guarantees quality, reliability, and compliance with industry standards. Whether used for factory automation, process control, or machinery operation, the MCGS TPC7062TX(KX) delivers efficient and user-friendly performance.

Applications:

• Machine control and monitoring panels

• PLC-based automation systems

• Packaging and production lines

• Industrial process visualization

Technical Precautions:

• Use only 24 V DC (±20%) power supply

• Avoid exposure beyond 0–50 °C temperature range

• Ensure proper panel sealing to maintain IP65 rating

• Do not use sharp objects on the resistive touch screen
