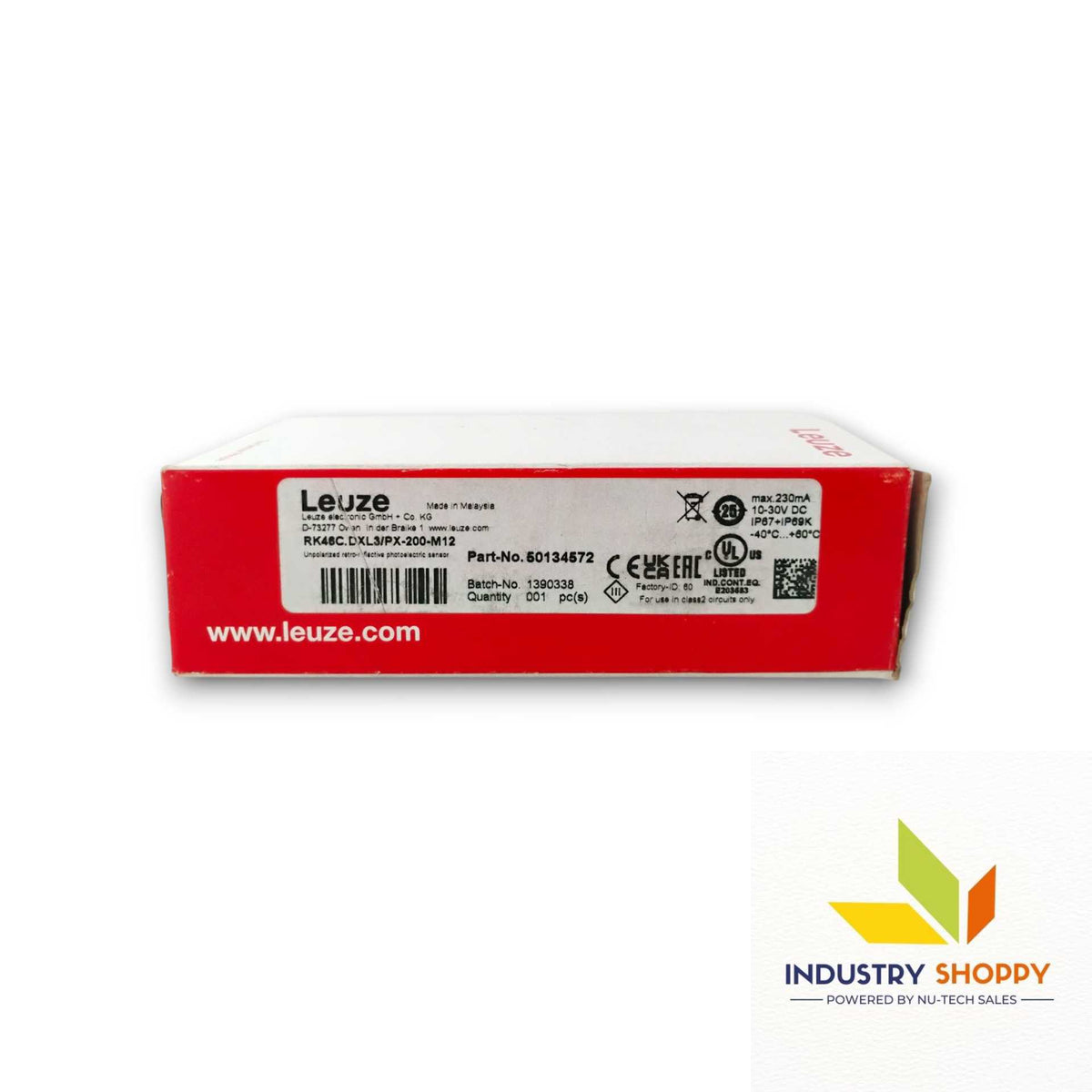

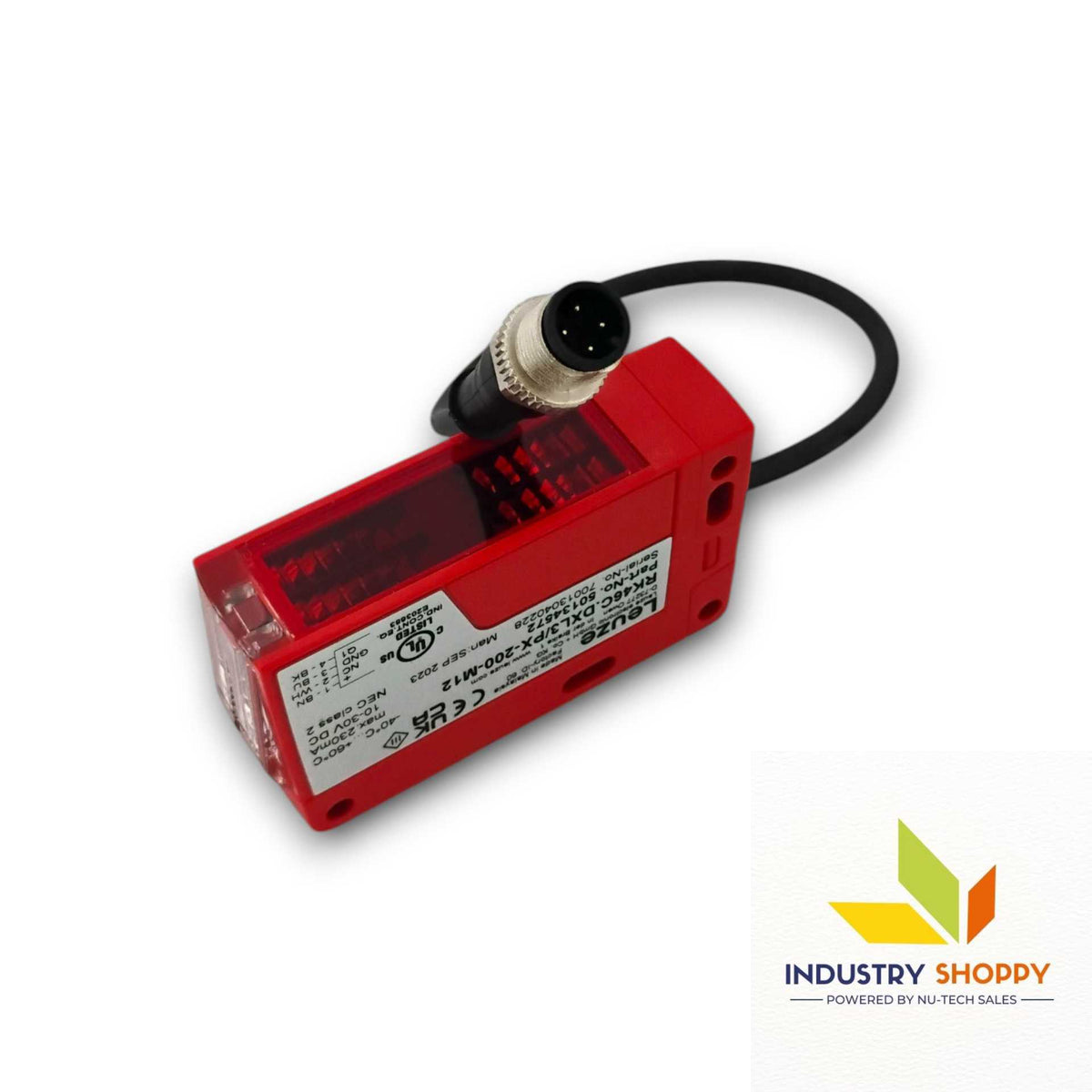

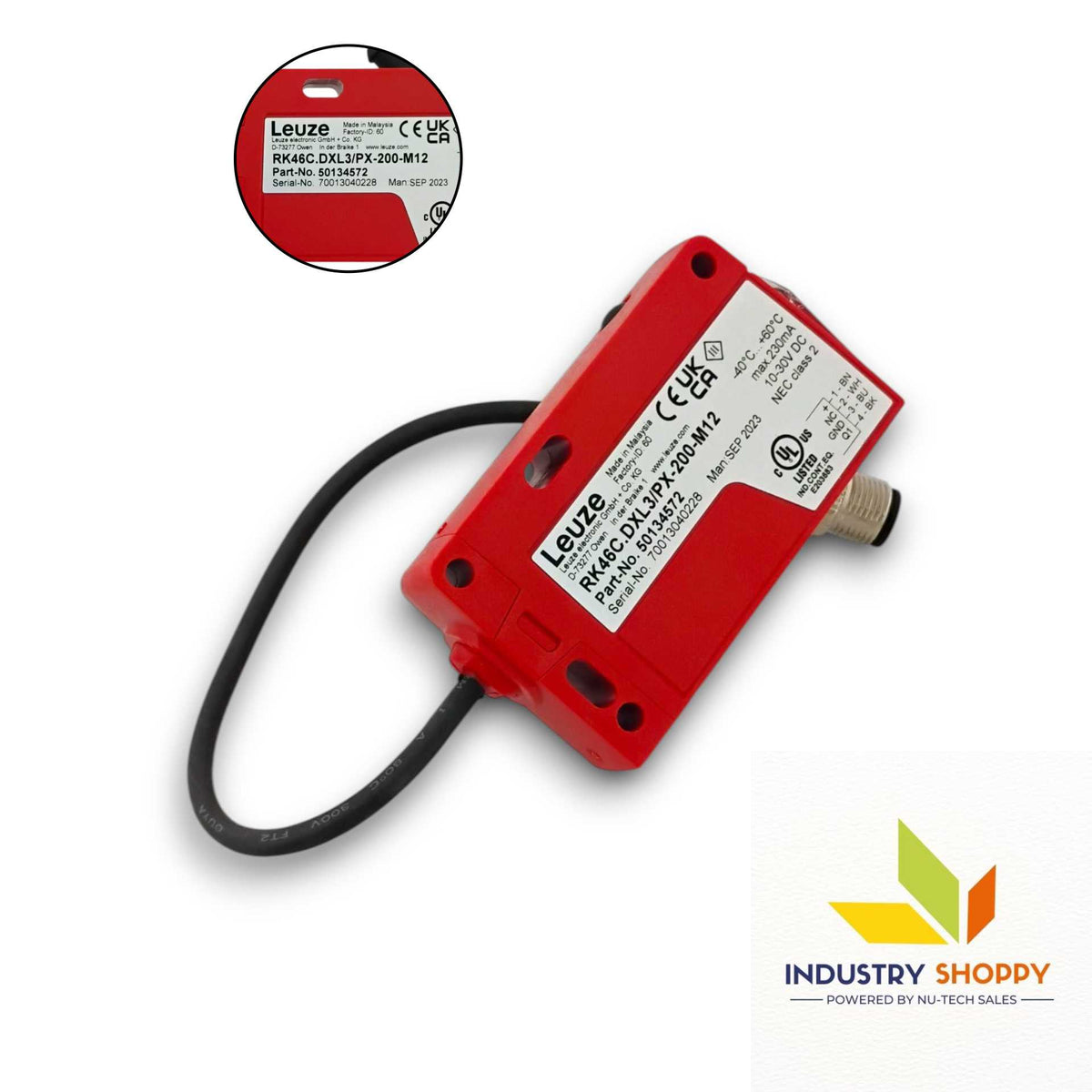

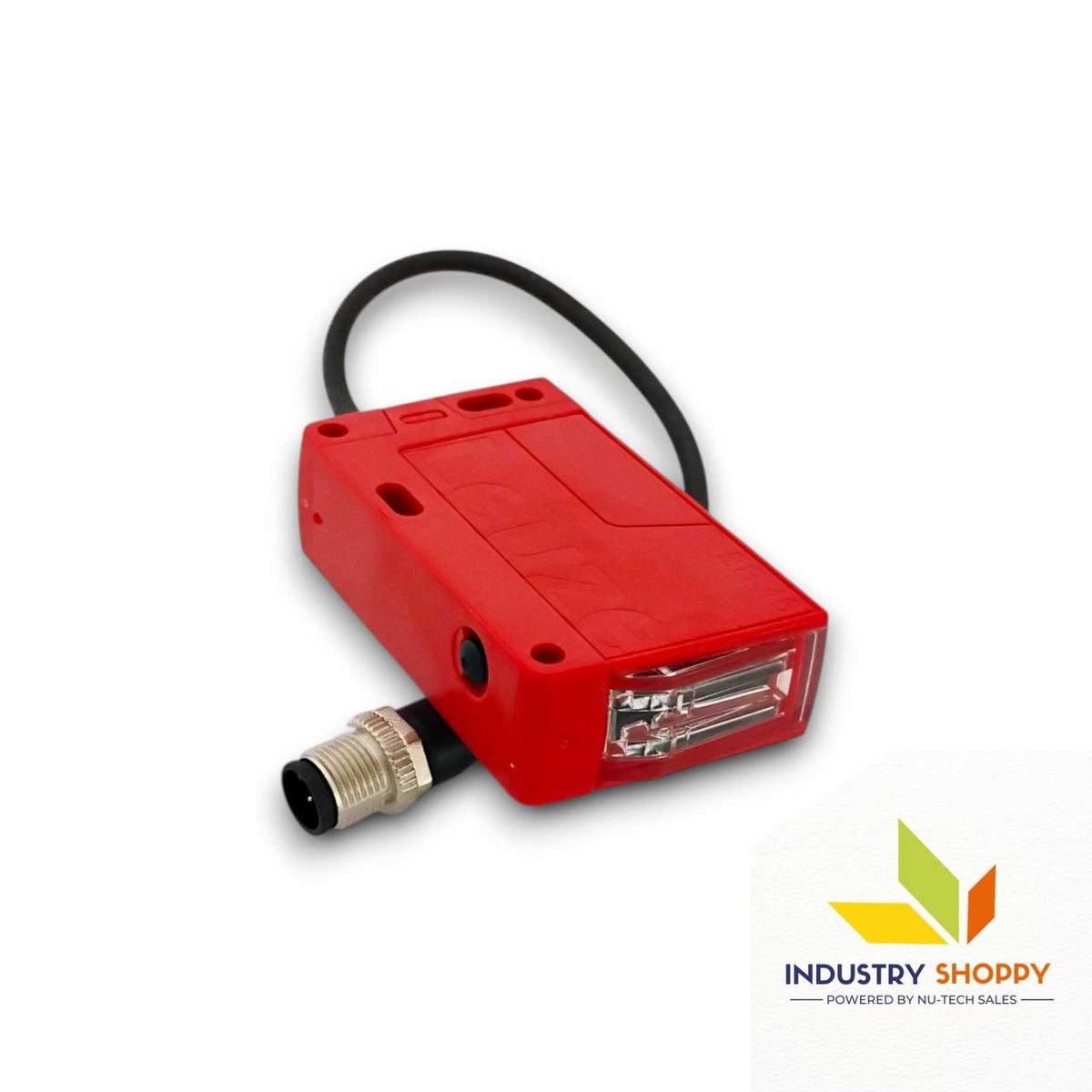

Leuze RK46C.DXL3/PX-200-M12 Photoelectric Sensor
Leuze RK46C.DXL3/PX-200-M12 Photoelectric Sensor
Leuze RK46C.DXL3/PX-200-M12 Photoelectric Sensor
Leuze RK46C.DXL3/PX-200-M12 Photoelectric Sensor
Leuze RK46C.DXL3/PX-200-M12 Photoelectric Sensor
Leuze RK46C.DXL3/PX-200-M12 Photoelectric Sensor
Leuze RK46C.DXL3/PX-200-M12 Photoelectric Sensor
Leuze RK46C.DXL3/PX-200-M12 Photoelectric Sensor
Leuze

Leuze RK46C.DXL3/PX-200-M12 Photoelectric Sensor

Product SKU: NTSSEN00836
Available:
Only 6 items in stock
6 items in stock
In stock
Pre-order
Out of stock
  • Brand
:  Leuze
  • Supply Voltage (UB)
:  10 ... 30 V, DC, Incl. residual ripple
  • Part Number
:  50134572
  • Type
:  Photoelectric Sensor
  • Open-circuit current
:  0 ... 20 mA
  • Type of Connection
:  Cable with connector


Note :- Custom duty and local tax should be pay by buyer only.

$250.00
$325.00
Notify me When Available
You will receive an email when the product is available.
Want it delivered by
  • Description
  • Specifications
  • Declaration

Leuze RK46C.DXL3/PX-200-M12 Photoelectric Sensor

The Leuze RK46C.DXL3/PX-200-M12 Photoelectric Sensor (50134572) from Leuze electronic is a high-performance reflection photoelectric sensor designed for reliable detection of irregular, stretch-wrapped, and perforated objects on conveyor systems.

Featuring an extra-long light band (40–60 mm) and extended sensing range up to 4 meters, it ensures accurate detection even for challenging targets. Its minimum detectable object size of 8 mm enhances precision in demanding applications. Equipped with a PNP output and dark switching, it offers stable performance with a response time of 2 ms and switching frequency of 250 Hz.

The sensor supports AS-Interface connectivity via coupling module for easy integration. Built with a rugged PC-PBT housing, IP67/IP69K protection, and wide temperature range (-40°C to +60°C), it is ideal for harsh industrial environments. A Teach button allows quick and easy sensitivity adjustment.


Applications

  • Conveyor belt object detection

  • Detection of stretch-wrapped packages

  • Irregular and perforated object sensing

  • Material handling and logistics systems


Technical Precautions

  • Use proper reflector for optimal performance

  • Ensure correct alignment for long-range detection

  • Avoid strong ambient light interference

  • Keep lens clean for consistent sensing accuracy

While our engineers carefully upload product details based on official datasheets, occasional errors may still occur. We encourage users to verify specifications as needed for complete accuracy.

IndustryShoppy.com offers a wide selection of industrial automation products—from sensors and HMIs to PLCs and more. Designed for convenience, our platform ensures a smooth shopping experience backed by reliable service and customer-focused support. Explore our extensive range and elevate your industrial operations with confidence.

Note : All tax and custom duty should be pay by buyer only.

Note: All trademarks and trade names used are the property of their respective owners.


Facebook, YouTube,


BrandLEUZE
Product NumberRK46C.DXL3/PX-200-M12
Part Number50134572

Series

46C
Operating principleReflection principle
ApplicationDetection of irregular objects on conveyor belt, Detection of objects with openings, Detection of stretch-wrapped objects
Switching distance Sn0 ... 4,000 mm

Special version

Connection via coupling module to AS-Interface, Extra long light spot (XL)

Operating range

0.4 ... 4 m (guaranteed operating range), With reflector TK(S) 100x100
Operating range limit0.4 ... 5.2 m (typical operating range), With reflector TK(S) 100x100
Measurement field length60 mm
Type of detection rangeLight-band 40-60 mm
Light sourceLED, Red
Wavelength620 nm
Transmitted-signal shapePulsed
LED groupExempt group (in acc. with EN 62471)

Minimum object size

8 mm

Supply voltage UB

10 ... 30 V, DC, Incl. residual ripple
Residual ripple0 ... 15 %, From UB
Open-circuit current0 ... 20 mA

Number of digital switching outputs

1 Piece(s)

Type

Digital switching output
Voltage typeDC
Switching current, max.100 mA
Switching voltagehigh: ≥(UB-2V), low: ≤ 2 V

Switching element

Transistor, PNP
Switching principleDark switching

Switching frequency

250 Hz
Response time2 ms
Readiness delay300 ms

Number of connections

1 Piece(s)

Function

Signal OUT Voltage supply
Type of connectionCable with connector
Cable length200 mm
Sheathing materialPUR
Cable colorBlack
Wire cross section0.2 mm²
Thread sizeM12
TypeMale
MaterialPlastic
No. of pins4 -pin
EncodingA-coded

Design

Cubic
Dimension (W x H x L)20.5 mm x 76.3 mm x 44 mm
Housing materialPlastic
Plastic housingPC-PBT
Lens cover materialPlastic / PMMA
Housing colorRed
Type of fasteningThrough-hole mounting Via optional mounting device
Recommended tightening torque for M3 fastening0.9 N·m
Recommended tightening torque for M4 fastening1.4 N·m
Compatibility of materialsECOLAB

Type of display

LED
Number of LEDs2 Piece(s)
Operational controlsTeach button
Function of the operational controlLight/dark switching Sensitivity adjustment

Ambient temperature, operation

-40 ... 60 °C
Ambient temperature, storage-40 ... 70 °C

Degree of protection

IP 67 IP 69K
Protection classIII
Approvalsc UL US
Standards appliedIEC 60947-5-2
Country of originMalaysia
