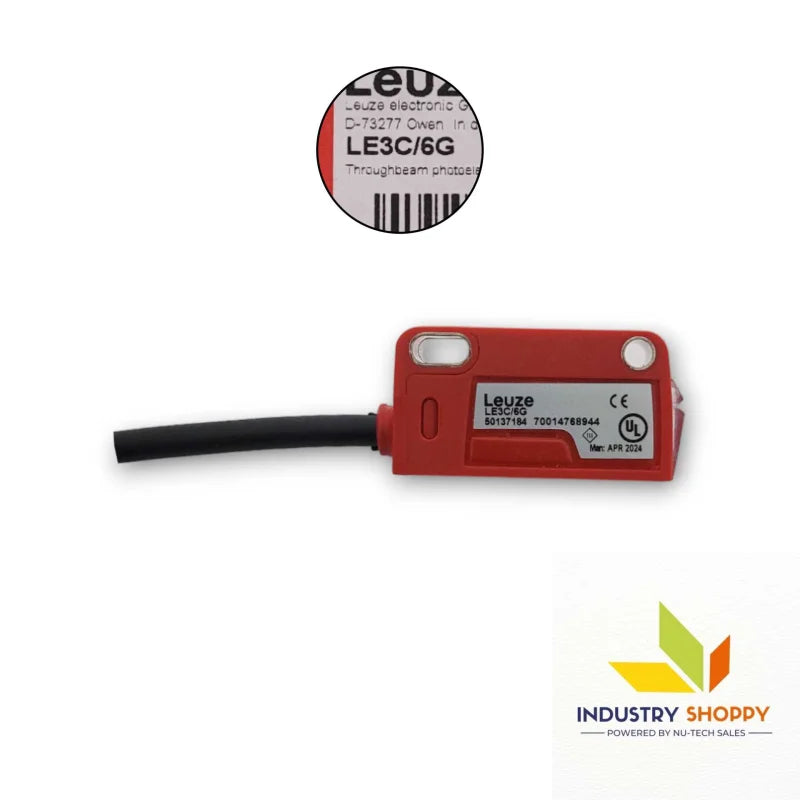

Leuze LE3C/6G Photoelectric Sensor Receiver

Leuze LE3C/6G Photoelectric Sensor Receiver

The Leuze LE3C/6G is a high-performance throughbeam photoelectric sensor receiver designed for reliable object detection in industrial automation environments. With a maximum sensing range of 10 meters, it delivers fast response times and stable performance under demanding conditions.

It supports light/dark switching with a push-pull transistor output, making it adaptable to both PNP and NPN logic types. Operating at a switching frequency of 1,000 Hz, it ensures precise and rapid signal transmission. The wide voltage range (10–30 V DC) and low current consumption enhance energy efficiency while ensuring compatibility with standard control systems.

This receiver is housed in a compact, durable PC-ABS plastic enclosure with IP67/IP69K ratings, ensuring resistance to dust, water, and high-pressure cleaning. ECOLAB material compatibility further enhances its suitability for hygiene-sensitive environments like food processing.

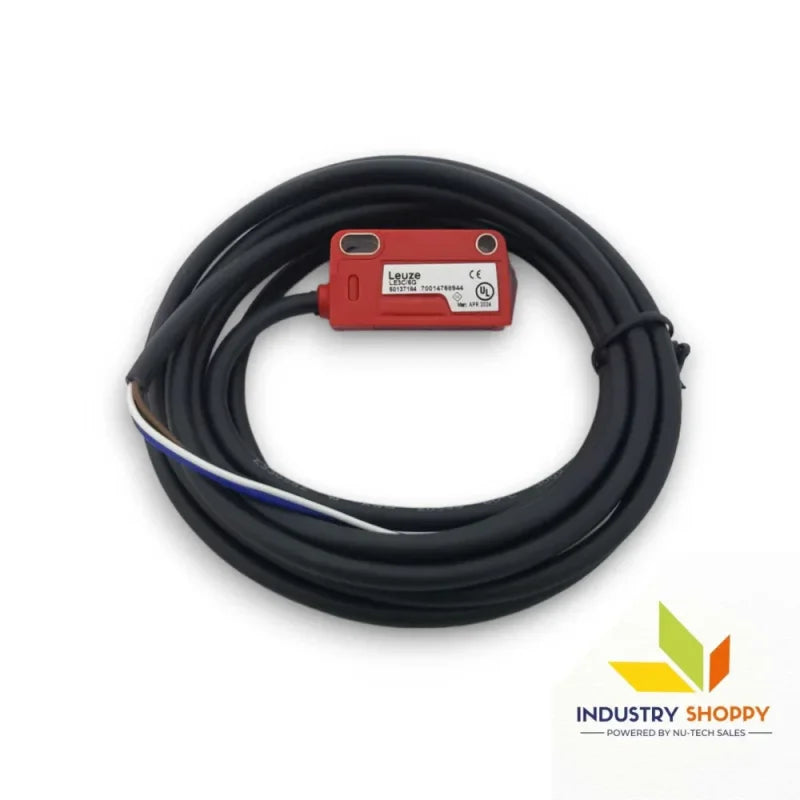

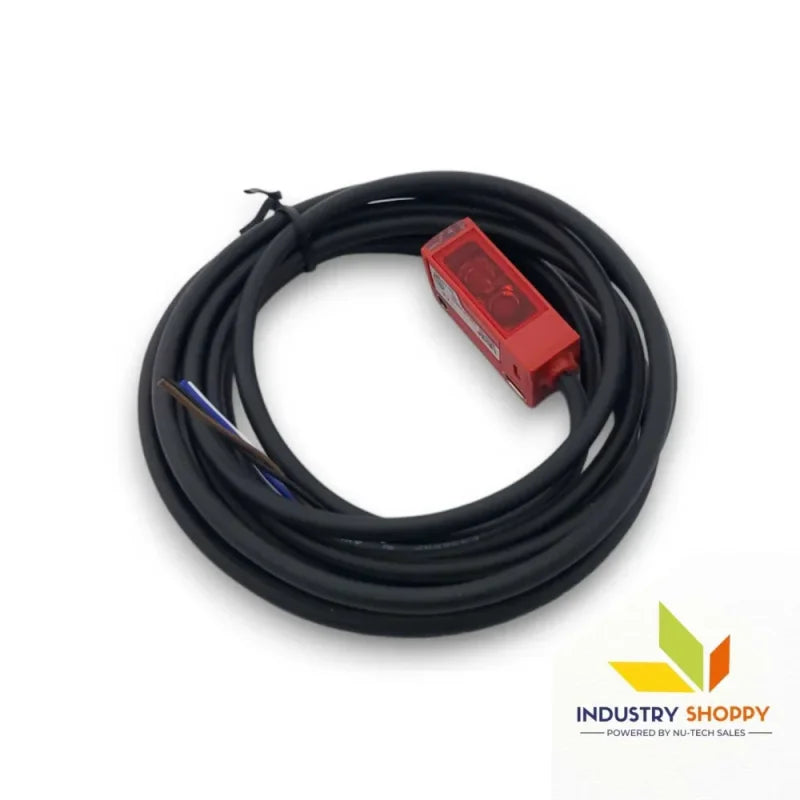

The 2-meter PUR cable, integrated LED indicators, and versatile mounting options make installation and status monitoring straightforward in tight or complex setups.

Key features :-

Applications :-

• Automated Packaging Lines
  Accurately detects objects passing at high speed, ensuring reliable presence verification and system flow control.
• Bottling and Beverage Facilities
  Used in clean environments to detect bottles or containers without contamination risk, thanks to ECOLAB-compliant materials.
• Warehouse and Conveyor Systems
  Ensures smooth operation by confirming item passage or alignment in logistics and distribution centers.
• Food and Pharmaceutical Processing
  Suitable for hygienic areas requiring robust sensors that withstand washdowns and exposure to harsh chemicals.
• Industrial Assembly Equipment
  Provides high-speed part detection in robotic or semi-automated assembly lines for better process accuracy.

Precautions:

• Ensure Correct Wiring: Incorrect connections can cause sensor failure
• Avoid Overvoltage: Operating within 10-30V DC prevents damage
• Protect from Extreme Heat: Avoid installing near high-temperature sources
• Regular Cleaning: Keep the optical lens free from dust and debris for optimal performance
