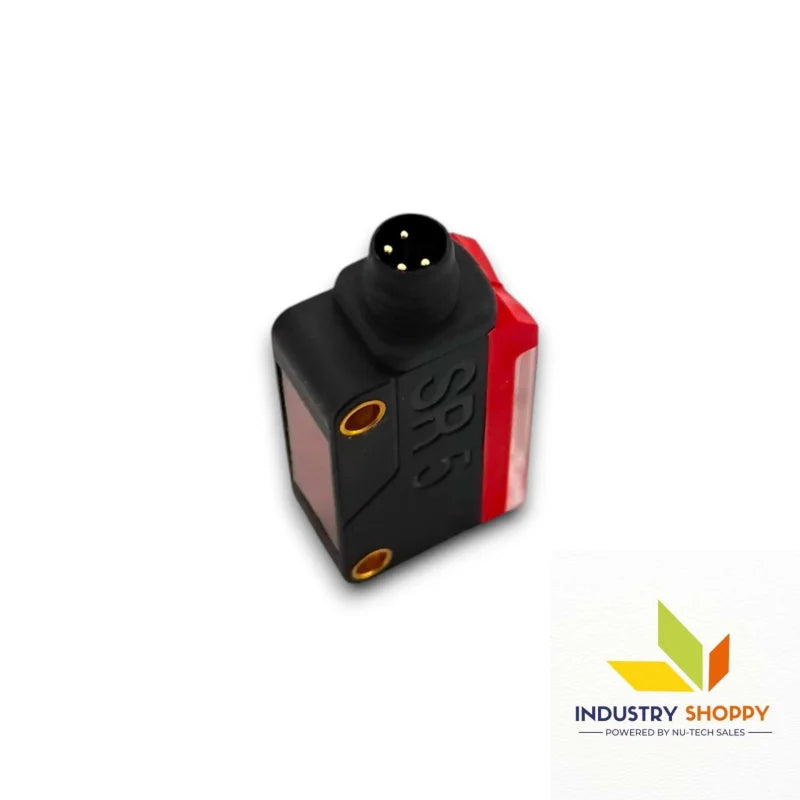

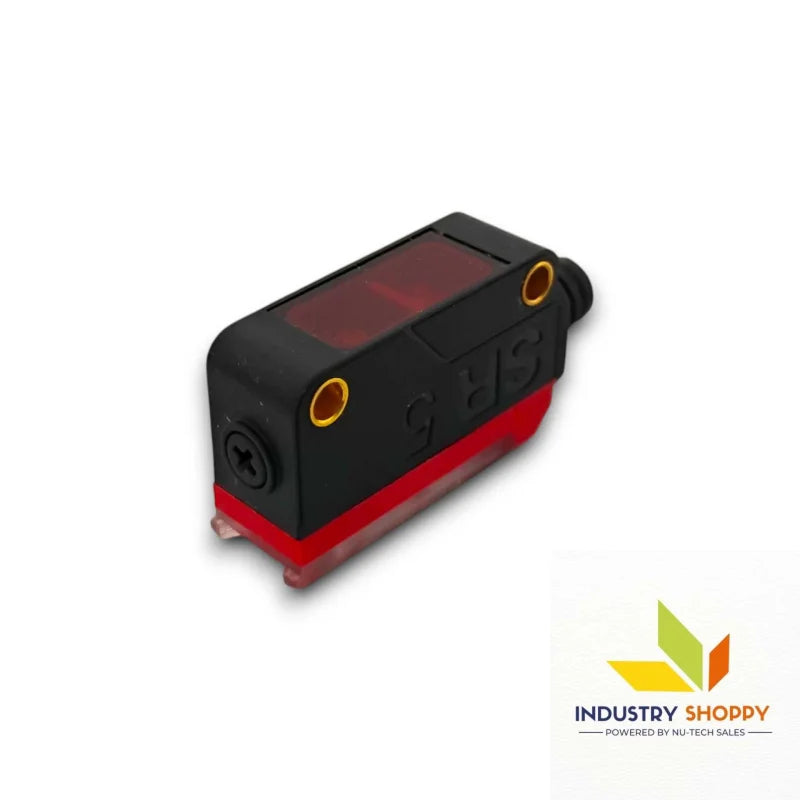

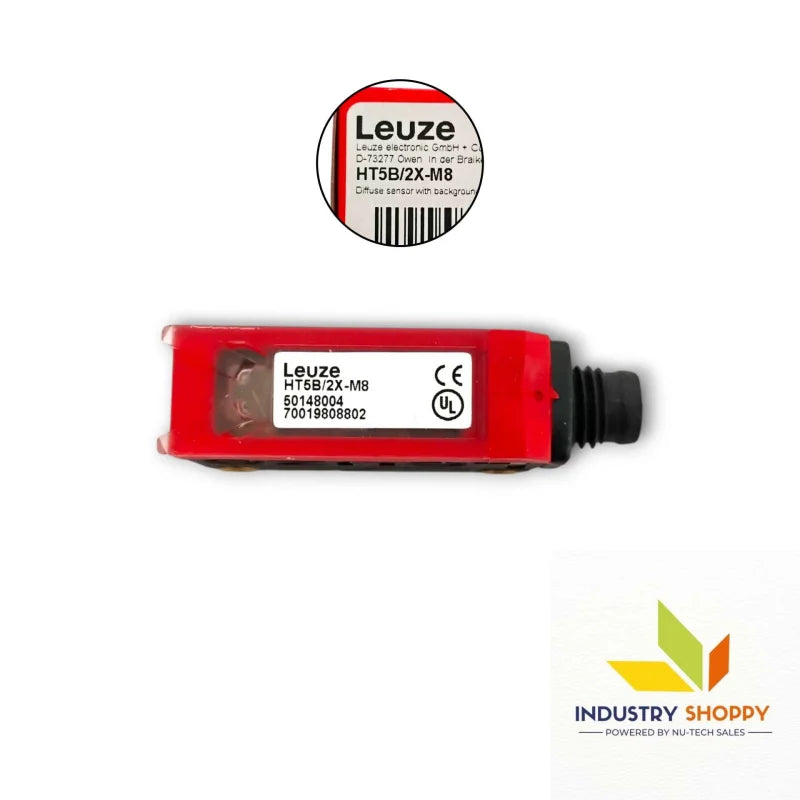

Leuze HT5B/2X-M8 Diffuse Sensor

Product SKU: NTSSEN00745

Available:

Only 50 items in stock

50 items in stock

In stock

Pre-order

Out of stock

Brand: Leuze
Part No.: 50148004
Operating Principle: Diffuse reflection with background suppression
Supply Voltage (UB): 10 … 30 V DC (incl. residual ripple)
Switching Element: Transistor, NPN
Connection Type: Connector
No. of pins : 04 Pins

Note : All tax and custom duty should be pay by buyer only.

For Indian Buyers: IndustryShoppy.in

$99.00

~~$170.00~~

Want it delivered by

Description
Specifications
Declaration
Reviews

Leuze HT5B/2X-M8 Diffuse Sensor

The Leuze HT5B/2X-M8 Diffuse Sensor (50148004) is a compact and high-performance diffuse photoelectric sensor featuring background suppression technology for precise object detection. With an adjustable sensing range of 20 to 400 mm, it ensures reliable detection regardless of object color variations.

The sensor operates using a focused red LED (645 nm) with pulsed transmission and maintains a black-white error below 15% up to 200 mm. Powered by 10–30 V DC, it offers a NPN digital switching output with a fast 0.5 ms response time and 1,000 Hz switching frequency, making it suitable for dynamic automation processes.

Housed in durable PC-ABS plastic with IP67 protection, the unit withstands demanding industrial conditions. The M8 4-pin male connector ensures secure connectivity, while a multiturn potentiometer allows precise range adjustment.

Applications

Object detection on conveyor systems
Packaging and labeling machines
Assembly and material handling lines
Position detection in automation equipment

Technical Precautions

Adjust sensing range properly using multiturn potentiometer
Maintain correct supply voltage (10–30 V DC)
Ensure secure M8 connector installation
Avoid direct lens contamination for optimal performance

While our engineers carefully upload product details based on official datasheets, occasional errors may still occur. We encourage users to verify specifications as needed for complete accuracy.

IndustryShoppy.com offers a wide selection of industrial automation products—from sensors and HMIs to PLCs and more. Designed for convenience, our platform ensures a smooth shopping experience backed by reliable service and customer-focused support. Explore our extensive range and elevate your industrial operations with confidence.

Note : All tax and custom duty should be pay by buyer only.

Note: All trademarks and trade names used are the property of their respective owners.

Facebook, YouTube,

Model	HT5B/2X-M8
Brand	LEUZE
Part No.	50148004
Sensor Type	Diffuse Sensor
Series	5B
Operating principle	Diffuse reflection principle with background suppression
Black-white error	< 15% up to 200 mm
Operating range	Guaranteed operating range
Operating range, white 90%	0.002 ... 0.4 m
Operating range, gray 18%	0.005 ... 0.3 m
Operating range, black 6%	0.01 ... 0.2 m
Operating range limit	0.002 ... 0.4 m (typical operating range)
Adjustment range	20 ... 400 mm
Beam path	Focused
Light source	LED, Red
Wavelength	645 nm
Transmitted-signal shape	Pulsed
LED group	Exempt group (in acc. with EN 62471)
Type of light spot geometry	Round
Focus	Fixed
Focal distance	200 mm
Supply voltage UB	10 ... 30 V, DC, Incl. residual ripple
Residual ripple	0 ... 15 %, From UB
Open-circuit current	0 ... 15 mA
Type	Digital switching output
Switching element	Transistor, NPN
Switching principle	Light switching
Switching frequency	1,000 Hz
Response time	0.5 ms
Readiness delay	300 ms
Function	Signal OUT Voltage supply
Type of connection	Connector
Thread size	M8
Type	Male
Material	Plastic
No. of pins	4 -pin
Dimension (W x H x L)	11 mm x 32.4 mm x 20 mm
Housing material	Plastic
Plastic housing	PC-ABS
Lens cover material	Plastic / PMMA
Housing color	Black Red
Type of fastening	Two M3 threaded sleeves Via optional mounting device
Recommended tightening torque for M3 fastening	0.9 N·m
Compatibility of materials	ECOLAB
Type of display	LED
Number of LEDs	2 Piece(s)
Operational controls	Multiturn potentiometer
Function of the operational control	Range adjustment
Ambient temperature, operation	-40 ... 60 °C
Ambient temperature, storage	-40 ... 70 °C
Degree of protection	IP 67
Protection class	III
Country of origin	Malaysia
