Leuze GS04B/P.1-120-M8.3 Photoelectric Sensor

Leuze GS04B/P.1-120-M8.3 Photoelectric Sensor

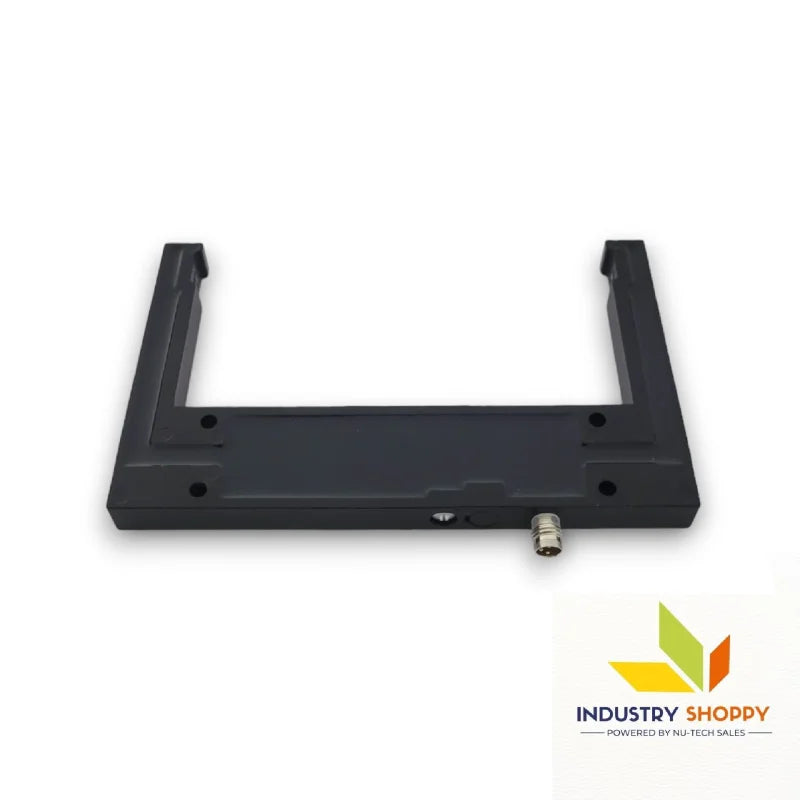

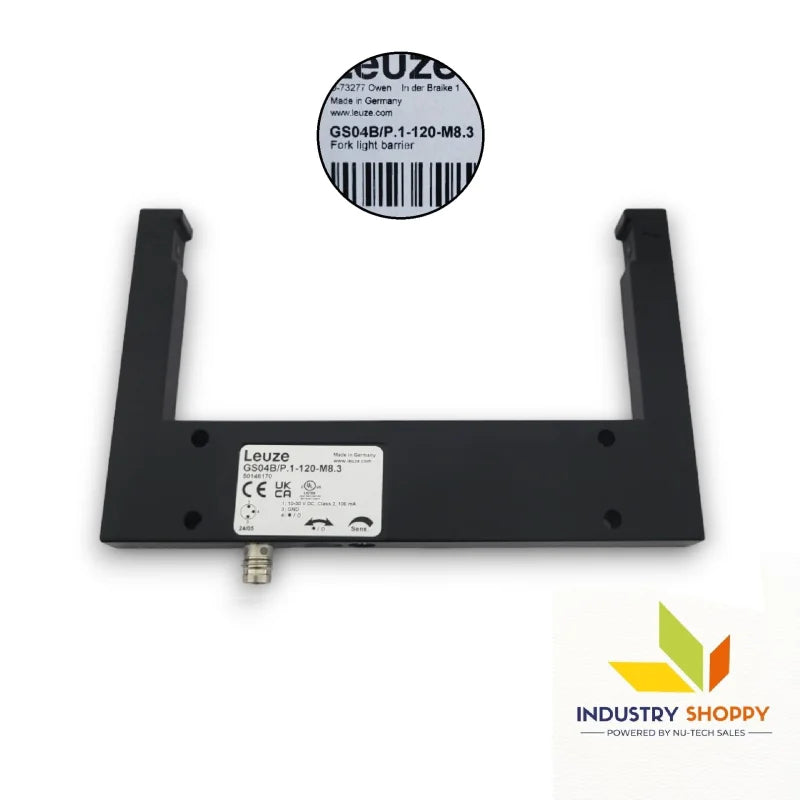

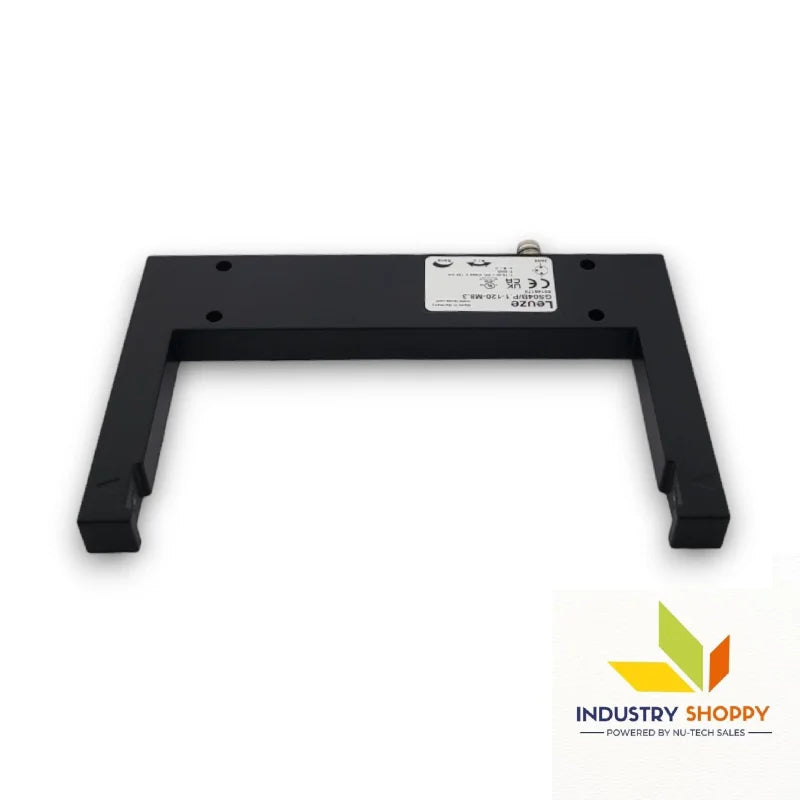

The Leuze GS04B/P.1-120-M8.3 Photoelectric Sensor delivers precise small-part detection in demanding industrial applications. Its fork design with a 120 mm mouth width and 60 mm depth ensures stable, alignment-free mounting for fast integration. Equipped with a red LED light source (660 nm) and pulsed signal transmission, the sensor reliably detects objects as small as 0.5 mm with 0.02 mm repeatability.

This compact, rugged sensor is housed in diecast zinc and offers IP67 protection, making it ideal for harsh environments. The light/dark switchable PNP output allows flexible adaptation, and the high 5,000 Hz switching frequency ensures real-time responsiveness for high-speed applications.

Setup is simplified by the integrated 270° potentiometer, allowing for sensitivity adjustment and light/dark mode selection. With short circuit and polarity reversal protection, this sensor is engineered for long-term reliability in automated systems.

Whether for packaging, sorting, counting, or quality inspection, the GS04B/P.1-120-M8.3 delivers consistent performance, even for micro-sized components.

Key features :-

Applications :-

• Part Counting: Accurately detects small components in automated counting systems.
• Sorting Machines: Ensures reliable part presence detection during sorting.
• Packaging Lines: Verifies the presence of small products before packaging.
• Assembly Automation: Detects tiny components in pick-and-place processes.
• Quality Assurance: Identifies defective or missing micro parts in production.

Precautions:

• Ensure Correct Wiring: Incorrect connections can cause sensor failure
• Avoid Overvoltage: Operating within 10-30V DC prevents damage
• Protect from Extreme Heat: Avoid installing near high-temperature sources
• Regular Cleaning: Keep the optical lens free from dust and debris for optimal performance
