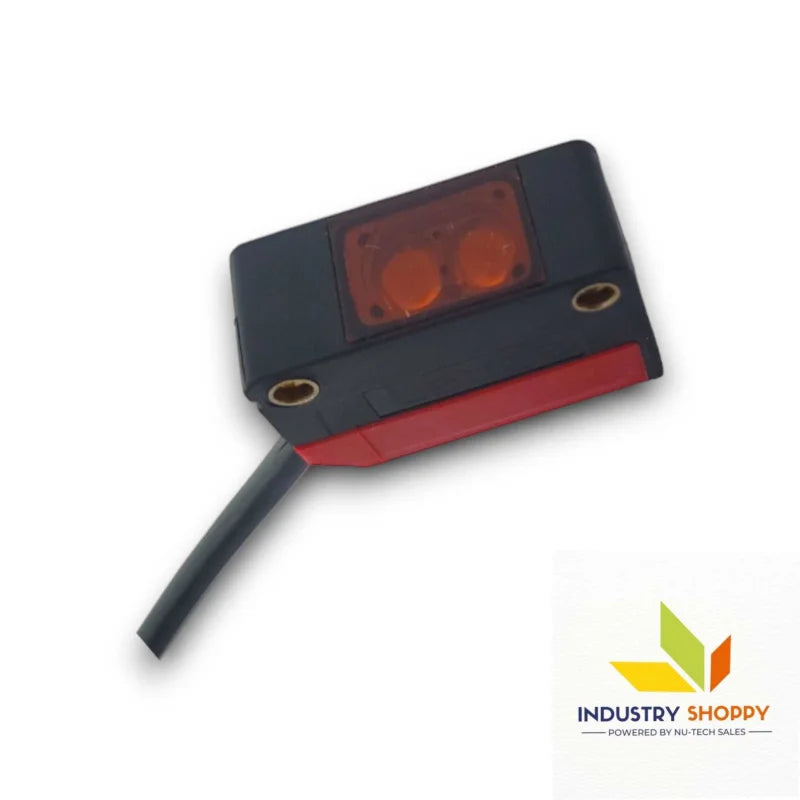

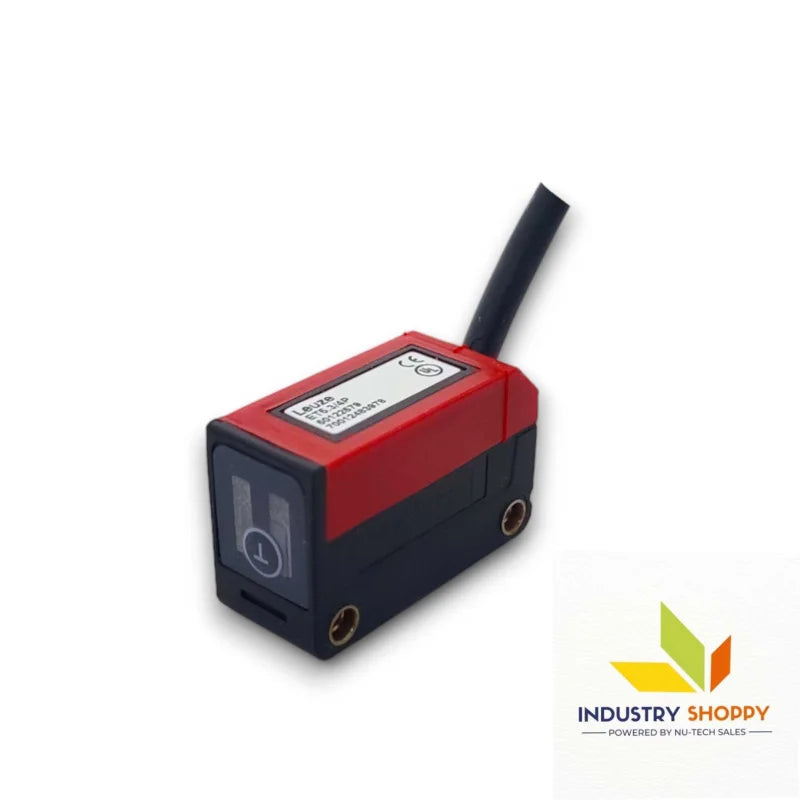

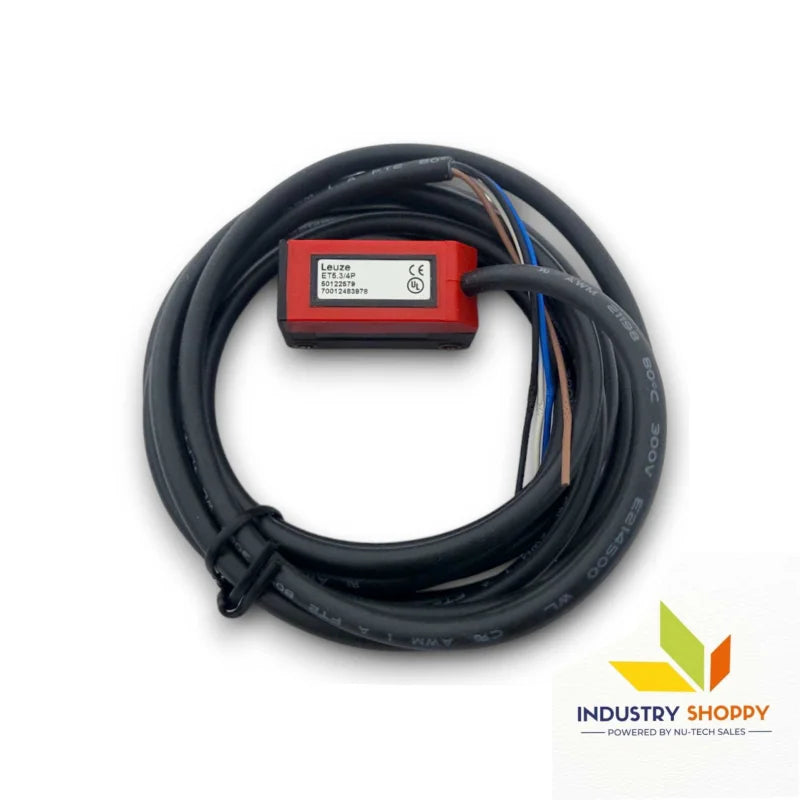

Leuze ET5.3/4P Diffuse Sensor

Leuze ET5.3/4P Diffuse Sensor

Part No. 50122579

The Leuze ET5.3/4P is a high-performance diffuse reflection photoelectric sensor engineered for accurate object detection up to 1 meter, even with low reflectivity materials. It uses a 620 nm red LED and provides reliable detection across varying surface colors, from white (90%) at 0.7 m to black (6%) at 0.28 m, ensuring versatility in demanding environments.

With its compact form factor (14 x 32.5 x 20.2 mm), the sensor fits seamlessly into tight spaces. It features a 4-wire PNP transistor output and supports both light and dark switching modes, offering adaptability for different system logic requirements. The Teach button makes setup simple, allowing easy tuning to target materials without manual recalibration.

Rated IP67, the ET5.3/4P is built to withstand harsh industrial conditions, including temperature extremes from -40 to +60°C. A durable ABS plastic housing and PUR-sheathed cable add mechanical resilience. Whether for automation lines, packaging systems, or robotic applications, the ET5.3/4P is ideal where longer detection range and precise sensing are required in a compact, rugged format.

Key features :-

Applications :-

• Longer Range Sensing
  Detects objects up to 1 meter with high accuracy, even dark materials.
• Compact Industrial Integration
  Slim housing fits into tight spaces on machinery or robotic arms.
• Flexible Output Logic
  PNP with both light/dark switching for varied control system compatibility.
• Simple Setup
  On-device Teach button for quick adaptation to targets and distances.
• Tough Environments
  IP67 protection and wide temperature range for use in harsh settings.

Precautions:

• Ensure Correct Wiring: Incorrect connections can cause sensor failure
• Avoid Overvoltage: Operating within 10-30V DC prevents damage
• Protect from Extreme Heat: Avoid installing near high-temperature sources
• Regular Cleaning: Keep the optical lens free from dust and debris for optimal performance
