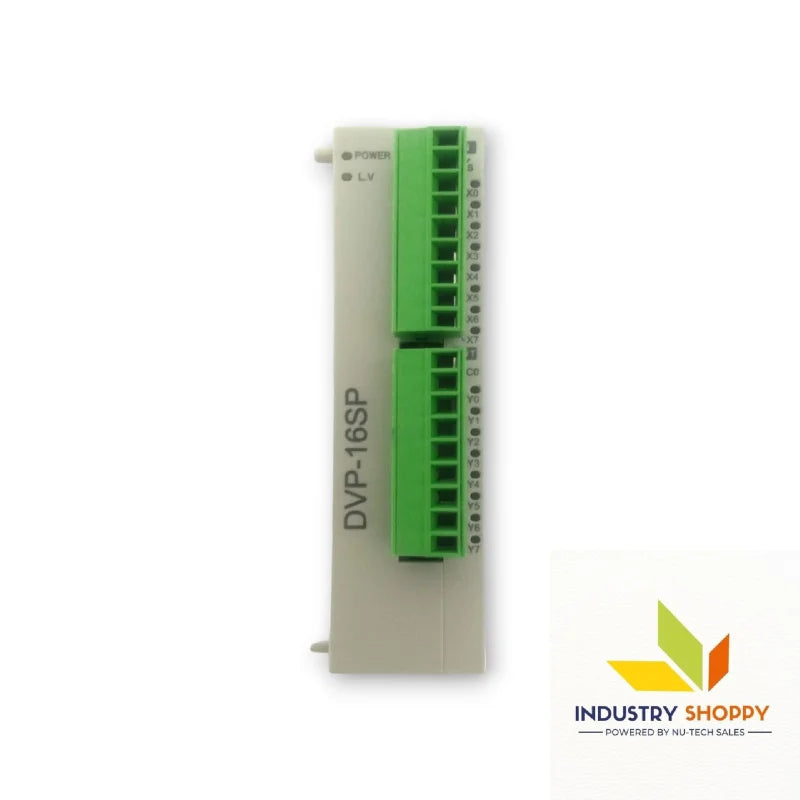

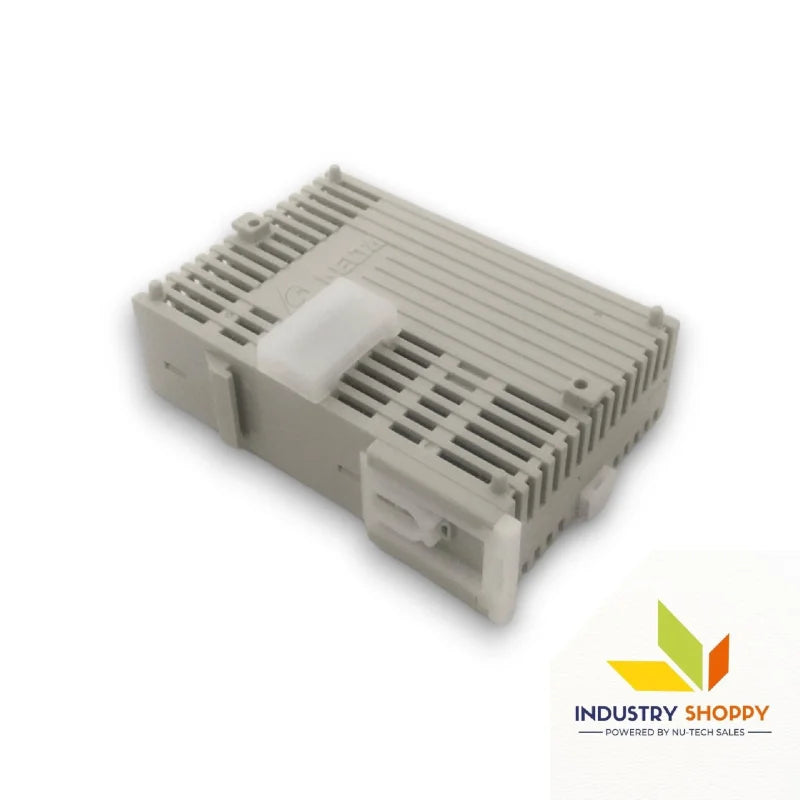

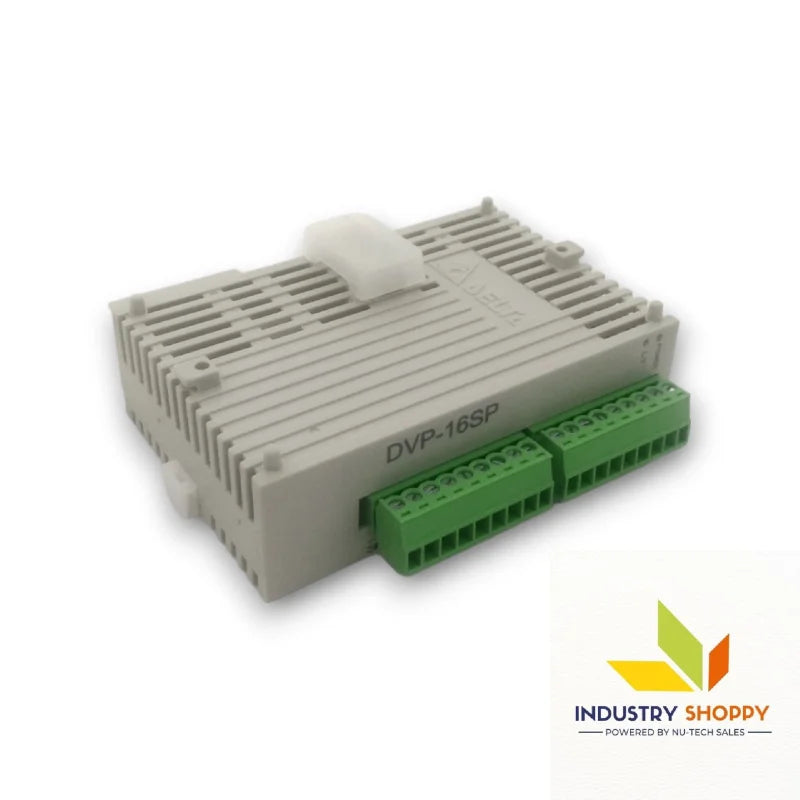

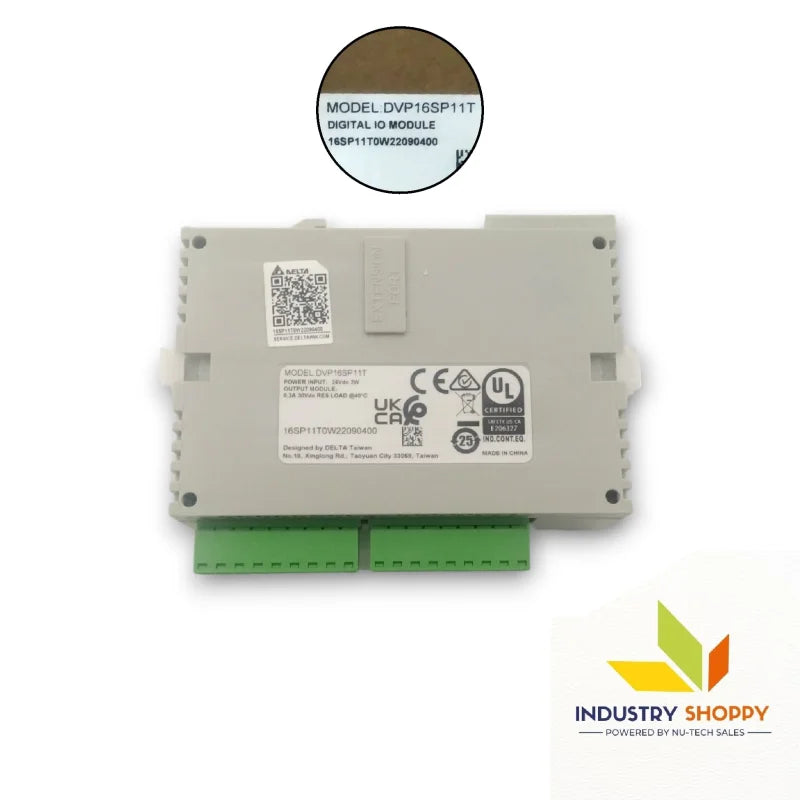

Delta DVP16SP11T PLC Module

Delta DVP16SP11T PLC Module

The Delta DVP16SP11T PLC Module is designed to provide precise, high-speed performance for modern automation systems. Equipped with 8 digital inputs and 8 transistor (NPN) outputs, this module offers reliable, real-time control for various industrial applications.

Its 24VDC power supply with built-in counter-connection protection ensures safe operation even in fluctuating environments. The module features IP20-rated protection and strong electrical durability, including spike voltage tolerance up to 1500VAC and insulation resistance exceeding 5MΩ, providing dependable resilience under tough conditions.

Engineered for fast logic execution, the DVP16SP11T boasts a response time as low as 15μs (OFF→ON), enabling efficient control of time-sensitive processes. The DIN rail mounting design and pluggable screw terminal ensure easy installation and maintenance, while CE-certified build quality ensures reliability in professional-grade industrial environments.

Whether you're modernizing an existing setup or expanding a control network, the DVP16SP11T offers the performance and protection you can count on.

Key features :-

• Brand: Delta
• Series: DVP
• Model No: DVP16SP11T
• Output Type: Transistor NPN
• Power Supply Voltage: 24VDC (-15% ~ 20%)
• Fuse Capacity: ES: 2A/250VAC; SV: 2.5A/30VDC
• Power Consumption: 2W
• Number of Inputs and Type: 8 – Digital
• Number of Outputs and Type: 8 – Transistor
• Power Protection: With counter-connection protection on DC input polarity
• Protection Rating: IP20
• Spike Voltage Durability: 1500VAC (Primary-secondary); 1500VAC (Primary-PE); 500VAC (Secondary-PE)
• Insulation Impedance: > 5MΩ (all I/O to ground at 500VDC)
• Noise Immunity: ESD: 8kV Air Discharge; EFT: Power Line 2kV, Digital I/O 1kV
• Earth: Grounding wire diameter must match or exceed power supply cable diameter
• Storage Temperature: -25ºC ~ 70ºC
• Operating Temperature: 0ºC ~ 55ºC
• Storage/Operation Humidity: 5% ~ 95%, Pollution degree 2
• Maximum Load: 9W
• Voltage Specification: 30VDC
• Termination Style: Pluggable Screw Terminal
• Mounting Type: DIN Rail
• Response Time: OFF→ON: 15μs; ON→OFF: 25μs

Applications :-

• High-Speed Automation Supports precise control with ultra-fast response times.
• Machine Control Systems Delivers reliable digital input and output management.
• Process Monitoring Ensures stable operation in industrial environments.
• System Expansion Easily integrates into larger modular PLC networks.
• Compact Panel Installations DIN rail mounting saves valuable cabinet space.

Technical Precautions :-

• Ensure all connections are secure, especially for RS-232 and RS-485 communication ports, to maintain reliable data transmission.
• Maintain a stable 24V DC power supply to optimize module performance and prevent malfunctions.
• Avoid installation in high-vibration or extremely humid environments to protect the hardware.
• Always follow the proper wiring diagram when connecting additional modules to avoid overloading the system.
• Proper grounding is essential to avoid damage due to electromagnetic interference (EMI).
