Datalogic S8-PR-5-T51-PP Photoelectric Sensor

Datalogic S8-PR-5-T51-PP Photoelectric Sensor

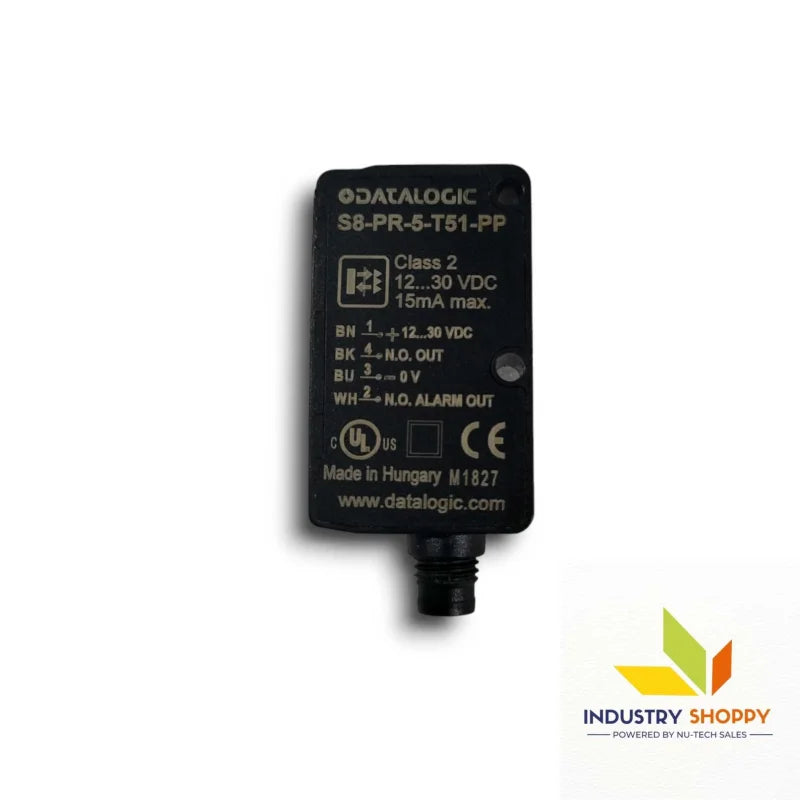

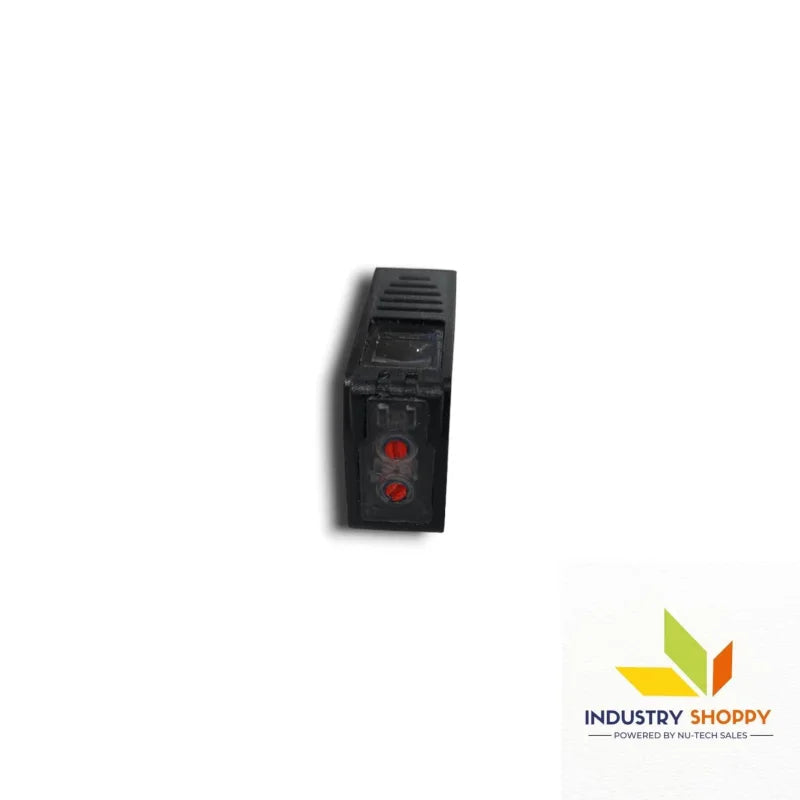

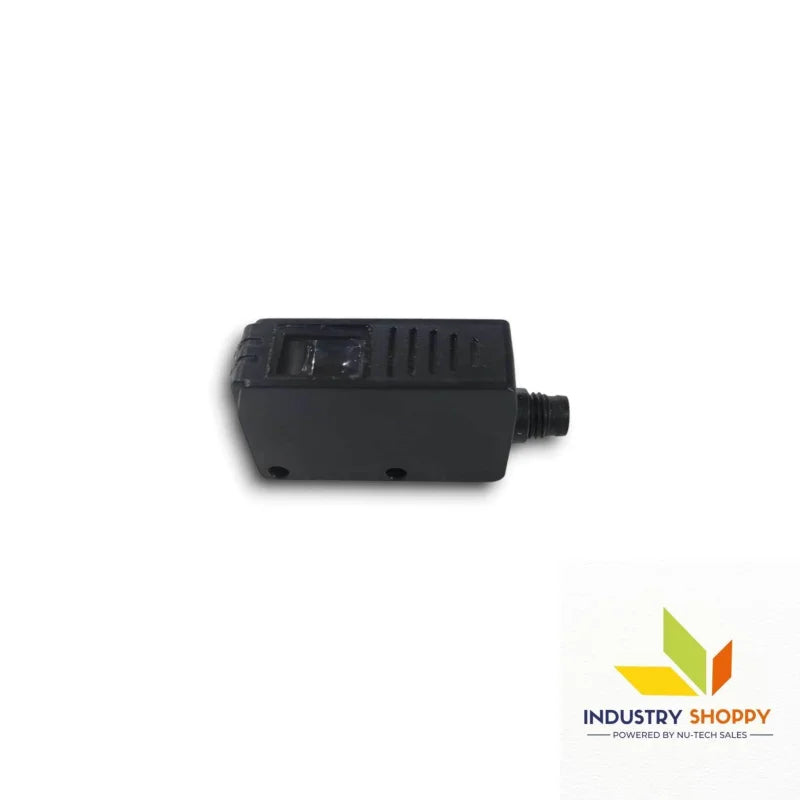

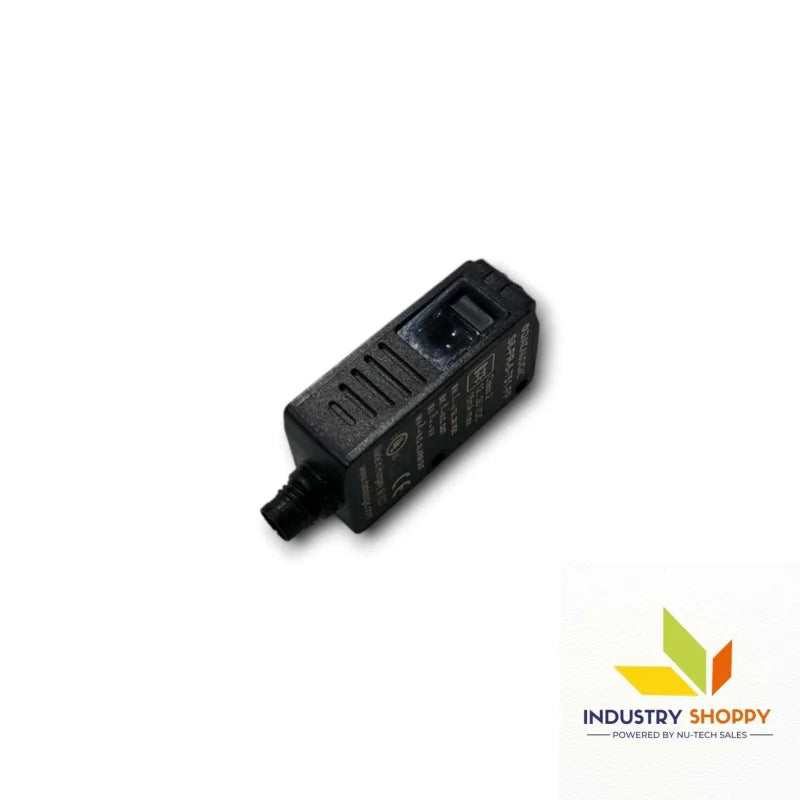

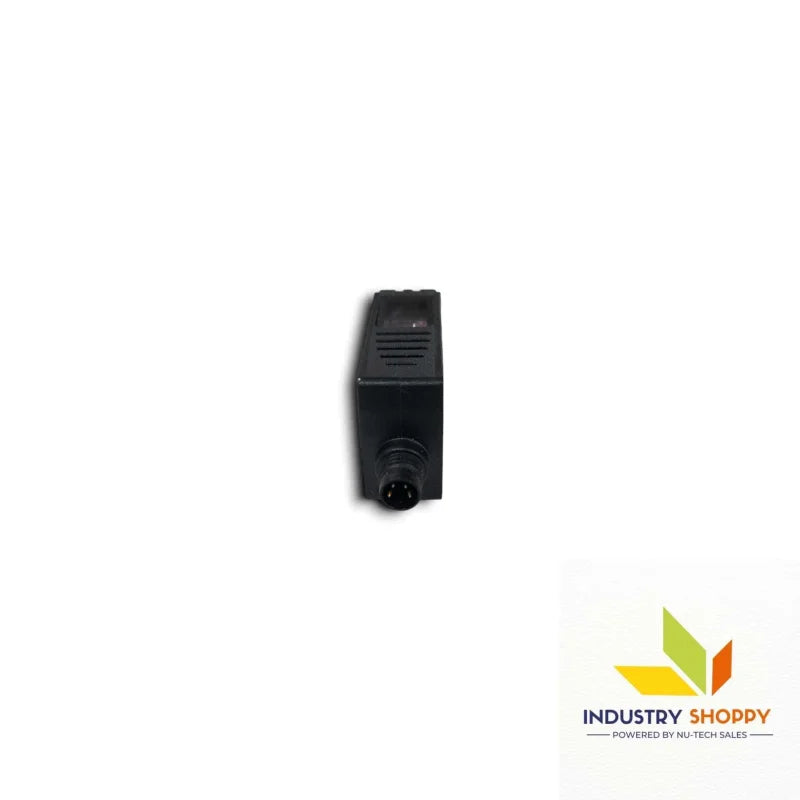

The Datalogic S8-PR-5-T51-PP Photoelectric Sensor (950801040) is a compact polarized retroreflective photoelectric sensor designed specifically for reliable detection of clear and transparent objects.

With a 1 m nominal sensing distance and polarized optics, it effectively suppresses false reflections from shiny backgrounds when used with a suitable reflector. The slim cubic housing with radial 90° optical axis allows easy integration into tight installation spaces. Sensitivity can be finely tuned via an integrated trimmer, ensuring optimal performance across varying applications.

Featuring a PNP output with light/dark switching selection, fast 0.25 ms response time, and robust IP67 protection, this sensor delivers dependable operation in demanding industrial environments. Integrated short-circuit, reverse polarity, and overvoltage protection, along with dual LED status indicators, further enhance reliability and ease of use.

Applications:

• Detection of transparent bottles, films, and glass

• Packaging and labeling machines

• Conveyor and material handling systems

• Pharmaceutical and food processing equipment



Technical Precautions:

• Use with an appropriate polarized reflector for best performance

• Adjust sensitivity using the trimmer during installation

• Avoid operation outside the specified temperature range

• Ensure correct wiring of the M8 4-pin connector
