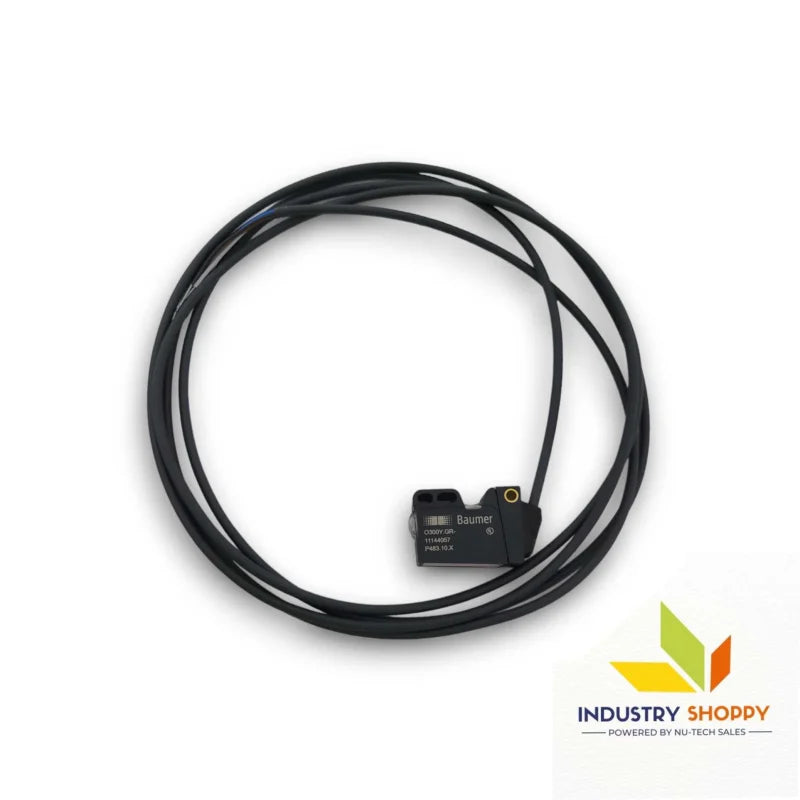

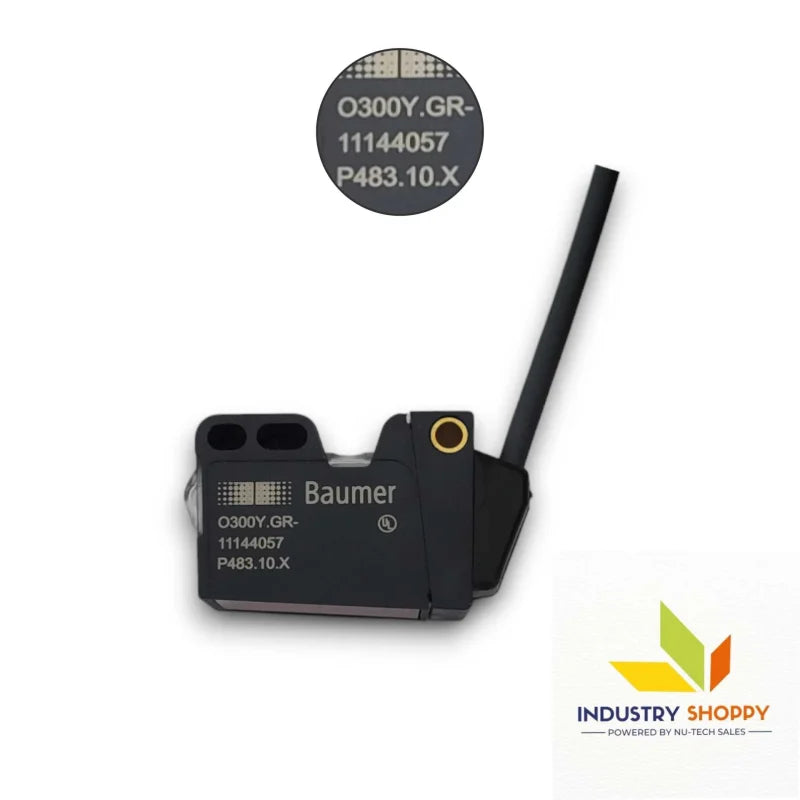

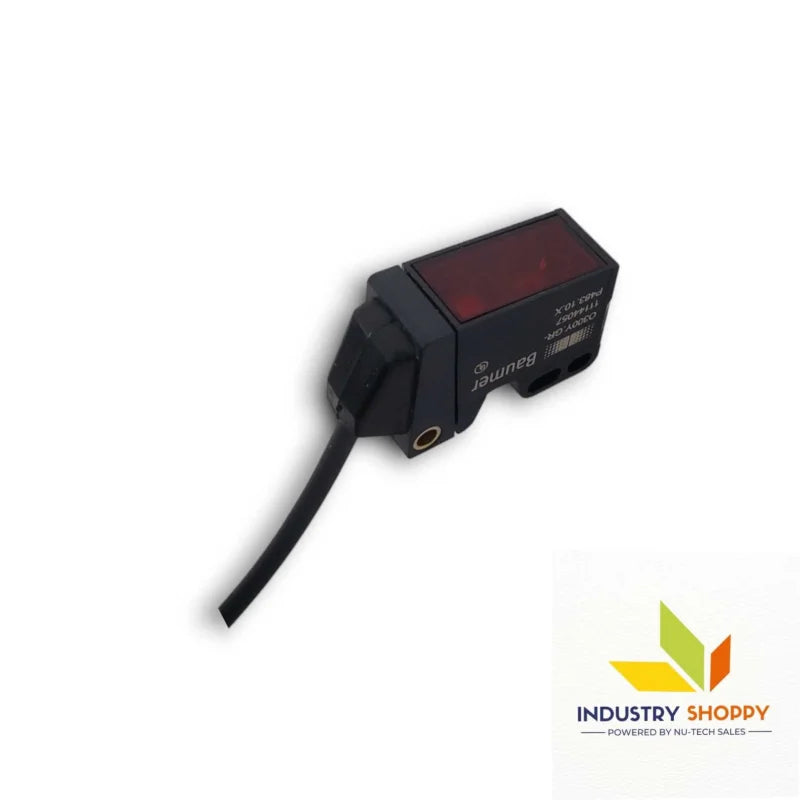

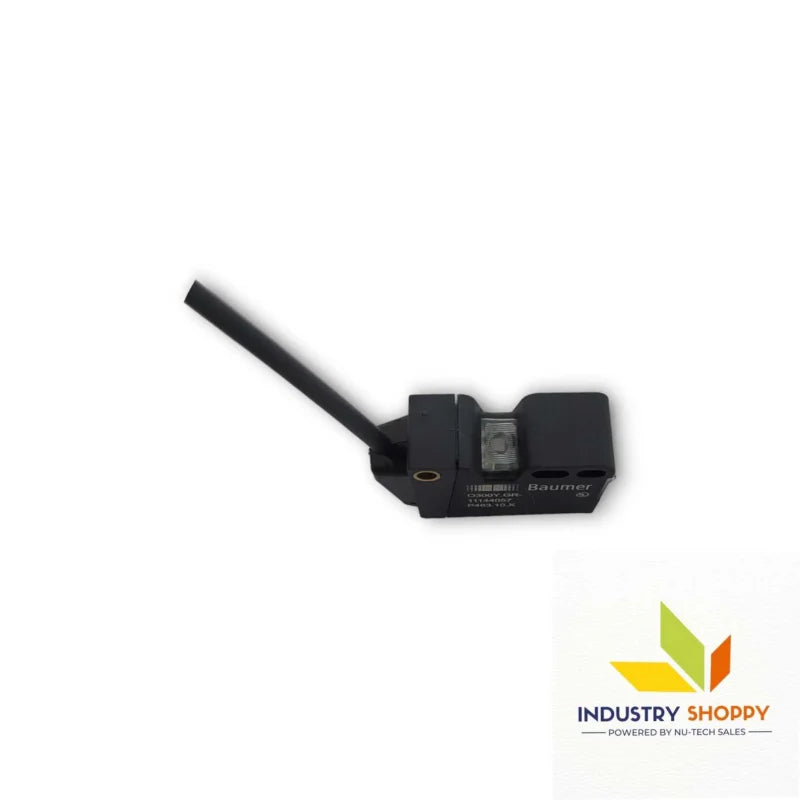

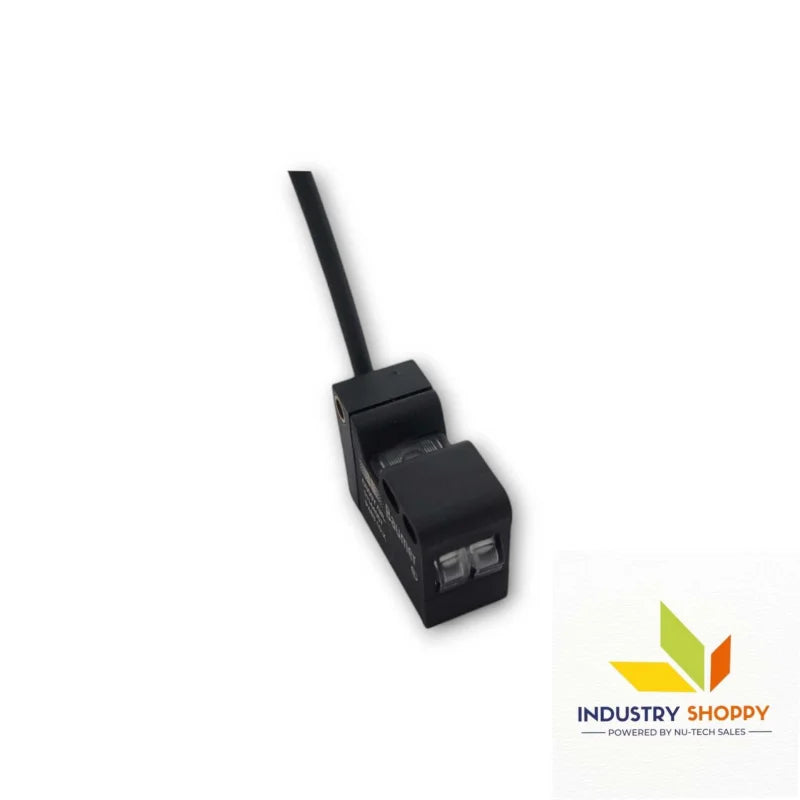

Baumer O300Y.GR-11144057 Photoelectric Sensor

Baumer O300Y.GR-11144057 Photoelectric Sensor

The Baumer O300Y.GR-11144057 Photoelectric Sensor is a high-performance background suppression sensor designed for precise detection in industrial automation applications. This sensor offers a sensing distance range from 30 mm to 300 mm, making it versatile for various tasks. It utilizes a pulsed red LED light source with a wavelength of 630 nm to ensure accurate detection.

General Data

• Part Number: 11144057
• Model Number: O300Y.GR-PV1T.72CU/T003
• Type: Background suppression
• Sensing Distance (Tw): 30 to 300 mm
• Sensing Range (Tb): 15 to 300 mm
• Power On Indication: LED green
• Light Indicator: LED yellow
• Sensing Distance Adjustment: qTeach / 1-Step Teach-in
• Suppression of Reciprocal Influence: Yes
• Alignment Optical Axis: < 2°

Light Source

• Light Source: Pulsed red LED
• Wavelength: 630 nm

Electrical Data

• Response Time / Release Time: < 1 ms
• Voltage Supply Range (+Vs): 10 to 30 VDC
• Current Consumption Max. (No Load): 45 mA
• Current Consumption Typ.: 30 mA
• Voltage Drop (Vd): < 3 VDC
• Output Function: Light / dark operate
• Output Circuit: NPN complementary
• Output Current: 100 mA
• Short Circuit Protection: Yes
• Reverse Polarity Protection: Yes

Mechanical Data

• Width / Diameter: 12.9 mm
• Height / Length: 32.3 mm
• Depth: 23 mm
• Design: Rectangular
• Housing Material: Plastic (ASA, PMMA)
• Front (Optics): PMMA
• Connection Types: Cable 4 pin, 2 m

Ambient Conditions

• Protection Class: IP 67
• Operating Temperature: -25 to +60 °C

Applications: This inductive proximity switch is ideal for use in various industrial environments where precise and reliable detection is essential. Its robust design ensures durability and consistent performance under harsh conditions.

Technical Precautions:

• Ensure proper installation and secure connection to avoid any operational issues.
• Always handle the sensor carefully to prevent damage to the cable and sensor body.
• Regularly check the sensor for any signs of wear and tear, especially in demanding environments.
• Maintain the sensor within the specified operating temperature range for optimal performance.
• Ensure the sensor's IP67 rating is maintained by keeping it clean and free from contaminants.

Note : All tax and custom duty should be pay by buyer only.

Note: All trademarks and trade names used are the property of their respective owners.

Accuracy Disclaimer: Our engineers carefully entered all the details of this module based on the datasheet. However, mistakes can happen even with our best efforts. Please double-check all specifications before use.
