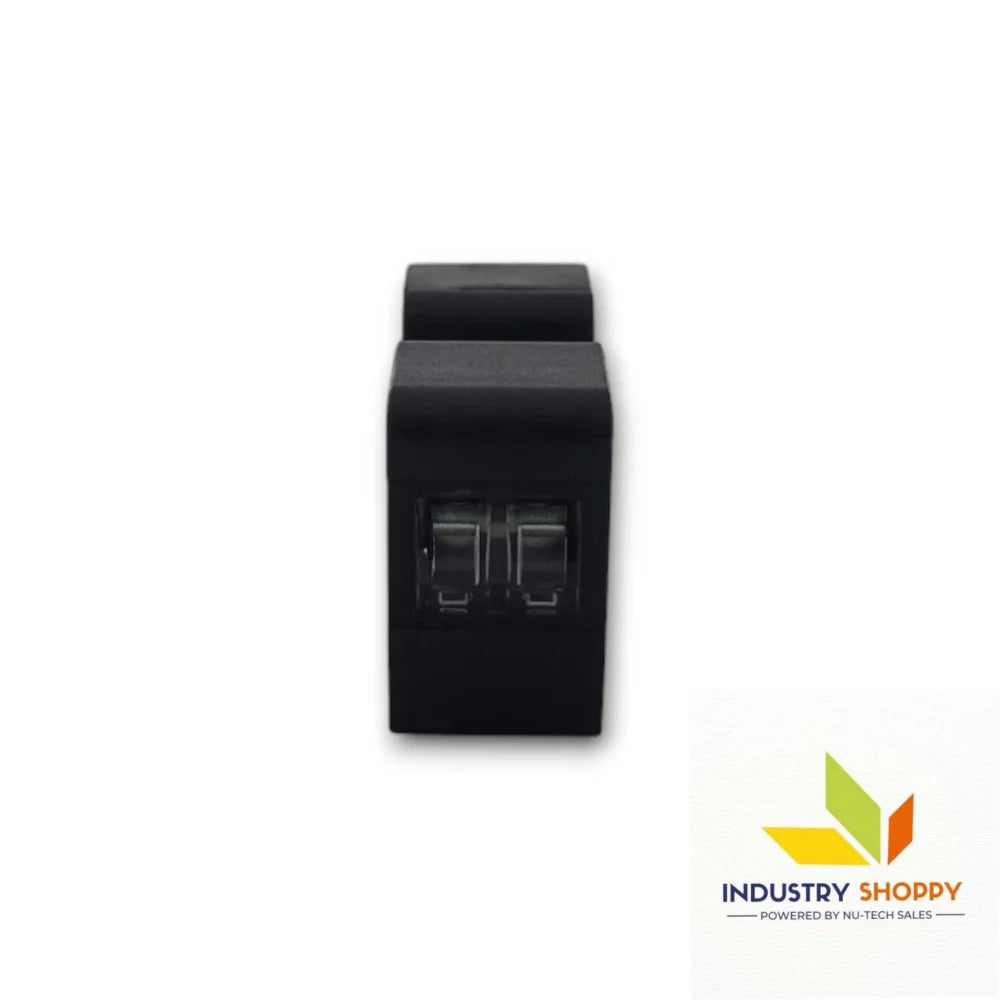

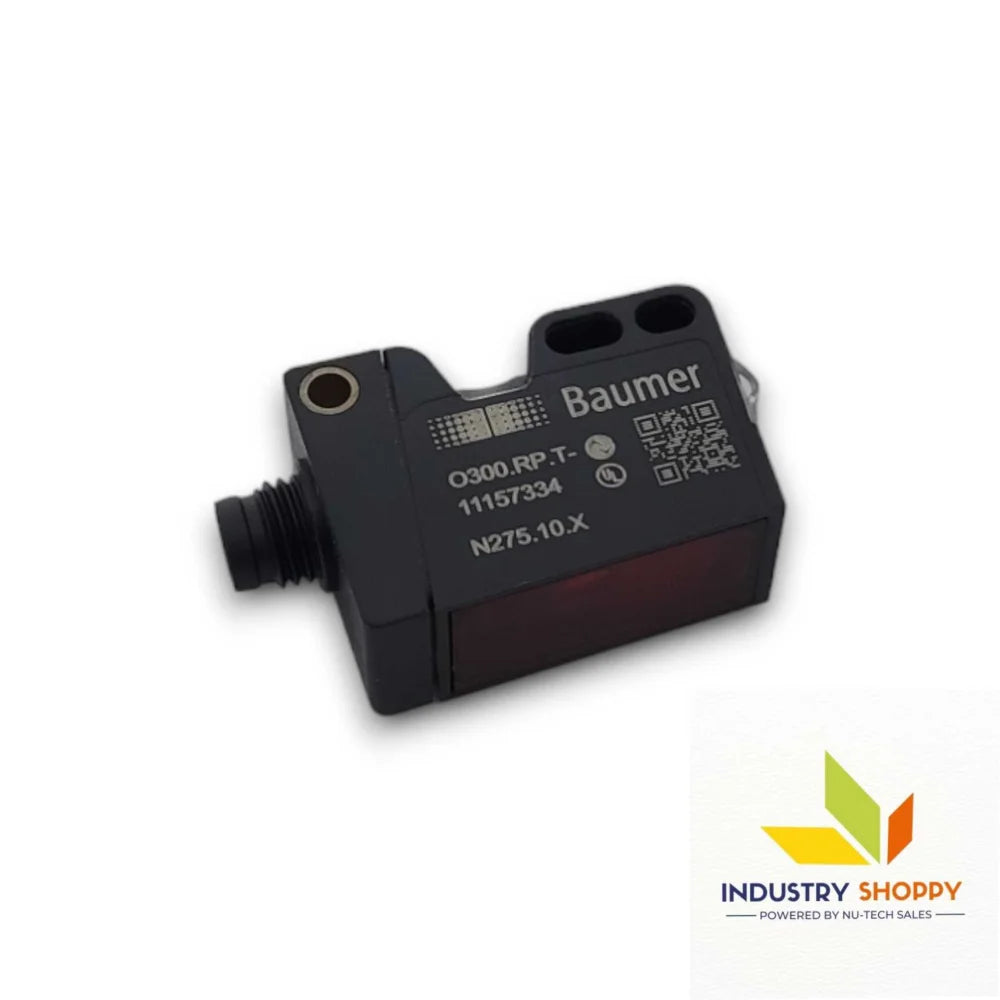

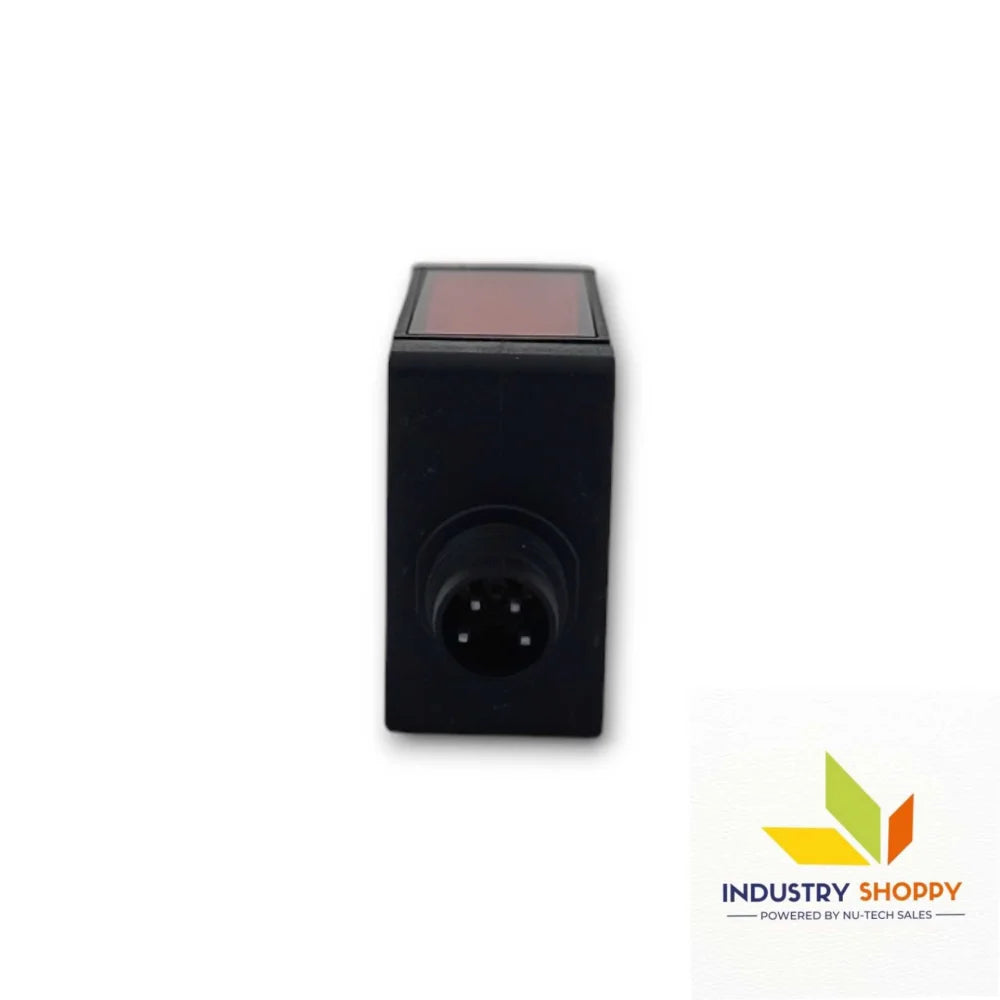

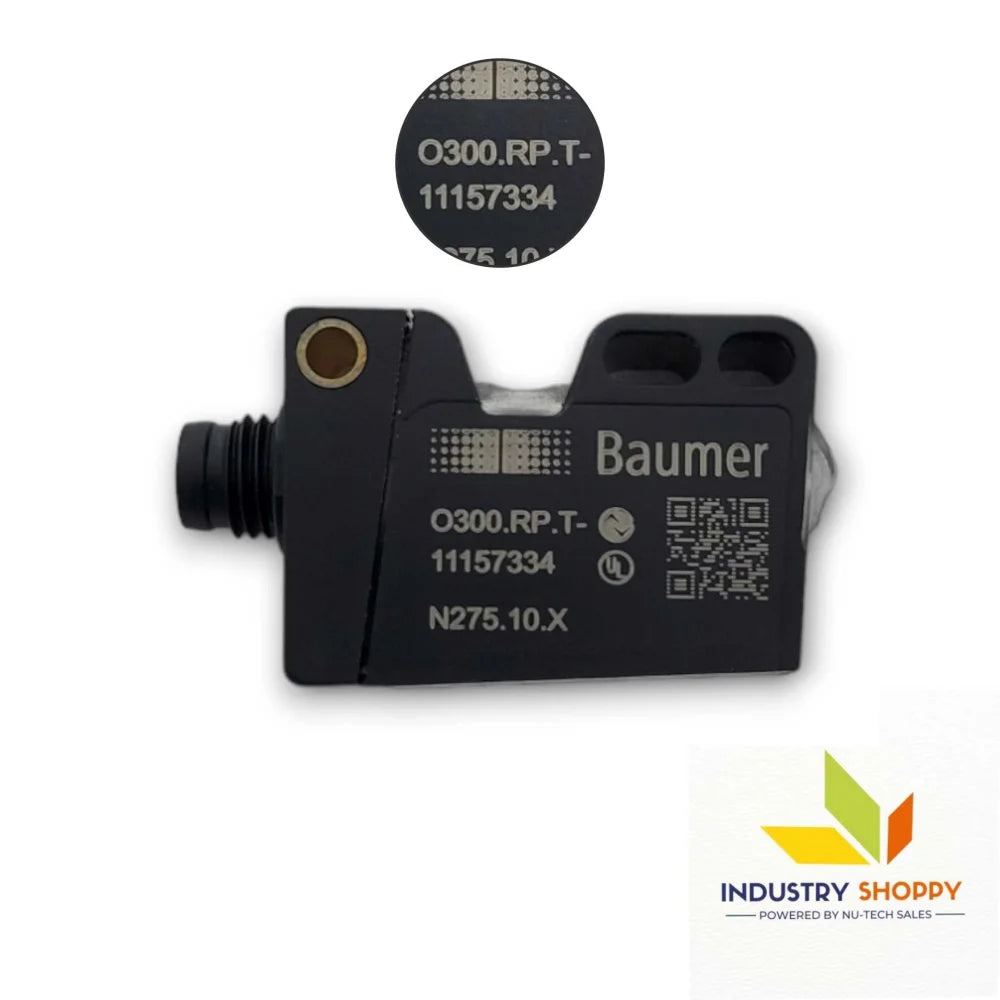

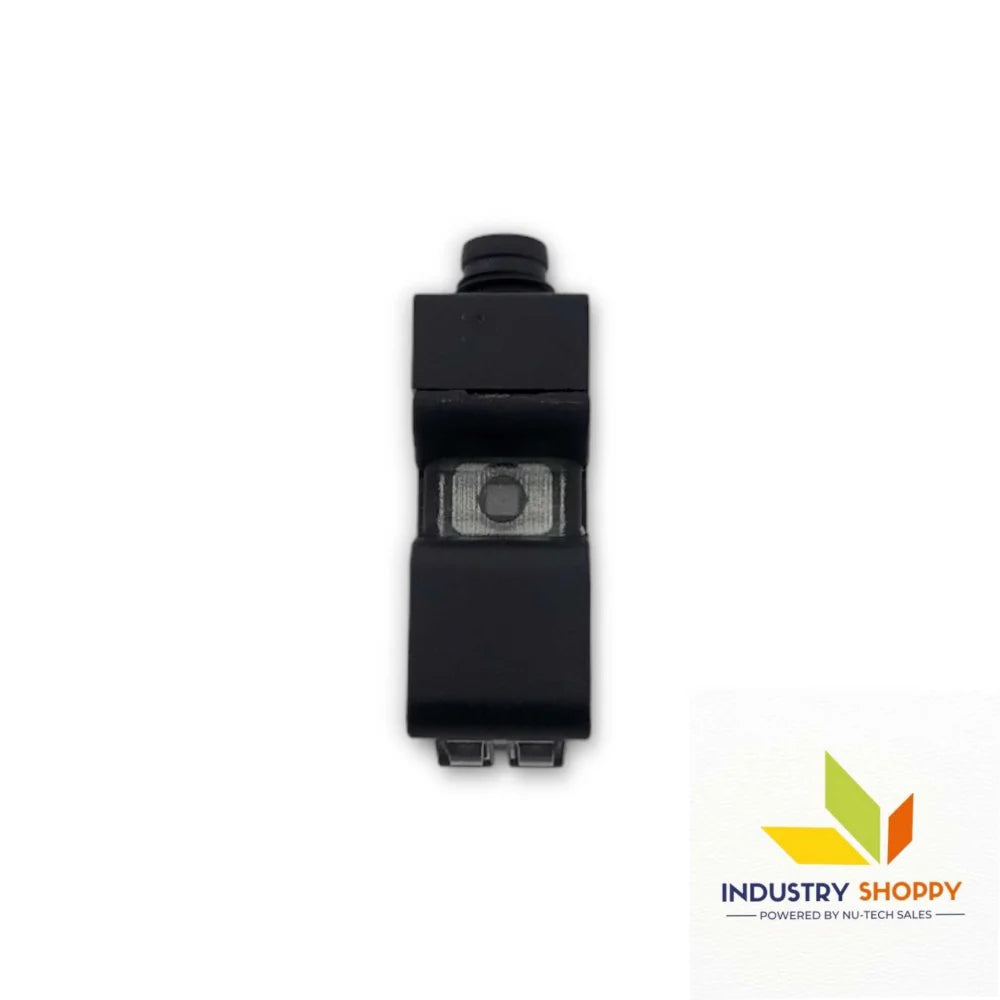

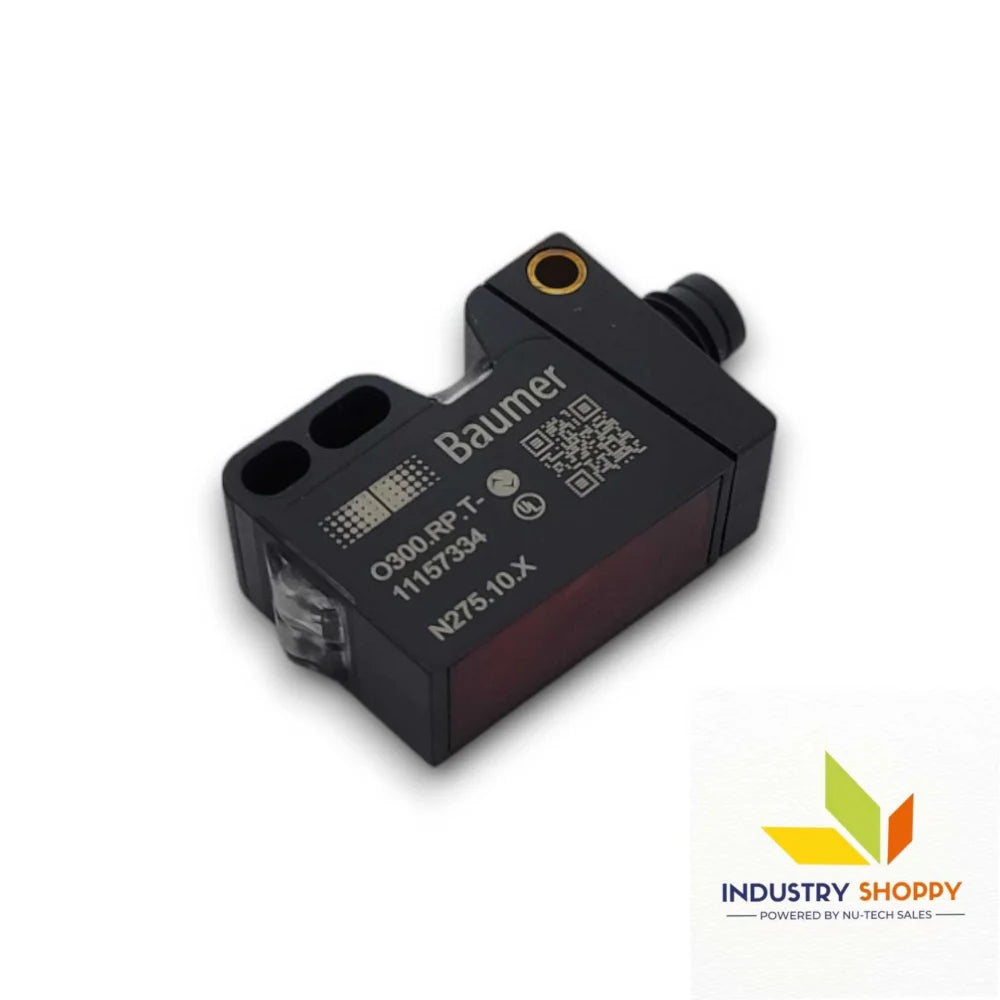

Baumer O300.RP.T-11157334 Photoelectric Sensor

Baumer O300.RP.T-11157334 Photoelectric Sensor

The Baumer O300.RP.T-11157334 Photoelectric Sensor with retro-reflective sensor excels in transparent object detection with a sensing range of up to 4 meters. Utilizing a pulsed PinPoint LED light source with a 630 nm wavelength, it ensures accurate and consistent detection. The sensor is equipped with a polarization filter, enhancing its performance in challenging environments by reducing false signals.

General Data:

• Part Number: 11157334
• Model Number: O300.RP.T-GW1J.72N
• Type: Retro-reflective sensor for transparency detection
• Sensing Distance (Actual Range, Sb): 3.5 m
• Nominal Range (Sn): 4 m
• Power On Indication: LED green
• Light Indicator: LED yellow
• Sensing Distance Adjustment: Fixed
• Suppression of Reciprocal Influence: Yes
• Alignment Optical Axis: < 2°

Light Source:

• Light Source: Pulsed PinPoint LED
• Wave Length: 630 nm
• Polarization Filter: Yes

Electrical Data:

• Response Time / Release Time: < 0.25 ms
• Voltage Supply Range (+Vs): 10 to 30 VDC
• Current Consumption Max. (No Load): 35 mA
• Current Consumption Typ.: 30 mA
• Voltage Drop (Vd): < 2.5 VDC
• Output Function: Light / dark operate
• Output Circuit: Push-pull
• Output Current: 100 mA
• Short Circuit Protection: Yes
• Reverse Polarity Protection: Yes
• Signal Attenuation Options: 10%, 20%, 30%

Mechanical Data:

• Width / Diameter: 12.9 mm
• Height / Length: 32.3 mm
• Depth: 23 mm
• Design: Rectangular
• Housing Material: Plastic (ASA, PMMA)
• Front (Optics): PMMA
• Connection Types: Connector M8 4 pin

Ambient Conditions:

• Protection Class: IP67
• Operating Temperature: -25 to +60 °C

Applications: Perfect for automation, packaging, and quality control, the Baumer O300.RP.T-11157334 sensor meets the demands of industries requiring precise and reliable transparent object detection.

Technical Precautions:

• Ensure proper installation and secure connection to avoid any operational issues.
• Always handle the sensor carefully to prevent damage to the cable and sensor body.
• Regularly check the sensor for any signs of wear and tear, especially in demanding environments.
• Maintain the sensor within the specified operating temperature range for optimal performance.
• Ensure the sensor's IP67 rating is maintained by keeping it clean and free from contaminants.
