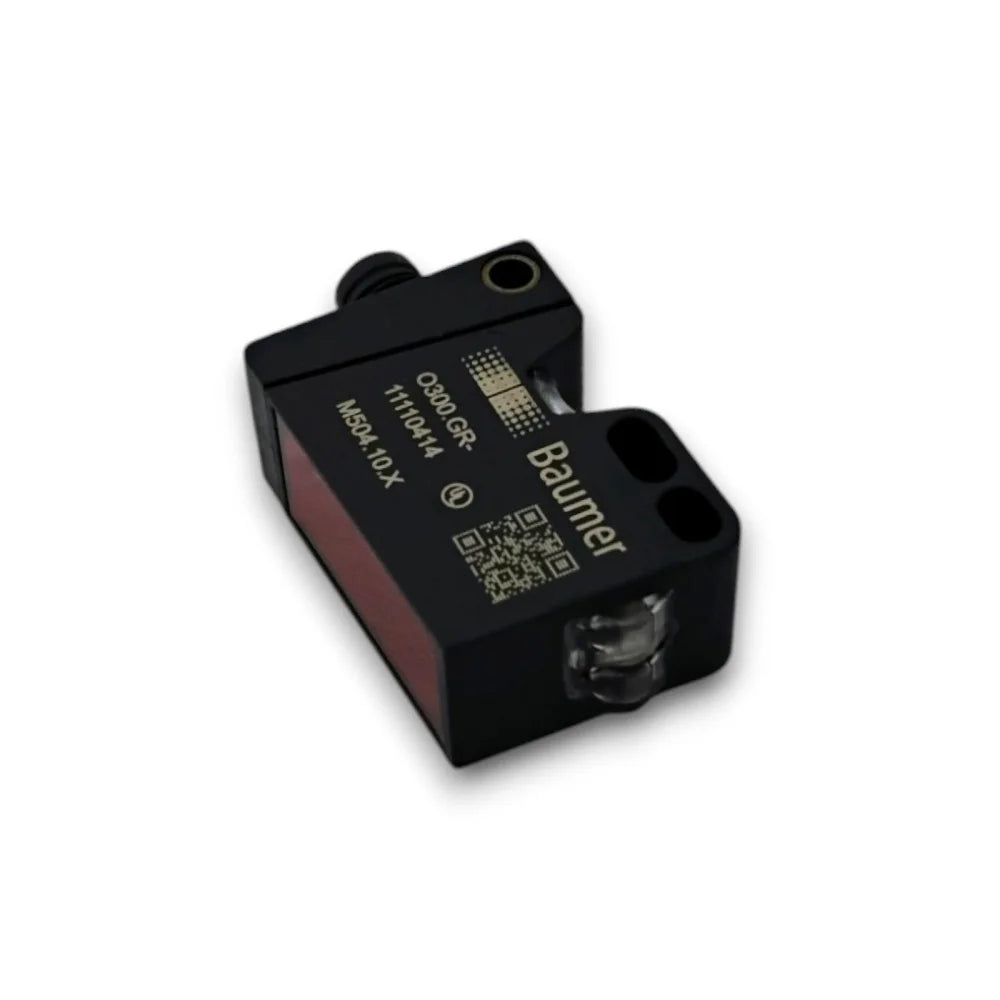

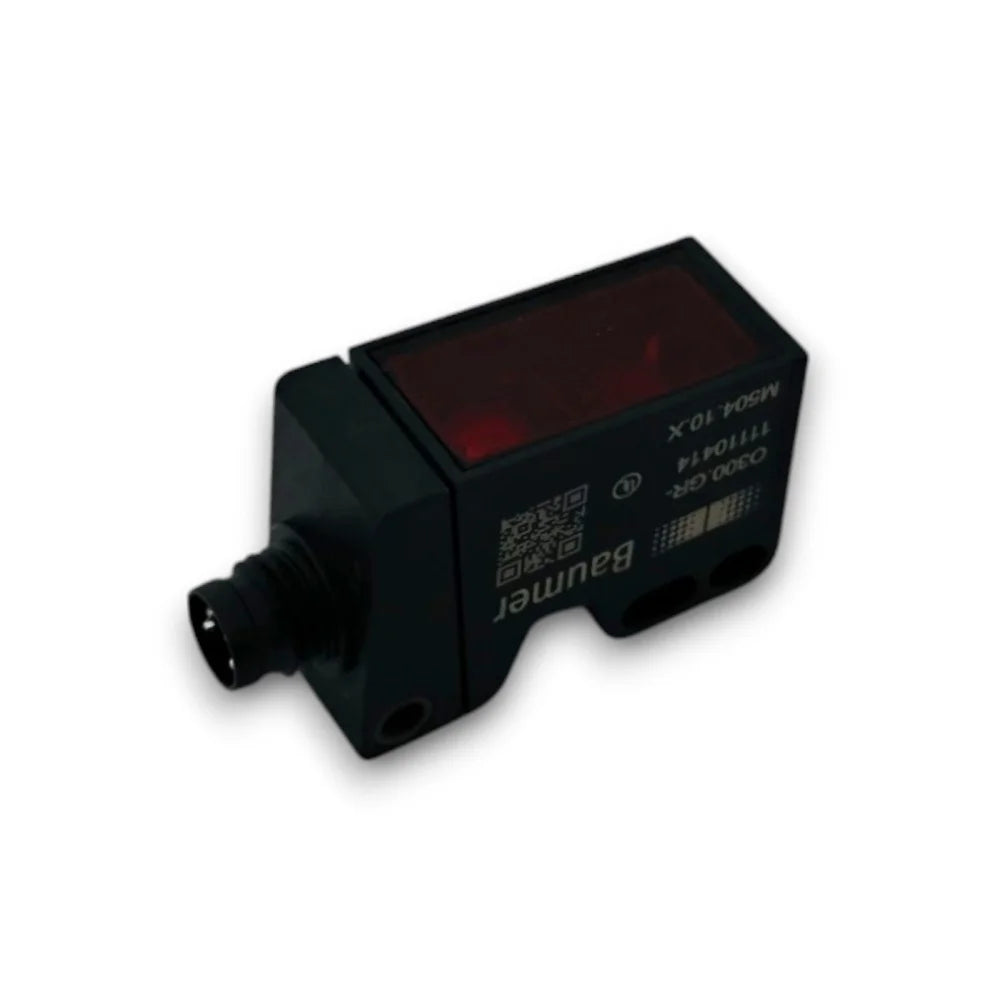

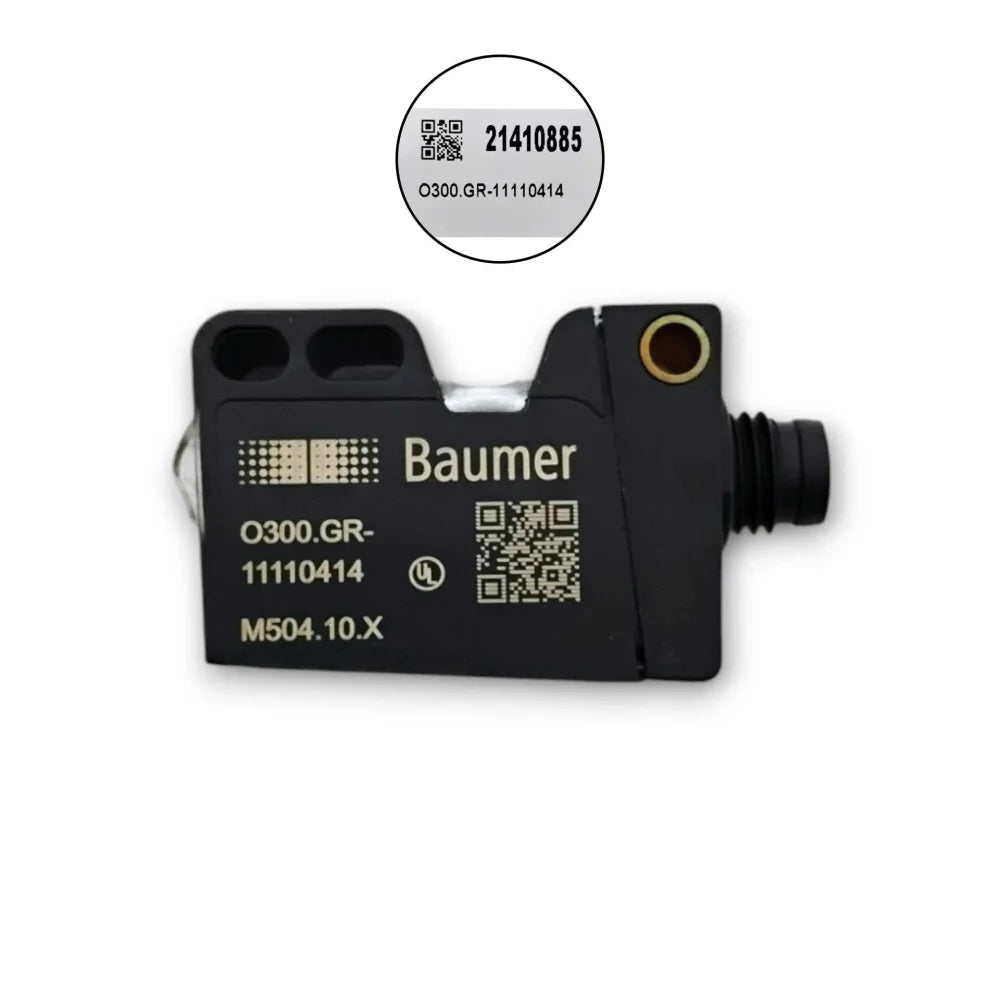

Baumer O300.GR-11110414 Diffuse Sensor

Baumer O300.GR-11110414 Diffuse Sensor with Background Suppression – Compact & Precise

The Baumer O300.GR-11110414 (O300.GR-GW1T.72N) is a high-precision diffuse sensor with background suppression, built for reliable object detection in tight industrial spaces. Featuring a sensing distance of 30–300 mm and qTeach touchless adjustment, it enables fast and accurate setup without mechanical wear.

Utilizing a pulsed red LED (630 nm) and advanced optics, the sensor offers stable detection even with shiny or dark targets. The background suppression technology ensures consistent performance regardless of background changes, while a narrow optical axis (< 2°) aids precise alignment. With a quick response time under 1 ms, it's suitable for high-speed automation.

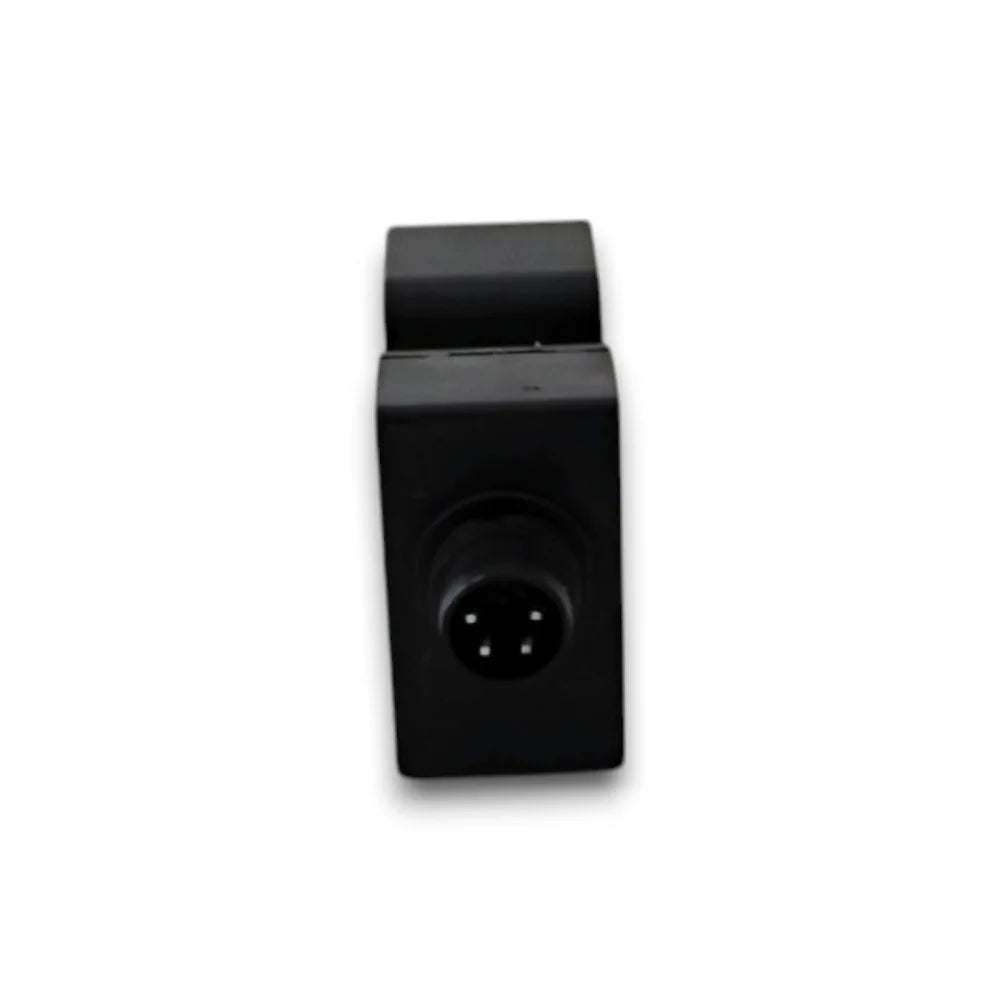

Its rugged ASA and PMMA housing (IP67) is designed for durability in harsh environments. Equipped with Push-pull output, short-circuit protection, and reverse polarity protection, the sensor is easily integrated via an M8 4-pin connector.

Key Features:

Applications:

• Assembly Line Automation: Ensures precise object detection for production processes
• Positioning Verification: Used in robotics and automated machinery
• Quality Control: Ideal for inspecting and sorting products
• Material Handling Systems: Ensures smooth logistics and workflow efficiency

Precautions:

• Ensure Correct Wiring: Incorrect connections can cause sensor failure
• Avoid Overvoltage: Operating within 10-30V DC prevents damage
• Protect from Extreme Heat: Avoid installing near high-temperature sources
• Regular Cleaning: Keep the optical lens free from dust and debris for optimal performance

Note : All tax and custom duty should be pay by buyer only.

Note: All trademarks and trade names used are the property of their respective owners.
