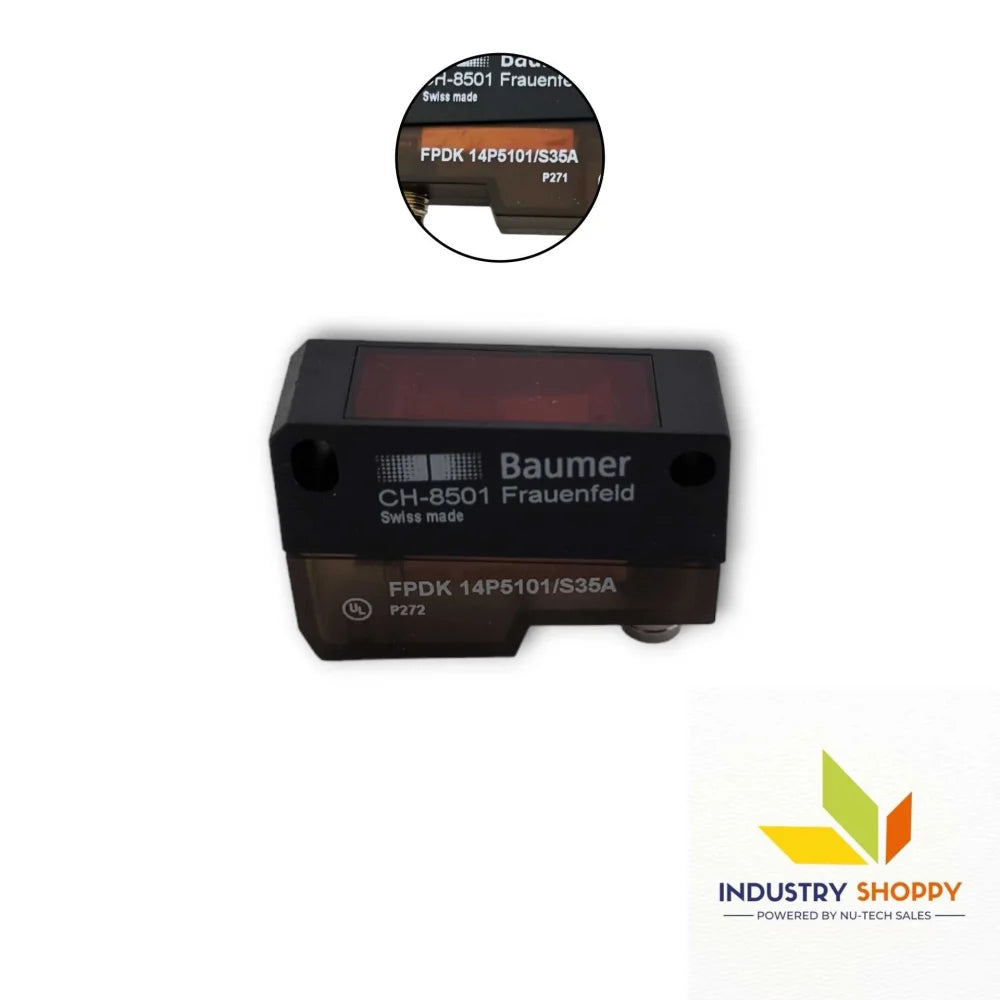

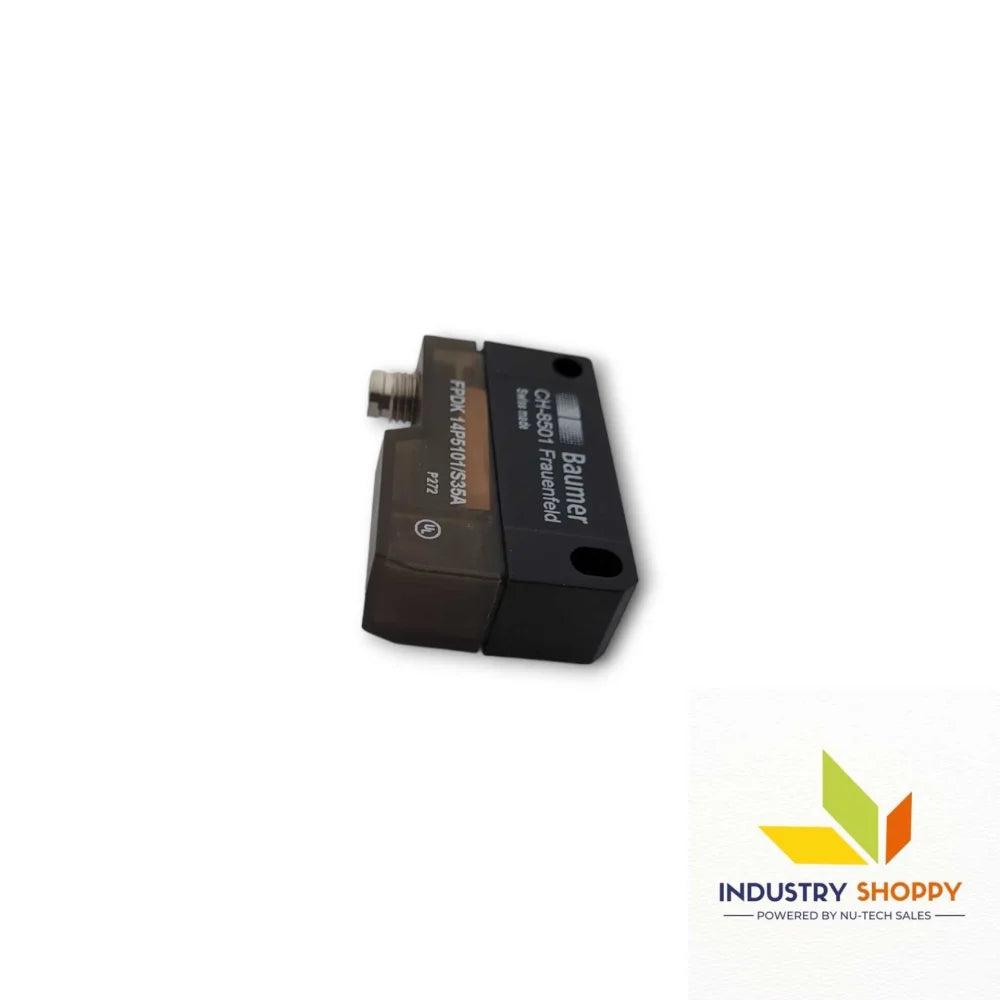

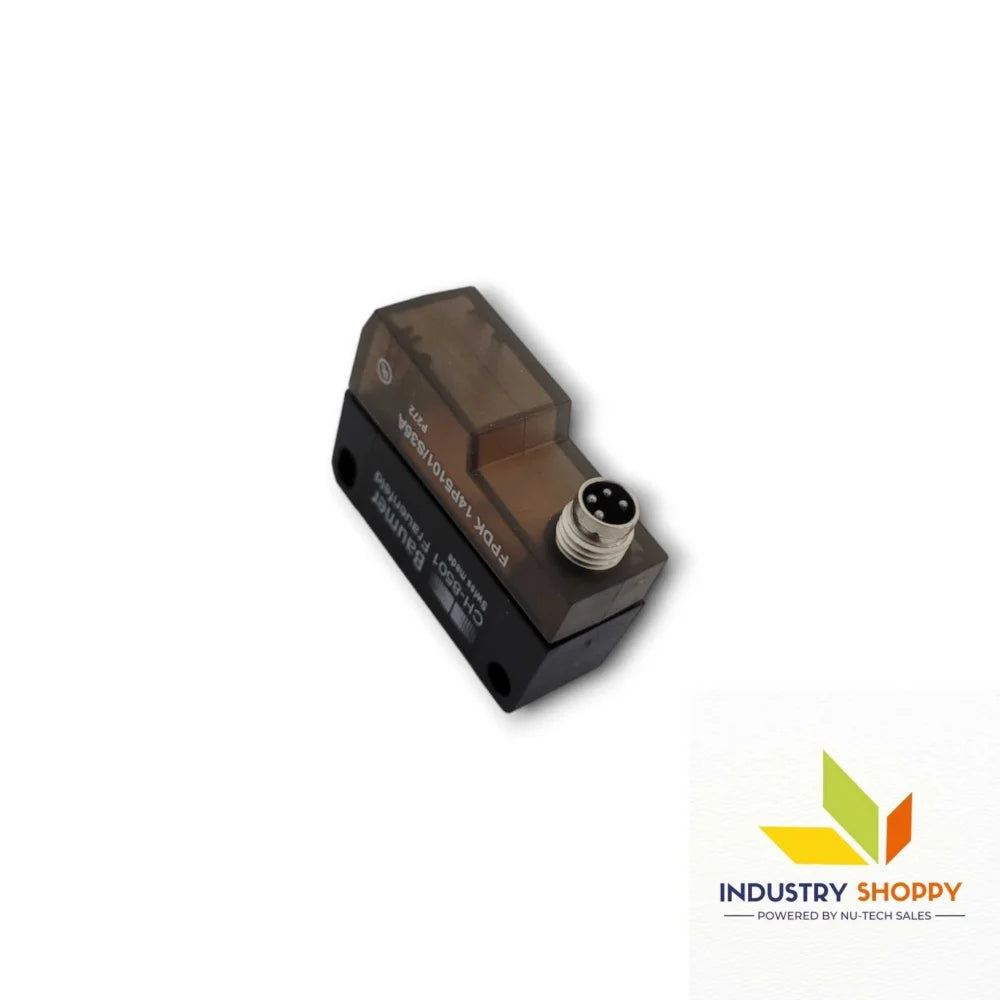

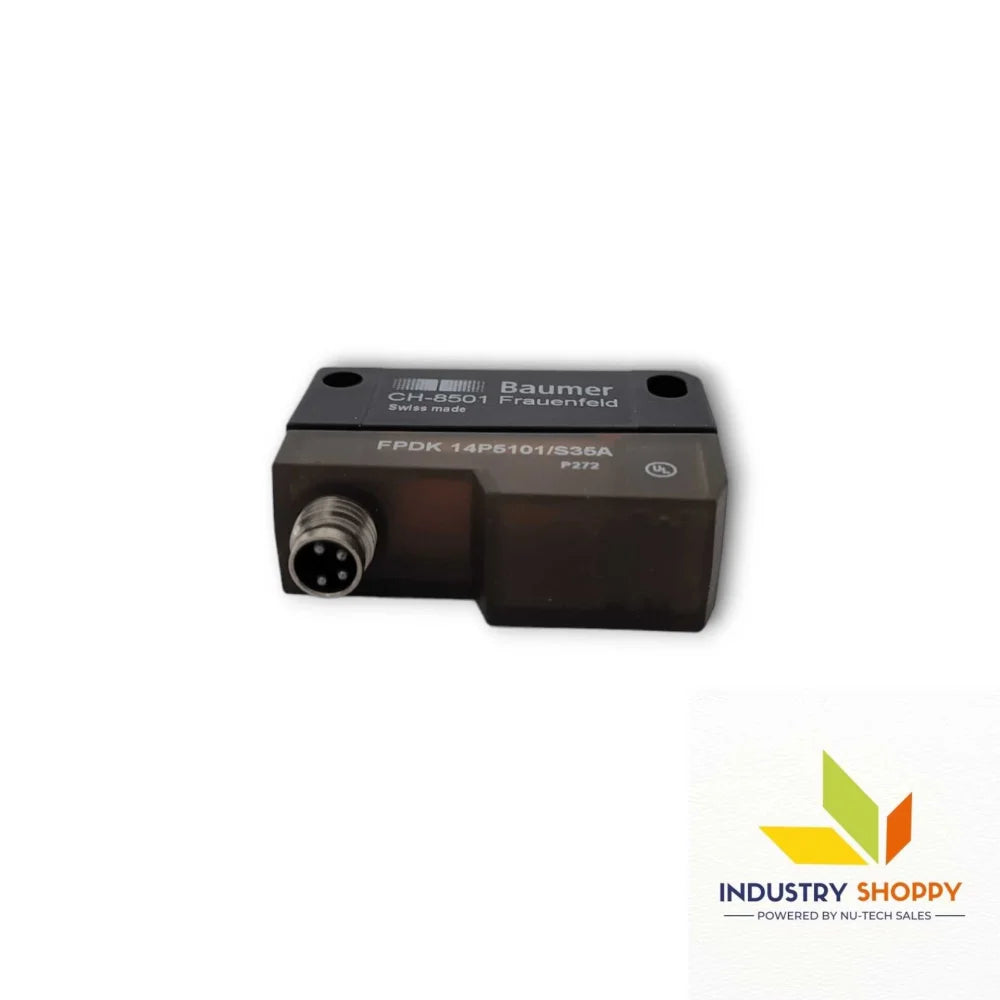

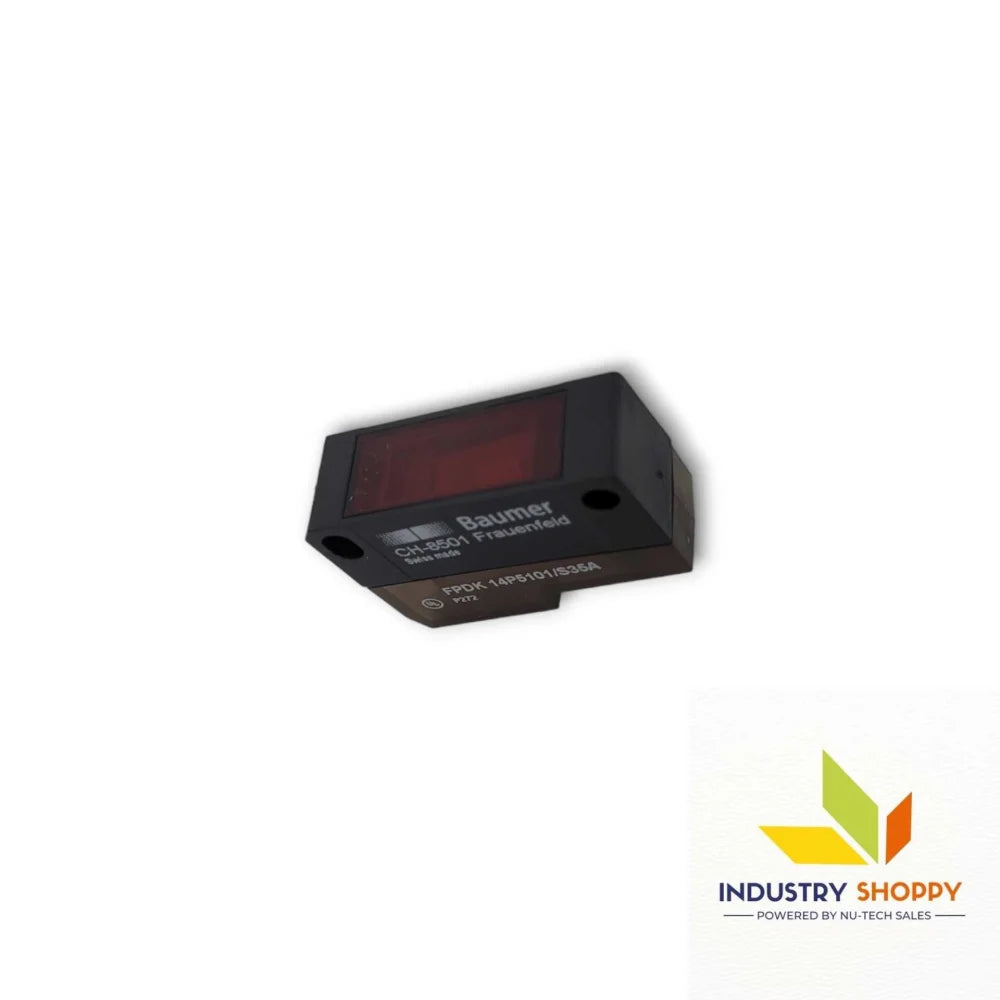

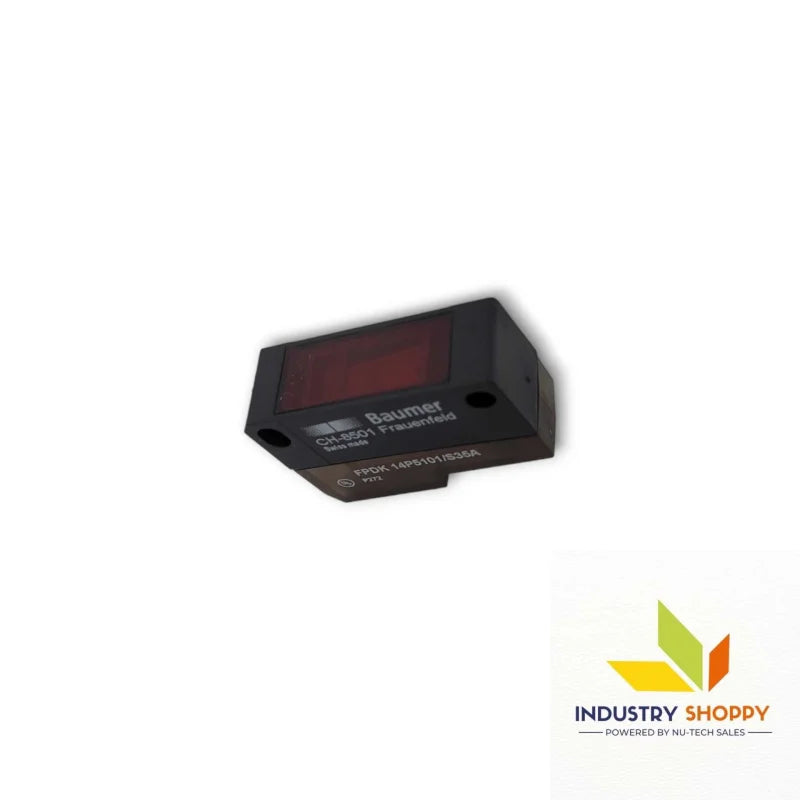

Baumer FPDK14P5101/S35A Photoelectric Sensor

Baumer FPDK14P5101/S35A Photoelectric Sensor – Retro-reflective 7 m Range

Article No.: 11001138

The Baumer FPDK14P5101/S35A is a compact and reliable retro-reflective photoelectric sensor designed for efficient object detection over long distances. With a nominal sensing range of 7.2 meters and polarization filter, it ensures precise detection of reflective and shiny targets while suppressing background interference.

Equipped with a pulsed red LED (660 nm) and a fast response time under 1 ms, this sensor is ideal for high-speed automation. The yellow LED indicator provides visual feedback, while flashing signals indicate misalignment or lens contamination. Its PNP output, light/dark operate modes, and M8 4-pin connector make integration easy. Housed in a durable rectangular plastic body (IP67), the sensor can withstand temperatures from -25 to +65°C, making it suitable for demanding environments.

Key Features:

Applications:

• Conveyor and packaging lines
• Bottle, box, and label detection
• Object detection in robotics
• Pallet and bin presence monitoring

Technical Precautions:

• Supply voltage: 10–30 VDC only
• Avoid reflective surfaces near detection zone
• Ensure correct polarity and wiring
• Do not exceed 100 mA output
• Keep optics clean and properly aligned
• Avoid strong ambient light >50 kLux
• Use suitable M8 4-pin connector
• Protect from physical impact
