Wecon LX3V-0806MR PLC Module

Wecon LX3V-0806MR PLC Module

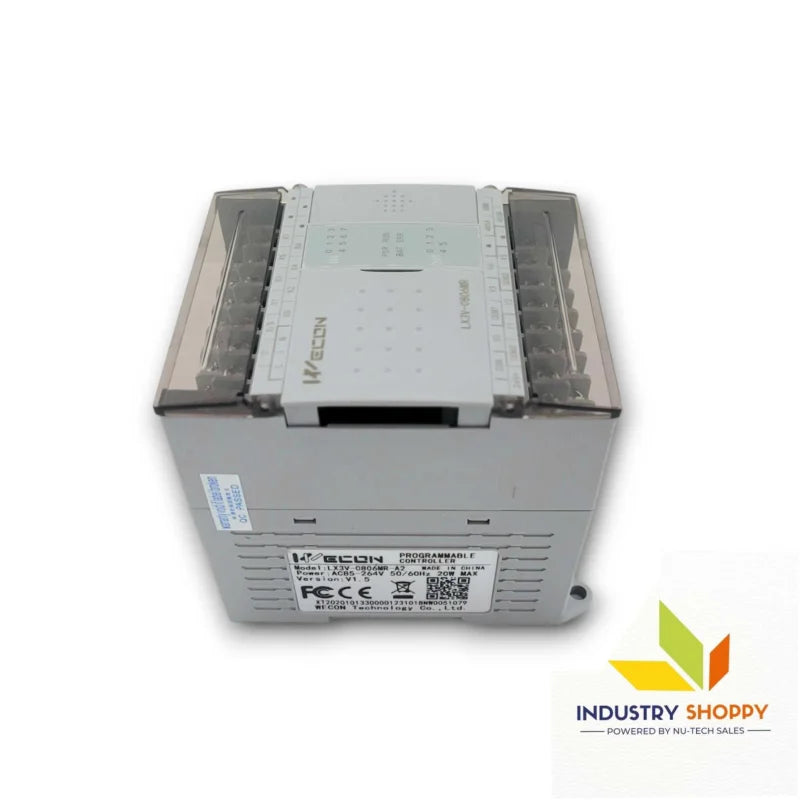

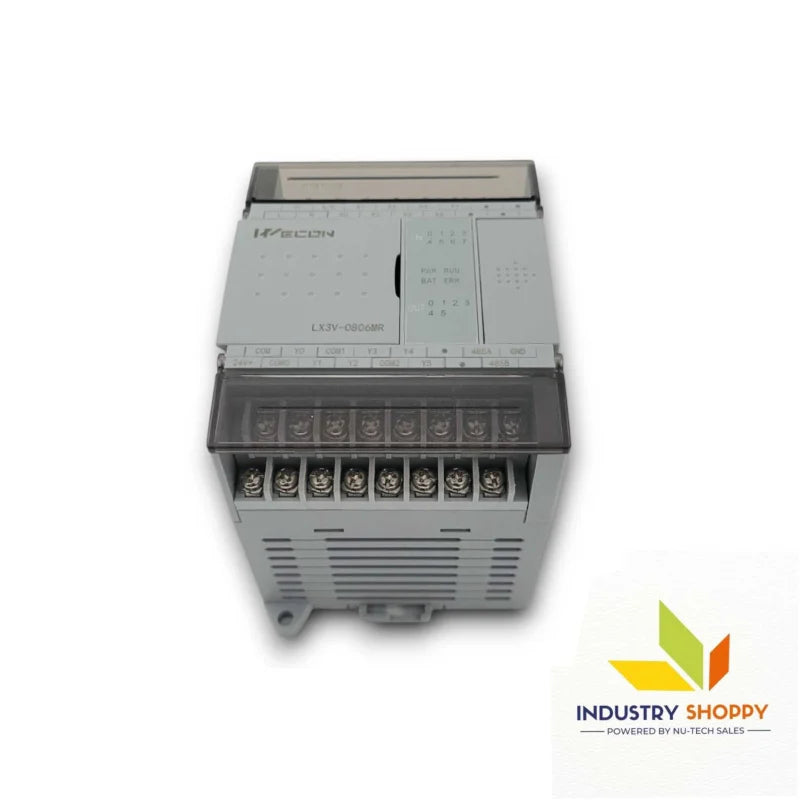

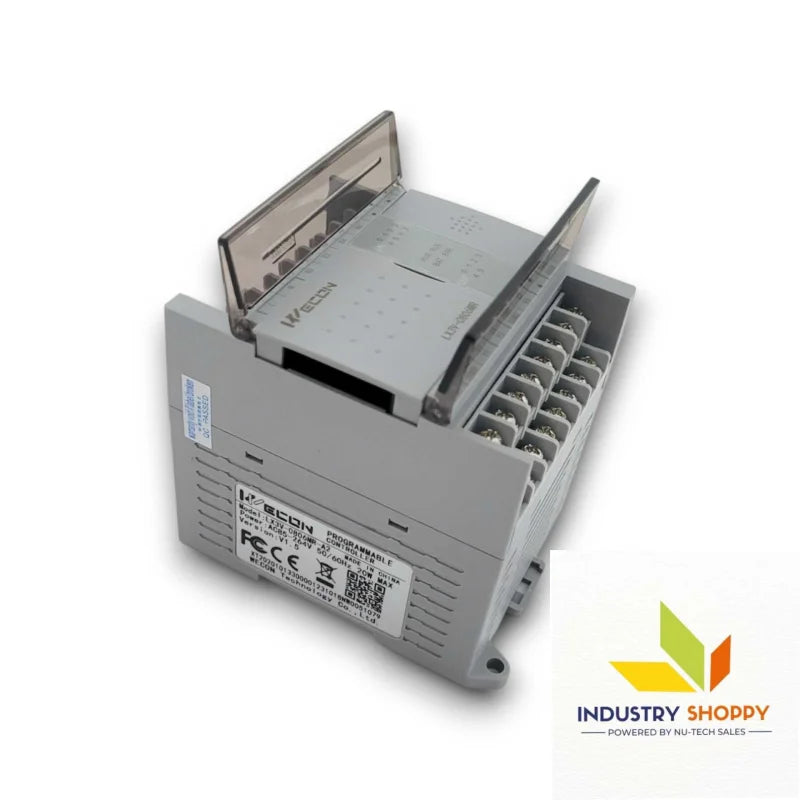

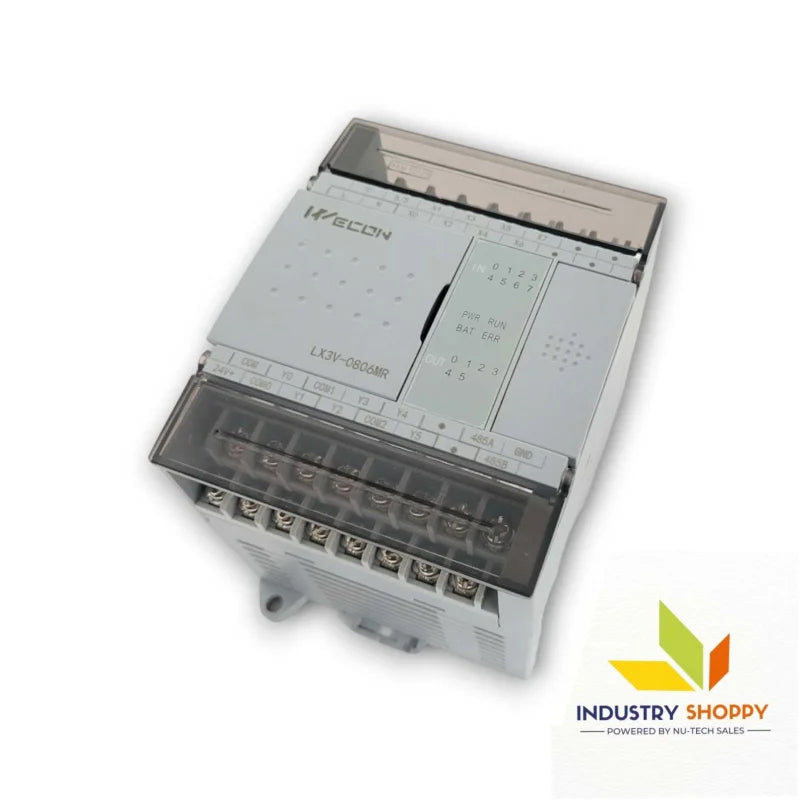

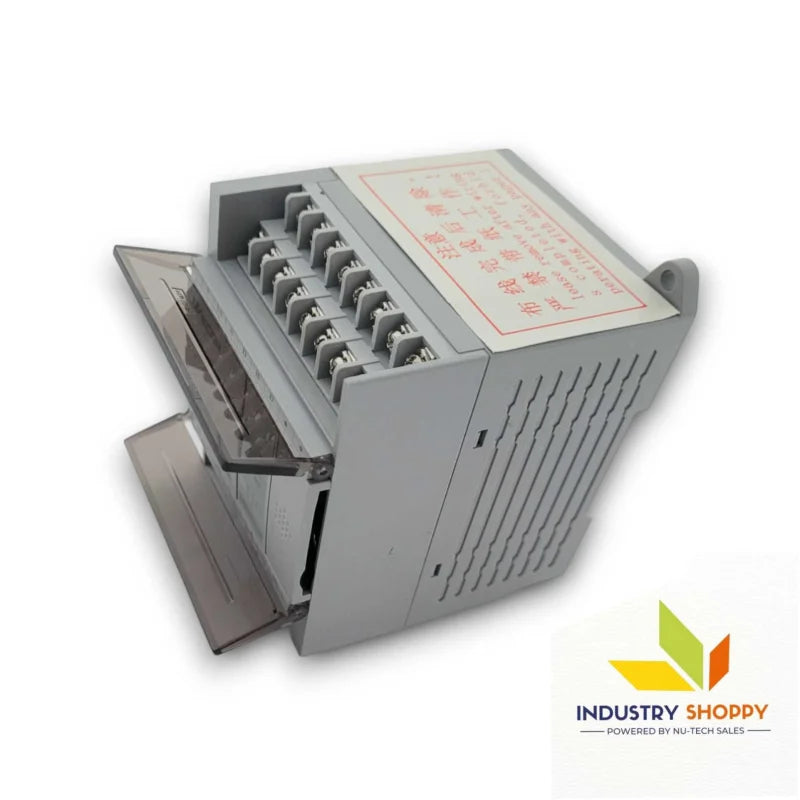

The Wecon LX3V-0806MR PLC Module is designed for seamless and reliable performance in modern automation environments. With 8 digital inputs and 6 relay outputs, this unit provides the versatility required for a wide range of control applications.

Its flexible programming options include Instruction List and Ladder Logic, supporting both basic and complex tasks with 27 basic instructions and 138 applied instructions. High-speed performance ensures basic instructions execute in just 0.06μs, while applied instructions process in 1–10μs.

The LX3V-0806MR features dual serial ports (RS422/RS485 and RS485) for enhanced communication flexibility. Designed to meet industrial standards, the module withstands harsh environments with operating temperatures from 0°C to 55°C and shock resistance compliant with JIS C 0040.

With FLASH storage, adjustable holding addresses, and external/interrupt timers, this PLC adapts well to diverse control needs while ensuring data integrity. Backed by robust power specs and <10ms response time, this unit is ideal for reliable and stable automation.

Key features :-

• Brand: Wecon
• Series: LX3V
• Model No: LX3V-0806MR
• Running Mode: Round Scan / Interrupt
• Programming: Instruction List / Ladder
• Total Instructions: Basic: 27 | Applied: 138
• Execute Time: Basic: 0.06μs | Applied: 1~10μs
• System Storage: 16K
• Download / Monitoring: Serial Programming Cable / Mini USB
• External Interrupt: 6 Channels
• Timer Interrupt: 3 Channels
• Holding Addresses: Adjustable
• Storage: FLASH
• Filter: For all X input terminals
• Serial Port: COM1: RS422 or RS485 | COM2: RS485
• Working Temperature: 0 ~ 55℃
• Storage Temperature: -20 ~ 70℃
• Humidity: 5~85% RH (Non-condensing)
• Shock Resistance: JIS C 0040 Standard

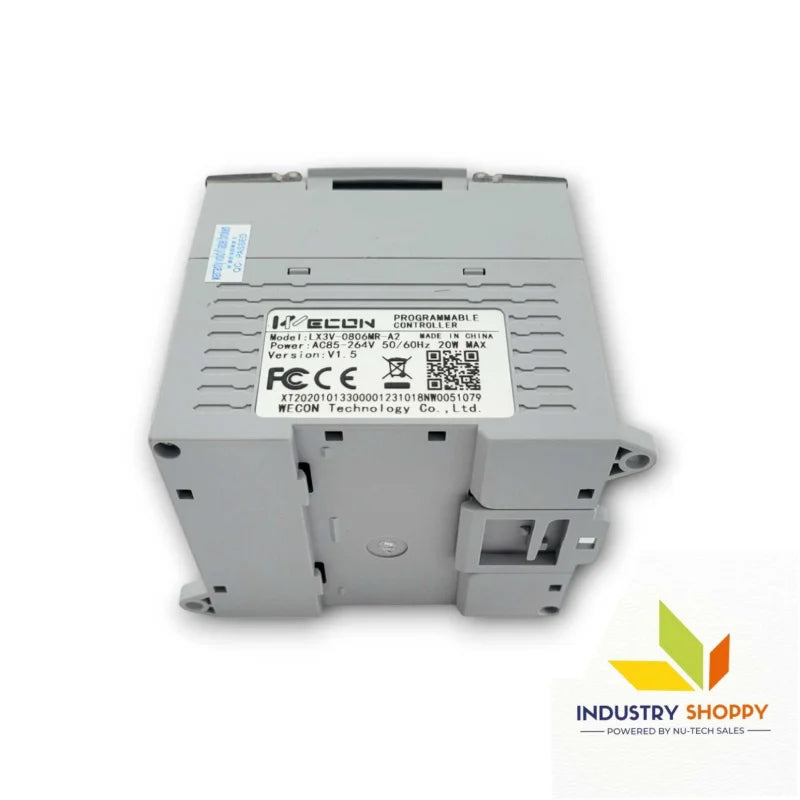

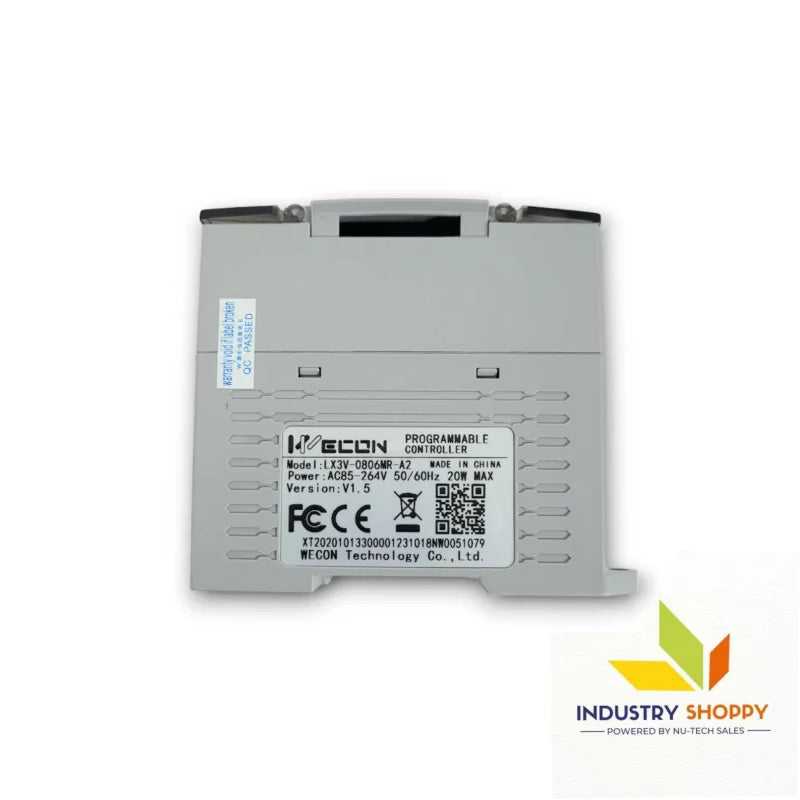

• Power Supply: AC 85265V 5060Hz / DC 24V ±10%
• Power Outage Time: 10ms
• Power Fuse: 250V 3.15A
• Rush Current: <15A 5ms (AC 100V), <30A 5ms (AC 200V), <15A 1ms (DC 24V)
• Power Consumption: <35W
• Power Output: DC 24V 850mA
• Output Type: Relay
• Output Circuit: Insulated Mechanistically
• Response Time: <10ms

Applications :-

• Industrial Automation Supports complex sequences with flexible ladder and instruction list programming.
• Equipment Control Manages real-time input and relay output for smooth device coordination.
• Process Monitoring Offers external interrupts and timer channels for fast logic response.
• Data Communication Dual serial ports ensure easy integration into communication networks.
• Harsh Environments Durable construction meets shock, temperature, and humidity resistance standards.

Technical Precautions :-

• Ensure all connections are secure, especially for RS-232 and RS-485 communication ports, to maintain reliable data transmission.
• Maintain a stable 24V DC power supply to optimize module performance and prevent malfunctions.
• Avoid installation in high-vibration or extremely humid environments to protect the hardware.
• Always follow the proper wiring diagram when connecting additional modules to avoid overloading the system.
• Proper grounding is essential to avoid damage due to electromagnetic interference (EMI).
