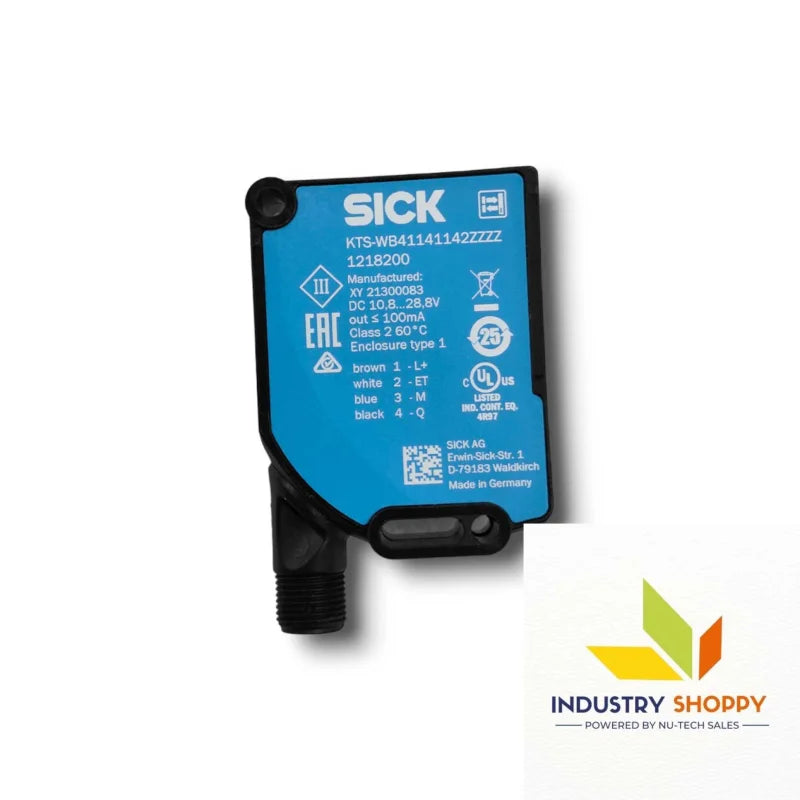

Sick KTS-WB41141142ZZZZ Contrast Sensor

Sick KTS-WB41141142ZZZZ Contrast Sensor :

The Sick KTS-WB41141142ZZZZ Contrast Sensor is engineered for high-precision detection in industrial automation applications. It is ideal for detecting contrasting objects, colors, and surfaces in dynamic environments. Featuring a sensing range of 30 to 200 mm, it offers reliable and accurate detection with a high-speed response time of < 0.5 ms.

This sensor is equipped with a LED light source that provides optimal contrast performance, ensuring reliable operation even in challenging conditions. With a push-pull output, it supports both light and dark operation and features quick and easy calibration via Teach-in functionality. The compact design (with dimensions of 12.9 mm × 32.3 mm × 23 mm) is robust and versatile, ideal for space-constrained applications.

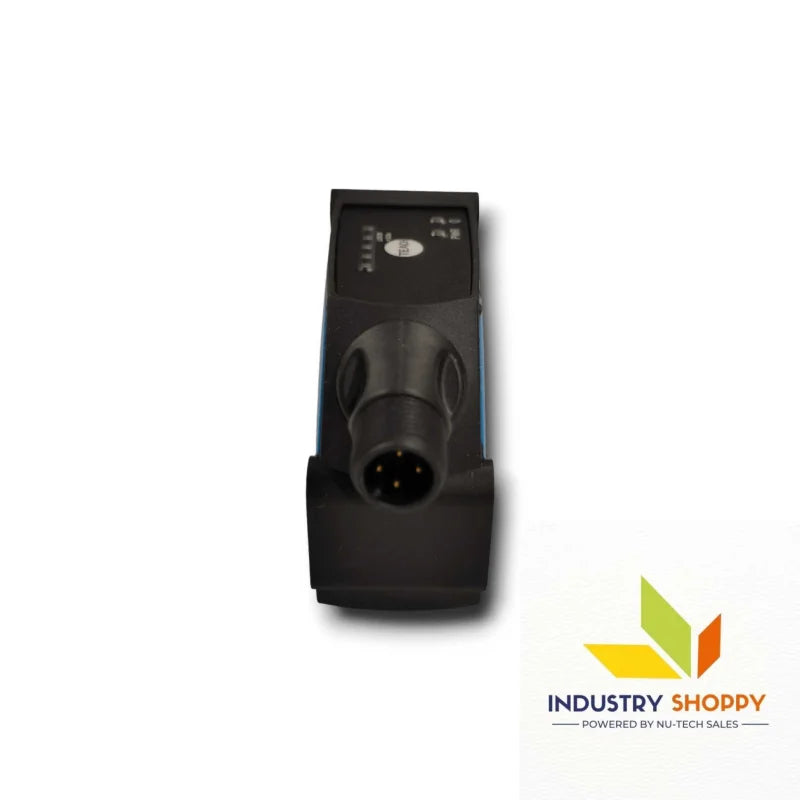

The Sick KTS-WB41141142ZZZZ sensor operates within a voltage range of 10-30 VDC, delivering an output current of 100 mA. Its IP67-rated housing made from durable plastic offers protection against dust and water, ensuring reliable performance in harsh industrial environments. The sensor features reverse polarity protection, short-circuit protection, and is equipped with an M8 4-pin connector for seamless integration.

Key features :-

Applications :-

• Mark Detection: Ideal for detecting printed marks, barcodes, or labels on products in printing, packaging, and sorting applications.
• Positioning and Alignment: Used for precise alignment of products on conveyors, assembly lines, or packaging systems based on contrast marks.
• Quality Control: Applied in quality control systems to verify the presence or correctness of contrast marks on materials or products during manufacturing.
• Label and Packaging Detection: Frequently used in packaging systems to detect labels, prints, or color changes on packages, ensuring proper processing.
• Product Tracking: Used in automated systems to track products by detecting contrasts on surfaces, ensuring accurate routing and sorting.
• Printing and Coating Applications: Applied in printing or coating systems where contrast detection is needed to monitor product quality or consistency.

Precautions:

• Ensure Correct Wiring: Incorrect connections can cause sensor failure
• Avoid Overvoltage: Operating within 10-30V DC prevents damage
• Protect from Extreme Heat: Avoid installing near high-temperature sources
• Regular Cleaning: Keep the optical lens free from dust and debris for optimal performance
