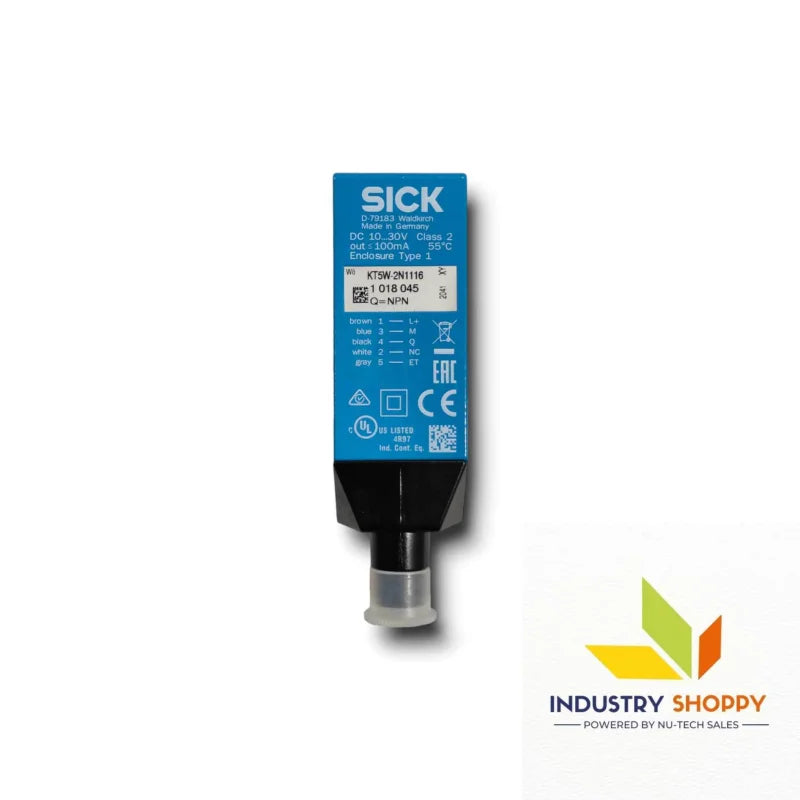

Sick KT5W-2N1116 Contrast Sensor

Sick KT5W-2N1116 Contrast Sensor

The Sick KT5W-2N1116 Contrast Sensor is designed for high-precision detection of contrasting objects and surfaces in industrial environments. With a sensing range of 20 to 200 mm, it ensures reliable operation even in dynamic production processes. The fast response time of < 0.3 ms makes it suitable for high-speed applications where quick detection is crucial.

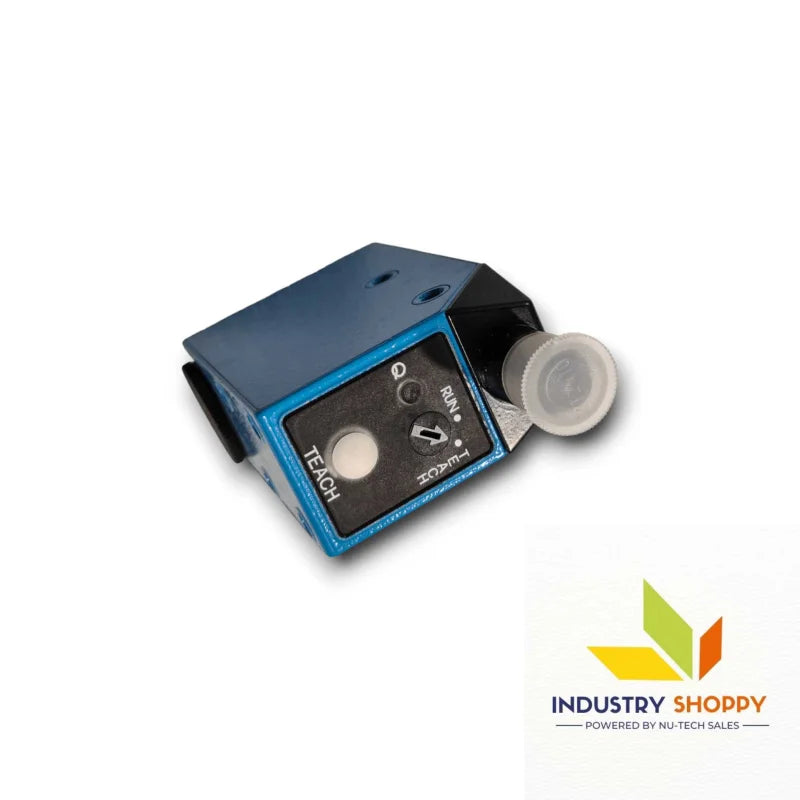

Equipped with a powerful LED light source, the sensor ensures optimal contrast detection in a variety of lighting conditions, delivering reliable performance. The Teach-in functionality enables quick and easy calibration, ensuring flexibility for different applications.

The compact design (measuring 29.5 mm × 17.3 mm × 25 mm) allows for easy integration into space-constrained areas. The push-pull output supports both light and dark operation, and the sensor features reverse polarity protection and short-circuit protection for added durability. With an IP67-rated housing, the sensor is resistant to dust, water, and harsh environmental conditions.

Operating within a 10-30 VDC voltage range, the Sick KT5W-2N1116 sensor delivers 100 mA output current, providing stable and reliable performance. The M8 4-pin connector ensures easy installation.

Key features :-

Applications :-

• Industrial Automation: Ideal for detecting contrast in automated production systems for precise object sorting and positioning.
• Quality Control: Used to detect subtle color variations and defects during product inspection, ensuring consistent product quality.
• Packaging Industry: Assists in identifying and sorting items based on color differences in packaging lines.
• Conveyor Systems: Ensures accurate object detection and sorting in high-speed conveyor applications.
• Textile Industry: Detects color inconsistencies and surface defects in fabric production for better quality control.

Precautions:

• Ensure Correct Wiring: Incorrect connections can cause sensor failure
• Avoid Overvoltage: Operating within 10-30V DC prevents damage
• Protect from Extreme Heat: Avoid installing near high-temperature sources
• Regular Cleaning: Keep the optical lens free from dust and debris for optimal performance
