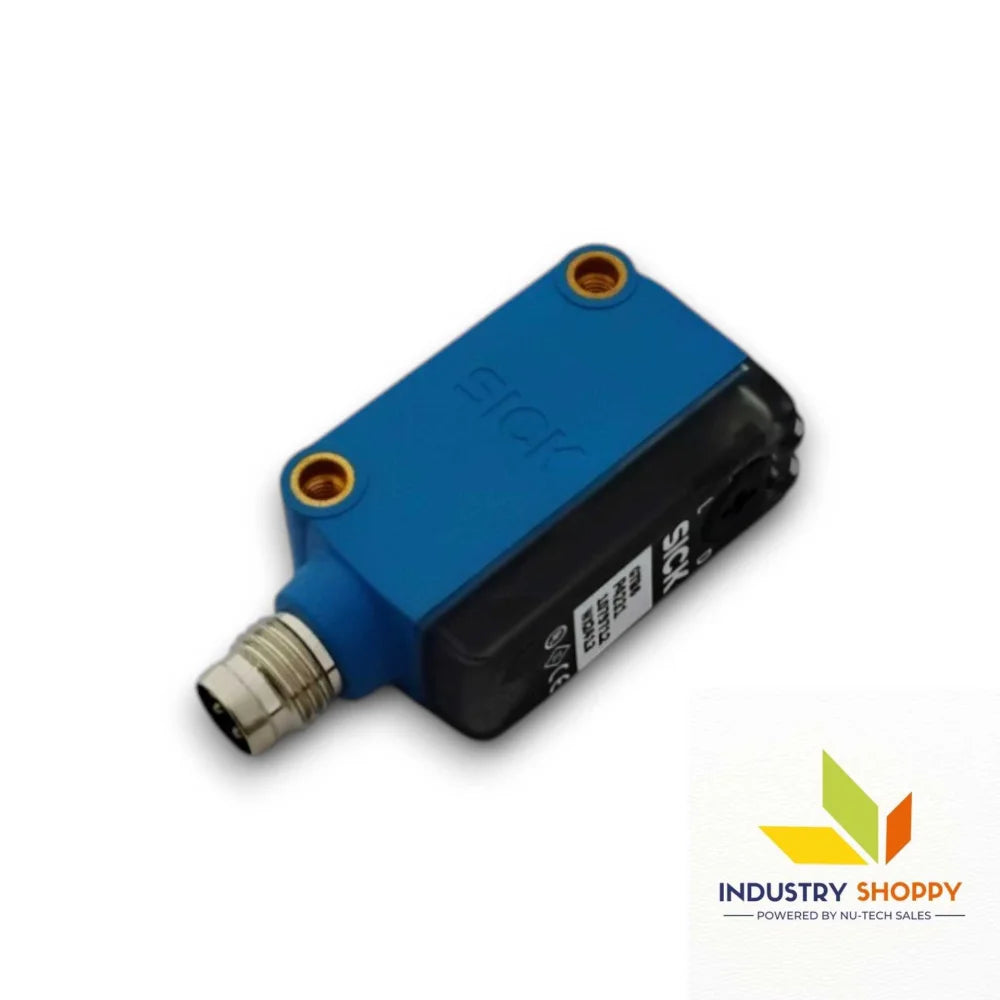

Sick GTB6-P4231 Photoelectric Sensor

Sick GTB6-P4231 Photoelectric Sensor

Part No. 1079712

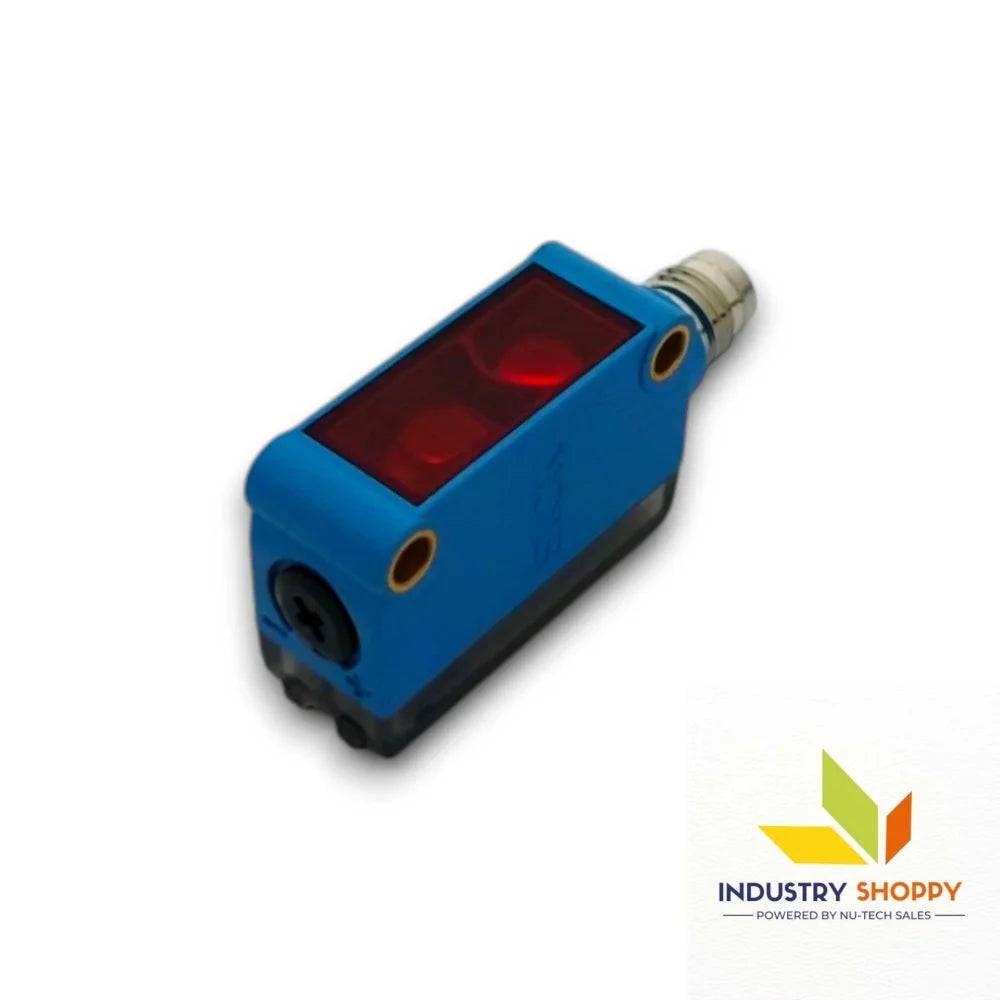

The Sick GTB6-P4231 Photoelectric Sensor offers high-precision background suppression for accurate object detection in a compact rectangular housing. With a sensing range of 50 to 220 mm and a maximum reach of 400 mm, it reliably detects objects across diverse environments. Its visible red PinPoint LED light source ensures a clear and consistent beam with a small light spot size of just 6 mm at 100 mm.

Designed for efficiency, this sensor includes mechanical spindle adjustment with five turns, allowing for precise tuning. It features light/dark switching, selectable via an integrated switch, and a fast response time of <1.25 ms, making it well-suited for dynamic applications. The device operates on 10–30 VDC with a low current draw of 32 mA, and supports a PNP output with a max current of 100 mA.

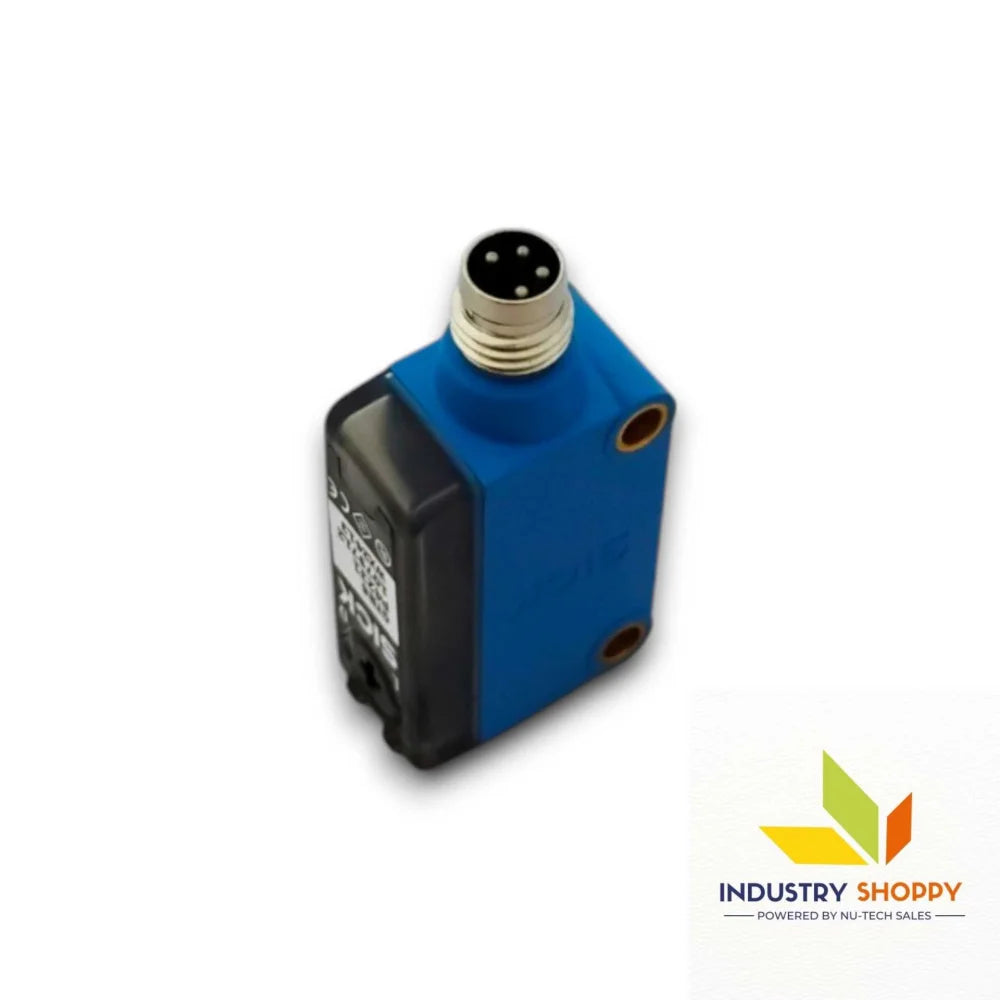

With an IP67-rated enclosure, robust ABS/PC housing, and a compact M8 connector, the GTB6-P4231 is ideal for tight installation spaces and demanding industrial conditions.

Key features :-

Applications :-

• Automated packaging lines: Detects packages of varying colors and sizes with stable accuracy.
• Conveyor systems: Ensures objects are present before progressing to the next process step.
• Robotic part recognition: Aids robotic arms in picking and placing small components with reliable sensing.
• Assembly stations: Detects presence or absence of parts before triggering the next assembly phase.
• Material handling systems: Maintains flow control by identifying object passage and spacing in real-time.

Precautions:

• Ensure Correct Wiring: Incorrect connections can cause sensor failure
• Avoid Overvoltage: Operating within 10-30V DC prevents damage
• Protect from Extreme Heat: Avoid installing near high-temperature sources
• Regular Cleaning: Keep the optical lens free from dust and debris for optimal performance
